MPLS-RIP实验文档

ljhk

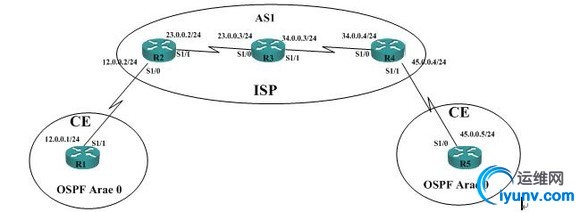

Ip 地址如上图，Loopback 0 分别为 x.x.x.x/32  R1/R5是CE。R2/R3/R4是ISP：R2/R4是PE，R3是P。

步骤一、ISP内部 运行IGP（OSPF）协议

R2：

router ospf 1

router-id 2.2.2.2

log-adjacency-changes

network 2.2.2.2 0.0.0.0 area 0

network 23.0.0.2 0.0.0.0 area 0

R3：

router ospf 1

router-id 3.3.3.3

log-adjacency-changes

network 3.3.3.3 0.0.0.0 area 0

network 23.0.0.3 0.0.0.0 area 0

network 34.0.0.3 0.0.0.0 area 0

R4：

router ospf 1

router-id 4.4.4.4

log-adjacency-changes

network 4.4.4.4 0.0.0.0 area 0

network 34.0.0.4 0.0.0.0 area 0

配置完检查邻居关系的建立：

R3:

R3#sh ip os nei

Neighbor ID     Pri   State           Dead Time   Address         Interface

4.4.4.4           0   FULL/  -        00:00:38    34.0.0.4        Serial1/1

2.2.2.2           0   FULL/  -        00:00:32    23.0.0.2        Serial1/0

R2/R4上show ip route 查看路由是否学到

R2#   sh ip route

34.0.0.0/24 is subnetted, 1 subnets

O       34.0.0.0 [110/128] via 23.0.0.3, 00:16:25, Serial1/1

     2.0.0.0/32 is subnetted, 1 subnets

C       2.2.2.2 is directly connected, Loopback0

     3.0.0.0/32 is subnetted, 1 subnets

O       3.3.3.3 [110/65] via 23.0.0.3, 00:16:25, Serial1/1

     4.0.0.0/32 is subnetted, 1 subnets

O       4.4.4.4 [110/129] via 23.0.0.3, 00:16:25, Serial1/1

     23.0.0.0/24 is subnetted, 1 subnets

C       23.0.0.0 is directly connected, Serial1/1

步骤二、ISP内部实现MPLS

R2：

mpls label range 200 300

mpls ldp route-id    lo 0

int s 1/1

mpls ip

R3:

mpls label range 300 400

mpls ldp route-id    lo 0

int s 1/1

mpls ip

int s 1/0

mpls ip

R4:

mpls label range 400 500

mpls ldp route-id    lo 0

int s 1/0

mpls ip

然后在R3上查看LDP 邻居的建立：

R3#sh mpls ldp neighbor

    Peer LDP Ident: 2.2.2.2:0; Local LDP Ident 3.3.3.3:0

        TCP connection: 2.2.2.2.646 - 3.3.3.3.33300

        State: Oper; Msgs sent/rcvd: 34/37; Downstream

        Up time: 00:23:03

        LDP discovery sources:

          Serial1/0, Src IP addr: 23.0.0.2

        Addresses bound to peer LDP Ident:

          23.0.0.2        2.2.2.2

    Peer LDP Ident: 4.4.4.4:0; Local LDP Ident 3.3.3.3:0

        TCP connection: 4.4.4.4.32962 - 3.3.3.3.646

        State: Oper; Msgs sent/rcvd: 25/28; Downstream

        Up time: 00:14:27

        LDP discovery sources:

          Serial1/1, Src IP addr: 34.0.0.4

        Addresses bound to peer LDP Ident:

          34.0.0.4        4.4.4.4

LDP邻居建立完成即可。

步骤三、ISP 中R2与R4（PE之间）建立MBPG-VPN关系

R2：

router bgp 1

no au                                                          默认关闭的

no syn                                                         默认关闭的

no bgp default ipv4-unicast

bgp log-neighbor-changes

neighbor 4.4.4.4 remote-as 1

neighbor 4.4.4.4 update-source Loopback0

!

address-family vpnv4

  neighbor 4.4.4.4 activate

  neighbor 4.4.4.4 send-community extended

exit-address-family

R4：

router bgp 1

no au

no syn

no bgp default ipv4-unicast

bgp log-neighbor-changes

neighbor 2.2.2.2 remote-as 1

neighbor 2.2.2.2 update-source Loopback0

!

address-family vpnv4

  neighbor 2.2.2.2 activate

  neighbor 2.2.2.2 send-community extended

exit-address-family

检查邻居是否建立成功：

R4#   sh ip bg vpn all summary

Neighbor        V    AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd

2.2.2.2         4     1      35      33        9    0    0 00:25:47        2

R2# sh ip bg vpn all su

Neighbor        V    AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd

4.4.4.4         4     1      34      36        9    0    0 00:26:14        2

步骤四、VRF的导入导出

R2/R4

创建VRF

ip vrf RIP

rd 1:1

route-target export 1:1

route-target import 1:1

接口下启用VRF

R2  interface Serial1/0

I    p vrf forwarding RIP

R4  interface Serial1/1

ip vrf forwarding RIP

PE-CE间使用RIP路由协议

R1：

router rip

version 2

network 1.0.0.0

network 12.0.0.0

no auto-summary

R2：

router rip

version 2

no auto-summary

!

address-family ipv4 vrf RIP

  network 12.0.0.0

  no auto-summary

exit-address-family

R5：

router rip

version 2

network 5.0.0.0

network 45.0.0.0

no auto-summary

R4

router rip

version 2

no auto-summary

!

address-family ipv4 vrf RIP

  network 45.0.0.0

  no auto-summary

exit-address-family

R2/R4 VRF 和BGP路由相互重分布

R2/R4

router rip

version 2

no auto-summary

router bg  1

address-family ipv4 vrf RIP

  redistribute bgp 1 metric transparent                    度量透传，即METRIC不改变

  no auto-summary

exit-address-family

R2/R4 上检查VRF路由是否学到

R2#sh ip bg vpn all

   Network          Next Hop            Metric LocPrf Weight Path

Route Distinguisher: 1:1 (default for vrf RIP)

*> 1.1.1.1/32       12.0.0.1                 1         32768 ?

*>i5.5.5.5/32       4.4.4.4                  1    100      0 ?

*> 12.0.0.0/24      0.0.0.0                  0         32768 ?

*>i45.0.0.0/24      4.4.4.4                  0    100      0 ?

查看R1/R5路由是否学到：

R1#        sh ip route

Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP

       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

       E1 - OSPF external type 1, E2 - OSPF external type 2

       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2

       ia - IS-IS inter area, * - candidate default, U - per-user static route

       o - ODR, P - periodic downloaded static route

Gateway of last resort is not set

     1.0.0.0/32 is subnetted, 1 subnets

C       1.1.1.1 is directly connected, Loopback0

     5.0.0.0/32 is subnetted, 1 subnets

R       5.5.5.5 [120/2] via 12.0.0.2, 00:00:05, Serial1/1

     12.0.0.0/24 is subnetted, 1 subnets

C       12.0.0.0 is directly connected, Serial1/1

     45.0.0.0/24 is subnetted, 1 subnets

R       45.0.0.0 [120/1] via 12.0.0.2, 00:00:05, Serial1/1

步骤五、测试MPLS ，查看转发过程标签转换情况

单方向从R1-R5观察：

R1#traceroute 5.5.5.5

Type escape sequence to abort.

Tracing the route to 5.5.5.5

  1 12.0.0.2 48 msec 48 msec 32 msec

  2 23.0.0.3 [MPLS: Labels 301/403 Exp 0] 112 msec 120 msec 160 msec

  3 45.0.0.4 [MPLS: Label 403 Exp 0] 108 msec 120 msec 108 msec

  4 45.0.0.5 128 msec *  104 msec

R2#sh ip cef vrf RIP detail

5.5.5.5/32, version 9, epoch 0, cached adjacency to Serial1/1

0 packets, 0 bytes

  tag information set

    local tag: VPN-route-head

    fast tag rewrite with Se1/1, point2point, tags imposed: {301 403}

  via 4.4.4.4, 0 dependencies, recursive

    next hop 23.0.0.3, Serial1/1 via 4.4.4.4/32

    valid cached adjacency

tag rewrite with Se1/1, point2point, tags imposed: {301 403}

R3#sh mpls forwarding-table

Local  Outgoing    Prefix            Bytes tag  Outgoing   Next Hop

tag    tag or VC   or Tunnel Id      switched   interface

301    Pop tag     4.4.4.4/32        4760       Se1/1      point2point

R4#sh ip cef vrf RIP detail

5.5.5.5/32, version 10, epoch 0, cached adjacency to Serial1/1

0 packets, 0 bytes

  tag information set

    local tag: 403

  via 45.0.0.5, Serial1/1, 0 dependencies

    next hop 45.0.0.5, Serial1/1

    valid cached adjacency

    tag rewrite with Se1/1, point2point, tags imposed: {}
