sharepoint 2010 自定义页面布局

shawnmei

　　在sharepoint开发中经常遇到 自定义网站栏、内容类型，页面布局和模板页也会遇到，遇到机会就相对比较小。

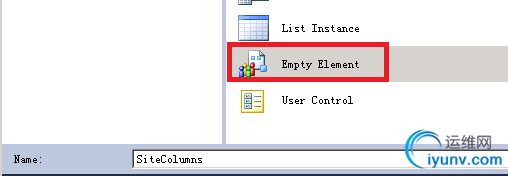

　　首先新建一个空的sharepoint项目:
　　1)创建网站兰：

　　修改SiteColumns\Elements.xml文件如下：





<?xml version="1.0" encoding="utf-8"?>
<Elements xmlns="http://schemas.microsoft.com/sharepoint/">
<Field ID="{76C140E1-D827-433B-AD38-257F9594B846}"
Name="BenefitProvider"
DisplayName="Provider Name"
Group="Human Resources"
Type="Text"
Required="FALSE"/>
<Field ID="{A1758D70-B479-469C-90BB-C3038ED42B15}"
Name="BenefitProviderLogo"
DisplayName="Provder Logo"
Group="Human Resources"
Type="Image"
Required="FALSE"/>
<Field ID="{5F516D92-969C-4661-81B9-C9210E2A2FDC}"
Name="BenefitType"
DisplayName="Benefit Category"
Group="Human Resources"
Type="Choice"
Required="FALSE">
<CHOICES>
<CHOICE>Medical</CHOICE>
<CHOICE>Dental</CHOICE>
<CHOICE>Vision</CHOICE>
<CHOICE>Insurance</CHOICE>
</CHOICES>
</Field>
<Field ID="{521D5F12-16BC-4E82-997C-F28933ABE59E}"
Name="BenefitDescription"
DisplayName="Benefit Description"
Group="Human Resources"
Type="HTML" RichText="TRUE" RichTextMode="FullHtml"
Required="FALSE"/>
</Elements>
View Code 　　2）创建内容内型

　　修改ContentTypes\Elements.xml文件如下：





<?xml version="1.0" encoding="utf-8"?>
<Elements xmlns="http://schemas.microsoft.com/sharepoint/">
<!-- Parent ContentType: 文章页面 (0x010100C568DB52D9D0A14D9B2FDCC96666E9F2007948130EC3DB064584E219954237AF3900242457EFB8B24247815D688C526CD44D) -->
<ContentType ID="0x010100C568DB52D9D0A14D9B2FDCC96666E9F2007948130EC3DB064584E219954237AF3900242457EFB8B24247815D688C526CD44D0086e87a8467684813ad2d89881b6da33d"
Name="Benefits Information Page"
Group="Human Resources"
Description="Benefits Information page layout content type"
Inherits="TRUE"
Version="0">
<FieldRefs>
<FieldRef ID="{76C140E1-D827-433B-AD38-257F9594B846}" Name="BenefitProvider"/>
<FieldRef ID="{A1758D70-B479-469C-90BB-C3038ED42B15}" Name="BenefitProviderLogo"/>
<FieldRef ID="{5F516D92-969C-4661-81B9-C9210E2A2FDC}" Name="BenefitType"/>
<FieldRef ID="{521D5F12-16BC-4E82-997C-F28933ABE59E}" Name="BenefitDescription"/>
</FieldRefs>
</ContentType>
</Elements>
View Code 　　注意这里的<FieldRef ID="{76C140E1-D827-433B-AD38-257F9594B846}" Name="BenefitProvider"/>是刚才创建网站栏的ID。
　　3）创建自定义 页面布局
　　我这里推荐大家在sharepoint Designer把页面布局的内容创建好，然后再用feature在部署。
　　在sharepoint Designe中：

　　在用sharepoint designer导出改文件

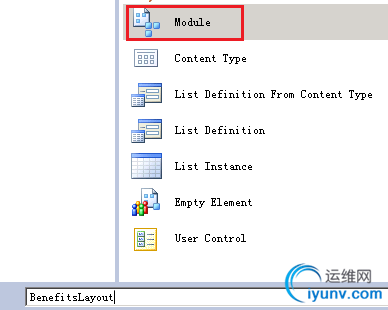

　　在VS中

　　把那个文本文件从命名为BenefitsInformation.aspx，把先前sharepoint designer导出文件的内容拷贝到这个文件上来。





<%@ Page language="C#"   Inherits="Microsoft.SharePoint.Publishing.PublishingLayoutPage,Microsoft.SharePoint.Publishing,Version=14.0.0.0,Culture=neutral,PublicKeyToken=71e9bce111e9429c" meta:webpartpageexpansion="full" meta:progid="SharePoint.WebPartPage.Document" %>
<%@ Register Tagprefix="SharePointWebControls" Namespace="Microsoft.SharePoint.WebControls" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Register Tagprefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Register Tagprefix="PublishingWebControls" Namespace="Microsoft.SharePoint.Publishing.WebControls" Assembly="Microsoft.SharePoint.Publishing, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Register Tagprefix="PublishingNavigation" Namespace="Microsoft.SharePoint.Publishing.Navigation" Assembly="Microsoft.SharePoint.Publishing, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<asp:Content ContentPlaceholderID="PlaceHolderPageTitle" runat="server">
<SharePointWebControls:FieldValue id="PageTitle" FieldName="Title" runat="server"/>
</asp:Content>
<asp:Content ContentPlaceholderID="PlaceHolderMain" runat="server">
<SharePointWebControls:TextField FieldName="76c140e1-d827-433b-ad38-257f9594b846" runat="server"></SharePointWebControls:TextField>
<PublishingWebControls:RichImageField FieldName="a1758d70-b479-469c-90bb-c3038ed42b15" runat="server"></PublishingWebControls:RichImageField>
<SharePointWebControls:DropDownChoiceField FieldName="5f516d92-969c-4661-81b9-c9210e2a2fdc" runat="server"></SharePointWebControls:DropDownChoiceField>
<PublishingWebControls:RichHtmlField FieldName="521d5f12-16bc-4e82-997c-f28933abe59e" runat="server"></PublishingWebControls:RichHtmlField>
</asp:Content>
View Code 　　修改BenefitsLayout\Elements.xml 文件：





<?xml version="1.0" encoding="utf-8"?>
<Elements xmlns="http://schemas.microsoft.com/sharepoint/">
<Module Name="BenefitsLayout"  Url="_catalogs/masterpage" RootWebOnly="TRUE">
<File Path="BenefitsLayout\BenefitsInformation.aspx" Url="BenefitsInformation.aspx" Type="GhostableInLibrary">
<Property Name="Title" Value="Benefits Information Page" />
<Property Name="MasterPageDescription" Value="Use benefits page to publish content related to benefits information" />
<Property Name="ContentType" Value="$Resources:cmscore,contenttype_pagelayout_name;" />
<Property Name="PublishingAssociatedContentType" Value=";#Benefits Information Page;#0x010100C568DB52D9D0A14D9B2FDCC96666E9F2007948130EC3DB064584E219954237AF3900242457EFB8B24247815D688C526CD44D0086e87a8467684813ad2d89881b6da33d;#" />
</File>
</Module>
</Elements>
View Code 　　注意这里的   <Property Name="PublishingAssociatedContentType" Value=";#Benefits Information Page;#0x010100C568DB52D9D0A14D9B2FDCC96666E9F2007948130EC3DB064584E219954237AF3900242457EFB8B24247815D688C526CD44D0086e87a8467684813ad2d89881b6da33d;#" />中间这一长串就是我们先前定义的内容类型的ID。
　　最后发布,发布结果如下：

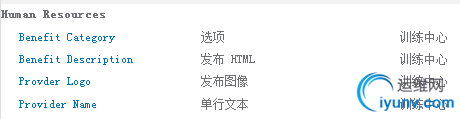

　　网站栏：

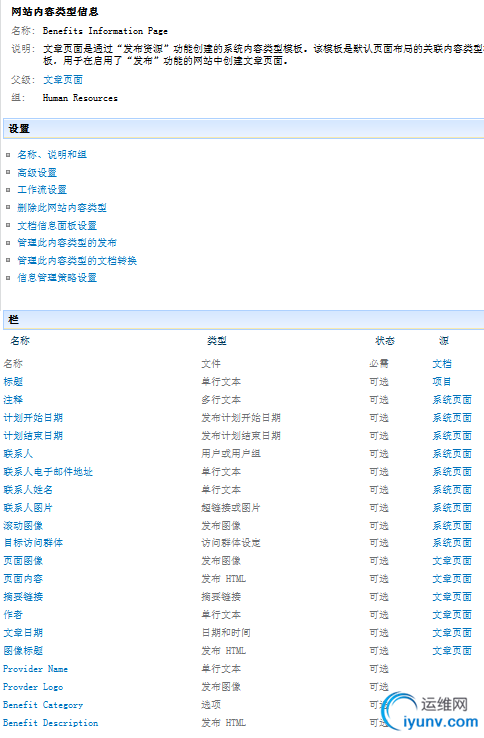

　　内容类型：


　　自定义页面布局：

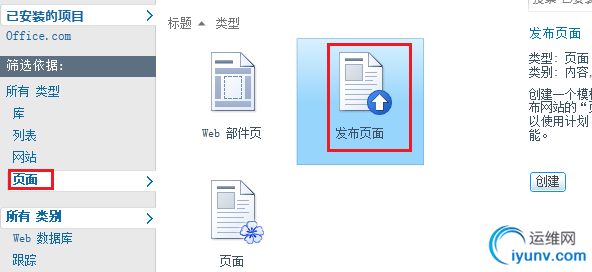

　　用我们自己的页面布局来创建一个页面

bianjia

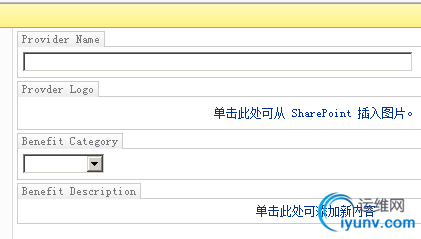

　　编辑信息如下：

　　最后签入：
