三台机器操作系统环境如下：
1
2
3
4
5
6
7
[mongodb@node1 ~]$ cat /etc/issue
CentOS release 6.4 (Final)
Kernel \r on an \m
[mongodb@node1 ~]$ uname -r
2.6.32-358.el6.x86_64
[mongodb@node1 ~]$ uname -m
x86_64

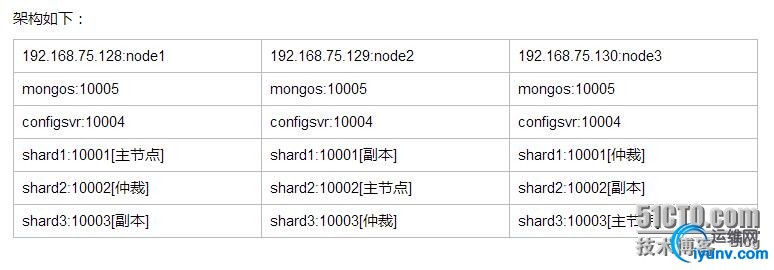

架构如下图，之前的架构图找不到了，就凑合看下面的表格吧。。

192.168.75.128、shard1:10001、shard2:10002、shard3:10003、configsvr:10004、mongos:10005
注：shard1主节点，shard2仲裁，shard3副本
192.168.75.129、shard1:10001、shard2:10002、shard3:10003、configsvr:10004、mongos:10005
注：shard1副本，shard2主节点，shard3仲裁
192.168.75.130、shard1:10001、shard2:10002、shard3:10003、configsvr:10004、mongos:10005
注：shard1仲裁，shard2副本，shard3主节点
node1：192.168.75.128
node2：192.168.75.129
node3：192.168.75.130

创建mongodb用户
1
2
3
4
5
[iyunv@node1 ~]# groupadd  mongodb
[iyunv@node1 ~]# useradd  -g mongodb mongodb
[iyunv@node1 ~]# mkdir /data
[iyunv@node1 ~]# chown mongodb.mongodb /data -R
[iyunv@node1 ~]# su - mongodb



创建目录和文件
1
2
3
4
5
6
[mongodb@node1 ~]$ mkdir /data/{config,shard1,shard2,shard3,mongos,logs,configsvr,keyfile} -pv
[mongodb@node1 ~]$ touch /data/keyfile/zxl
[mongodb@node1 ~]$ touch /data/logs/shard{1..3}.log
[mongodb@node1 ~]$ touch /data/logs/{configsvr,mongos}.log
[mongodb@node1 ~]$ touch /data/config/shard{1..3}.conf
[mongodb@node1 ~]$ touch /data/config/{configsvr,mongos}.conf



下载mongodb
1
2
3
[mongodb@node1 ~]$ wget https://fastdl.mongodb.org/linux ... 64-rhel62-3.2.3.tgz
[mongodb@node3 ~]$ tar fxz mongodb-linux-x86_64-rhel62-3.2.3.tgz -C /data
[mongodb@node3 ~]$ ln -s /data/mongodb-linux-x86_64-rhel62-3.2.3 /data/mongodb



配置mongodb环境变量
1
2
[mongodb@node1 ~]$ echo "export PATH=$PATH:/data/mongodb/bin" >> ~/.bash_profile
[mongodb@node1 data]$ source ~/.bash_profile




shard1.conf配置文件内容如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
[mongodb@node1 ~]$ cat /data/config/shard1.conf
systemLog:
  destination: file
  path: /data/logs/shard1.log
  logAppend: true
processManagement:
  fork: true
  pidFilePath: "/data/shard1/shard1.pid"
net:
  port: 10001
storage:
  dbPath: "/data/shard1"
  engine: wiredTiger
  journal:
    enabled: true
  directoryPerDB: true
operationProfiling:
  slowOpThresholdMs: 10
  mode: "slowOp"
#security:
#  keyFile: "/data/keyfile/zxl"
#  clusterAuthMode: "keyFile"
replication:
  oplogSizeMB: 50
  replSetName: "shard1_zxl"
  secondaryIndexPrefetch: "all"



shard2.conf配置文件内容如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
[mongodb@node1 ~]$ cat /data/config/shard2.conf
systemLog:
  destination: file
  path: /data/logs/shard2.log
  logAppend: true
processManagement:
  fork: true
  pidFilePath: "/data/shard2/shard2.pid"
net:
  port: 10002
storage:
  dbPath: "/data/shard2"
  engine: wiredTiger
  journal:
    enabled: true
  directoryPerDB: true
operationProfiling:
  slowOpThresholdMs: 10
  mode: "slowOp"
#security:
#  keyFile: "/data/keyfile/zxl"
#  clusterAuthMode: "keyFile"
replication:
  oplogSizeMB: 50
  replSetName: "shard2_zxl"
  secondaryIndexPrefetch: "all"



shard3.conf配置文件内容如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
[mongodb@node1 ~]$ cat /data/config/shard3.conf
systemLog:
  destination: file
  path: /data/logs/shard3.log
  logAppend: true
processManagement:
  fork: true
  pidFilePath: "/data/shard3/shard3.pid"
net:
  port: 10003
storage:
  dbPath: "/data/shard3"
  engine: wiredTiger
  journal:
    enabled: true
  directoryPerDB: true
operationProfiling:
  slowOpThresholdMs: 10
  mode: "slowOp"
#security:
#  keyFile: "/data/keyfile/zxl"
#  clusterAuthMode: "keyFile"
replication:
  oplogSizeMB: 50
  replSetName: "shard3_zxl"
  secondaryIndexPrefetch: "all"



configsvr.conf配置文件内容如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
[mongodb@node1 ~]$ cat /data/config/configsvr.conf
systemLog:
  destination: file
  path: /data/logs/configsvr.log
  logAppend: true
processManagement:
  fork: true
  pidFilePath: "/data/configsvr/configsvr.pid"
net:
  port: 10004
storage:
  dbPath: "/data/configsvr"
  engine: wiredTiger
  journal:
    enabled: true
#security:
#  keyFile: "/data/keyfile/zxl"
#  clusterAuthMode: "keyFile"
sharding:
  clusterRole: configsvr



mongos.conf配置文件内容如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
[mongodb@node3 ~]$ cat /data/config/mongos.conf
systemLog:
  destination: file
  path: /data/logs/mongos.log
  logAppend: true
processManagement:
  fork: true
  pidFilePath: /data/mongos/mongos.pid
net:
  port: 10005
sharding:
  configDB: 192.168.75.128:10004,192.168.75.129:10004,192.168.75.130:10004
#security:
#  keyFile: "/data/keyfile/zxl"
#  clusterAuthMode: "keyFile"



注：以上操作只是在node1机器上操作，请把上面这些操作步骤在另外2台机器操作一下，包括创建用户创建目录文件以及安装mongodb等，以及文件拷贝到node2、node3对应的目录下，拷贝之后查看一下文件的属主属组是否为mongodb。关于configsvr的问题，官方建议1台或者3台，最好为奇数，你懂得。不懂的话自行搜索mongodb官方就知道答案了，链接找不到了，自己找找吧。
启动各个机器节点的mongod，shard1、shard2、shard3
1
2
3
4
5
[mongodb@node1 ~]$ mongod -f /data/config/shard1.conf
mongod: /usr/lib64/libcrypto.so.10: no version information available (required by m
mongod: /usr/lib64/libcrypto.so.10: no version information available (required by m
mongod: /usr/lib64/libssl.so.10: no version information available (required by mong
mongod: relocation error: mongod: symbol TLSv1_1_client_method, version libssl.so.1n file libssl.so.10 with link time reference



注：无法启动，看到相应的提示后
解决：安装openssl即可，三台机器均安装openssl-devel
1
2
3
[mongodb@node1 ~]$ su - root
Password:
[iyunv@node1 ~]# yum install openssl-devel -y



再次切换mongodb用户启动三台机器上的mongod，shard1、shard2、shard3
1
2
3
4
5
6
7
8
9
10
11
12
[mongodb@node1 ~]$ mongod -f /data/config/shard1.conf
about to fork child process, waiting until server is ready for connections.
forked process: 1737
child process started successfully, parent exiting
[mongodb@node1 ~]$ mongod -f /data/config/shard2.conf
about to fork child process, waiting until server is ready for connections.
forked process: 1760
child process started successfully, parent exiting
[mongodb@node1 ~]$ mongod -f /data/config/shard3.conf
about to fork child process, waiting until server is ready for connections.
forked process: 1783
child process started successfully, parent exiting



进入node1机器上的mongod:10001登录
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
[mongodb@node1 ~]$ mongo --port 10001
MongoDB shell version: 3.2.3
connecting to: 127.0.0.1:10001/test
Welcome to the MongoDB shell.
For interactive help, type "help".
For more comprehensive documentation, see
http://docs.mongodb.org/
Questions? Try the support group
http://groups.google.com/group/mongodb-user
Server has startup warnings:
2016-03-08T13:28:18.508+0800 I CONTROL  [initandlisten]
2016-03-08T13:28:18.508+0800 I CONTROL  [initandlisten] ** WARNING: /sys/kernel/mm/epage/enabled is 'always'.
2016-03-08T13:28:18.508+0800 I CONTROL  [initandlisten] **        We suggest settin
2016-03-08T13:28:18.508+0800 I CONTROL  [initandlisten]
2016-03-08T13:28:18.508+0800 I CONTROL  [initandlisten] ** WARNING: /sys/kernel/mm/epage/defrag is 'always'.
2016-03-08T13:28:18.508+0800 I CONTROL  [initandlisten] **        We suggest settin
2016-03-08T13:28:18.508+0800 I CONTROL  [initandlisten]



注：提示warning......
解决：在三台机器上均操作一下内容即可
1
2
3
4
[mongodb@node2 config]$ su - root
Password
[iyunv@node1 ~]# echo never > /sys/kernel/mm/transparent_hugepage/enabled
[iyunv@node1 ~]# echo never > /sys/kernel/mm/transparent_hugepage/defrag



关闭三台机器上的mongod实例，然后再次启动三台机器上mongod实例即可。
1
2
3
4
[mongodb@node1 ~]$ netstat -ntpl|grep mongo|awk '{print $NF}'|awk -F'/' '{print $1}'|xargs kill
[mongodb@node1 ~]$ mongod -f /data/config/shard1.conf
[mongodb@node1 ~]$ mongod -f /data/config/shard2.conf
[mongodb@node1 ~]$ mongod -f /data/config/shard3.conf



配置复制集
node1机器上操作配置复制集
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
[mongodb@node1 config]$ mongo --port 10001
MongoDB shell version: 3.2.3
connecting to: 127.0.0.1:10001/test
> use admin
switched to db admin
> config = { _id:"shard1_zxl", members:[
... ... {_id:0,host:"192.168.75.128:10001"},
... ... {_id:1,host:"192.168.75.129:10001"},
... ... {_id:2,host:"192.168.75.130:10001",arbiterOnly:true}
... ... ]
... ... }
{
"_id" : "shard1_zxl",
"members" : [
{
"_id" : 0,
"host" : "192.168.75.128:10001"
},
{
"_id" : 1,
"host" : "192.168.75.129:10001"
},
{
"_id" : 2,
"host" : "192.168.75.130:10001",
"arbiterOnly" : true
}
]
}
> rs.initiate(con
config                 connect(               connectionURLTheSame(  constructor
> rs.initiate(config)
{ "ok" : 1 }



node2机器上操作配置复制集
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
[mongodb@node2 config]$ mongo --port 10002
MongoDB shell version: 3.2.3
connecting to: 127.0.0.1:10002/test
Welcome to the MongoDB shell.
For interactive help, type "help".
For more comprehensive documentation, see
http://docs.mongodb.org/
Questions? Try the support group
http://groups.google.com/group/mongodb-user
> use admin
switched to db admin
> config = { _id:"shard2_zxl", members:[
... ... {_id:0,host:"192.168.75.129:10002"},
... ... {_id:1,host:"192.168.75.130:10002"},
... ... {_id:2,host:"192.168.75.128:10002",arbiterOnly:true}
... ... ]
... ... }
{
"_id" : "shard2_zxl",
"members" : [
{
"_id" : 0,
"host" : "192.168.75.129:10002"
},
{
"_id" : 1,
"host" : "192.168.75.130:10002"
},
{
"_id" : 2,
"host" : "192.168.75.128:10002",
"arbiterOnly" : true
}
]
}
> rs.initiate(config)
{ "ok" : 1 }



node3机器上操作配置复制集
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
[mongodb@node3 config]$ mongo --port 10003
MongoDB shell version: 3.2.3
connecting to: 127.0.0.1:10003/test
Welcome to the MongoDB shell.
For interactive help, type "help".
For more comprehensive documentation, see
http://docs.mongodb.org/
Questions? Try the support group
http://groups.google.com/group/mongodb-user
> use admin
switched to db admin
>  config = {_id:"shard3_zxl", members:[
... ... {_id:0,host:"192.168.75.130:10003"},
... ... {_id:1,host:"192.168.75.128:10003"},
... ... {_id:2,host:"192.168.75.129:10003",arbiterOnly:true}
... ... ]
... ... }
{
"_id" : "shard3_zxl",
"members" : [
{
"_id" : 0,
"host" : "192.168.75.130:10003"
},
{
"_id" : 1,
"host" : "192.168.75.128:10003"
},
{
"_id" : 2,
"host" : "192.168.75.129:10003",
"arbiterOnly" : true
}
]
}
> rs.initiate(config)
{ "ok" : 1 }



注：以上是配置rs复制集，相关命令如：rs.status()，查看各个复制集的状况
启动三台机器上的configsvr和mongos节点
1
2
3
4
5
6
7
8
[mongodb@node1 logs]$ mongod -f /data/config/configsvr.conf
about to fork child process, waiting until server is ready for connections.
forked process: 6317
child process started successfully, parent exiting
[mongodb@node1 logs]$ mongos -f /data/config/mongos.conf
about to fork child process, waiting until server is ready for connections.
forked process: 6345
child process started successfully, parent exiting



配置shard分片
在node1机器上配置shard分片
1
2
3
4
5
6
7
8
9
10
11
[mongodb@node1 config]$ mongo --port 10005
MongoDB shell version: 3.2.3
connecting to: 127.0.0.1:10005/test
mongos> use admin
switched to db admin
mongos> db.runCommand({addshard:"shard1_zxl/192.168.75.128:10001,192.168.75.129:10001,192.168.75.130:10001"});
{ "shardAdded" : "shard1_zxl", "ok" : 1 }
mongos> db.runCommand({addshard:"shard2_zxl/192.168.75.128:10002,192.168.75.129:10002,192.168.75.130:10002"});
{ "shardAdded" : "shard2_zxl", "ok" : 1 }
mongos> db.runCommand({addshard:"shard3_zxl/192.168.75.128:10003,192.168.75.129:10003,192.168.75.130:10003"});
{ "shardAdded" : "shard3_zxl", "ok" : 1 }



1
2
3
4
#db.runCommand({addshard:"shard1_zxl/192.168.33.131:10001,192.168.33.132:10001,192.168.33.136:10001"});
#db.runCommand({addshard:"shard2_zxl/192.168.33.131:10002,192.168.33.132:10002,192.168.33.136:10002"});
#db.runCommand({addshard:"shard3_zxl/192.168.33.131:10003,192.168.33.132:10003,192.168.33.136:10003"});
注：根据自己的实际情况，修改上面内容，快速执行。。你懂得。。



查看shard信息
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
mongos> sh.status()
--- Sharding Status ---
  sharding version: {
"_id" : 1,
"minCompatibleVersion" : 5,
"currentVersion" : 6,
"clusterId" : ObjectId("56de6f4176b47beaa9c75e9d")
}
  shards:
{  "_id" : "shard1_zxl",  "host" : "shard1_zxl/192.168.75.128:10001,192.168.75.129:10001" }
{  "_id" : "shard2_zxl",  "host" : "shard2_zxl/192.168.75.129:10002,192.168.75.130:10002" }
{  "_id" : "shard3_zxl",  "host" : "shard3_zxl/192.168.75.128:10003,192.168.75.130:10003" }
  active mongoses:
"3.2.3" : 3
  balancer:
Currently enabled:  yes
Currently running:  no
Failed balancer rounds in last 5 attempts:  0
Migration Results for the last 24 hours:
No recent migrations
  databases:



查看分片状态
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
mongos> db.runCommand( {listshards : 1 } )
{
"shards" : [
{
"_id" : "shard1_zxl",
"host" : "shard1_zxl/192.168.75.128:10001,192.168.75.129:10001"
},
{
"_id" : "shard2_zxl",
"host" : "shard2_zxl/192.168.75.129:10002,192.168.75.130:10002"
},
{
"_id" : "shard3_zxl",
"host" : "shard3_zxl/192.168.75.128:10003,192.168.75.130:10003"
}
],
"ok" : 1
}



启用shard分片的库名字为'zxl'，即为库
1
2
mongos> sh.enableSharding("zxl")
{ "ok" : 1 }



设置集合的名字以及字段，默认自动建立索引，zxl库，haha集合
1
2
mongos> sh.shardCollection("zxl.haha",{age: 1, name: 1})
{ "collectionsharded" : "zxl.haha", "ok" : 1 }



模拟在haha集合中插入10000数据
1
2
mongos> for (i=1;i<=10000;i++) db.haha.insert({name: "user"+i, age: (i%150)})
WriteResult({ "nInserted" : 1 })



可以使用上面mongos> sh.status()命令查看各个shard分片情况，以上就是复制集和shard分片搭建完成，主要还是需要理解rs和shard原理。还是把结果发出来吧，如下
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
mongos> sh.status()
--- Sharding Status ---
  sharding version: {
"_id" : 1,
"minCompatibleVersion" : 5,
"currentVersion" : 6,
"clusterId" : ObjectId("56de6f4176b47beaa9c75e9d")
}
  shards:
{  "_id" : "shard1_zxl",  "host" : "shard1_zxl/192.168.75.128:10001,192.168.75.129:10001" }
{  "_id" : "shard2_zxl",  "host" : "shard2_zxl/192.168.75.129:10002,192.168.75.130:10002" }
{  "_id" : "shard3_zxl",  "host" : "shard3_zxl/192.168.75.128:10003,192.168.75.130:10003" }
  active mongoses:
"3.2.3" : 3
  balancer:
Currently enabled:  yes
Currently running:  no
Failed balancer rounds in last 5 attempts:  0
Migration Results for the last 24 hours:
2 : Success
  databases:
{  "_id" : "zxl",  "primary" : "shard3_zxl",  "partitioned" : true }
zxl.haha
shard key: { "age" : 1, "name" : 1 }
unique: false
balancing: true
chunks:
shard1_zxl1
shard2_zxl1
shard3_zxl1
{ "age" : { "$minKey" : 1 }, "name" : { "$minKey" : 1 } } -->> { "age" : 2, "name" : "user2" } on : shard1_zxl Timestamp(2, 0)
{ "age" : 2, "name" : "user2" } -->> { "age" : 22, "name" : "user22" } on : shard2_zxl Timestamp(3, 0)
{ "age" : 22, "name" : "user22" } -->> { "age" : { "$maxKey" : 1 }, "name" : { "$maxKey" : 1 } } on : shard3_zxl Timestamp(3, 1)



以上就是mongodb3.2复制集和shard分片搭建就此完成，还是多多看看各个角色是什么概念以及原理性的东东吧。。


运维网声明 1、欢迎大家加入本站运维交流群:群②:261659950 群⑤:202807635 群⑦870801961 群⑧679858003
2、本站所有主题由该帖子作者发表，该帖子作者与运维网享有帖子相关版权
3、所有作品的著作权均归原作者享有，请您和我们一样尊重他人的著作权等合法权益。如果您对作品感到满意，请购买正版
4、禁止制作、复制、发布和传播具有反动、淫秽、色情、暴力、凶杀等内容的信息，一经发现立即删除。若您因此触犯法律，一切后果自负，我们对此不承担任何责任
5、所有资源均系网友上传或者通过网络收集，我们仅提供一个展示、介绍、观摩学习的平台，我们不对其内容的准确性、可靠性、正当性、安全性、合法性等负责，亦不承担任何法律责任
6、所有作品仅供您个人学习、研究或欣赏，不得用于商业或者其他用途，否则，一切后果均由您自己承担，我们对此不承担任何法律责任
7、如涉及侵犯版权等问题，请您及时通知我们，我们将立即采取措施予以解决
8、联系人Email：admin@iyunv.com 网址：www.yunweiku.com

所有资源均系网友上传或者通过网络收集,我们仅提供一个展示、介绍、观摩学习的平台,我们不对其承担任何法律责任,如涉及侵犯版权等问题,请您及时通知我们,我们将立即处理,联系人Email:kefu@iyunv.com,QQ:1061981298 本贴地址：https://www.yunweiku.com/thread-189162-1-1.html 上篇帖子： mongodb shell 脚本 下篇帖子： mongodb3.2集群认证登陆
回复

使用道具 举报

返回列表
高级模式
B Color Image Link Quote Code Smilies
您需要登录后才可以回帖 登录 | 立即注册

本版积分规则

扫码加入运维网微信交流群X

扫码加入运维网微信交流群

扫描二维码加入运维网微信交流群，最新一手资源尽在官方微信交流群！快快加入我们吧...

扫描微信二维码查看详情

客服 E-mail:iyunvcom@gmail.com

本站由青云提供云计算服务

运维网--中国最专业的运维工程师交流社区

豫ICP备20007574号-1 Copyright © 2012-2025

关于我们

发展历程

联系我们

关注我们

广告服务

广告案例

隐私条款

免责声明

用户登录

用户注册

版主守则

申请版主

手机版

金币获取

帮助中心

每日签到

Good Good

Study

Day Day

UP


客服E-mail:kefu@iyunv.com 客服QQ：1061981298


QQ群⑦：运维网交流群⑦ QQ群⑧：运维网交流群⑧ k8s群：运维网kubernetes交流群


提醒：禁止发布任何违反国家法律、法规的言论与图片等内容；本站内容均来自个人观点与网络等信息，非本站认同之观点.


本站大部分资源是网友从网上搜集分享而来，其版权均归原作者及其网站所有，我们尊重他人的合法权益，如有内容侵犯您的合法权益，请及时与我们联系进行核实删除！



合作伙伴: 青云cloud

快速回复 返回顶部 返回列表
