TFS的nginx模块配置

人气旺 · 发表于 2014-9-28 09:31:10

在部署完基本的tfs环境之后，就可以通过tfstool工具开始上传文件，上传完的文件可以通过ds_client工具来读取，也可以通过web方式来展示，本文介绍nginx的tfs模块配置来实现http形式展现tfs文件系统上传后的文件。当然如果你高兴的话，也可以用tengine来实现。

环境介绍:
tfs nameserver服务器  192.168.1.225/24
tfs dataserver服务器  192.168.1.227/24
tfs-nginx服务器    192.168.1.12/24

一：下载nginx-tfs模块 (12服务器)
https://github.com/alibaba/nginx-tfs

二：下载nginx源码包，安装必须的rpm包  (12服务器)

1
2
3
4
5
6
7
8
9
10

# cd /usr/local/src/
# wget http://nginx.org/download/nginx-1.3.14.tar.gz
# yum -y install pcre pcre-devel openssl openssl-devel perl perl-devel perl-ExtUtils-Embed

需要cmake支持,cmake编译可参考mysql5.5安装文档
# wget https://codeload.github.com/lloyd/yajl/legacy.tar.gz/2.1.0
# tar -zxvpf 2.1.0
# cd lloyd-yajl-66cb08c/
# ./configure
# make && make install

三：编译安装nginx，并添加tfs模块

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

# tar -zxvpf nginx-1.3.14.tar.gz
# unzip nginx-tfs-master.zip
# cd nginx-1.3.14
#./configure --prefix=/usr/local/nginx
--user=nobody
--group=nobody
--with-select_module
--with-poll_module
--with-file-aio
--with-http_ssl_module
--with-http_realip_module
--with-http_gzip_static_module
--with-http_secure_link_module
--with-http_sub_module
--with-http_stub_status_module
--with-http_perl_module
--add-module=/usr/local/src/nginx-tfs-master

五：配置nginx

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55

# cat /usr/local/nginx/conf/nginx.conf
user  nobody;
worker_processes  2;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
error_log  logs/error.log  info;

pid       logs/nginx.pid;


events {
worker_connections  10240;
}


http {
include    mime.types;
default_type  application/octet-stream;

log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                  '$status $body_bytes_sent "$http_referer" '
                  '"$http_user_agent" "$http_x_forwarded_for"';

#access_log  logs/access.log  main;

sendfile       on;
#tcp_nopush    on;

#keepalive_timeout  0;
keepalive_timeout  65;

gzip  on;


tfs_upstream tfs_rc {
      server 192.168.1.225:8108;
      type ns;
      rcs_zone name=tfs1 size=128M;
      rcs_interface eth0;
      rcs_heartbeat lock_file=/usr/local/nginx/logs/lk.file interval=10s;
}

server {
      listen    7500;
      server_name  localhost;

      tfs_keepalive max_cached=100 bucket_count=10;
      #tfs_log "pipe:/usr/local/cronolog/sbin/ -p 30min /path/to/nginx/logs/cronolog/%Y/%m/%Y-%m-%d-%H-%M-tfs_access.log";

      location / {
            tfs_pass tfs://tfs_rc;
      }
}
}

配置nginx启动脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112

# cat /etc/init.d/nginx
#!/bin/sh
#
# nginx - this script starts and stops the nginx daemon
#
# chkconfig: - 85 15
# description: Nginx is an HTTP(S) server, HTTP(S) reverse
#             proxy and IMAP/POP3 proxy server
# processname: nginx
# config:    /etc/nginx/nginx.conf
# config:    /etc/sysconfig/nginx
# pidfile:    /var/run/nginx.pid

# Source function library.
. /etc/rc.d/init.d/functions

# Source networking configuration.
. /etc/sysconfig/network

# Check that networking is up.
[ "$NETWORKING" = "no" ] && exit 0

nginx="/usr/local/nginx/sbin/nginx"
prog=$(basename $nginx)

NGINX_CONF_FILE="/usr/local/nginx/conf/nginx.conf"

[ -f /etc/sysconfig/nginx ] && . /etc/sysconfig/nginx

lockfile=/var/lock/subsys/nginx

start() {
[ -x $nginx ] || exit 5
[ -f $NGINX_CONF_FILE ] || exit 6
echo -n $"Starting $prog: "
daemon $nginx -c $NGINX_CONF_FILE
retval=$?
echo
[ $retval -eq 0 ] && touch $lockfile
return $retval
}

stop() {
echo -n $"Stopping $prog: "
killproc $prog -QUIT
retval=$?
echo
[ $retval -eq 0 ] && rm -f $lockfile
return $retval
killall -9 nginx
}

restart() {
configtest || return $?
stop
sleep 1
start
}

reload() {
configtest || return $?
echo -n $"Reloading $prog: "
killproc $nginx -HUP
RETVAL=$?
echo
}

force_reload() {
restart
}

configtest() {
$nginx -t -c $NGINX_CONF_FILE
}

rh_status() {
status $prog
}

rh_status_q() {
rh_status >/dev/null 2>&1
}

case "$1" in
start)
      rh_status_q && exit 0
$1
      ;;
stop)
      rh_status_q || exit 0
      $1
      ;;
restart|configtest)
      $1
      ;;
reload)
      rh_status_q || exit 7
      $1
      ;;
force-reload)
      force_reload
      ;;
status)
      rh_status
      ;;
condrestart|try-restart)
      rh_status_q || exit 0
         ;;
*)
   echo $"Usage: $0 {start|stop|status|restart|condrestart|try-restart|reload|force-reload|configtest}"
      exit 2
esac

五：启动nginx

1
2
3
4
5
6
7
8
9

# echo '/usr/local/lib' >> /etc/ld.so.conf
# ldconfig
# /usr/local/nginx/sbin/nginx  -t

# chmod +x /etc/init.d/nginx
# chkconfig --add nginx

# service nginx start
Starting nginx: [  OK  ]

六：使用tfstool客户端上传一份文档,图片等资源 (225服务器)

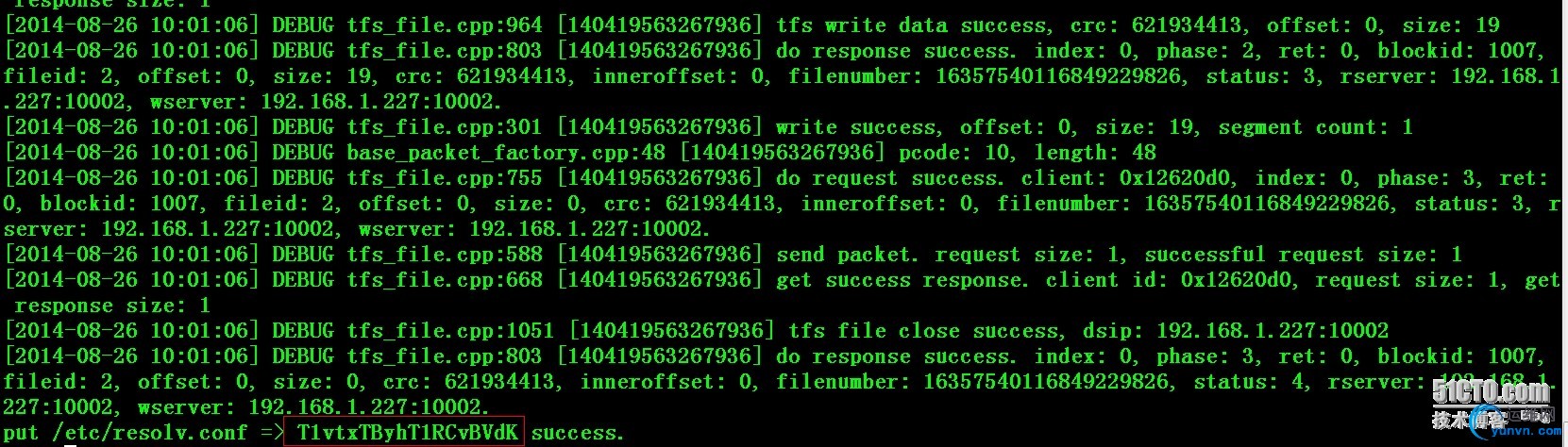

1 2	# /usr/local/tfs/bin/tfstool -s 192.168.1.225:8108 TFS> put /etc/resolv.conf

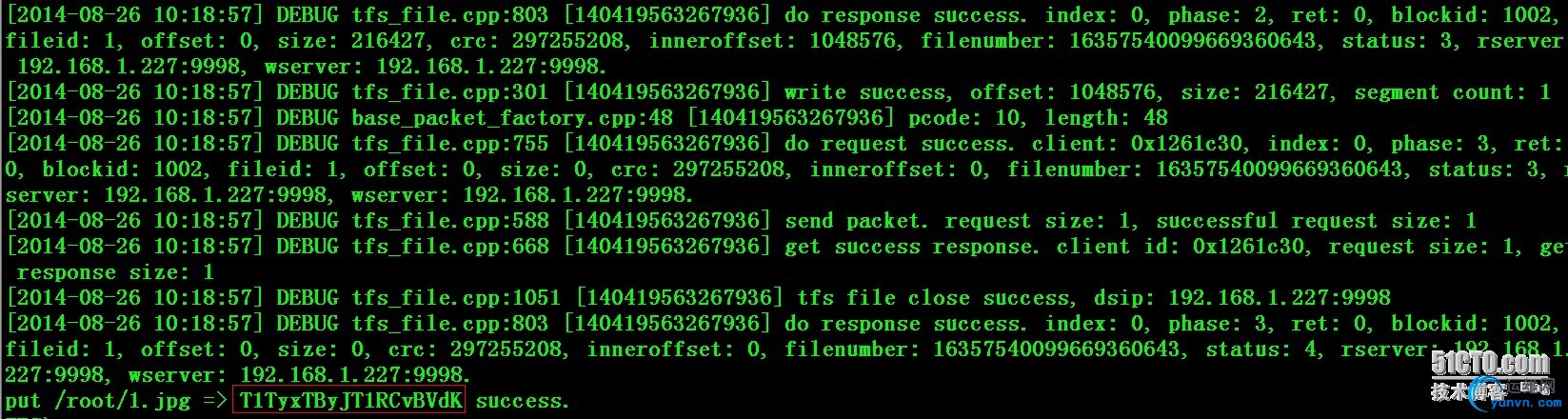

1	TFS> put /root/1.jpg

七: 使用web浏览器读取tfs内的文件,这里值得注意的是端口后面的url一定是/v1/,tfs三个字符可以用任意字符代替，例如一个空格字符，或者aaaa,bbb等，但至少需要存在一个字符，这个应该是tfs-nginx模块源码的问题，未细究！

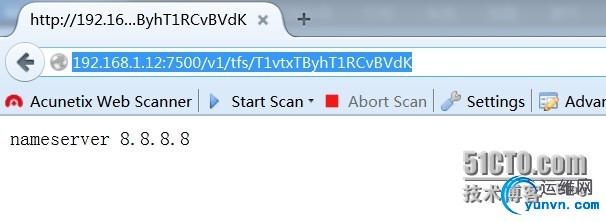

http://192.168.1.12:7500/v1/tfs/T1vtxTByhT1RCvBVdK
也可以使用url http://192.168.1.12:7500/v1/abc/T1vtxTByhT1RCvBVdK来访问

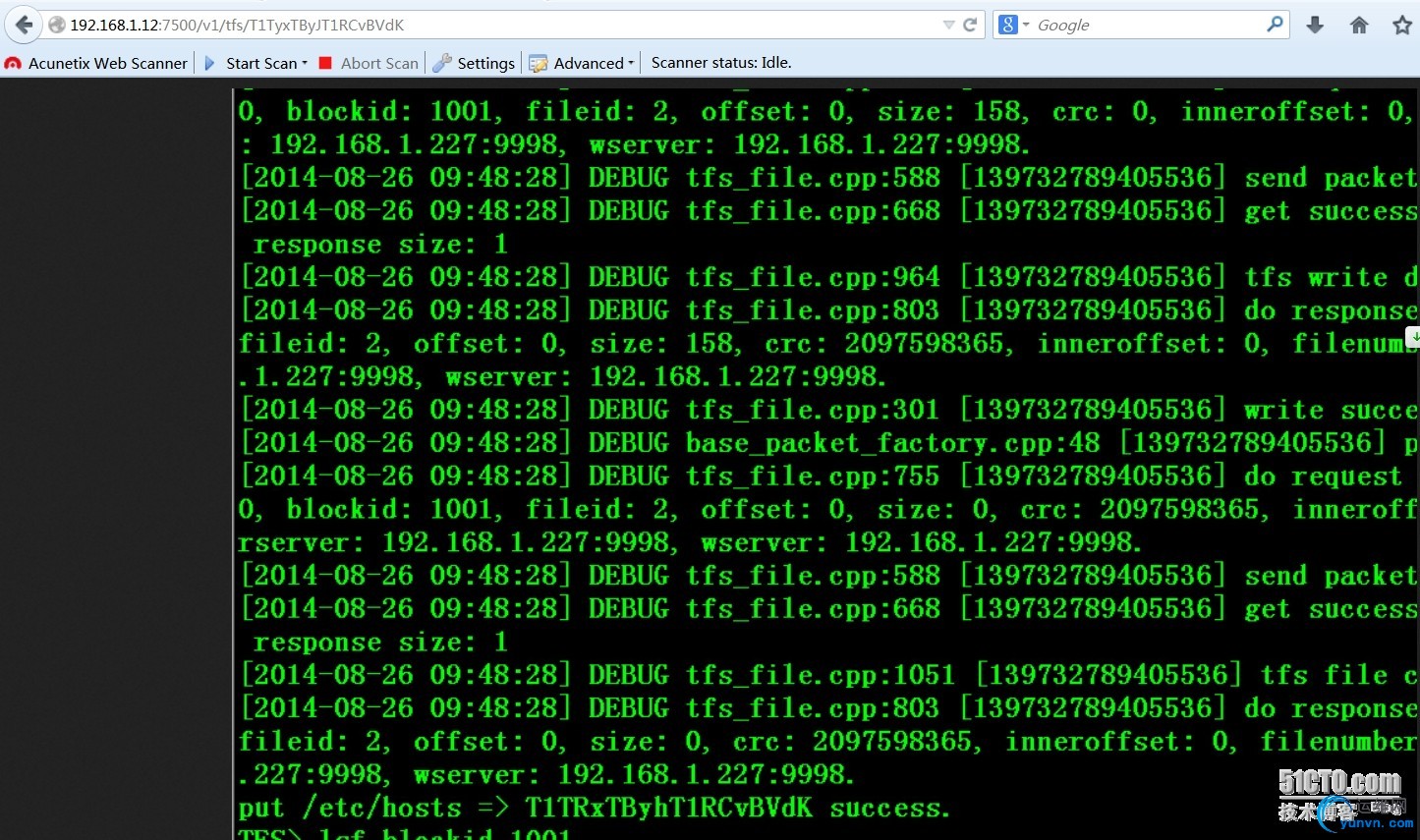

http://192.168.1.12:7500/v1/tfs/T1TyxTByJT1RCvBVdK
也可以使用url http://192.168.1.12:7500/v1/ /T1TyxTByJT1RCvBVdK 来访问
