Mybatis基础入门一

我爱小虾

数据准备：

CREATE TABLE MEMBER (
MEMBER_ID NUMBER(10, 0),
FIRST_NAME VARCHAR2(400) NOT NULL,
LAST_NAME VARCHAR2(400) NOT NULL,
ADDRESS VARCHAR2(1000),
PHONE VARCHAR2(400),
PRIMARY KEY (MEMBER_ID));
CREATE TABLE TASK (
TASK_ID NUMBER(10, 0),
MEMBER_ID NUMBER(10, 0),
CONTENT VARCHAR2(1000),
DUE_DATE DATE,
PRIMARY KEY (TASK_ID),
FOREIGN KEY (MEMBER_ID) REFERENCES MEMBER (MEMBER_ID));
INSERT INTO MEMBER (MEMBER_ID, FIRST_NAME, LAST_NAME,PHONE) VALUES(1,'Alex', 'Brown', '635874');
INSERT INTO MEMBER (MEMBER_ID, FIRST_NAME, LAST_NAME,PHONE) VALUES(2,'Ada', 'Lee', '536952');
INSERT INTO MEMBER (MEMBER_ID, FIRST_NAME, LAST_NAME,PHONE) VALUES(3,'Candy', 'Law', '362548');
INSERT INTO MEMBER (MEMBER_ID, FIRST_NAME, LAST_NAME,PHONE) VALUES(4,'Vincent', 'Xu', '123698');
INSERT INTO TASK (TASK_ID,MEMBER_ID, CONTENT, DUE_DATE) VALUES (1, 1 ,'Kill Bill Gates.', TO_DATE('2012-12-31', 'YYYY-MM-DD'));
INSERT INTO TASK (TASK_ID,MEMBER_ID, CONTENT, DUE_DATE) VALUES (2, 1 ,'Earn USD 1 billion.', TO_DATE('2033-01-01', 'YYYY-MM-DD'));
INSERT INTO TASK (TASK_ID,MEMBER_ID, CONTENT, DUE_DATE) VALUES (3, 1 ,'Worldwide trip.', TO_DATE('2020-03-03', 'YYYY-MM-DD'));
INSERT INTO TASK (TASK_ID,MEMBER_ID, CONTENT, DUE_DATE) VALUES (4, 2 ,'Learn Java.', TO_DATE('2012-09-08', 'YYYY-MM-DD'));
INSERT INTO TASK (TASK_ID,MEMBER_ID, CONTENT, DUE_DATE) VALUES (5, 2 ,'Learn Ruby.', TO_DATE('2012-11-12', 'YYYY-MM-DD'));
INSERT INTO TASK (TASK_ID,MEMBER_ID, CONTENT, DUE_DATE) VALUES (6, 3 ,'Finish job 1.', TO_DATE('2013-04-01', 'YYYY-MM-DD'));
INSERT INTO TASK (TASK_ID,MEMBER_ID, CONTENT, DUE_DATE) VALUES (7, 3 ,'Finish job 2.', TO_DATE('2013-06-06', 'YYYY-MM-DD'));
INSERT INTO TASK (TASK_ID,MEMBER_ID, CONTENT, DUE_DATE) VALUES (8, 3 ,'Finish job 3.', TO_DATE('2014-02-28', 'YYYY-MM-DD'));
COMMIT;

目录结构：

[img]

 [/img]



mybatis-config.xml(mybatis的配置文件)



<!-- db setting -->
<environments default="development">
<environment id="development">
<transactionManager type="JDBC" />
<dataSource type="POOLED">
<property name="driver" value="oracle.jdbc.driver.OracleDriver" />
<property name="url" value="jdbc:oracle:thin:@192.168.2.136:1521:dev" />
<property name="username" value="cnt5_training" />
<property name="password" value="p" />
</dataSource>
</environment>
</environments>
<mappers>
<!-- 关联mapper文件 -->
<mapper resource="com/core/traininig/mybatisquiz/MemberMapper.xml" />
</mappers>



MemberMapper.xml(POJO 与 sql 的映射文件)



<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!-- 配置哪个Mapper会调用该映射文件来进行CRUD -->
<mapper namespace="com.core.traininig.mybatisquiz.MemberMapper">
<resultMap id="memberWithTask" type="com.core.traininig.entity.Member">
<result property="memberId" column="MEMBER_ID" />
<result property="firstName" column="FIRST_NAME" />
<result property="lastName" column="LAST_NAME" />
<result property="address" column="ADDRESS" />
<result property="phone" column="PNONE" />
<collection property="tasks"
ofType="com.core.traininig.entity.Task" column="MEMBER_ID" javaType="ArrayList">
<result property="taskId" column="TASK_ID" />
<result property="memberId" column="MEMBER_ID" />
<result property="content" column="CONTENT" />
<result property="dueDate" column="DUE_DATE" />
</collection>
</resultMap>
<!-- id要与XXXMapper.java 的方法名一致-->
<select id="getAllMembers" parameterType="map"
resultMap="memberWithTask">
SELECT m.MEMBER_ID AS ID, m.FIRST_NAME, m.LAST_NAME, m.ADDRESS, m.PHONE,t.TASK_ID,
t.MEMBER_ID, t.CONTENT, t.DUE_DATE
FROM MEMBER m LEFT JOIN TASK t ON m.MEMBER_ID = t.MEMBER_ID
ORDER BY m.FIRST_NAME, t.DUE_DATE DESC
</select>
</mapper>

MemberMapper.java

import java.util.List;
import com.core.traininig.entity.Member;
/**
* @author aron.tang
*
*/
public interface MemberMapper {
List<Member> getAllMembers();
}

Member.java



import java.util.List;
/**
* @author aron.tang
*
*/
public class Member {
private int memberId;
private String firstName;
private String lastName;
private String address;
private String phone;
private List<Task> tasks;
/**
* @return the memberId
*/
public int getMemberId() {
return memberId;
}
/**
* @param memberId the memberId to set
*/
public void setMemberId(final int memberId) {
this.memberId = memberId;
}
/**
* @return the firstName
*/
public String getFirstName() {
return firstName;
}
/**
* @param firstName the firstName to set
*/
public void setFirstName(final String firstName) {
this.firstName = firstName;
}
/**
* @return the lastName
*/
public String getLastName() {
return lastName;
}
/**
* @param lastName the lastName to set
*/
public void setLastName(final String lastName) {
this.lastName = lastName;
}
/**
* @return the address
*/
public String getAddress() {
return address;
}
/**
* @param address the address to set
*/
public void setAddress(final String address) {
this.address = address;
}
/**
* @return the phone
*/
public String getPhone() {
return phone;
}
/**
* @param phone the phone to set
*/
public void setPhone(final String phone) {
this.phone = phone;
}
/**
* @return the tasks
*/
public List<Task> getTasks() {
return tasks;
}
/**
* @param tasks the tasks to set
*/
public void setTasks(final List<Task> tasks) {
this.tasks = tasks;
}

}




Task.java

import java.util.Date;
/**
* @author aron.tang
*
*/
public class Task {
private int taskId;
private int memberId;
private String content;
private Date dueDate;
/**
* @return the taskId
*/
public int getTaskId() {
return taskId;
}
/**
* @param taskId the taskId to set
*/
public void setTaskId(final int taskId) {
this.taskId = taskId;
}
/**
* @return the memberId
*/
public int getMemberId() {
return memberId;
}
/**
* @param memberId the memberId to set
*/
public void setMemberId(final int memberId) {
this.memberId = memberId;
}
/**
* @return the content
*/
public String getContent() {
return content;
}
/**
* @param content the content to set
*/
public void setContent(final String content) {
this.content = content;
}
/**
* @return the dueDate
*/
public Date getDueDate() {
return dueDate;
}
/**
* @param dueDate the dueDate to set
*/
public void setDueDate(final Date dueDate) {
this.dueDate = dueDate;
}
}




测试类MemberManager.java



import java.io.IOException;
import java.io.InputStream;
import java.text.DateFormat;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.List;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import com.core.traininig.entity.Member;
import com.core.traininig.entity.Task;
/**
* @author aron.tang
*/
public class MemberManager {
private static SqlSessionFactory sqlSessionFactory;
public static void main(final String[] args) throws IOException {
// load the setting file of mybatis.
final String resource = "com/core/traininig/mybatisquiz/mybatis-config.xml";
final InputStream inputStream = Resources.getResourceAsStream(resource);
// build the SqlSessionFactory instance which manage the session when access DB.
sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
printMembers();
}
public static List<Member> getAllMembers() {
// open the session then can access the assigned DB
final SqlSession session = sqlSessionFactory.openSession();
// get the mapper which map the sql to POJO.
final MemberMapper mapper = session.getMapper(MemberMapper.class);
return mapper.getAllMembers();
}
public static void printMembers() {
final MemberMapper mapper = getMapper();
final List<Member> members = mapper.getAllMembers();
System.out.println("There are total " + members.size() + " members");
System.out.println("================================================");
for (final Member m : members) {
System.out.println(m.getFirstName() + " " + m.getLastName() + " has " + m.getTasks().size() + " tasks. ");
for (final Task t : m.getTasks()) {
System.out.println("{" + t.getContent() + "} to be done before " + parseDate(t.getDueDate()));
}
System.out.println();
}
closeSession();
}
public static String parseDate(final Date date) {
final DateFormat df = new SimpleDateFormat("yyyy-MM-dd");
final String result = df.format(date);
return result;
}
private static MemberMapper getMapper() {
final SqlSession session = sqlSessionFactory.openSession();
final MemberMapper mapper = session.getMapper(MemberMapper.class);
return mapper;
}
private static void closeSession() {
final SqlSession session = sqlSessionFactory.openSession();
if (session != null) {
session.close();
}
}
}

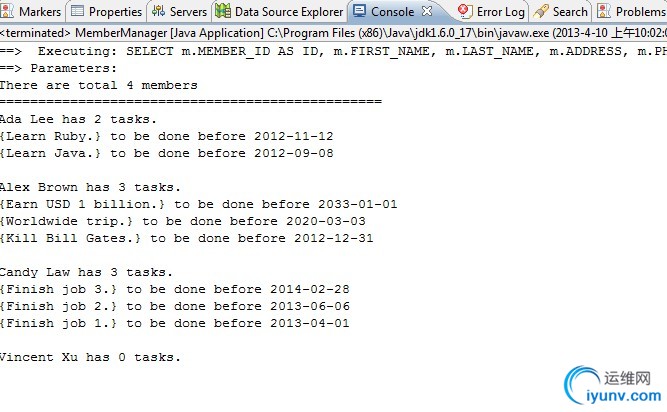

测试结果:

 主要用到的jar包: mybatis-3.0.5.jar
