maven+springmvc+mybatis web项目搭建

TOUVE

1.准备环境
当然jdk要先安装好
1)下载maven，配置环境变量MAVEN_HOME,之为maven所在路径，配置PATH,添加%MAVEN_HOME%\bin;
2)ecipse 安装maven 插件，安装完成后，重启eclipse，配置maven，如下图
配置仓库，我这里配的是全局的settings.xml，也可以配置局部的，详细的maven配置，这里不详细说了，分享一个博客，感觉说的蛮详细
　　http://www.cnblogs.com/fangjins/archive/2012/05/06/2485459.html

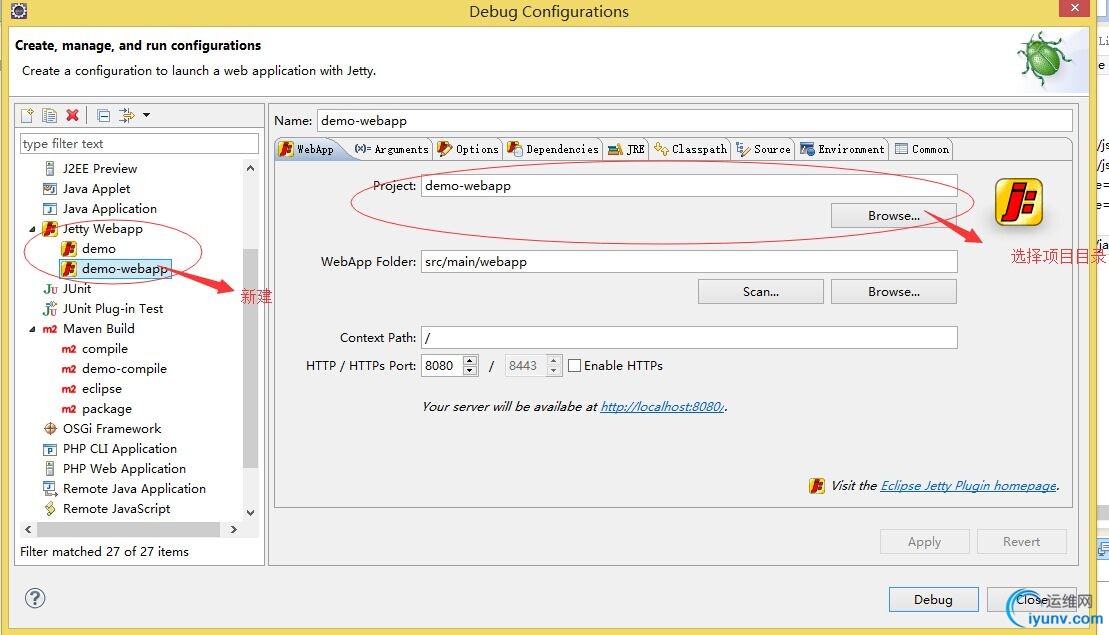

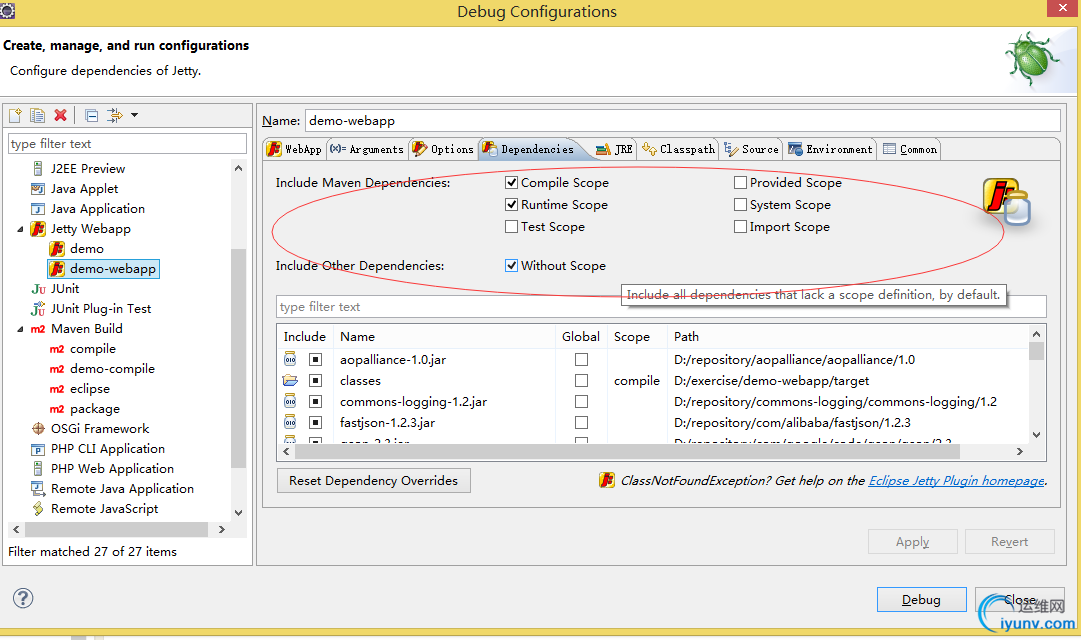

3）eclipse安装jetty插件

环境准备完毕后，开始进入项目开发

2.web项目开发
1）进入命令提示符，进入工作空间目录，运行mvn archetype:create -DgroupId=com.test.web -DartifactId=demo-webapp -DarchetypeArtifactId=maven-archetype-webapp
接着运行mvn eclipse:eclipse 转为eclipse工程
2）导入project：import->exitsting maven project->选择目录后导入即可
3) 导入后，项目中没有src/main/java，需要新建，并添加至source中，



一切完备后，工程的目录如下：



4）编写pom：
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.test.web</groupId>
<artifactId>demo-webapp</artifactId>
<packaging>war</packaging>
<version>1.0</version>
<name>demo-webapp Maven Webapp</name>
<url>http://maven.apache.org</url>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>
<dependencies>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>3.8.1</version>
<scope>test</scope>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>2.5</version>
<scope>provided</scope>
</dependency>

<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>4.1.4.RELEASE</version>
</dependency>

<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>4.1.4.RELEASE</version>
</dependency>

<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.2.8</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>1.2.2</version>
</dependency>
<dependency>
<groupId>com.oracle</groupId>
<artifactId>ojdbc6</artifactId>
<version>11.2.0.3</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>4.1.4.RELEASE</version>
</dependency>

<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>4.1.4.RELEASE</version>
</dependency>

<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>1.2.3</version>
</dependency>

<dependency>
<groupId>com.google.code.gson</groupId>
<artifactId>gson</artifactId>
<version>2.3</version>
<scope>compile</scope>
</dependency>

</dependencies>
<build>
<finalName>demo-webapp</finalName>

<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>2.5.1</version>
<configuration>
<source>1.6</source>
<target>1.6</target>
<encoding>${project.build.sourceEncoding}</encoding>
<showWarnings>true</showWarnings>
</configuration>
</plugin>
</plugins>

</build>

</project>
5）编写web.xml

<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
id="WebApp_ID" version="2.5">

<display-name>demo</display-name>
<!-- <servlet> -->
<!-- <servlet-name>firstServlet</servlet-name> -->
<!-- <servlet-class>com.test.TestServlet</servlet-class> -->
<!-- </servlet> -->
<!-- <servlet-mapping> -->
<!-- <servlet-name>firstServlet</servlet-name> -->
<!-- <url-pattern>/index</url-pattern> -->
<!-- </servlet-mapping> -->
<!-- <context-param> -->
<!-- <param-name>contextConfigLocation</param-name> -->
<!-- <param-value>classpath:application-*.xml</param-value> -->
<!-- </context-param> -->
<filter>
<filter-name>CharacterEncodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
<init-param>
<param-name>forceEncoding</param-name>
<param-value>true</param-value>
</init-param>
</filter>

<filter-mapping>
<filter-name>CharacterEncodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>

<servlet>
<servlet-name>springServlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>/WEB-INF/spring-mvc.xml,classpath:application-*.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>

<servlet-mapping>
<servlet-name>springServlet</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>



</web-app>

6)spring-mvc.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:p="http://www.springframework.org/schema/p"
xmlns:util="http://www.springframework.org/schema/util"
xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-3.2.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-3.2.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.2.xsd">

<!-- 注解探测器 -->
<context:component-scan base-package="com" />

<mvc:annotation-driven>

</mvc:annotation-driven>

<mvc:default-servlet-handler />

<bean
class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="viewClass">
<value>org.springframework.web.servlet.view.JstlView</value>
</property>
<property name="prefix" value="/WEB-INF/views/" />
<property name="suffix" value=".jsp" />
</bean>




</beans>
7)application-common.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
    http://www.springframework.org/schema/aop
    http://www.springframework.org/schema/aop/spring-aop-3.0.xsd
    http://www.springframework.org/schema/tx
    http://www.springframework.org/schema/tx/spring-tx-3.0.xsd ">

    <!-- 配置DataSource数据源 -->
<bean id="dataSource"
class="org.springframework.jdbc.datasource.DriverManagerDataSource">
<property name="driverClassName" value="oracle.jdbc.OracleDriver" />
<property name="url" value="jdbc:oracle:thin:@192.168.1.201:1521:NGBOSS" />
<property name="username" value="Intelligent_city" />
<property name="password" value="intelligent_city" />
</bean>

<!-- 配置SqlSessionFactoryBean -->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource" />
<property name="mapperLocations" >
<list>
<value>classpath:com/dao/mapper/*.xml</value>
</list>
</property>
</bean>
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<property name="basePackage" value="com.dao.mapper" />
</bean>

</beans>
8)编写controller层
package com.controller;

import java.io.PrintWriter;
import java.util.List;

import javax.servlet.http.HttpServletRequest;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

import com.dao.entity.HouseInfo;
import com.google.gson.Gson;
import com.service.HouseSV;

@Controller
public class IndexController {

@Autowired
private HouseSV houseSV;

@RequestMapping("/hello")
public String showIndex(){

List<HouseInfo>  list = houseSV.selectHouseById(2L);

System.out.println(list.size());

return "new";
}

@RequestMapping("/queryHouseInfo")
public void queryHouseInfo(HttpServletRequest request ,PrintWriter out){

String houseId= request.getParameter("houseId");
List<HouseInfo>  list = null;
if(houseId!=null&&!houseId.equals("")){
list = houseSV.selectHouseById(Long.parseLong(houseId));
}
System.out.println("houseId:"+houseId);
Gson gson = new Gson();

String listStr = gson.toJson(list);
System.out.println("listStr:"+listStr);
   out.print(gson.toJson(list));




}
}

9）service层

package com.service;

import java.util.List;

import com.dao.entity.HouseInfo;

public interface HouseSV {

public List<HouseInfo> selectHouseById(long houseId);


}


package com.service.impl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.dao.entity.HouseInfo;
import com.dao.mapper.HouseInfoMapper;
import com.service.HouseSV;

@Service("houseSV")
public class HouseSVImpl implements HouseSV {

@Autowired
HouseInfoMapper houseMapper;

public List<HouseInfo> selectHouseById(long houseId) {
return houseMapper.selectHouseById(houseId);
//return null;

}

}

10）dao层
dao层的结构如下



注意HouseInfoMapper.java 和HouseInfoMapper.xml文件放在同一个包内，分别贴出三个文件：

package com.dao.entity;

import java.io.Serializable;

public class HouseInfo implements Serializable {

private Long communityId; // 社区编号
private Long zoneId; // 小区编号

private Long houseId; // 房屋 ID
private Long buildingId; // 所在楼栋
private String houseNo; // 房号
private String houseTypeId; // 户型
private String structureId; // 房屋结构
private String designUseId; // 设计用途
private Long houseArea; // 房屋面积
private Long houseStateId; // 房屋状态
private Long ownerTypeId; // 业主类型
private String ownerName; // 业主
private String ownerTel; // 业主联系电话
private Long houseCertificateId; // 产权证类型
private String houseCertificateNo; // 产权证编号
private Long toward; // 朝向
private String equity; // 产权年限

public Long getHouseId() {
return houseId;
}

public void setHouseId(Long houseId) {
this.houseId = houseId;
}

public Long getBuildingId() {
return buildingId;
}

public void setBuildingId(Long buildingId) {
this.buildingId = buildingId;
}

public String getHouseNo() {
return houseNo;
}

public void setHouseNo(String houseNo) {
this.houseNo = houseNo;
}

public String getHouseTypeId() {
return houseTypeId;
}

public void setHouseTypeId(String houseTypeId) {
this.houseTypeId = houseTypeId;
}

public String getStructureId() {
return structureId;
}

public void setStructureId(String structureId) {
this.structureId = structureId;
}

public String getDesignUseId() {
return designUseId;
}

public void setDesignUseId(String designUseId) {
this.designUseId = designUseId;
}

public Long getHouseArea() {
return houseArea;
}

public void setHouseArea(Long houseArea) {
this.houseArea = houseArea;
}

public Long getHouseStateId() {
return houseStateId;
}

public void setHouseStateId(Long houseStateId) {
this.houseStateId = houseStateId;
}

public Long getOwnerTypeId() {
return ownerTypeId;
}

public void setOwnerTypeId(Long ownerTypeId) {
this.ownerTypeId = ownerTypeId;
}

public String getOwnerName() {
return ownerName;
}

public void setOwnerName(String ownerName) {
this.ownerName = ownerName;
}

public String getOwnerTel() {
return ownerTel;
}

public void setOwnerTel(String ownerTel) {
this.ownerTel = ownerTel;
}

public Long getHouseCertificateId() {
return houseCertificateId;
}

public void setHouseCertificateId(Long houseCertificateId) {
this.houseCertificateId = houseCertificateId;
}

public String getHouseCertificateNo() {
return houseCertificateNo;
}

public void setHouseCertificateNo(String houseCertificateNo) {
this.houseCertificateNo = houseCertificateNo;
}

public Long getToward() {
return toward;
}

public void setToward(Long toward) {
this.toward = toward;
}

public String getEquity() {
return equity;
}

public void setEquity(String equity) {
this.equity = equity;
}

public Long getCommunityId() {
return communityId;
}

public void setCommunityId(Long communityId) {
this.communityId = communityId;
}

public Long getZoneId() {
return zoneId;
}

public void setZoneId(Long zoneId) {
this.zoneId = zoneId;
}

@Override
public String toString() {
return "HouseInfo [communityId=" + communityId + ", zoneId=" + zoneId
+ ", houseId=" + houseId + ", buildingId=" + buildingId
+ ", houseNo=" + houseNo + ", houseTypeId=" + houseTypeId
+ ", structureId=" + structureId + ", designUseId="
+ designUseId + ", houseArea=" + houseArea + ", houseStateId="
+ houseStateId + ", ownerTypeId=" + ownerTypeId
+ ", ownerName=" + ownerName + ", ownerTel=" + ownerTel
+ ", houseCertificateId=" + houseCertificateId
+ ", houseCertificateNo=" + houseCertificateNo + ", toward="
+ toward + ", equity=" + equity + "]";
}

}


package com.dao.mapper;

import java.util.List;
import com.dao.entity.HouseInfo;

public interface HouseInfoMapper {

public List<HouseInfo> selectHouseById(long houseId);

}

HouseInfoMapper.xml文件：

<?xml version="1.0" encoding="UTF-8" ?><!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.dao.mapper.HouseInfoMapper">
<resultMap id="result_getHouseInfo"
type="com.dao.entity.HouseInfo">
<id property="houseId" column="HOUSE_ID" />
<result property="buildingId" column="BUILDING_ID" />
<result property="houseNo" column="HOUSE_NO" />
<result property="houseTypeId" column="HOUSE_TYPE_ID" />
<result property="structureId" column="STRUCTURE_ID" />
<result property="designUseId" column="DESIGN_USE_ID" />
<result property="houseArea" column="HOUSE_AREA" />
<result property="houseStateId" column="HOUSE_STATE_ID" />
<result property="ownerTypeId" column="OWNER_TYPE_ID" />
<result property="ownerName" column="OWNER_NAME" />
<result property="ownerTel" column="OWNER_TEL" />
<result property="houseCertificateId" column="HOUSE_CERTIFICATE_ID" />
<result property="houseCertificateNo" column="HOUSE_CERTIFICATE_NO" />
<result property="toward" column="TOWARD" />
<result property="equity" column="EQUITY" />
<result property="communityId" column="COMMUNITY_ID" />
<result property="zoneId" column="ZONE_ID" />
</resultMap>
<select id="selectHouseById" parameterType="long"
resultMap="result_getHouseInfo">
select * from T_HOUSE WHERE HOUSE_ID=#{houseId}
</select>
</mapper>

11）前台页面

前台页面结构



index.jsp:

<%@ page language="java" contentType="text/html; charset=UTF-8"%>
<html>

<body>
<form action="hello" method="post">
<button type="submit">提交</button>
</form>

</body>
</html>

new.jsp:

<%@ page language="java" contentType="text/html; charset=UTF-8"%>
<html>
<head>
<title>测试</title>

<link href="/js/easyui-1.3.6/themes/default/easyui.css" rel="stylesheet"
type="text/css" />
<link href="/js/easyui-1.3.6/themes/icon.css" rel="stylesheet"
type="text/css" />
<script src="/js/jquery-1.9.1.min.js" type="text/javascript"></script>
<script src="/js/easyui-1.3.6/jquery.easyui.min.js"
type="text/javascript"></script>
</head>
<body>
<table id="houseInfo"></table>
</body>
</html>
<script type="text/javascript">
$(function(){
var grid = $("#houseInfo").datagrid({
url:'queryHouseInfo',
columns:[[{
width : '100',
title : '所在楼栋',
field : 'buildingId'
},
{
width : '100',
title : '房号',
field : 'houseNo'
}]]

});

$("#houseInfo").datagrid('load',{
houseId:'2'
});

});

</script>

代码开发完毕

3.部署








配置完成后，点击debug运行即可




最后，源码奉上
