azkaban hdfs plugin 配置

pgup12

　　http://blog.javachen.com/2014/08/25/install-azkaban.html
　　azkaban 的hdfs 插件配置azkaban的官方文档 http://azkaban.github.io/azkaban/docs/2.5/#plugins 描述的很简单,网上也有很多教程,但是配置到最后去浏览器上查看都是如下这个毫无提示信息的错误

　　没有办法,只能去下载了azkaban与azkaban-plugin的源码来一点点排查.
　　azkaban 源码地址: github.com/azkaban/azkaban
　　azkaban-plugin 源码地址: github.com/azkaban/azkaban-plugins
　　前面的安装步骤就不说了,请参考上面的地址.
　　第一个出错的问题点排查
　　在azkaban-web 启动的时候,我们会看到如下这部分信息



1 2015/07/30 14:21:39.730 +0800 INFO [HdfsBrowserServlet] [Azkaban] Initializing hadoop security manager azkaban.security.HadoopSecurityManager_H_2_0
2 2015/07/30 14:21:39.737 +0800 INFO [HadoopSecurityManager] [Azkaban] getting new instance
3 2015/07/30 14:21:39.738 +0800 INFO [HadoopSecurityManager] [Azkaban] Using hadoop config found in file:/usr/local/hadoop/etc/hadoop/
4 2015/07/30 14:21:39.756 +0800 INFO [HadoopSecurityManager] [Azkaban] Setting fs.hdfs.impl.disable.cache to true
5 2015/07/30 14:21:39.807 +0800 INFO [HadoopSecurityManager] [Azkaban] hadoop.security.authentication set to null
6 2015/07/30 14:21:39.808 +0800 INFO [HadoopSecurityManager] [Azkaban] hadoop.security.authorization set to null
7 2015/07/30 14:21:39.808 +0800 INFO [deprecation] [Azkaban] fs.default.name is deprecated. Instead, use fs.defaultFS
8 2015/07/30 14:21:39.813 +0800 INFO [HadoopSecurityManager] [Azkaban] DFS name hdfs://namenode:9000
　　先看第一行,看使用的HadoopSecurityManager版本与你的hadoop版本是否一致.如果不一致修改 plugins/viewer/hdfs/conf/plugin.properties 配置,将其改为跟你hadoop版本一致的
　　1.x 使用  azkaban.security.HadoopSecurityManager_H_1_0
　　2.x 使用  azkaban.security.HadoopSecurityManager_H_2_0



hadoop.security.manager.class=azkaban.security.HadoopSecurityManager_H_2_0
　　再看第8行,看看打印的dfs地址与你真实的是否一致. 如果不一致在 /etc/profile 中配置好 HADOOP_HOME 与HADOOP_CONF_DIR.因为在azkaban的代码中会直接来获取系统中这2个环境变量
　　如果没有设置,会自动给你设置一个默认值,当然无法使用了.



1 export HADOOP_HOME=/usr/local/hadoop/
2 export HADOOP_CONF_DIR=$HADOOP_HOME/etc/hadoop/
　　第二个错误点排查

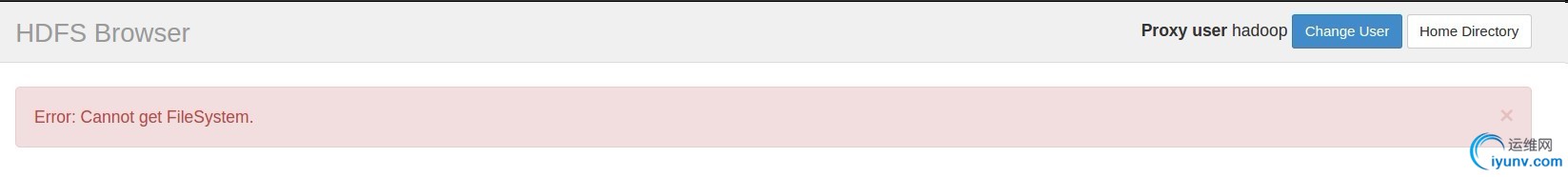

　　我改完上面问题之后重启,满怀希望的点开浏览器,还是无法访问.继续看代码
　　具体调用的方法是

HadoopSecurityManager_H_2_0 类的 getFSAsUser方法,方法如下
这个类是azkaban-plugin 项目里的


1     @Override
2     public FileSystem getFSAsUser(String user) throws HadoopSecurityManagerException {
3         FileSystem fs;
4         try {
5             logger.info("Getting file system as " + user);
6             UserGroupInformation ugi = getProxiedUser(user);
7
8             if (ugi != null) {
9                 fs = ugi.doAs(new PrivilegedAction<FileSystem>(){
10
11                     @Override
12                     public FileSystem run() {
13                         try {
14                             return FileSystem.get(conf);
15                         } catch (IOException e) {
16                             e.printStackTrace();
17                             throw new RuntimeException(e);
18                         }
19                     }
20                 });
21             }
22             else {
23                 fs = FileSystem.get(conf);
24             }
25         }
26         catch (Exception e)
27         {
28             e.printStackTrace();
29             throw new HadoopSecurityManagerException("Failed to get FileSystem. ", e);
30         }
31         return fs;
32     }
　　加上错误输出后替换部署里相应的包,再次启动,终于可以看到错误了:



java.io.IOException: No FileSystem for scheme: hdfs
at org.apache.hadoop.fs.FileSystem.getFileSystemClass(FileSystem.java:2385)
at org.apache.hadoop.fs.FileSystem.createFileSystem(FileSystem.java:2392)
at org.apache.hadoop.fs.FileSystem.get(FileSystem.java:365)
at org.apache.hadoop.fs.FileSystem.get(FileSystem.java:167)
at azkaban.security.HadoopSecurityManager_H_2_0$1.run(HadoopSecurityManager_H_2_0.java:270)
at azkaban.security.HadoopSecurityManager_H_2_0$1.run(HadoopSecurityManager_H_2_0.java:265)
at java.security.AccessController.doPrivileged(Native Method)
at javax.security.auth.Subject.doAs(Subject.java:356)
at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1534)
at azkaban.security.HadoopSecurityManager_H_2_0.getFSAsUser(HadoopSecurityManager_H_2_0.java:265)
at azkaban.viewer.hdfs.HdfsBrowserServlet.getFileSystem(HdfsBrowserServlet.java:150)
at azkaban.viewer.hdfs.HdfsBrowserServlet.handleFsDisplay(HdfsBrowserServlet.java:274)
at azkaban.viewer.hdfs.HdfsBrowserServlet.handleGet(HdfsBrowserServlet.java:198)
at azkaban.webapp.servlet.LoginAbstractAzkabanServlet.doGet(LoginAbstractAzkabanServlet.java:106)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:707)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:820)
at org.mortbay.jetty.servlet.ServletHolder.handle(ServletHolder.java:511)
at org.mortbay.jetty.servlet.ServletHandler.handle(ServletHandler.java:401)
at org.mortbay.jetty.servlet.SessionHandler.handle(SessionHandler.java:182)
at org.mortbay.jetty.handler.ContextHandler.handle(ContextHandler.java:766)
at org.mortbay.jetty.handler.HandlerWrapper.handle(HandlerWrapper.java:152)
at org.mortbay.jetty.Server.handle(Server.java:326)
at org.mortbay.jetty.HttpConnection.handleRequest(HttpConnection.java:542)
at org.mortbay.jetty.HttpConnection$RequestHandler.headerComplete(HttpConnection.java:928)
at org.mortbay.jetty.HttpParser.parseNext(HttpParser.java:549)
at org.mortbay.jetty.HttpParser.parseAvailable(HttpParser.java:212)
at org.mortbay.jetty.HttpConnection.handle(HttpConnection.java:404)
at org.mortbay.jetty.bio.SocketConnector$Connection.run(SocketConnector.java:228)
at org.mortbay.jetty.security.SslSocketConnector$SslConnection.run(SslSocketConnector.java:713)
at org.mortbay.thread.QueuedThreadPool$PoolThread.run(QueuedThreadPool.java:582)
　　这个错误是因为缺少包,我们导入必要的几个包,版本根据自己的hadoop版本一直



[hadoop@datanode1 azkaban-web-2.5.0]$ ll extlib/
total 10108
-rwxr-xr-x. 1 hadoop hdfs   41123 Jul 30 14:59 commons-cli-1.2.jar
-rwxr-xr-x. 1 hadoop hdfs   57043 Jul 30 14:59 hadoop-auth-2.3.0-cdh5.1.0.jar
-rwxr-xr-x. 1 hadoop hdfs 2844022 Jul 30 14:59 hadoop-common-2.3.0-cdh5.1.0.jar
-rwxr-xr-x. 1 hadoop hdfs 6861199 Jul 30 14:59 hadoop-hdfs-2.3.0-cdh5.1.0.jar
-rwxr-xr-x. 1 hadoop hdfs  533455 Jul 30 14:59 protobuf-java-2.5.0.jar
　　把这些包拷贝到 $AZKABAN_WEB_HOME/extlib 下,再次重启.点开浏览器

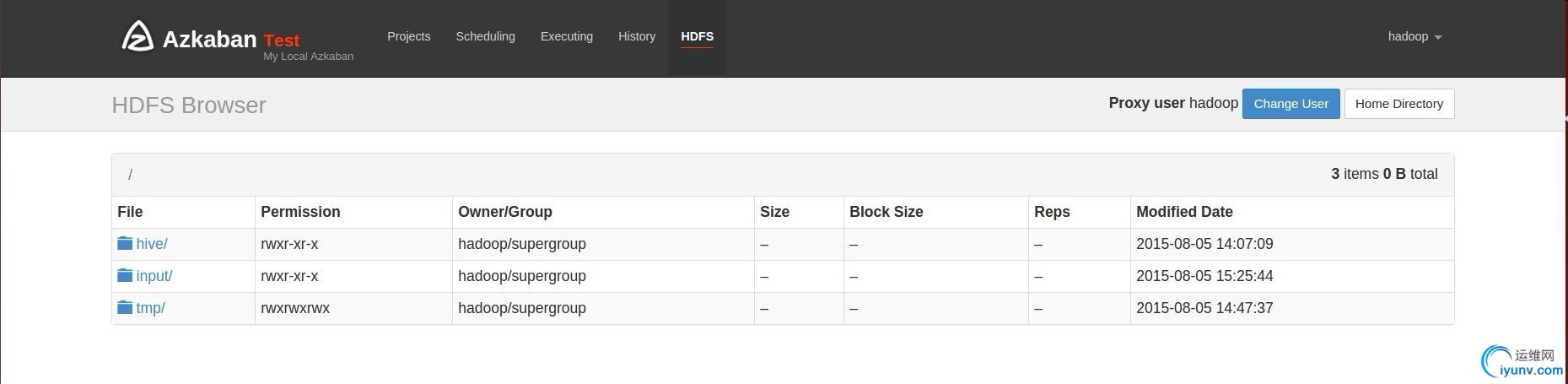

　　我们看到成功了
　　二 设置了HadoopSecurity的集群,hdfs 插件配置
　　修改plugins/viewer/hdfs/conf/plugin.properties



azkaban.should.proxy=true
proxy.user=hadoop
proxy.keytab.location=/etc/hadoop.keytab
　　修改这3个配置

azkaban.should.proxy 改为 true

proxy.user 为hadoop kerberos的使用的用户
proxy.keytab.location 为 keytab的位置
　　修改之后,重启看页面



HTTP ERROR 500
Problem accessing /hdfs. Reason:
Error processing request: SIMPLE authentication is not enabled.  Available:[TOKEN, KERBEROS]
Caused by:
java.lang.IllegalStateException: Error processing request: SIMPLE authentication is not enabled.  Available:[TOKEN, KERBEROS]
at azkaban.viewer.hdfs.HdfsBrowserServlet.handleGet(HdfsBrowserServlet.java:203)
at azkaban.webapp.servlet.LoginAbstractAzkabanServlet.doGet(LoginAbstractAzkabanServlet.java:106)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:707)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:820)
at org.mortbay.jetty.servlet.ServletHolder.handle(ServletHolder.java:511)
at org.mortbay.jetty.servlet.ServletHandler.handle(ServletHandler.java:401)
at org.mortbay.jetty.servlet.SessionHandler.handle(SessionHandler.java:182)
at org.mortbay.jetty.handler.ContextHandler.handle(ContextHandler.java:766)
at org.mortbay.jetty.handler.HandlerWrapper.handle(HandlerWrapper.java:152)
at org.mortbay.jetty.Server.handle(Server.java:326)
at org.mortbay.jetty.HttpConnection.handleRequest(HttpConnection.java:542)
at org.mortbay.jetty.HttpConnection$RequestHandler.headerComplete(HttpConnection.java:928)
at org.mortbay.jetty.HttpParser.parseNext(HttpParser.java:549)
at org.mortbay.jetty.HttpParser.parseAvailable(HttpParser.java:212)
at org.mortbay.jetty.HttpConnection.handle(HttpConnection.java:404)
at org.mortbay.jetty.bio.SocketConnector$Connection.run(SocketConnector.java:228)
at org.mortbay.jetty.security.SslSocketConnector$SslConnection.run(SslSocketConnector.java:713)
at org.mortbay.thread.QueuedThreadPool$PoolThread.run(QueuedThreadPool.java:582)
　　报错竟然说, authentication simple 没有开启.我们明明已经是配置了kerberos认证了,为什么程序还认定authentication是simple的呢.
　　在看下 HadoopSecurityManager_H_2_0 类的构造方法



private HadoopSecurityManager_H_2_0(Props props) throws HadoopSecurityManagerException, IOException {
...省略
logger.info("hadoop.security.authentication set to " + conf.get("hadoop.security.authentication"));
logger.info("hadoop.security.authorization set to " + conf.get("hadoop.security.authorization"));
logger.info("DFS name " + conf.get("fs.default.name"));
UserGroupInformation.setConfiguration(conf);
securityEnabled = UserGroupInformation.isSecurityEnabled();
if(securityEnabled) {
logger.info("The Hadoop cluster has enabled security");
shouldProxy = true;
try {
...省略
　　截取一部分来看,显然  securityEnabled 现在是false,所以进入到下面那个判断中,那我们hadoop已经配置了 Security啊.
　　继续看 UserGroupInformation.isSecurityEnabled() 方法



1     private static synchronized void initialize(Configuration conf) {
2         String value = conf.get("hadoop.security.authentication");
3         if(value != null && !"simple".equals(value)) {
4             if(!"kerberos".equals(value)) {
5                 throw new IllegalArgumentException("Invalid attribute value for hadoop.security.authentication of " + value);
6             }
7
8             useKerberos = true;
9         } else {
10             useKerberos = false;
11         }
12
13         if(!(groups instanceof UserGroupInformation.TestingGroups)) {
14             groups = Groups.getUserToGroupsMappingService(conf);
15         }
16
17         try {
18             KerberosName.setConfiguration(conf);
19         } catch (IOException var3) {
20             throw new RuntimeException("Problem with Kerberos auth_to_local name configuration", var3);
21         }
22
23         isInitialized = true;
24         conf = conf;
25         metrics = UgiInstrumentation.create(conf);
26     }
　　看第一行,是通过读取 hadoop.security.authentication 来获取这个值.
　　继续看代码知道azkaban读取这些配置是从我们加入到extlib中的hadoop-common-2.3.0-cdh5.1.0.jar里的core-site.xml里获取的,我们修改的hadoop的core-site.xml配置文件,azkaban是肯定是不会知道的.所以我们用hadoop配置目录的里core-site.xml替换掉hadoop-common-2.3.0-cdh5.1.0.jar 中的 core-site.xml.
　　再次重启,查看页面



HTTP ERROR 500
Problem accessing /hdfs. Reason:
Error processing request: User: hadoop/datanode1@HADOOP is not allowed to impersonate hadoop
Caused by:
java.lang.IllegalStateException: Error processing request: User: hadoop/datanode1@HADOOP is not allowed to impersonate hadoop
at azkaban.viewer.hdfs.HdfsBrowserServlet.handleGet(HdfsBrowserServlet.java:203)
at azkaban.webapp.servlet.LoginAbstractAzkabanServlet.doGet(LoginAbstractAzkabanServlet.java:106)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:707)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:820)
at org.mortbay.jetty.servlet.ServletHolder.handle(ServletHolder.java:511)
at org.mortbay.jetty.servlet.ServletHandler.handle(ServletHandler.java:401)
at org.mortbay.jetty.servlet.SessionHandler.handle(SessionHandler.java:182)
at org.mortbay.jetty.handler.ContextHandler.handle(ContextHandler.java:766)
at org.mortbay.jetty.handler.HandlerWrapper.handle(HandlerWrapper.java:152)
at org.mortbay.jetty.Server.handle(Server.java:326)
at org.mortbay.jetty.HttpConnection.handleRequest(HttpConnection.java:542)
at org.mortbay.jetty.HttpConnection$RequestHandler.headerComplete(HttpConnection.java:928)
at org.mortbay.jetty.HttpParser.parseNext(HttpParser.java:549)
at org.mortbay.jetty.HttpParser.parseAvailable(HttpParser.java:212)
at org.mortbay.jetty.HttpConnection.handle(HttpConnection.java:404)
at org.mortbay.jetty.bio.SocketConnector$Connection.run(SocketConnector.java:228)
at org.mortbay.jetty.security.SslSocketConnector$SslConnection.run(SslSocketConnector.java:713)
at org.mortbay.thread.QueuedThreadPool$PoolThread.run(QueuedThreadPool.java:582)
　　看到刚才那个错误已经没了,变成现这个.
　　解决方案:
　　修改hadoop core-site.xml 配置,增加如下内容.
　　extlib中的hadoop-common-2.3.0-cdh5.1.0.jar里的core-site.xml也做同样修改.



<property>
<name>hadoop.proxyuser.hadoop.hosts</name>
<value>*</value>
<description>The superuser can connect only from host1 and host2 to impersonate a user</description>
</property>
<property>
<name>hadoop.proxyuser.hadoop.groups</name>
<value>*</value>
<description>Allow the superuser oozie to impersonate any members of the group group1 and group2</description>
</property>
这个标红的hadoop,是你启动azkaban的用户.
再次重启

完成.
