MongoDB主从+php实现

43221321 · 发表于 2017-3-8 13:38:59

环境

172.16.115.202 primary

172.16.111.171 secondary

172.16.115.157 secondary

一、MongoDB安装
1. yum下载安装mongodb
   扩展源http://repo.mongodb.org/yum/redhat/mongodb-org-3.0.repo
   mongodb-org-3.0.7-1.el6.x86_64.rpm #元数据包，它可以实现自动安装下面的4个组件包
   mongodb-org-mongos-3.0.7-1.el6.x86_64.rpm # mongod守护程序，以及相关的配置和初始化脚本
   mongodb-org-server-3.0.7-1.el6.x86_64.rpm # mongos守护程序
   mongodb-org-shell-3.0.7-1.el6.x86_64.rpm # ongo shell环境
   mongodb-org-tools-3.0.7-1.el6.x86_64.rpm # MongoDB工具

2. 编辑配置文件vim  /etc/mongod.conf
1）去掉以下两行以#开头的注释，以防重启报错
      fork:true
      pidFilePath:/var/mongodb/mongod.pid

2）bind_ip绑定多个IP，用逗号隔开，如监听全部，留空即可

3. 修改配置参数，启动mongd
echo never > /sys/kernel/mm/transparent_hugepage/enabled
echo never > /sys/kernel/mm/transparent_hugepage/defrag

编辑vim /etc/security/limits.conf，加入内容：
mongod soft nofile 64000
mongod hard nofile 64000
mongod soft nproc 32000
mongod hard nproc 32000
service mongd start
注：启动过程较慢，这是它在写数据/var/lib/mongo，如果启动不了，mongod -f /etc/mongod.conf方式，可以看到报错

4. 编辑三台机器的MongoDB配置文件vim /etc/mongod.conf，重启
内容：
##1）去掉replication的注释
##2）加入下面参数(注意首行留空2个空格，固定格式)：
## 类似于二进制日志
   oplogSizeMB: 20
## 副本集名字
   replSetName: huangzhenping

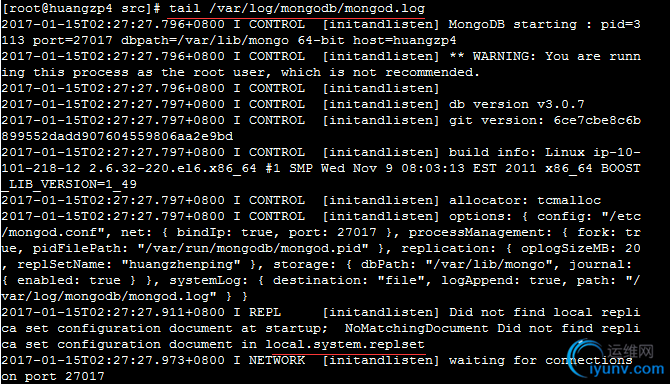

5. 查看日志文件tail /var/log/mongodb/mongod.log

6. 主上配置，搭建副本集
use admin # 主上进入admin库
config={_id:"huangzhenping",members:[{_id:0,host:"172.16.115.202:27017"},{_id:1,host:"172.16.115.157:27017"},{_id:2,host:"172.16.111.171:27017"}]} #配置机器
rs.initiate(config) #刷新
rs.status() #查看状态

如下结果：出现三台机器的信息，主的状态已变为PRIMARY

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

> rs.initiate(config)
{ "ok" : 1 }
huangzhenping:OTHER> rs.status()
{
      "set" : "huangzhenping",
      "date" : ISODate("2017-01-14T20:24:59.490Z"),
      "myState" : 1,
      "members" : [
            {
                     "_id" : 0,
                     "name" : "172.16.115.202:27017",
                     "health" : 1,
                     "state" : 1,
                     "stateStr" : "PRIMARY",
                     "uptime" : 297,
                     "optime" : Timestamp(1484425453, 1),
                     "optimeDate" : ISODate("2017-01-14T20:24:13Z"),
                     "electionTime" : Timestamp(1484425455, 1),
                     "electionDate" : ISODate("2017-01-14T20:24:15Z"),
                     "configVersion" : 1,
                     "self" : true
            },
            {
                     "_id" : 1,
                     "name" : "172.16.115.157:27017",
                     "health" : 1,
                     "state" : 2,
                     "stateStr" : "SECONDARY",
                     "uptime" : 45,
                     "optime" : Timestamp(1484425453, 1),
                     "optimeDate" : ISODate("2017-01-14T20:24:13Z"),
                     "lastHeartbeat" : ISODate("2017-01-14T20:24:57.851Z"),
                     "lastHeartbeatRecv" : ISODate("2017-01-14T20:24:58.343Z")                ,
                     "pingMs" : 0,
                     "configVersion" : 1
            },
            {
                     "_id" : 2,
                     "name" : "172.16.111.171:27017",
                     "health" : 1,
                     "state" : 2,
                     "stateStr" : "SECONDARY",
                     "uptime" : 45,
                     "optime" : Timestamp(1484425453, 1),
                     "optimeDate" : ISODate("2017-01-14T20:24:13Z"),
                     "lastHeartbeat" : ISODate("2017-01-14T20:24:57.863Z"),
                     "lastHeartbeatRecv" : ISODate("2017-01-14T20:24:58.262Z")                ,
                     "pingMs" : 1,
                     "configVersion" : 1
            }
      ],
      "ok" : 1
}
huangzhenping:PRIMARY>

注：
   1）如执行rs.status()命令，没有发现三台机器，需手动执行添加
         rs.add("172.16.115.157")
         rs.add("172.16.111.171")

   2）如从机的状态为"stateStr":"STARTUP"，则需执行：
         var config={_id:"huangzhenping",members:[{_id:0,host:"172.16.115.202:27017"},{_id:1,host:"172.16.115.157:27017"},{_id:2,host:"172.16.111.171:27017"}]}
         rs.initiate(config)

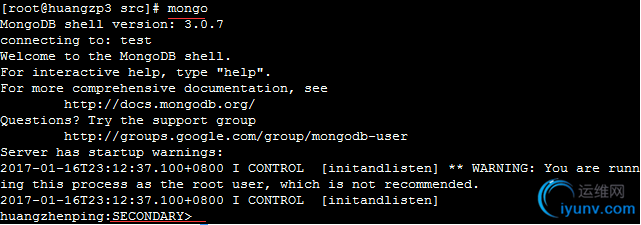

7. 从上登录，状态已变为：SECONDARY

二、MongoDB主从测试
1. mongodb副本集测试
1）主上建库，建集合
   use mydb
   db.createCollection('testA')
   show dbs
   show tables

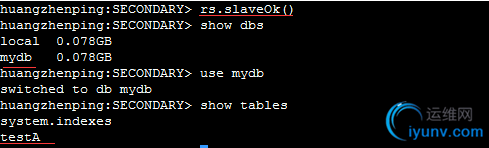

2）从上查看，已成功同步库和集合
rs.slaveOk()
show dbs

2. 副本集更改权重，模拟主宕机
1）主上设置不同的权重，并查看
   cfg = rs.conf()
   cfg.members[0].priority = 3
   cfg.members[1].priority = 2
   cfg.members[2].priority = 1
   rs.reconfig(cfg)
   rs.config()

   查看生效的权重：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53

huangzhenping:PRIMARY> rs.config()
{
      "_id" : "huangzhenping",
      "version" : 2,
      "members" : [
            {
                     "_id" : 0,
                     "host" : "172.16.115.202:27017",
                     "arbiterOnly" : false,
                     "buildIndexes" : true,
                     "hidden" : false,
                     "priority" : 3,
                     "tags" : {
                     },
                     "slaveDelay" : 0,
                     "votes" : 1
            },
            {
                     "_id" : 1,
                     "host" : "172.16.115.157:27017",
                     "arbiterOnly" : false,
                     "buildIndexes" : true,
                     "hidden" : false,
                     "priority" : 2,
                     "tags" : {
                     },
                     "slaveDelay" : 0,
                     "votes" : 1
            },
            {
                     "_id" : 2,
                     "host" : "172.16.111.171:27017",
                     "arbiterOnly" : false,
                     "buildIndexes" : true,
                     "hidden" : false,
                     "priority" : 1,
                     "tags" : {
                     },
                     "slaveDelay" : 0,
                     "votes" : 1
            }
      ],
      "settings" : {
            "chainingAllowed" : true,
            "heartbeatTimeoutSecs" : 10,
            "getLastErrorModes" : {
            },
            "getLastErrorDefaults" : {
                     "w" : 1,
                     "wtimeout" : 0
            }
      }
}

2）主上禁用27017端口，模拟主宕机
      iptables -I INPUT -p tcp --dport 27017 -j DROP

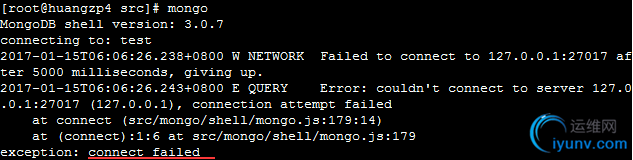

      原主上：已连接失败

原一台从机：状态已变为PRIMARY

rs.status()查看状态：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53

huangzhenping:PRIMARY> rs.status()
{
      "set" : "huangzhenping",
      "date" : ISODate("2017-01-22T15:48:15.453Z"),
      "myState" : 1,
      "members" : [
            {
                     "_id" : 0,
                     "name" : "172.16.115.202:27017",
                     "health" : 0,
                     "state" : 8,
                     "stateStr" : "(not reachable/healthy)",
                     "uptime" : 0,
                     "optime" : Timestamp(0, 0),
                     "optimeDate" : ISODate("1970-01-01T00:00:00Z"),
                     "lastHeartbeat" : ISODate("2017-01-22T15:48:14.551Z"),
                     "lastHeartbeatRecv" : ISODate("2017-01-22T15:48:14.632Z"),
                     "pingMs" : 0,
                     "lastHeartbeatMessage" : "Failed attempt to connect to 172.16.115.202:27017; couldn't connect to server 172.16.115.202:27017 (172.16.115.202), connection attempt failed",
                     "configVersion" : -1
            },
            {
                     "_id" : 1,
                     "name" : "172.16.115.157:27017",
                     "health" : 1,
                     "state" : 1,
                     "stateStr" : "PRIMARY",
                     "uptime" : 16333,
                     "optime" : Timestamp(1484429320, 1),
                     "optimeDate" : ISODate("2017-01-14T21:28:40Z"),
                     "electionTime" : Timestamp(1485100022, 1),
                     "electionDate" : ISODate("2017-01-22T15:47:02Z"),
                     "configVersion" : 2,
                     "self" : true
            },
            {
                     "_id" : 2,
                     "name" : "172.16.111.171:27017",
                     "health" : 1,
                     "state" : 2,
                     "stateStr" : "SECONDARY",
                     "uptime" : 5989,
                     "optime" : Timestamp(1484429320, 1),
                     "optimeDate" : ISODate("2017-01-14T21:28:40Z"),
                     "lastHeartbeat" : ISODate("2017-01-22T15:48:14.751Z"),
                     "lastHeartbeatRecv" : ISODate("2017-01-22T15:48:14.749Z"),
                     "pingMs" : 0,
                     "lastHeartbeatMessage" : "could not find member to sync from",
                     "configVersion" : 2
            }
      ],
      "ok" : 1
}

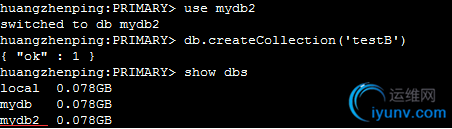

3）新主上，创建一个库和集合
use mydb2
db.createCollection('testB')

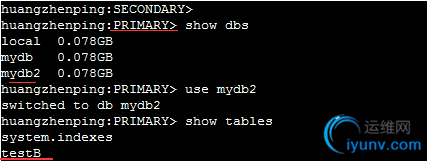

4）恢复旧主，则自动切换为MASTER状态，并同步自己离线时新主上创建的库
iptables -D INPUT -p tcp --dport 27017 -j DROP

三、MongoDB结合php
1. 下载安装mongo扩展模块
   wget https://github.com/mongodb/mongo ... /archive/master.zip
   unzip mongo-php-driver-legacy-master.zip
   cd mongo-php-driver-legacy-master
   /usr/bin/phpize
   ./configure --with-php-config=/usr/bin/php-config
   make;make install

2. 编辑php配置文件vim /etc/php.ini，加载扩展模块

3. 编辑测试文件 vim /usr/local/apache2/htdocs/1.php
内容：

1
2
3
4
5
6
7
8

<?php
// 连接到mongodb
$m = new MongoClient();
echo "Connection to database successfully";
// 选择一个数据库
$db = $m->mydb;
echo "Database mydb selected";
?>

4. 测试 curl localhost/1.php
