26.Hive整合Hbase

yxixi

0.系统版本信息



OS：Debian-7.9
Jdk：1.8.0_131
hadoop:2.8.1
zookeeper:3.4.9
hbase:1.3.1
hive:2.1.1
　　主机信息



192.168.74.128  master
192.168.74.132  slave-2
192.168.74.133  slave-3
192.168.74.134  slave-4
1.修改hive配置文件，需要hadoop，zookeeper，hbase全都启动，创建相关的测试表
　　A:hive-site.xml文件添加配置



<property>
<name>hbase.zookeeper.quorum</name>
<value>master,slave-2,slave-3,slave-4</value>
<description></description>
</property>
　　B:在hive安装目录bin下执行./hive



cd /home/hadoop/opt/hive-2.1.1/bin
./hive
#或者执行
/home/hadoop/opt/hive-2.1.1/bin/hive
　　C:创建hbase识别的表



hive>

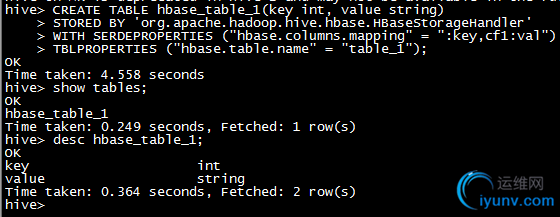

CREATE TABLE hbase_table_1(key int, value string)
STORED BY 'org.apache.hadoop.hive.hbase.HBaseStorageHandler'
WITH SERDEPROPERTIES ("hbase.columns.mapping" = ":key,cf1:val")
TBLPROPERTIES ("hbase.table.name" = "table_1");

　　D:hbase shell：list发现有新创建的table_1

2.hbase表不存在，然后通过hive创建关联表，插入数据进行测试
　　主要有两种方式
　　1：通过hive插入数据，在hbase中可以查到相关数据
　　2：通过hbase插入数据，在hive中可以查询到
　　A:在hive中创建临时表导入数据

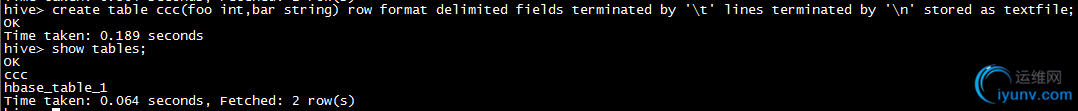

hive> create table ccc(foo int,bar string) row format delimited fields terminated by '\t' lines terminated by '\n' stored as textfile;

　　B:创建数据文件data.txt



touch /home/hadoop/software/data.txt
vim data.txt
1   zhangsan
2   lisi
3   wangwu
　　C:将数据导入临时的hive表中，数据字段之间是tab键分隔，数据条数之间使用换行符分隔

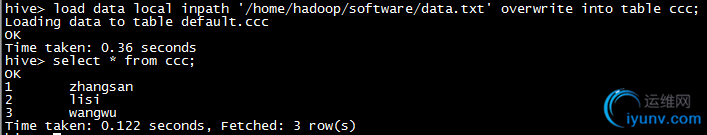

hive>load data local inpath '/home/hadoop/software/data.txt' overwrite into table ccc;

　　D:将临时表中的数据导入到hbase中

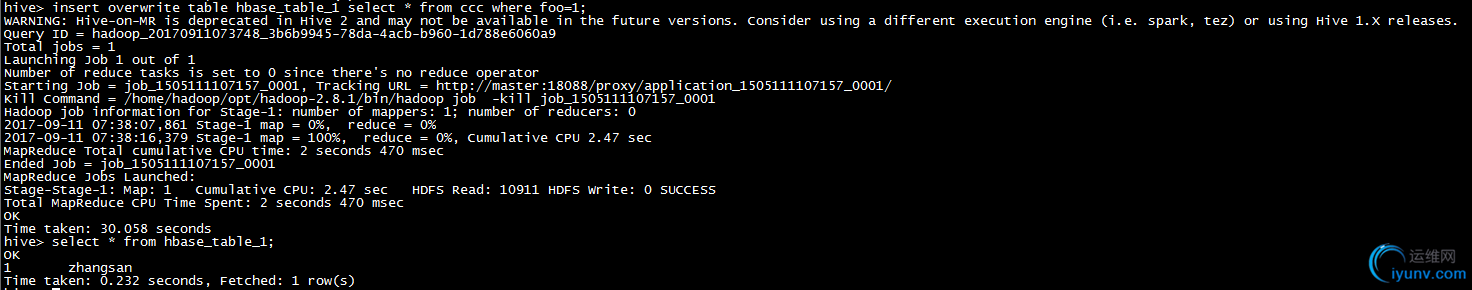

hive> insert overwrite table hbase_table_1 select * from ccc where foo=1;

　　E:在hbas-shell中查看数据是否插入成功

　　这样就说明了插入通过hive插入的数据实际上最后保存到了habse的表中去了
　　下面证明的通过hbase插入的记录也可以通过hive查询出来，在hbase-shell中插入数据

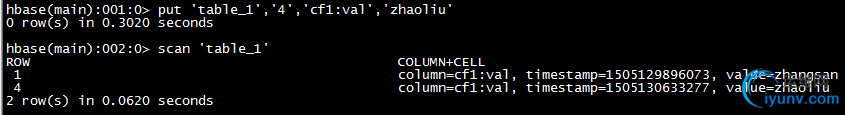

hbase>put 'table_1','4','cf1:val','zhaoliu'
hbase>scan 'table_1'

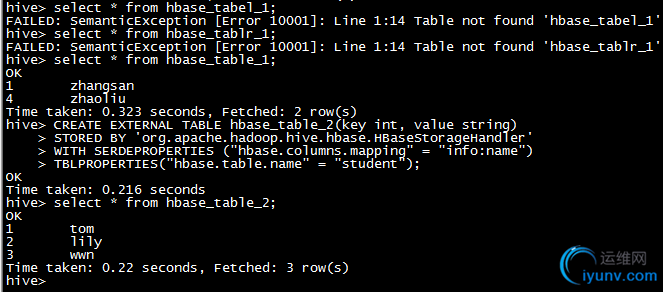

hive>select * from hbase_table_1;

3.hbase表存在，然后通过hive创建关联表，插入数据进行测试
　　A:在hbase-shell中创建新的表，并插入新的数据

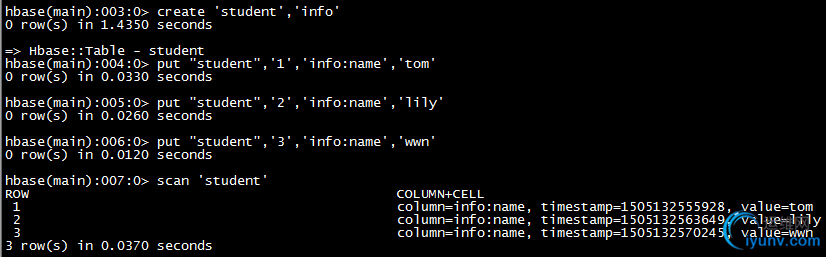

hbase>create 'student','info'
hbase>put "student",'1','info:name','tom'
hbase>put "student",'2','info:name','lily'
hbase>put "student",'3','info:name','wwn'
hbase>scan 'student'

　　B:创建hive关联关系表读取hbase中的数据



hive>CREATE EXTERNAL TABLE hbase_table_2(key int, value string)
STORED BY 'org.apache.hadoop.hive.hbase.HBaseStorageHandler'
WITH SERDEPROPERTIES ("hbase.columns.mapping" = "info:name")
TBLPROPERTIES("hbase.table.name" = "student");

4.hive和hbase多列多族的问题
　　下面在hbase中创建这样一张表customer

rowkey	address			info		contact
	province	city	country	age	company	phone
zhangsan	hubei	wuhan	china	24	douyu	101
lisi	guangdong	guangzhou	china	24	netease	102

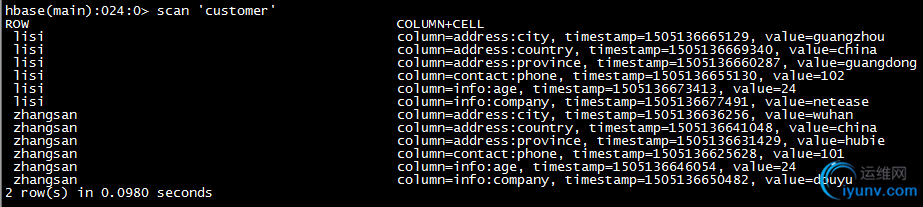

hbase>create 'customer','address','info', 'contact'
hbase>put 'customer','zhangsan','contact:phone','101'
hbase>put 'customer','zhangsan','address:province','hubie'
hbase>put 'customer','zhangsan','address:city','wuhan'
hbase>put 'customer','zhangsan','address:country','china'
hbase>put 'customer','zhangsan','info:age','24'
hbase>put 'customer','zhangsan','info:company','douyu'
hbase>put 'customer','lisi','contact:phone','102'
hbase>put 'customer','lisi','address:province','guangdong'
hbase>put 'customer','lisi','address:city','guangzhou'
hbase>put 'customer','lisi','address:country','china'
hbase>put 'customer','lisi','info:age','24'
hbase>put 'customer','lisi','info:company','netease'

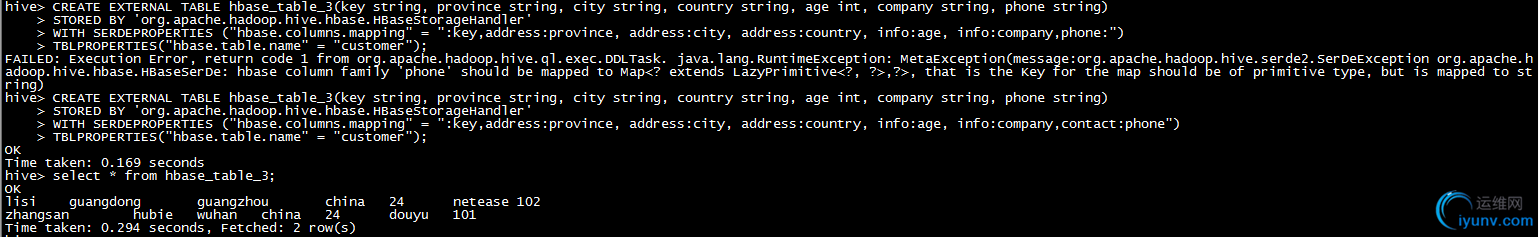

hive>CREATE EXTERNAL TABLE hbase_table_3(key string, province string, city string, country string, age int, company string, phone string)
STORED BY 'org.apache.hadoop.hive.hbase.HBaseStorageHandler'
WITH SERDEPROPERTIES ("hbase.columns.mapping" = ":key,address:province, address:city, address:country, info:age, info:company,contact:phone")
TBLPROPERTIES("hbase.table.name" = "customer");
