思科VLAN划分经典案例

grerww

Task
Vlan2 Vlan3 Vlan4 communication for each other. The network map as below.
Environment:Cisco Packet Tracer

Condition1.Multilayer Switch(Cisco 3560-24ps) 1
2.Cisco 2950-24 switch 3
3.Desktop 6
4.Network Cable
Solution
1. Network Cable Connection
Sodgsw001  Fa 0/1-------Fa 0/1 Sodgsw002
Sodgsw001  Fa 0/2-------Fa 0/1 Sodgsw003
Sodgsw001  Fa 0/3-------Fa 0/1 Sodgsw004
Sodgsw002  Fa 0/2-------Fa 0 PC0
Sodgsw002  Fa 0/3-------Fa 0 PC1
Sodgsw003  Fa 0/2-------Fa 0 PC2
Sodgsw003  Fa 0/3-------Fa 0 PC3
Sodgsw004  Fa 0/2-------Fa 0 PC4
Sodgsw004  Fa 0/3-------Fa 0 PC5

2. Set static ip for workstations
PC0: Ip Address:  192.168.199.40
     Subnet Mast: 255.255.255.0
     Gateway:     192.168.199.30
PC1: Ip Address:  192.168.199.50
     Subnet Mast: 255.255.255.0
     Gateway:     192.168.199.30
PC2: Ip Address:  192.168.202.40
     Subnet Mast: 255.255.255.0
     Gateway:     192.168.202.30
PC3: Ip Address:  192.168.202.50
     Subnet Mast: 255.255.255.0
     Gateway:     192.168.202.30
PC4: Ip Address:  192.168.222.40
     Subnet Mast: 255.255.255.0
     Gateway:     192.168.202.30
PC5: Ip Address:  192.168.222.50
     Subnet Mast: 255.255.255.0
     Gateway:     192.168.222.30
3.Config SODGSW001.
Change switch name to SODGSW001


Create Vlan2 Vlan3 Vlan4

Set Vlan Ip

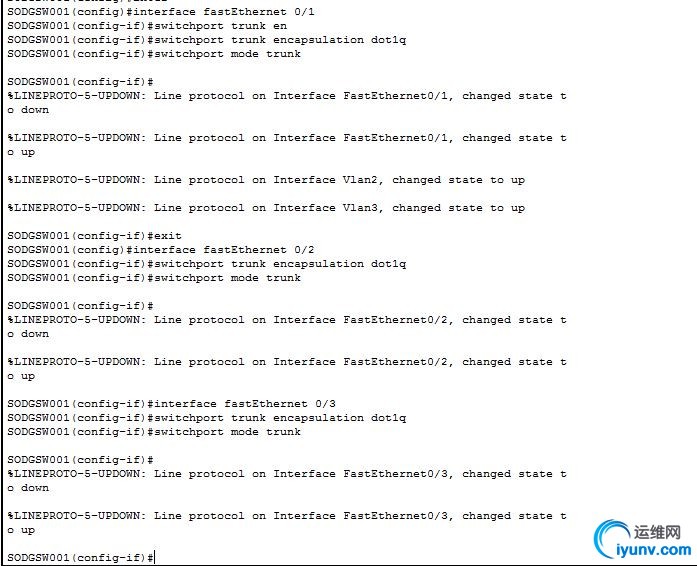

Set switchport mode to trunk

Run Switch Routing function

4.Config SODGSW002.
Change the hostname to sodgsw002

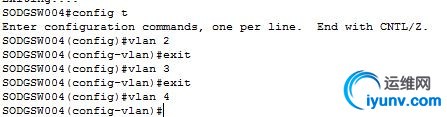

add vlan2 vlan3 vlan4 run in the switch

Config switchport, arrange vlan 2 to all connection workstation

5.Config SODGSW003.
Change the hostname to sodgsw003

add vlan2 vlan3 vlan4 run in the switch

Config switchport,arrange vlan3 to all connection workstation

6.Config SODGSW004.
Change the hostname to sodgsw004

add vlan2 vlan3 vlan4 run in the switch

Config switchport,arrange vlan4 to all connection workstation

Make test
Test 1: from Vlan2 to ping vlan2 vlan3 Vlan4

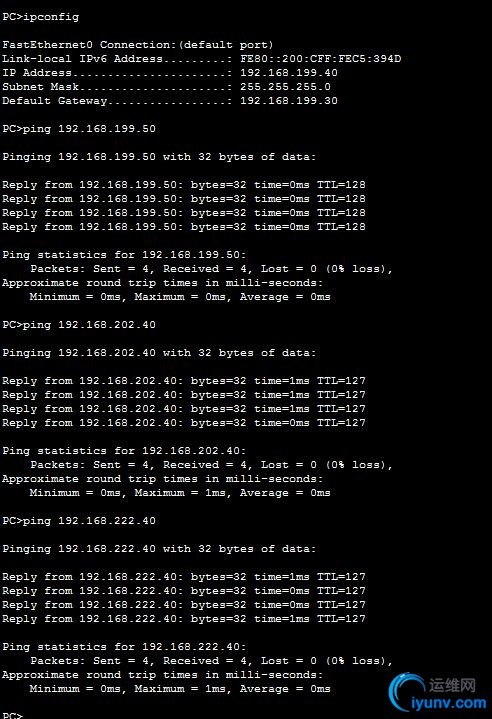

Go to PC0 make ping.   Result: Pass

Test 2: from Vlan3 to ping vlan2 vlan3 Vlan4
Go to PC2 make ping.   Result: Pass

Test 2: from Vlan4 to ping vlan2 vlan3 Vlan4
Go to PC4 make ping.   Result: Pass
