　　mpush 服务端配置
　　以下安装部分是参照官方的步骤，
　　一、安装jdk1.8并配置环境变量
　　示例：  http://www.cnblogs.com/endv/p/6439860.html
　　二、Windows安装Redis
　　下载地址Github （https://github.com/MSOpenTech/redis/releases），
　　Redis-x64-3.2.100.zip
　　1.下载并解压，解压后如下

　　2.使用cmd进入到Redis解压目录中，并使用脚本(redis-server.exe redis.windows.conf)执行即可，默认配置文件不需要修改



Microsoft Windows [版本 10.0.10240]
(c) 2015 Microsoft Corporation. All rights reserved.
C:\Users\endv>d:

D:\>cd D:\Redis-x64-3.2.100
D:\Redis-x64-3.2.100>redis-server.exe redis.windows.conf
_._
_.-``__ ''-._
_.-``    `.  `_.  ''-._           Redis 3.2.100 (00000000/0) 64 bit
.-`` .-```.  ```\/    _.,_ ''-._
(    '      ,       .-`  | `,    )     Running in standalone mode
|`-._`-...-` __...-.``-._|'` _.-'|     Port: 6379
|    `-._   `._    /     _.-'    |     PID: 12096
`-._    `-._  `-./  _.-'    _.-'
|`-._`-._    `-.__.-'    _.-'_.-'|
|    `-._`-._        _.-'_.-'    |           http://redis.io
`-._    `-._`-.__.-'_.-'    _.-'
|`-._`-._    `-.__.-'    _.-'_.-'|
|    `-._`-._        _.-'_.-'    |
`-._    `-._`-.__.-'_.-'    _.-'
      `-._    `-.__.-'    _.-'
`-._        _.-'
              `-.__.-'

[12096] 25 Feb 20:40:09.347 # Server started, Redis version 3.2.100
[12096] 25 Feb 20:40:09.347 * The server is now ready to accept connections on port 6379
　　三、 Windows安装Zookeeper
　　从官网直接下载Zookeeper最新版本(Zookeeper支持Windows和Linux)

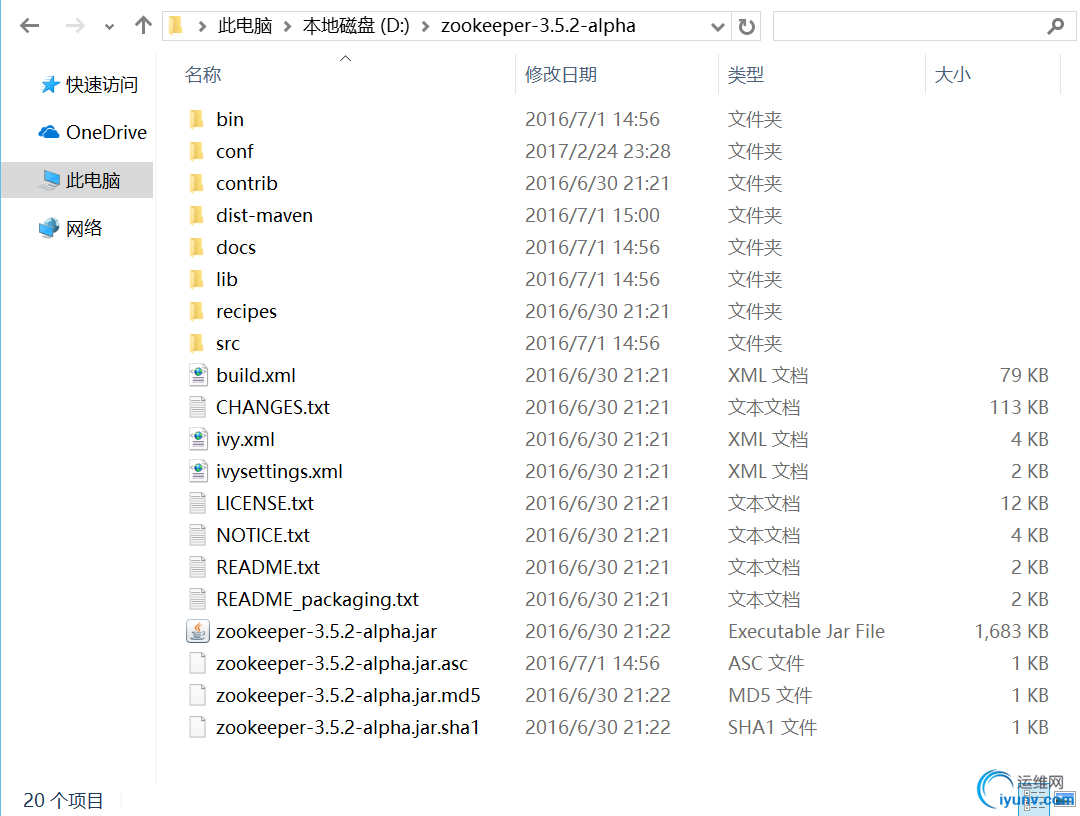

　　1.下载并解压，解压后如下

　　2.提供配置文件
　　将conf目录下的zoo_sample.conf重命名为zoo.conf
　　3.到bin目录下，双击zkServer.bat即可



Microsoft Windows [版本 10.0.10240]
(c) 2015 Microsoft Corporation. All rights reserved.
C:\Users\endv>d:
D:\>cd D:\zookeeper-3.5.2-alpha\bin
D:\zookeeper-3.5.2-alpha\bin>zkServer.cmd




Microsoft Windows [版本 10.0.10240]
(c) 2015 Microsoft Corporation. All rights reserved.
C:\Users\endv>d:
D:\>cd D:\zookeeper-3.5.2-alpha\bin
D:\zookeeper-3.5.2-alpha\bin>zkServer.cmd
D:\zookeeper-3.5.2-alpha\bin>call "C:\Program Files\Java\jdk1.8.0_121"\bin\java "-Dzookeeper.log.dir=D:\zookeeper-3.5.2-alpha\bin\..\logs" "-Dzookeeper.root.logger=INFO,CONSOLE" "-Dzookeeper.log.file=zookeeper-endv-server-DESKTOP-3ML7R0C.log" "-XX:+HeapDumpOnOutOfMemoryError" "-XX:OnOutOfMemoryError=cmd /c taskkill /pid %%p /t /f" -cp "D:\zookeeper-3.5.2-alpha\bin\..\build\classes;D:\zookeeper-3.5.2-alpha\bin\..\build\lib\*;D:\zookeeper-3.5.2-alpha\bin\..\*;D:\zookeeper-3.5.2-alpha\bin\..\lib\*;D:\zookeeper-3.5.2-alpha\bin\..\conf" org.apache.zookeeper.server.quorum.QuorumPeerMain "D:\zookeeper-3.5.2-alpha\bin\..\conf\zoo.cfg"
2017-02-25 20:50:06,765 [myid:] - INFO  [main:QuorumPeerConfig@116] - Reading configuration from: D:\zookeeper-3.5.2-alpha\bin\..\conf\zoo.cfg
2017-02-25 20:50:06,781 [myid:] - WARN  [main:VerifyingFileFactory@59] - \tmp\zookeeper is relative. Prepend .\ to indicate that you're sure!
2017-02-25 20:50:06,874 [myid:] - INFO  [main:QuorumPeerConfig@318] - clientPortAddress is 0.0.0.0/0.0.0.0:2181
2017-02-25 20:50:06,874 [myid:] - INFO  [main:QuorumPeerConfig@322] - secureClientPort is not set
2017-02-25 20:50:06,874 [myid:] - INFO  [main:DatadirCleanupManager@78] - autopurge.snapRetainCount set to 3
2017-02-25 20:50:06,874 [myid:] - INFO  [main:DatadirCleanupManager@79] - autopurge.purgeInterval set to 0
2017-02-25 20:50:06,874 [myid:] - INFO  [main:DatadirCleanupManager@101] - Purge task is not scheduled.
2017-02-25 20:50:06,874 [myid:] - WARN  [main:QuorumPeerMain@122] - Either no config or no quorum defined in config, running  in standalone mode
2017-02-25 20:50:06,874 [myid:] - INFO  [main:ManagedUtil@46] - Log4j found with jmx enabled.
2017-02-25 20:50:07,420 [myid:] - INFO  [main:QuorumPeerConfig@116] - Reading configuration from: D:\zookeeper-3.5.2-alpha\bin\..\conf\zoo.cfg
2017-02-25 20:50:07,421 [myid:] - WARN  [main:VerifyingFileFactory@59] - \tmp\zookeeper is relative. Prepend .\ to indicate that you're sure!
2017-02-25 20:50:07,424 [myid:] - INFO  [main:QuorumPeerConfig@318] - clientPortAddress is 0.0.0.0/0.0.0.0:2181
2017-02-25 20:50:07,424 [myid:] - INFO  [main:QuorumPeerConfig@322] - secureClientPort is not set
2017-02-25 20:50:07,430 [myid:] - INFO  [main:ZooKeeperServerMain@113] - Starting server
2017-02-25 20:50:07,480 [myid:] - INFO  [main:Environment@109] - Server environment:zookeeper.version=3.5.2-alpha-1750793, built on 06/30/2016 13:15 GMT
2017-02-25 20:50:07,481 [myid:] - INFO  [main:Environment@109] - Server environment:host.name=DESKTOP-3ML7R0C
2017-02-25 20:50:07,483 [myid:] - INFO  [main:Environment@109] - Server environment:java.version=1.8.0_121
2017-02-25 20:50:07,485 [myid:] - INFO  [main:Environment@109] - Server environment:java.vendor=Oracle Corporation
2017-02-25 20:50:07,489 [myid:] - INFO  [main:Environment@109] - Server environment:java.home=C:\Program Files\Java\jdk1.8.0_121\jre
2017-02-25 20:50:07,493 [myid:] - INFO  [main:Environment@109] - Server environment:java.class.path=D:\zookeeper-3.5.2-alpha\bin\..\build\classes;D:\zookeeper-3.5.2-alpha\bin\..\build\lib\*;D:\zookeeper-3.5.2-alpha\bin\..\zookeeper-3.5.2-alpha.jar;D:\zookeeper-3.5.2-alpha\bin\..\lib\commons-cli-1.2.jar;D:\zookeeper-3.5.2-alpha\bin\..\lib\jackson-core-asl-1.9.11.jar;D:\zookeeper-3.5.2-alpha\bin\..\lib\jackson-mapper-asl-1.9.11.jar;D:\zookeeper-3.5.2-alpha\bin\..\lib\javacc.jar;D:\zookeeper-3.5.2-alpha\bin\..\lib\jetty-6.1.26.jar;D:\zookeeper-3.5.2-alpha\bin\..\lib\jetty-util-6.1.26.jar;D:\zookeeper-3.5.2-alpha\bin\..\lib\jline-2.11.jar;D:\zookeeper-3.5.2-alpha\bin\..\lib\log4j-1.2.17.jar;D:\zookeeper-3.5.2-alpha\bin\..\lib\netty-3.10.5.Final.jar;D:\zookeeper-3.5.2-alpha\bin\..\lib\servlet-api-2.5-20081211.jar;D:\zookeeper-3.5.2-alpha\bin\..\lib\slf4j-api-1.7.5.jar;D:\zookeeper-3.5.2-alpha\bin\..\lib\slf4j-log4j12-1.7.5.jar;D:\zookeeper-3.5.2-alpha\bin\..\conf
2017-02-25 20:50:07,498 [myid:] - INFO  [main:Environment@109] - Server environment:java.library.path=C:\Program Files\Java\jdk1.8.0_121\bin;C:\Windows\Sun\Java\bin;C:\Windows\system32;C:\Windows;C:\Program Files\Java\jdk1.8.0_121\Bin;C:\Program Files\Java\jdk1.8.0_121\jre\Bin;C:\Windows\system32;C:\Windows;C:\Windows\System32\Wbem;C:\Windows\System32\WindowsPowerShell\v1.0\;.
2017-02-25 20:50:07,506 [myid:] - INFO  [main:Environment@109] - Server environment:java.io.tmpdir=C:\Users\endv\AppData\Local\Temp\
2017-02-25 20:50:07,509 [myid:] - INFO  [main:Environment@109] - Server environment:java.compiler=<NA>
2017-02-25 20:50:07,513 [myid:] - INFO  [main:Environment@109] - Server environment:os.name=Windows 10
2017-02-25 20:50:07,517 [myid:] - INFO  [main:Environment@109] - Server environment:os.arch=amd64
2017-02-25 20:50:07,521 [myid:] - INFO  [main:Environment@109] - Server environment:os.version=10.0
2017-02-25 20:50:07,525 [myid:] - INFO  [main:Environment@109] - Server environment:user.name=endv
2017-02-25 20:50:07,529 [myid:] - INFO  [main:Environment@109] - Server environment:user.home=C:\Users\endv
2017-02-25 20:50:07,533 [myid:] - INFO  [main:Environment@109] - Server environment:user.dir=D:\zookeeper-3.5.2-alpha\bin
2017-02-25 20:50:07,537 [myid:] - INFO  [main:Environment@109] - Server environment:os.memory.free=116MB
2017-02-25 20:50:07,541 [myid:] - INFO  [main:Environment@109] - Server environment:os.memory.max=1803MB
2017-02-25 20:50:07,544 [myid:] - INFO  [main:Environment@109] - Server environment:os.memory.total=123MB
2017-02-25 20:50:07,552 [myid:] - INFO  [main:ZooKeeperServer@858] - minSessionTimeout set to 4000
2017-02-25 20:50:07,553 [myid:] - INFO  [main:ZooKeeperServer@867] - maxSessionTimeout set to 40000
2017-02-25 20:50:07,556 [myid:] - INFO  [main:ZooKeeperServer@156] - Created server with tickTime 2000 minSessionTimeout 4000 maxSessionTimeout 40000 datadir \tmp\zookeeper\version-2 snapdir \tmp\zookeeper\version-2
2017-02-25 20:50:07,622 [myid:] - INFO  [main:Slf4jLog@67] - Logging to org.slf4j.impl.Log4jLoggerAdapter(org.mortbay.log) via org.mortbay.log.Slf4jLog
2017-02-25 20:50:07,665 [myid:] - INFO  [main:Slf4jLog@67] - jetty-6.1.26
2017-02-25 20:50:07,913 [myid:] - INFO  [main:Slf4jLog@67] - Started SelectChannelConnector@0.0.0.0:8080
2017-02-25 20:50:07,923 [myid:] - INFO  [main:JettyAdminServer@105] - Started AdminServer on address 0.0.0.0, port 8080 and command URL /commands
2017-02-25 20:50:07,953 [myid:] - INFO  [main:NIOServerCnxnFactory@673] - Configuring NIO connection handler with 10s sessionless connection timeout, 2 selector thread(s), 16 worker threads, and 64 kB direct buffers.
2017-02-25 20:50:07,957 [myid:] - INFO  [main:NIOServerCnxnFactory@686] - binding to port 0.0.0.0/0.0.0.0:2181
2017-02-25 20:50:08,012 [myid:] - INFO  [main:FileTxnSnapLog@298] - Snapshotting: 0x0 to \tmp\zookeeper\version-2\snapshot.0
2017-02-25 20:50:08,053 [myid:] - INFO  [main:ContainerManager@64] - Using checkIntervalMs=60000 maxPerMinute=10000
View Code　　 四、安装mpush
　　1.解压mpush-release-0.7.1.tar.gz

　　2.编辑Mpush配置文件(注意，只需要修改mpush.conf配置文件即可，不需要修改reference.conf)，修改默认提供的Redis、Zookeeper服务器地址和端口信息(因为我redis和zookeeper直接部署在本机，所以不用修改)。
　　3.使用cmd进入到bin目录，启动Mpush(使用如下脚本java -Dmp.conf=D:\mpush-0.7.1\conf\mpush.conf -jar bootstrap.jar)



Microsoft Windows [版本 10.0.10240]
(c) 2015 Microsoft Corporation. All rights reserved.
C:\Users\endv>d:
D:\>cd D:\mpush-0.7.1\bin
D:\mpush-0.7.1\bin>java -Dmp.conf=D:\mpush-0.7.1\conf\mpush.conf -jar bootstrap.jar





Microsoft Windows [版本 10.0.10240]
(c) 2015 Microsoft Corporation. All rights reserved.
C:\Users\endv>d:
D:\>cd D:\mpush-0.7.1\bin
D:\mpush-0.7.1\bin>java -Dmp.conf=D:\mpush-0.7.1\conf\mpush.conf -jar bootstrap.jar
21:07:05.468 - {
"conf" : "D:\\mpush-0.7.1\\conf\\mpush.conf",
"core" : {
"compress-threshold" : "10k",
"epoll-provider" : "netty",
"max-hb-timeout-times" : 2,
"max-heartbeat" : "3m",
"max-packet-size" : "10k",
"min-heartbeat" : "3m",
"session-expired-time" : "1d"
},
"home" : "D:\\mpush-0.7.1\\bin",
"http" : {
"default-read-timeout" : "10s",
"dns-mapping" : {},
"max-conn-per-host" : 5,
"max-content-length" : "5m",
"proxy-enabled" : true
},
"log-conf-path" : "D:\\mpush-0.7.1\\bin/conf/logback.xml",
"log-dir" : "D:\\mpush-0.7.1\\bin/logs",
"log-level" : "warn",
"monitor" : {
"dump-dir" : "D:\\mpush-0.7.1\\bin/tmp",
"dump-period" : "1m",
"dump-stack" : false,
"print-log" : true,
"profile-enabled" : false,
"profile-slowly-duration" : "10ms"
},
"net" : {
"admin-server-port" : 3002,
"connect-server-port" : 3000,
"gateway-client-multicast" : "239.239.239.99",
"gateway-client-num" : 1,
"gateway-client-port" : 4000,
"gateway-server-multicast" : "239.239.239.88",
"gateway-server-net" : "tcp",
"gateway-server-port" : 3001,
"public-host-mapping" : {},
"rcv_buf" : {
"connect-server" : "32k",
"gateway-client" : 0,
"gateway-server" : 0
},
"snd_buf" : {
"connect-server" : "32k",
"gateway-client" : 0,
"gateway-server" : 0
},
"traffic-shaping" : {
"connect-server" : {
"check-interval" : "100ms",
"enabled" : false,
"read-channel-limit" : "3k",
"read-global-limit" : "100k",
"write-channel-limit" : "3k",
"write-global-limit" : 0
},
"gateway-client" : {
"check-interval" : "100ms",
"enabled" : false,
"read-channel-limit" : 0,
"read-global-limit" : 0,
"write-channel-limit" : "3k",
"write-global-limit" : "30k"
},
"gateway-server" : {
"check-interval" : "100ms",
"enabled" : false,
"read-channel-limit" : "3k",
"read-global-limit" : "30k",
"write-channel-limit" : 0,
"write-global-limit" : 0
}
},
"write-buffer-water-mark" : {
"connect-server-high" : "64k",
"connect-server-low" : "32k",
"gateway-server-high" : "20m",
"gateway-server-low" : "10m"
},
"ws-path" : "/",
"ws-server-port" : 0
},
"push" : {
"flow-control" : {
"broadcast" : {
"duration" : "1s",
"limit" : 3000,
"max" : 100000
},
"global" : {
"duration" : "1s",
"limit" : 5000,
"max" : 0
}
}
},
"redis" : {
"cluster-model" : "single",
"config" : {
"blockWhenExhausted" : true,
"fairness" : false,
"jmxEnabled" : false,
"jmxNameBase" : "pool",
"jmxNamePrefix" : "pool",
"lifo" : true,
"maxIdle" : 4,
"maxTotal" : 8,
"maxWaitMillis" : 5000,
"minEvictableIdleTimeMillis" : 300000,
"minIdle" : 1,
"numTestsPerEvictionRun" : 3,
"softMinEvictableIdleTimeMillis" : 1800000,
"testOnBorrow" : false,
"testOnCreate" : false,
"testOnReturn" : false,
"testWhileIdle" : false,
"timeBetweenEvictionRunsMillis" : 60000
},
"nodes" : [
"127.0.0.1:6379"
],
"password" : "",
"write-to-zk" : false
},
"security" : {
"aes-key-length" : 16,
"private-key" : "MIIBNgIBADANBgkqhkiG9w0BAQEFAASCASAwggEcAgEAAoGBAKCE8JYKhsbydMPbiO7BJVq1pbuJWJHFxOR7L8Hv3ZVkSG4eNC8DdwAmDHYu/wadfw0ihKFm2gKDcLHp5yz5UQ8PZ8FyDYvgkrvGV0ak4nc40QDJWws621dm01e/INlGKOIStAAsxOityCLv0zm5Vf3+My/YaBvZcB5mGUsPbx8fAgEAAoGAAy0+WanRqwRHXUzt89OsupPXuNNqBlCEqgTqGAt4Nimq6Ur9u2R1KXKXUotxjp71Ubw6JbuUWvJg+5Rmd9RjT0HOUEQF3rvzEepKtaraPhV5ejEIrB+nJWNfGye4yzLdfEXJBGUQzrG+wNe13izfRNXI4dN/6Q5npzqaqv0E1CkCAQACAQACAQACAQACAQA=",
"public-key" : "MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQCghPCWCobG8nTD24juwSVataW7iViRxcTkey/B792VZEhuHjQvA3cAJgx2Lv8GnX8NIoShZtoCg3Cx6ecs+VEPD2fBcg2L4JK7xldGpOJ3ONEAyVsLOttXZtNXvyDZRijiErQALMTorcgi79M5uVX9/jMv2Ggb2XAeZhlLD28fHwIDAQAB"
},
"spi" : {
"dns-mapping-manager" : "com.mpush.common.net.HttpProxyDnsMappingManager",
"thread-pool-factory" : "com.mpush.tools.thread.pool.DefaultThreadPoolFactory"
},
"thread" : {
"pool" : {
"ack-timer" : 1,
"conn-work" : 0,
"event-bus" : {
"max" : 16,
"min" : 1,
"queue-size" : 10000
},
"gateway-client-work" : 0,
"gateway-server-work" : 0,
"http-work" : 0,
"mq" : {
"max" : 4,
"min" : 1,
"queue-size" : 10000
},
"push-client" : 2,
"push-task" : 0
}
},
"zk" : {
"connectionTimeoutMs" : "5s",
"digest" : "mpush",
"namespace" : "mpush",
"retry" : {
"baseSleepTimeMs" : "3s",
"maxRetries" : 3,
"maxSleepMs" : "5s"
},
"server-address" : "127.0.0.1:2181",
"sessionTimeoutMs" : "5s",
"watch-path" : "/"
}
}
21:07:05.548 - launch mpush server...
21:07:05.749 - bootstrap chain starting...
21:07:05.750 - start bootstrap job [CacheManagerBoot]
21:07:05.958 - start bootstrap job [ServiceRegistryBoot]
21:07:05.958 - init service registry waiting for connected...
21:07:06.508 - start bootstrap job [ServerBoot(ConnectionServer)]
21:07:07.100 - start ConnectionServer success on:3000
21:07:07.317 - start bootstrap job [ServerBoot(GatewayServer)]
21:07:07.363 - start GatewayServer success on:3001
21:07:07.517 - start bootstrap job [ServerBoot(AdminServer)]
21:07:07.571 - start AdminServer success on:3002
21:07:07.572 - start bootstrap job [PushCenterBoot]
21:07:07.663 - start bootstrap job [HttpProxyBoot]
21:07:07.680 - start bootstrap job [MonitorBoot]
21:07:07.681 - start bootstrap job [LastBoot]
21:07:07.761 - bootstrap chain started.
21:07:07.761 - ===================================================================
21:07:07.762 - ====================MPUSH SERVER START SUCCESS=====================
21:07:07.766 - ===================================================================
View Code　　五、Windows安装Mpush-Alloc
　　1.解压alloc-release-0.7.1.tar.gz
　　2.修改配置文件(注意，这里不需要修改，如果分布式部署，修改zookeeper地址信息即可)。
　　3.使用cmd进入到alloc的bin目录，使用如下命令启动(java -Dmp.conf=D:\mpush-alloc-0.7.1\conf\mpush.conf -jar bootstrap.jar)



Microsoft Windows [版本 10.0.10240]
(c) 2015 Microsoft Corporation. All rights reserved.
C:\Users\endv>d:
D:\>cd D:\mpush-alloc-0.7.1\bin
D:\mpush-alloc-0.7.1\bin>java -Dmp.conf=D:\mpush-alloc-0.7.1\conf\mpush.conf -jar bootstrap.jar





Microsoft Windows [版本 10.0.10240]
(c) 2015 Microsoft Corporation. All rights reserved.
C:\Users\endv>d:
D:\>cd D:\mpush-alloc-0.7.1\bin
D:\mpush-alloc-0.7.1\bin>java -Dmp.conf=D:\mpush-alloc-0.7.1\conf\mpush.conf -jar bootstrap.jar
21:13:42.425 - {
"conf" : "D:\\mpush-alloc-0.7.1\\conf\\mpush.conf",
"core" : {
"compress-threshold" : "10k",
"epoll-provider" : "netty",
"max-hb-timeout-times" : 2,
"max-heartbeat" : "3m",
"max-packet-size" : "10k",
"min-heartbeat" : "3m",
"session-expired-time" : "1d"
},
"home" : "D:\\mpush-alloc-0.7.1\\bin",
"http" : {
"default-read-timeout" : "10s",
"dns-mapping" : {},
"max-conn-per-host" : 5,
"max-content-length" : "5m",
"proxy-enabled" : false
},
"log-conf-path" : "D:\\mpush-alloc-0.7.1\\bin/conf/logback.xml",
"log-dir" : "D:\\mpush-alloc-0.7.1\\bin/logs",
"log-level" : "warn",
"monitor" : {
"dump-dir" : "D:\\mpush-alloc-0.7.1\\bin/tmp",
"dump-period" : "1m",
"dump-stack" : false,
"print-log" : true,
"profile-enabled" : false,
"profile-slowly-duration" : "10ms"
},
"net" : {
"admin-server-port" : 3002,
"alloc-server-port" : 9999,
"connect-server-port" : 3000,
"gateway-client-multicast" : "239.239.239.99",
"gateway-client-num" : 1,
"gateway-client-port" : 4000,
"gateway-server-multicast" : "239.239.239.88",
"gateway-server-net" : "tcp",
"gateway-server-port" : 3001,
"public-host-mapping" : {},
"rcv_buf" : {
"connect-server" : "32k",
"gateway-client" : 0,
"gateway-server" : 0
},
"snd_buf" : {
"connect-server" : "32k",
"gateway-client" : 0,
"gateway-server" : 0
},
"traffic-shaping" : {
"connect-server" : {
"check-interval" : "100ms",
"enabled" : false,
"read-channel-limit" : "3k",
"read-global-limit" : "100k",
"write-channel-limit" : "3k",
"write-global-limit" : 0
},
"gateway-client" : {
"check-interval" : "100ms",
"enabled" : false,
"read-channel-limit" : 0,
"read-global-limit" : 0,
"write-channel-limit" : "3k",
"write-global-limit" : "30k"
},
"gateway-server" : {
"check-interval" : "100ms",
"enabled" : false,
"read-channel-limit" : "3k",
"read-global-limit" : "30k",
"write-channel-limit" : 0,
"write-global-limit" : 0
}
},
"write-buffer-water-mark" : {
"connect-server-high" : "64k",
"connect-server-low" : "32k",
"gateway-server-high" : "20m",
"gateway-server-low" : "10m"
},
"ws-path" : "/",
"ws-server-port" : 0
},
"push" : {
"flow-control" : {
"broadcast" : {
"duration" : "1s",
"limit" : 3000,
"max" : 100000
},
"global" : {
"duration" : "1s",
"limit" : 5000,
"max" : 0
}
}
},
"redis" : {
"cluster-model" : "single",
"config" : {
"blockWhenExhausted" : true,
"fairness" : false,
"jmxEnabled" : false,
"jmxNameBase" : "pool",
"jmxNamePrefix" : "pool",
"lifo" : true,
"maxIdle" : 4,
"maxTotal" : 8,
"maxWaitMillis" : 5000,
"minEvictableIdleTimeMillis" : 300000,
"minIdle" : 1,
"numTestsPerEvictionRun" : 3,
"softMinEvictableIdleTimeMillis" : 1800000,
"testOnBorrow" : false,
"testOnCreate" : false,
"testOnReturn" : false,
"testWhileIdle" : false,
"timeBetweenEvictionRunsMillis" : 60000
},
"nodes" : [
"127.0.0.1:6379"
],
"password" : "",
"write-to-zk" : false
},
"security" : {
"aes-key-length" : 16,
"private-key" : "MIIBNgIBADANBgkqhkiG9w0BAQEFAASCASAwggEcAgEAAoGBAKCE8JYKhsbydMPbiO7BJVq1pbuJWJHFxOR7L8Hv3ZVkSG4eNC8DdwAmDHYu/wadfw0ihKFm2gKDcLHp5yz5UQ8PZ8FyDYvgkrvGV0ak4nc40QDJWws621dm01e/INlGKOIStAAsxOityCLv0zm5Vf3+My/YaBvZcB5mGUsPbx8fAgEAAoGAAy0+WanRqwRHXUzt89OsupPXuNNqBlCEqgTqGAt4Nimq6Ur9u2R1KXKXUotxjp71Ubw6JbuUWvJg+5Rmd9RjT0HOUEQF3rvzEepKtaraPhV5ejEIrB+nJWNfGye4yzLdfEXJBGUQzrG+wNe13izfRNXI4dN/6Q5npzqaqv0E1CkCAQACAQACAQACAQACAQA=",
"public-key" : "MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQCghPCWCobG8nTD24juwSVataW7iViRxcTkey/B792VZEhuHjQvA3cAJgx2Lv8GnX8NIoShZtoCg3Cx6ecs+VEPD2fBcg2L4JK7xldGpOJ3ONEAyVsLOttXZtNXvyDZRijiErQALMTorcgi79M5uVX9/jMv2Ggb2XAeZhlLD28fHwIDAQAB"
},
"spi" : {
"dns-mapping-manager" : "com.mpush.common.net.HttpProxyDnsMappingManager",
"thread-pool-factory" : "com.mpush.tools.thread.pool.DefaultThreadPoolFactory"
},
"thread" : {
"pool" : {
"ack-timer" : 1,
"conn-work" : 0,
"event-bus" : {
"max" : 16,
"min" : 1,
"queue-size" : 10000
},
"gateway-client-work" : 0,
"gateway-server-work" : 0,
"http-work" : 0,
"mq" : {
"max" : 4,
"min" : 1,
"queue-size" : 10000
},
"push-client" : 2,
"push-task" : 0
}
},
"zk" : {
"connectionTimeoutMs" : "5s",
"digest" : "mpush",
"namespace" : "mpush",
"retry" : {
"baseSleepTimeMs" : "3s",
"maxRetries" : 3,
"maxSleepMs" : "5s"
},
"server-address" : "127.0.0.1:2181",
"sessionTimeoutMs" : "5s",
"watch-path" : "/"
}
}

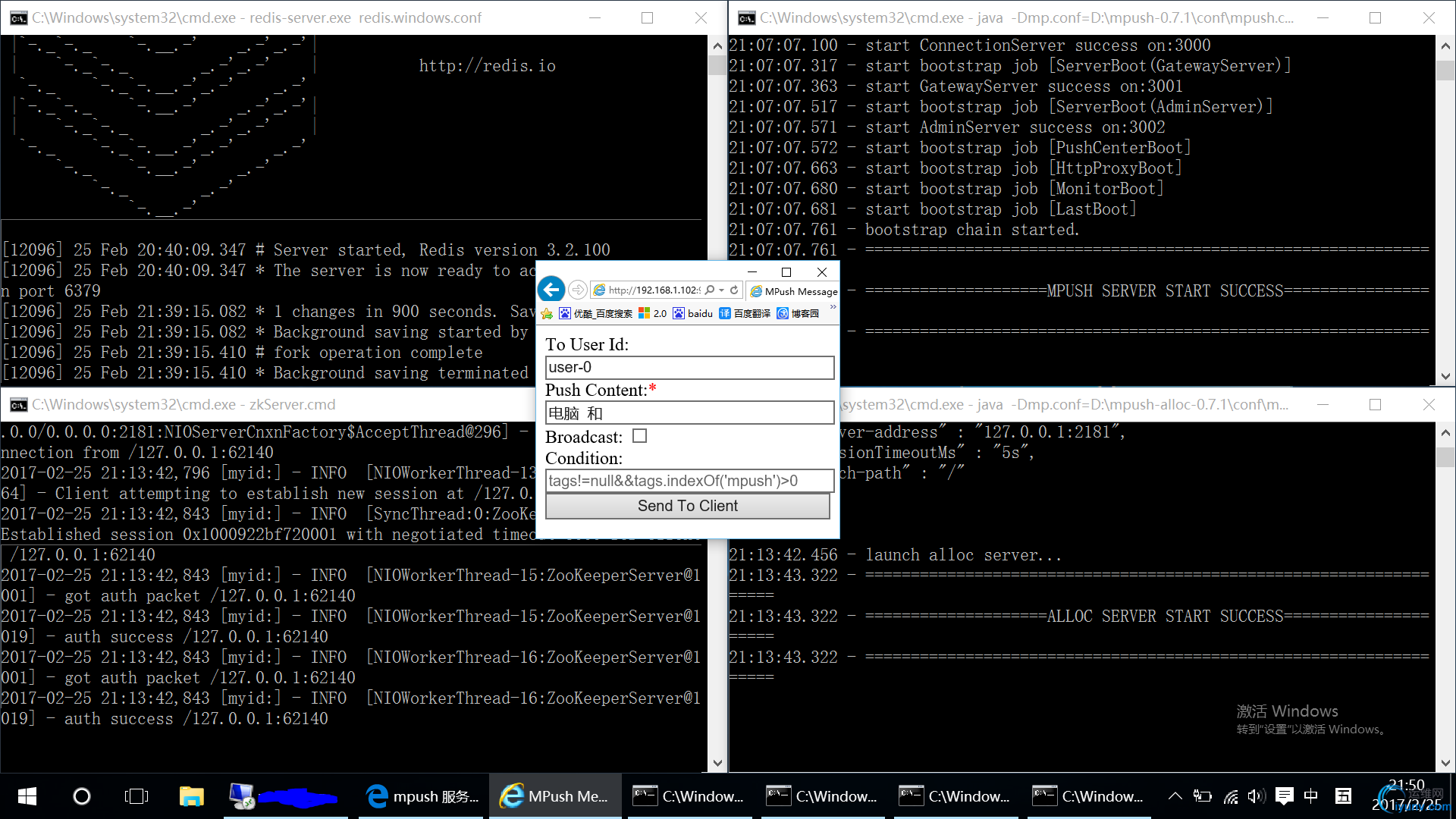

21:13:42.456 - launch alloc server...
21:13:43.322 - ===================================================================
21:13:43.322 - ====================ALLOC SERVER START SUCCESS=====================
21:13:43.322 - ===================================================================
View Code　　六、Android测试

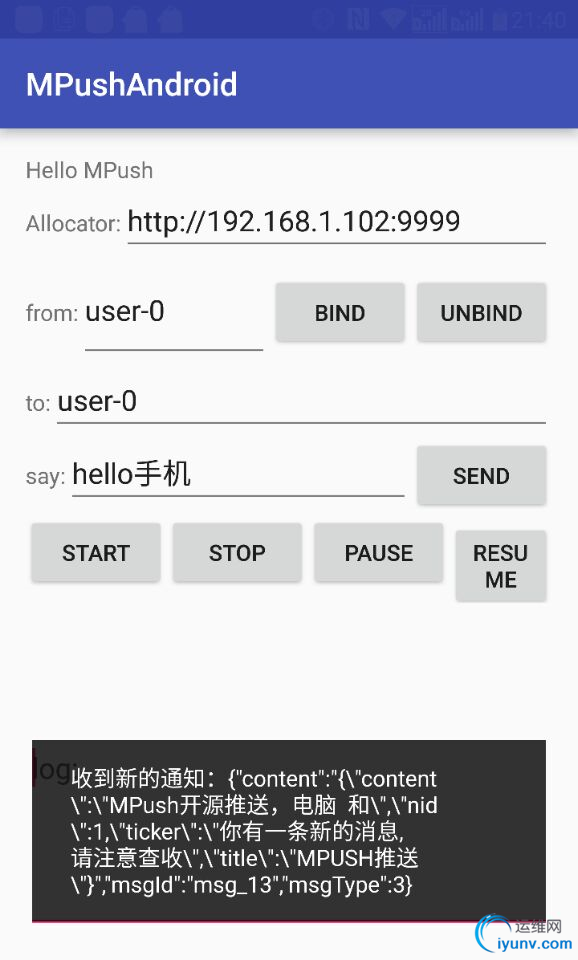

　　note:测试时候，要确保Android和Alloc、MPush在同一个局域网内，能相互访问，或者Alloc、MPush部署在公网外。
　　1) 填写Alloc服务器地址(http:\/\/192.168.1.102:9999\/)，注意以http:\/\/开头，且加端口号
　　2）点击BIND按钮
　　3）填写发送的消息
　　4）点击Start Push
　　5）点击Send Push
　　正常情况，客户端会受到由服务器端推送过来的消息
　　2、模拟IM
　　客户端1使用Android手机，客户端2使用浏览器模拟，客户端2给客户端1发送消息。如果有两个手机也可以，将界面的to：填写为对方的userid即可。
　　手机端操作如下
　　1) 填写Alloc服务器地址(http:\/\/192.168.1.102:9999\/)，注意以http:\/\/开头，且加端口号
　　2）点击BIND按钮
　　3）在from输入自己的用户ID，user-0
　　4）点击Start Push

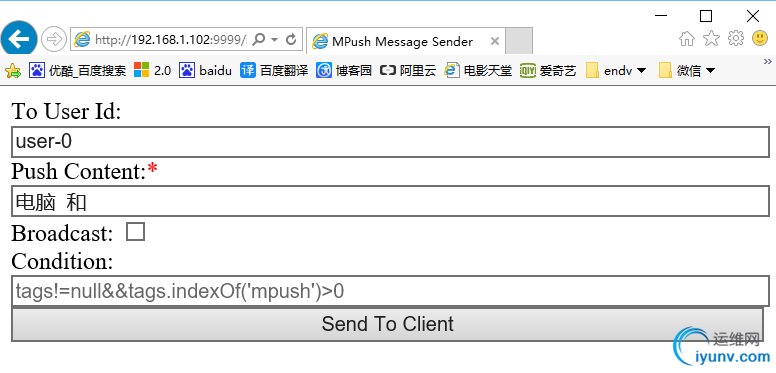

　　浏览器端打开测试地址(http:\/\/192.168.1.102:9999\/index.html)



http://192.168.1.102:9999/index.html

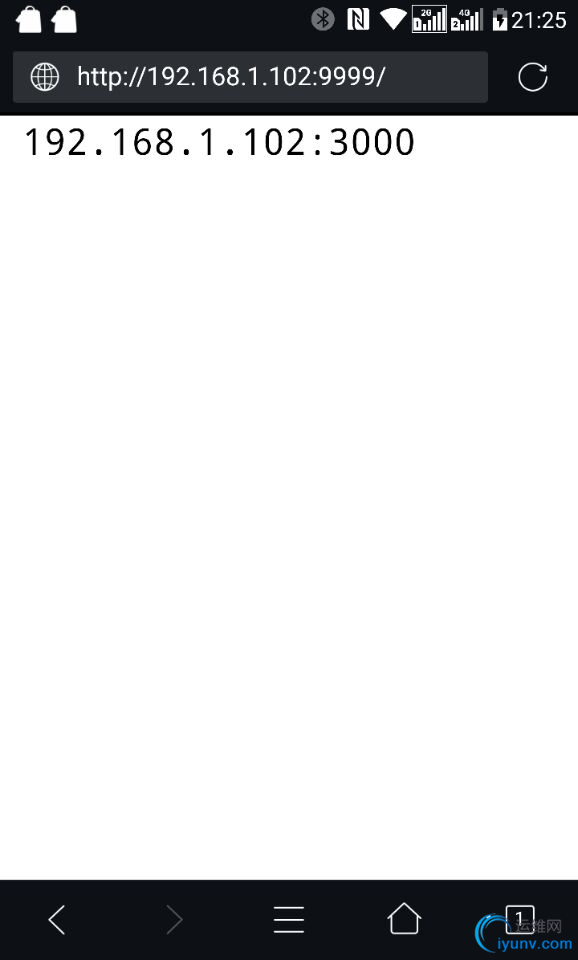

　　手机浏览：

　　输入手机端设置的用户ID(from位置)，输入推送消息，点击send即可
　　手机端提示消息

　　七、注册 windows 服务 （未成功，有空再试）
　　以上虽然可以正常运行，在windows 窗口下，容易手痒X掉窗口，作为windows 服务来运行或许会比较好点
　　下面就将上面4个窗口注册到windows 服务中去。当然，也可以增加到系统的开机启动里，这样，重启系统后就可以自动运行了。
　　将下面代码修改相对应的路径后保存为：AutoStart.bat



sc delete "Endv Redis"
sc delete "Endv zookeeper"
sc delete "Endv mpush"
sc delete "Endv mpush-alloc"
sc create "Endv Redis" binPath= "cmd.exe /c start D:\Redis-x64-3.2.100/redis-server.exe redis.windows.conf" start= auto  displayname= "AutoStart Endv Redis"
sc create "Endv zookeeper" binPath= "cmd.exe /c start D:\zookeeper-3.5.2-alpha\bin/zkServer.cmd" start= auto  displayname= "AutoStart Endv zookeeper"
sc create "Endv mpush" binPath= "cmd.exe /c start java -Dmp.conf=D:\mpush-0.7.1\conf\mpush.conf -jar bootstrap.jar" start= auto  displayname= "AutoStart Endv mpush"
sc create "Endv mpush-alloc" binPath= "cmd.exe /c start java -Dmp.conf=D:\mpush-alloc-0.7.1\conf\mpush.conf -jar bootstrap.jar" start= auto  displayname= "AutoStart Endv mpush-alloc"
　　以管理员身份运行，
