Cisco基础实验回顾2--通过Telnet访问路由器

go4321

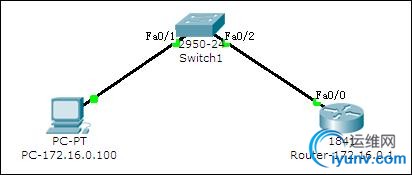

　　实验拓扑：
　　通过直通线连接设备，手动先设置PC的IP地址。

　　路由器上的操作：
　　Router>en
　　Router#conf ter
　　Enter configuration commands, one per line.  End with CNTL/Z.
　　1. 配置接口IP地址：
　　Router(config)#int fa0/0
　　Router(config-if)#ip address 172.16.0.1 255.255.0.0
　　Router(config-if)#no shut
　　%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up
　　%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up
　　Router(config-if)#end
　　2. 配置路由器密码：
　　Router#conf ter
　　Enter configuration commands, one per line.  End with CNTL/Z.
　　Router(config)#line vty 0 4
　　Router(config-line)#password cisco
　　Router(config-line)#login
　　Router(config-line)#exit
　　Router(config)#enable password cisco
　　Router(config)#end
　　PC上的操作：
　　PC>ping 172.16.0.1
　　Pinging 172.16.0.1 with 32 bytes of data:
　　Reply from 172.16.0.1: bytes=32 time=125ms TTL=255
　　Reply from 172.16.0.1: bytes=32 time=63ms TTL=255
　　Reply from 172.16.0.1: bytes=32 time=62ms TTL=255
　　Reply from 172.16.0.1: bytes=32 time=62ms TTL=255
　　Ping statistics for 172.16.0.1:
　　Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
　　Approximate round trip times in milli-seconds:
　　Minimum = 62ms, Maximum = 125ms, Average = 78ms
　　PC>telnet 172.16.0.1
　　Trying 172.16.0.1 ...
　　User Access Verification
　　Password:
　　Router>en
　　Password:
　　Router#sh int fa0/0
　　FastEthernet0/0 is up, line protocol is up (connected)
　　Hardware is Lance, address is 00d0.d3ba.4701 (bia 00d0.d3ba.4701)
　　Internet address is 172.16.0.1/16

　　MTU 1500 bytes, BW 100000 Kbit, DLY 100 usec,>　　Encapsulation ARPA, loopback not set
　　ARP type: ARPA, ARP Timeout 04:00:00,
　　Last input 00:00:08, output 00:00:05, output hang never
　　Last clearing of "show interface" counters never
　　Queueing strategy: fifo
　　Output queue :0/40 (size/max)
　　5 minute input rate 33 bits/sec, 0 packets/sec
　　5 minute output rate 32 bits/sec, 0 packets/sec
　　48 packets input, 3006 bytes, 0 no buffer
　　Received 0 broadcasts, 0 runts, 0 giants, 0 throttles
　　0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
　　0 input packets with dribble condition detected
　　43 packets output, 2722 bytes, 0 underruns
　　0 output errors, 0 collisions, 1 interface resets
　　0 babbles, 0 late collision, 0 deferred
　　0 lost carrier, 0 no carrier
　　0 output buffer failures, 0 output buffers swapped out
　　Router#
