华为OSPF 多区域配置

hc6538

实验名称：华为OSPF 多区域配置

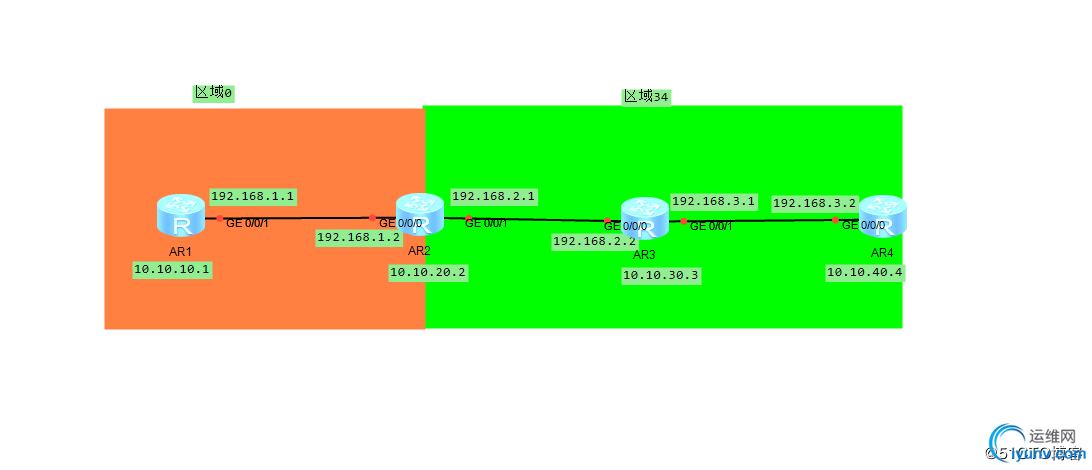

　　实验拓扑：
　　所需设备：4台路由器 AR1  AR2  AR3  AR4

地址规划：AR1 G0/0/1  IP  192.168.1.1/24
　　

      AR1 LoopBack 1  IP 10.10.10.1/24 （回环口地址）　　

　　AR2 G0/0/0  IP  192.168.1.2/24
　　AR2 G0/0/1  IP  192.168.2.1/24
　　

　　AR2 LoopBack 1  IP 10.10.20.2/24 （回环口地址）
　　

　　AR3 G0/0/0  IP  192.168.2.2/24
　　AR3 G0/0/1  IP  192.168.3.1/24
　　

　　AR3 LoopBack 1  IP 10.10.30.3/24 （回环口地址）
　　

　　AR4 G0/0/0  IP  192.168.3.2/24
　　

　　AR4 LoopBack 1  IP 10.10.40.4/24 （回环口地址）
　　

实验目的：
　　

       通过配置OSPF实现全网互通　　

实验步骤：

1、    配置AR1
　　<Huawei>sys
　　Enter system view, return user view with Ctrl+Z.
　　[Huawei]int g0/0/1
　　[Huawei-GigabitEthernet0/0/1]undo shutdown
　　Info: Interface GigabitEthernet0/0/1 is not shutdown.
　　[Huawei-GigabitEthernet0/0/1]
　　[Huawei-GigabitEthernet0/0/1]ip add 192.168.1.1 255.255.255.0
　　Jan 17 2018 10:50:40-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP on the interface GigabitEthernet0/0/1 has entered the UP state.
　　[Huawei-GigabitEthernet0/0/1]q
　　[Huawei]int l
　　[Huawei]int LoopBack 1
　　[Huawei-LoopBack1]ip add 10.10.10.1 255.255.255.0
　　[Huawei-LoopBack1]q
　　[Huawei]ospf
　　[Huawei-ospf-1]area 0
　　[Huawei-ospf-1-area-0.0.0.0]net
　　[Huawei-ospf-1-area-0.0.0.0]network 192.168.1.1 0.0.0.0
　　[Huawei-ospf-1-area-0.0.0.0]network 10.10.10.1 0.0.0.0
　　[Huawei-ospf-1-area-0.0.0.0]q
　　[Huawei-ospf-1]q
　　[Huawei]
　　Jan 17 2018 10:56:24-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[1]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.1.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
　　[Huawei]
　　Jan 17 2018 10:56:31-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[2]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.1.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=ExStart)
　　[Huawei]
　　Jan 17 2018 10:56:31-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[3]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.1.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
　　[Huawei]
　　Jan 17 2018 10:56:31-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[4]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.1.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
　　[Huawei]
　　Jan 17 2018 10:56:31-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[5]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.1.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
　　[Huawei]

2、   配置AR2
　　<Huawei>
　　<Huawei>sys
　　Enter system view, return user view with Ctrl+Z.
　　[Huawei]int g0/0/0
　　[Huawei-GigabitEthernet0/0/0]undo shutdown
　　Info: Interface GigabitEthernet0/0/0 is not shutdown.
　　[Huawei-GigabitEthernet0/0/0]
　　[Huawei-GigabitEthernet0/0/0]ip add 192.168.1.2 255.255.255.0
　　Jan 17 2018 10:51:42-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP on the interface GigabitEthernet0/0/0 has entered the UP state.
　　[Huawei-GigabitEthernet0/0/0]q
　　[Huawei]int g0/0/1
　　[Huawei-GigabitEthernet0/0/1]undo shutdown
　　Info: Interface GigabitEthernet0/0/1 is not shutdown.
　　[Huawei-GigabitEthernet0/0/1]ip add 192.168.2.1 255.255.255.0
　　Jan 17 2018 10:52:03-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP on the interface GigabitEthernet0/0/1 has entered the UP state.
　　[Huawei-GigabitEthernet0/0/1]q
　　[Huawei]int l
　　[Huawei]int LoopBack 1
　　[Huawei-LoopBack1]ip add 10.10.20.2 255.255.255.0
　　[Huawei-LoopBack1]q
　　[Huawei]ospf
　　[Huawei-ospf-1]area 0
　　[Huawei-ospf-1-area-0.0.0.0]n
　　[Huawei-ospf-1-area-0.0.0.0]network 192.168.1.2 0.0.0.0
　　[Huawei-ospf-1-area-0.0.0.0]
　　Jan 17 2018 10:56:31-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[2]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.1.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
　　[Huawei-ospf-1-area-0.0.0.0]
　　Jan 17 2018 10:56:31-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[3]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.1.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=2Way)
　　[Huawei-ospf-1-area-0.0.0.0]
　　Jan 17 2018 10:56:31-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)
　　[4]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.1.168.192, NeighborEvent=AdjOk?, NeighborPreviousState=2Way, NeighborCurrentState=ExStart)
　　[Huawei-ospf-1-area-0.0.0.0]
　　Jan 17 2018 10:56:31-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[5]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.1.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
　　[Huawei-ospf-1-area-0.0.0.0]
　　Jan 17 2018 10:56:31-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[6]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.1.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
　　[Huawei-ospf-1-area-0.0.0.0]
　　Jan 17 2018 10:56:31-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[7]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.1.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
　　[Huawei-ospf-1-area-0.0.0.0]
　　[Huawei-ospf-1-area-0.0.0.0]ne
　　[Huawei-ospf-1-area-0.0.0.0]network 10.10.20.2 0.0.0.0
　　[Huawei-ospf-1-area-0.0.0.0]q
　　[Huawei-ospf-1]area 34
　　[Huawei-ospf-1-area-0.0.0.34]ne
　　[Huawei-ospf-1-area-0.0.0.34]network 192.168.2.1 0.0.0.0
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 10:58:01-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[8]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.2.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 10:58:10-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[9]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.2.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=2Way)
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 10:58:28-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[10]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.2.168.192, NeighborEvent=AdjOk?, NeighborPreviousState=2Way, NeighborCurrentState=ExStart)
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 10:58:38-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[11]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.2.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 10:58:38-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[12]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.2.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 10:58:38-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[13]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.2.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
　　[Huawei-ospf-1-area-0.0.0.34]

3、    配置AR3
　　<Huawei>sys
　　Enter system view, return user view with Ctrl+Z.
　　[Huawei]int g0/0/0
　　[Huawei-GigabitEthernet0/0/0]undo shutdown
　　Info: Interface GigabitEthernet0/0/0 is not shutdown.
　　[Huawei-GigabitEthernet0/0/0]
　　[Huawei-GigabitEthernet0/0/0]ip add 192.168.2.2 255.255.255.0
　　Jan 17 2018 10:52:50-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP on the interface GigabitEthernet0/0/0 has entered the UP state.
　　[Huawei-GigabitEthernet0/0/0]q
　　[Huawei]int g0/0/1
　　[Huawei-GigabitEthernet0/0/1]undo shutdown
　　Info: Interface GigabitEthernet0/0/1 is not shutdown.
　　[Huawei-GigabitEthernet0/0/1]ip add 192.168.3.1 255.255.255.0
　　Jan 17 2018 10:53:05-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP on the interface GigabitEthernet0/0/1 has entered the UP state.
　　[Huawei-GigabitEthernet0/0/1]q
　　[Huawei]int l
　　[Huawei]int LoopBack 1
　　[Huawei-LoopBack1]ip add 10.10.30.3
　　^
　　Error:Incomplete command found at '^' position.
　　[Huawei-LoopBack1]ip add 10.10.30.3 255.255.255.0
　　[Huawei-LoopBack1]q
　　[Huawei]ospf
　　[Huawei-ospf-1]area 34
　　[Huawei-ospf-1-area-0.0.0.34]ne
　　[Huawei-ospf-1-area-0.0.0.34]network 192.168.2.2 0.0.0.0
　　[Huawei-ospf-1-area-0.0.0.34]ne
　　[Huawei-ospf-1-area-0.0.0.34]network
　　Jan 17 2018 10:58:05-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[2]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.2.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
　　[Huawei-ospf-1-area-0.0.0.34]network
　　Jan 17 2018 10:58:05-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[3]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.2.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=2Way)
　　[Huawei-ospf-1-area-0.0.0.34]network 10.10.30.3
　　^
　　Error:Incomplete command found at '^' position.
　　[Huawei-ospf-1-area-0.0.0.34]network 10.10.30.3 0.0.0.0
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 10:58:39-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[4]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.2.168.192, NeighborEvent=AdjOk?, NeighborPreviousState=2Way, NeighborCurrentState=ExStart)
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 10:58:39-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[5]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.2.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 10:58:39-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[6]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.2.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 10:58:39-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[7]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.2.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
　　[Huawei-ospf-1-area-0.0.0.34]n
　　[Huawei-ospf-1-area-0.0.0.34]network 192.168.3.1 0.0.0.0
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 11:01:43-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[8]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.3.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 11:01:43-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[9]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.3.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=2Way)
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 11:01:43-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[10]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.3.168.192, NeighborEvent=AdjOk?, NeighborPreviousState=2Way, NeighborCurrentState=ExStart)
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 11:01:43-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[11]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.3.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 11:01:43-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[12]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.3.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
　　[Huawei-ospf-1-area-0.0.0.34]
　　Jan 17 2018 11:01:43-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[13]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.3.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
　　[Huawei-ospf-1-area-0.0.0.34]q
　　[Huawei-ospf-1]q

4、    配置AR4
　　<Huawei>sys
　　Enter system view, return user view with Ctrl+Z.
　　[Huawei]int g0/0/0
　　[Huawei-GigabitEthernet0/0/0]undo shutdown
　　Info: Interface GigabitEthernet0/0/0 is not shutdown.
　　[Huawei-GigabitEthernet0/0/0]ip add 192.168.3.2 255.255.255.0
　　Jan 17 2018 10:53:33-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP on the interface GigabitEthernet0/0/0 has entered the UP state.
　　[Huawei-GigabitEthernet0/0/0]q
　　[Huawei]int l
　　[Huawei]int LoopBack
　　^
　　Error:Incomplete command found at '^' position.
　　[Huawei]int LoopBack 1
　　[Huawei-LoopBack1]ip add 10.10.40.4 255.255.255.0
　　[Huawei-LoopBack1]q
　　[Huawei]
　　[Huawei]
　　[Huawei]ospf
　　[Huawei-ospf-1]area 34
　　[Huawei-ospf-1-area-0.0.0.34]ne
　　[Huawei-ospf-1-area-0.0.0.34]network 192.168.3.2 0.0.0.0
　　[Huawei-ospf-1-area-0.0.0.34]n
　　[Huawei-ospf-1-area-0.0.0.34]network 10.10.40.1 0.0.0.0
　　[Huawei-ospf-1-area-0.0.0.34]q
　　[Huawei-ospf-1]q
　　[Huawei]

测试与验证：

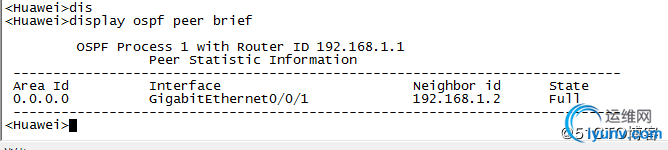

1、查看AR1邻居表

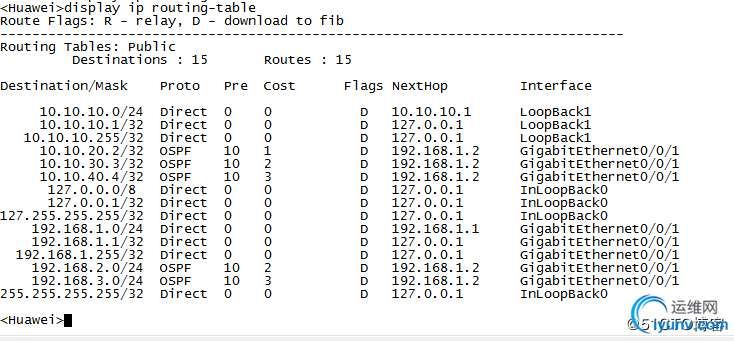

2、查看AR1 路由表

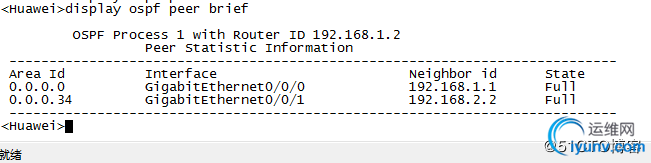

3、查看AR2 邻居表

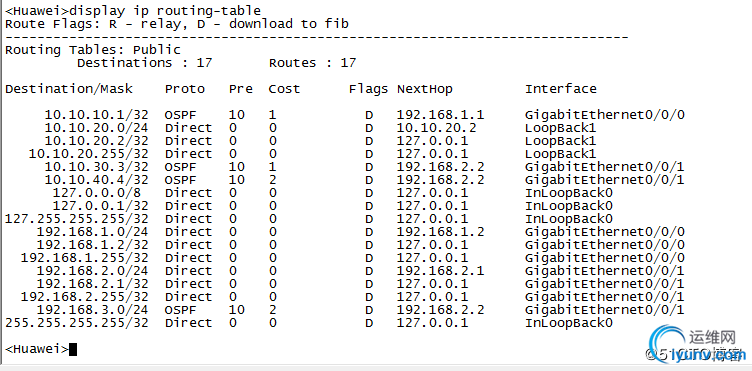

4、查看AR2 路由表

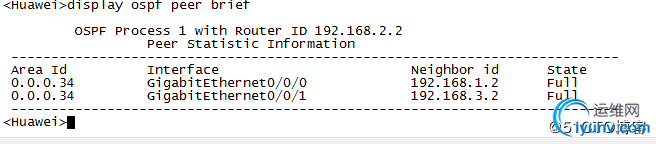

5、查看AR3 邻居表

6、查看AR3 路由表

7、查看AR4 邻居表

8、查看AR4 路由表
