华为模拟器如何实现不同Vlan不同网段之间的互通

xuol001

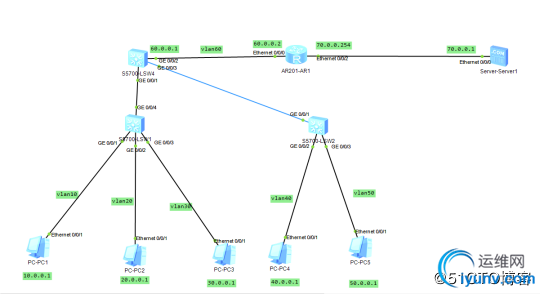

　　如图可以使PC1、PC2、PC3、PC4、PC5、server1、之间可以互相ping通：

　　实验步骤：
　　1.配置PC1/PC2/PC3/PC4/PC5的IP，子网掩码，网关如图：

　　2.配置Switch1如下：
　　<Huawei>undo terminal monitor
　　Info: Current terminal monitor is off.
　　<Huawei>system-view
　　Enter system view, return user view with Ctrl+Z.
　　[Huawei]sysname SW1
　　[SW1]vlan 10
　　[SW1-vlan10]vlan 20
　　[SW1-vlan20]vlan 30
　　[SW1-vlan30]q
　　[SW1-GigabitEthernet0/0/1]port link-type access
　　[SW1-GigabitEthernet0/0/1]port default vlan 10
　　[SW1-GigabitEthernet0/0/1]undo shut
　　[SW1-GigabitEthernet0/0/1]undo shutdown
　　Info: Interface GigabitEthernet0/0/1 is not shutdown.
　　[SW1-GigabitEthernet0/0/1]q
　　[SW1]interface g0/0/2
　　[SW1-GigabitEthernet0/0/2]port link-type access
　　[SW1-GigabitEthernet0/0/2]port default vlan 20
　　[SW1-GigabitEthernet0/0/2]undo shut
　　Info: Interface GigabitEthernet0/0/2 is not shutdown.
　　[SW1-GigabitEthernet0/0/2]q
　　[SW1]interface g0/0/3
　　[SW1-GigabitEthernet0/0/3]port link-type ac
　　[SW1-GigabitEthernet0/0/3]port link-type access
　　[SW1-GigabitEthernet0/0/3]port default vlan 30
　　[SW1-GigabitEthernet0/0/3]undo shut
　　Info: Interface GigabitEthernet0/0/3 is not shutdown.
　　[SW1]interface g0/0/4
　　[SW1-GigabitEthernet0/0/4]port link-type trunk
　　[SW1-GigabitEthernet0/0/4]port trunk allow-pass vlan  all
　　[SW1-GigabitEthernet0/0/4]undo shutdown
　　Info: Interface GigabitEthernet0/0/4 is not shutdown.
　　3.配置Switch2如下：
　　<Huawei>undo terminal monitor
　　<Huawei>system-view
　　[Huawei]sysname SW2
　　[SW2]vlan 40
　　[SW2-vlan40]vlan 50
　　[SW2-vlan50]q
　　[SW2]interface g0/0/2
　　[SW2-GigabitEthernet0/0/2]port link-type access
　　[SW2-GigabitEthernet0/0/2]port default vlan 40
　　[SW2-GigabitEthernet0/0/2]undo shutdown
　　Info: Interface GigabitEthernet0/0/2 is not shutdown.
　　[SW2-GigabitEthernet0/0/2]q
　　[SW2]interface g0/0/3
　　[SW2-GigabitEthernet0/0/3]port link-type access
　　[SW2-GigabitEthernet0/0/3]port default vlan 50
　　[SW2-GigabitEthernet0/0/3]undo shutdown
　　Info: Interface GigabitEthernet0/0/3 is not shutdown.
　　[SW2-GigabitEthernet0/0/3]q
　　[SW2]interface g0/0/1
　　[SW2-GigabitEthernet0/0/1]port link-type trunk
　　[SW2-GigabitEthernet0/0/1]undo shutdown
　　[SW2-GigabitEthernet0/0/1]port trunk allow-pass vlan  all
　　Info: Interface GigabitEthernet0/0/1 is not shutdown.
　　4.配置Switch3如下：
　　<Huawei>undo terminal monitor
　　Info: Current terminal monitor is off.
　　<Huawei>system-view
　　[Huawei]sysname SW3
　　[SW3]vlan 10
　　[SW3-vlan10]vlan 20
　　[SW3-vlan20]vlan 30
　　[SW3-vlan30]vlan 40
　　[SW3-vlan40]vlan 50
　　[SW3-vlan50]q
　　[SW3]interface vlan 10
　　[SW3-Vlanif10]ip address 10.0.0.254 255.0.0.0
　　[SW3-Vlanif10]undo shutdown
　　Info: Interface Vlanif10 is not shutdown.
　　[SW3-Vlanif10]q
　　[SW3]interface vlan 20
　　[SW3-Vlanif20]ip address 20.0.0.254 255.0.0.0
　　[SW3-Vlanif20]undo shutdown
　　Info: Interface Vlanif20 is not shutdown.
　　[SW3-Vlanif20]q
　　[SW3]interface vlan 30
　　[SW3-Vlanif30]ip address 30.0.0.254 255.0.0.0
　　[SW3-Vlanif30]undo shutdown
　　Info: Interface Vlanif30 is not shutdown.
　　[SW3-Vlanif30]q
　　[SW3]interface vlan 40
　　[SW3-Vlanif40]ip address 40.0.0.254 255.0.0.0
　　[SW3-Vlanif40]undo shutdown
　　Info: Interface Vlanif40 is not shutdown.
　　[SW3-Vlanif40]q
　　[SW3]interface vlan 50
　　[SW3-Vlanif50]ip address 50.0.0.254 255.0.0.0
　　[SW3-Vlanif50]undo shutdown
　　Info: Interface Vlanif50 is not shutdown.
　　[SW3-Vlanif50]q
　　[SW3]interface g0/0/1
　　[SW3-GigabitEthernet0/0/1]port link-type trunk
　　[SW3-GigabitEthernet0/0/1]port trunk allow-pass vlan all
　　[SW3-GigabitEthernet0/0/1]undo shutdown
　　Info: Interface GigabitEthernet0/0/1 is not shutdown.
　　[SW3-GigabitEthernet0/0/1]q
　　[SW3]interface g0/0/2
　　[SW3-GigabitEthernet0/0/2]port link-type trunk
　　[SW3-GigabitEthernet0/0/2]undo shutdown
　　[SW3-GigabitEthernet0/0/2]port link-type trunk
　　[SW3-GigabitEthernet0/0/2]port trunk allow-pass vlan all
　　Info: Interface GigabitEthernet0/0/2 is not shutdown.
　　[SW3]vlan 60
　　[SW3-vlan60]q
　　[SW3]interface g0/0/3
　　[SW3-GigabitEthernet0/0/3]port link-type access
　　[SW3-GigabitEthernet0/0/3]port default vlan 60
　　[SW3-GigabitEthernet0/0/3]undo shutdown
　　[SW3]interface vlan 60
　　[SW3-Vlanif60]ip address 60.0.0.1 255.0.0.0
　　5.配置R1如下
　　<Huawei>system-view
　　Enter system view, return user view with Ctrl+Z.
　　[Huawei]sysname R1
　　[R1-GigabitEthernet0/0/0]ip address 60.0.0.2 255.0.0.0
　　[R1-GigabitEthernet0/0/0]undo shut
　　Info: Interface GigabitEthernet0/0/0 is not shutdown.
　　[R1-GigabitEthernet0/0/0]q
　　[R1]interface g0/0/1
　　[R1-GigabitEthernet0/0/1]ip address 70.0.0.254 255.0.0.0
　　[R1-GigabitEthernet0/0/1]undo shut
　　Info: Interface GigabitEthernet0/0/1 is not shutdown.

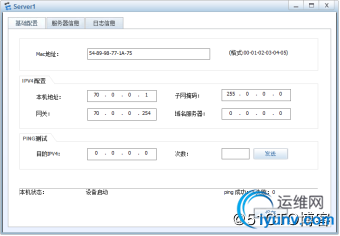

　　6.配置server1如图：

　　7.在R1配置默认路由：

　　8.在SW3上配置静态路由：

　　结果验证如图：
