　　How to Setup Apache Subversion with Let's encrypt SSL on Ubuntu 18.04
　　Apache Subversion or SVN is an open-source software versioning and revision control system developed by the Apache Software Foundation. It's used to maintain the current and historical versions of source code, documents, and web pages.
　　The Subversion or svn widely used for the large project and open source community such as Apache Software Foundation, FreeBSD, GCC, SourceForge etc.
　　In this article, I will show you how to set up the Apache Subversion using Ubuntu 18.04 LTS server. We will install and configure the svn software with Apache as the web server, enable 'basic authentication' for users, and secure access by using Letsencrypt SSL for the repository access.
　　And for those who prefer GIT, the Ubuntu 18.04 GIT tutorial is here.
Prerequisites

• 　　Ubuntu 18.04

• 　　Root privileges


What we will do

• 　　Install Apache2 web server on Ubuntu 18.04

• 　　Install Apache Subversion (SVN)

• 　　Configure the Subversion Repository

• 　　Generate SSL Letsencrypt for Ubuntu Apache2

• 　　Configure Subversion Virtual Host on Apache2

• 　　Testing


Step 1 - Install Apache2 web server on Ubuntu 18.04 LTS
　　In this first step, we will install the Apache2 web server and add new services ssh and HTTP to the ufw firewall configuration.
　　Install the Apache2 web server using the apt command below.
　　sudo apt install apache2 apache2-utils -y
　　After the installation is complete, add the SSH and HTTP services to the ufw firewall configuration.
　　Run ufw commands below.
　　ufw allow ssh
　　ufw allow http
　　Enable the firewall.
　　ufw enable
　　Now start the Apache2 service and enable it to launch every time at system boot.
　　systemctl start apache2
　　systemctl enable apache2
　　The Apache2 web server is up and running, and the SSH and HTTP services have been added to the firewall services list.

Step 2 - Install Apache Subversion (SVN)
　　In this tutorial, we will install the subversion and the svn libapache packages from the official Ubuntu repository.

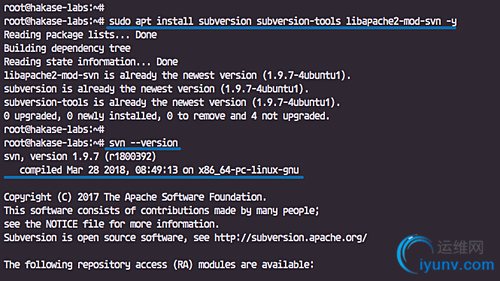

　　Install Subversion using the apt command below.
　　sudo apt install subversion subversion-tools libapache2-mod-svn -y
　　Now check the svn command.
　　svn --version
　　The Apache Subversion (SVN) has been installed on Ubuntu 18.04 Server.

Step 3 - Configure a Subversion Repository
　　After the subversion installation, we will configure the master subversion repository directory. We will create a new 'svn' directory that will be used to store all source code and repositories.
　　Create a new '/svn' master directory.
　　mkdir /svn
　　And create a new sample repository named 'hakase-project' using the svnadmin command below.
　　svnadmin create /svn/hakase-project
　　Now change the owner of the '/svn/hakase-project' directory to the 'apache' user and group.
　　sudo chown -R apache:apache /svn/hakase-project
　　And the svn repository has been created.

Step 4 - Generate Letsencrypt SSL Certificate
　　In this tutorial, we will configure the svn server to use the HTTPS connection with a domain named 'svn.hakase-labs.io'. We will be using the free SSL Letsencrypt, and it's can be generated using the certbot tool.
　　Install certbot on Ubuntu server using the yum command below.
　　sudo apt install certbot -y
　　After the installation is complete, we need to add the HTTPS service to the ufw firewall service lists.
　　Run ufw commands below.
　　ufw allow https

　　ufw>　　Now stop the httpd service, so we can generate the SSL Letsencrypt using the 'standalone' temporary web server.
　　systemctl stop apache2

　　Generate the SSL Letsencrypt for the domain name 'svn.hakase-labs.io' using the certbot command below.
　　certbot certonly --rsa-key-size 4096 --standalone --agree-tos --no-eff-email --email hakase@gmail.com -d svn.hakase-labs.io
　　And after it's complete, you will get the certificate files inside the '/etc/letsencrypt/live' directory.

Step 5 - Configure Subversion Virtual Host on Apache2
　　In this step, we will create a new Apache httpd configuration for svn access. We will configure the svn repository using a domain name 'svn.hakase-labs.io', and it will be accessible only for registered users using the HTTP basic auth.
　　Go to the '/etc/apache2' configuration directory.
　　cd /etc/apache2/
　　Create a new subversion virtual host configuration 'svn.conf' on the 'sites-available' directory.
　　cd sites-available/
　　vim svn.conf
　　Paste the configuration below.
　　

　　
ServerName svn.hakase-labs.io
　　
DocumentRoot /var/www/html
　　
Redirect permanent / https://svn.hakase-labs.io
　　

　　

　　

　　

　　

　　
DocumentRoot /var/www/html
　　
ServerName svn.hakase-labs.io
　　

　　
SSLEngine on
　　
SSLProtocol all -SSLv2
　　
SSLCipherSuite ALL:!ADH:!EXPORT:!SSLv2:RC4+RSA:+HIGH:+MEDIUM:+LOW
　　
SSLCertificateFile /etc/letsencrypt/live/svn.hakase-labs.io/fullchain.pem
　　
SSLCertificateKeyFile /etc/letsencrypt/live/svn.hakase-labs.io/privkey.pem
　　

　　
ErrorLog /var/log/apache2/svn_error_log
　　
TransferLog /var/log/apache2/svn_access_log
　　
LogLevel warn
　　

　　

　　
DAV svn
　　
SVNParentPath /svn/
　　
AuthType Basic
　　
AuthName "Authorization Realm"
　　
AuthUserFile /etc/subversion/svn.users
　　
Require valid-user
　　

　　

　　

　　
    SSLOptions +StdEnvVars
　　

　　

　　
SetEnvIf User-Agent ".*MSIE.*" \
　　
         nokeepalive ssl-unclean-shutdown \
　　
         downgrade-1.0 force-response-1.0
　　
CustomLog /var/log/apache2/ssl_request_log \
　　
          "%t %h %{SSL_PROTOCOL}x %{SSL_CIPHER}x \"%r\" %b"
　　

　　Save and exit.
　　Next, we need to create a new list of users that will be able to view and commit files to the repository.
　　Create a new user named 'hakase' using the htpasswd command.
　　sudo htpasswd -cm /etc/subversion/svn.users hakase

　　Enable the SSL module on apache and enable the svn virtual host by running commands below.
　　sudo a2enmod ssl
　　sudo a2ensite svn
　　Restart the Apache2 service.
　　systemctl restart apache2

　　The virtual host configuration for subversion has been created, and the 'hakase' user now has an access to view and commit the source code to the 'hakase-project' repository.
Step 6 - Testing
View Repository
　　Open your web browser and type the server URL, mine is the one below).
　　https://svn.hakase-labs.io/repo/hakase-project/
　　And you will be shown the basic user authentication.

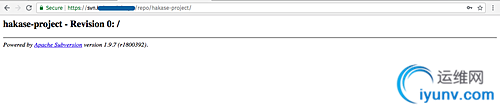

　　Login with the 'hakase' user and password, and you will get the page blank page repository as below.

Import Project to the SVN Repository
　　Now we will import the svn sample project templates to the 'hakase-project' repository.
　　Create a new svn-templates project directory.
　　mkdir -p ~/svn-templates/{trunk,branches,tags}
　　Add templates directory to the 'hakase-project' repository using the svn command below.
　　svn import -m 'Initial import' ~/svn-templates/ https://svn.hakase-labs.io/repo/hakase-project/ --username hakase
　　You will be asked about some things, act in following ways.

• 　　Type 'p' to add permanently the Letsencrypt certificate.

• 　　Type the 'hakase' user and password.

• 　　And type 'yes' to confirm about the saving unencrypted password.


　　Check the 'hakase-project' from the web browser, and you will get all the templates directory on it.

Clone the Repository
　　After creating and uploading the svn templates directory, we will try cloning the repository to the local environment.
　　Login to the non-root/normal user.
　　useradd -m -s /bin/bash misaka
　　su - misaka
　　Clone to the 'hakase-project' repository the local directory named 'myproject' as a 'hakase' user.
　　svn co https://svn.hakase-labs.io/repo/hakase-project/ ~/myproject --username hakase

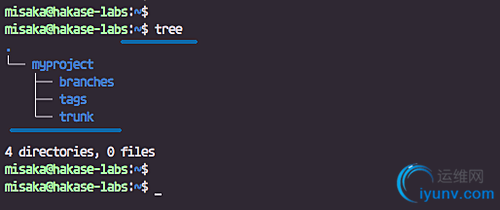

　　Check the new 'myproject' directory and you will get all svn templates.
　　tree ~/myproject

Commit Source Code

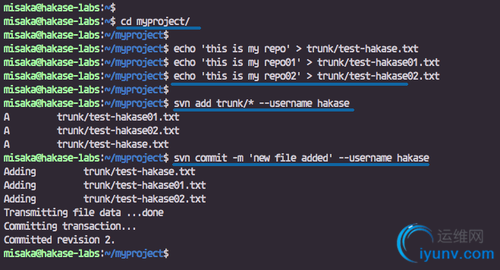

　　Go to the 'myproject' directory.
　　cd myproject/
　　Create some files on the 'trunk' directory.
　　echo 'this is my repo' > trunk/test-hakase.txt
　　echo 'this is my repo01' > trunk/test-hakase01.txt
　　echo 'this is my repo02' > trunk/test-hakase02.txt
　　Add and commit
　　svn add trunk/* --username hakase
　　svn commit -m 'new file added' --username hakase

　　Check the repository from the web browser, and you will get all files has been added to the repository.

　　The Apache Subversion installation and configuration on Ubuntu 18.04 LTS Server has been completed successfully.
Reference

• 　　https://subversion.apache.org/
