本文是基于CentOS 7及Openstack juno版本的高可用实践。
高可用组件安装配置
准备工作
首先确保两台机器时间同步，配置ssh。
安装组件
添加yum源，这个源包含了crmsh、resource-agents等包：
[haclustering]
name=HA Clustering
baseurl=http://download.opensuse.org/repositories/network:/ha-clustering:/Stable/CentOS_CentOS-7/
enabled=1
gpgcheck=0
安装相关组件：
#yum install pacemaker corosync resource-agents crmsh pcs
安装DRBD
方法一通过yum源安装：
# rpm --import http://elrepo.org/RPM-GPG-KEY-elrepo.org
# rpm -Uvh http://www.elrepo.org/elrepo-release-7.0-2.el7.elrepo.noarch.rpm
# yum -y install drbd84-utils kmod-drbd84
方法二编译安装：
#yum install docbook-style-xsl #编译drbd时候用到
#mkdir -p /tmp/drbdinst
#/usr/bin/wget --directory-prefix=/tmp/drbdinst/ http://oss.linbit.com/drbd/8.4/drbd-8.4.5.tar.gz
#cd /tmp/drbdinst
#tar -zxfp drbd-8.4.5.tar.gz
#cd drbd-8.4.5
#/usr/bin/yum -y install flex gcc make
#make
#make install
#/usr/bin/yum -y install libxslt
#/usr/bin/wget --directory-prefix=/tmp/drbdinst/ http://oss.linbit.com/drbd/drbd-utils-8.9.1.tar.gz
#cd /tmp/drbdinst
#tar -zxfp drbd-utils-8.9.1.tar.gz
#cd drbd-utils-8.9.1
#./configure --prefix=/usr --localstatedir=/var --sysconfdir=/etc
#make
#make install
#cp /lib/udev/65-drbd.rules /lib/udev/rules.d/
#/bin/rm -rf /tmp/drbdinst
配置
Corosync配置
从/etc/corosync/corosync.conf.example.udpu复制sample文件到/etc/corosync/corosync.conf，根据实际配置编辑：
compatibility: whitetank
service {
ver: 1
name: pacemaker
use_logd: yes
}
logging {
fileline: off
to_logfile: yes
logfile: /var/log/cluster/corosync.log
to_stderr: no
debug: off
timestamp: on
to_syslog: yes
logger_subsys {
subsys: QUORUM
debug: off
}
}
totem {
version: 2
token: 3000
secauth: on
rrp_mode: active
interface {
ringnumber: 0
bindnetaddr: 10.0.0.0
mcastaddr: 226.94.1.1
mcastport: 5405
}
}
quorum {
provider: corosync_votequorum
expected_votes: 2
}
如果secauth设置为on，则需要生成一个加密key用于集群通信：
# corosync-keygen
生成完成后，复制到其他节点：
# scp -p /etc/corosync/authkey controllerv:/etc/corosync/
在所有节点上启动服务：
# systemctl start corosync pacemaker
查看配置、membership及quorum API
# corosync-cfgtool -s
# corosync-cmapctl | grep members
# corosync-quorumtool -l 或pcs status corosync
Pacemaker配置
首先验证pacemaker安装：
# ps axf
49091 ? Ss 0:00 /usr/sbin/pacemakerd -f
49092 ? Ss 0:00 \_ /usr/libexec/pacemaker/cib
49093 ? Ss 0:00 \_ /usr/libexec/pacemaker/stonithd
49094 ? Ss 0:00 \_ /usr/libexec/pacemaker/lrmd
49095 ? Ss 0:00 \_ /usr/libexec/pacemaker/attrd
49096 ? Ss 0:00 \_ /usr/libexec/pacemaker/pengine
49097 ? Ss 0:00 \_ /usr/libexec/pacemaker/crmd
检查集群状态：
# crm status
Last updated: Tue Dec 2 23:04:29 2014
Last change: Tue Dec 2 22:54:01 2014 via crmd on node1
Stack: corosync
Current DC: NONE
2 Nodes configured
0 Resources configured
Online: [ controller controllerv ]
查看配置：
# crm configure show
node 167772171: controller
node 167772172: controllerv
property cib-bootstrap-options: \
dc-version=1.1.10-32.el7_0.1-368c726 \
cluster-infrastructure=corosync
cibadmin --query --local或pcs cluster cib查看xml格式的cib信息。
如下命令验证配置，可以发现问题：
# crm_verify -L -V
error: unpack_resources: Resource start-up disabled since no STONITH resources have been defined
error: unpack_resources: Either configure some or disable STONITH with the stonith-enabled option
error: unpack_resources: NOTE: Clusters with shared data need STONITH to ensure data integrity
Errors found during check: config not valid
因为测试没有STONITH设备，所以禁用STONITH：（STONITH会在另一篇不可做详细介绍）
# crm configure property stonith-enabled=false
双节点忽略quorum：
# crm configure property no-quorum-policy=ignore
修改后查看配置并验证：
# crm configure show
node 167772171: controller
node 167772172: controllerv
property cib-bootstrap-options: \
dc-version=1.1.10-32.el7_0.1-368c726 \
cluster-infrastructure=corosync \
stonith-enabled=false \
no-quorum-policy=ignore
# crm_verify -L
#
配置DRBD
MARIADB

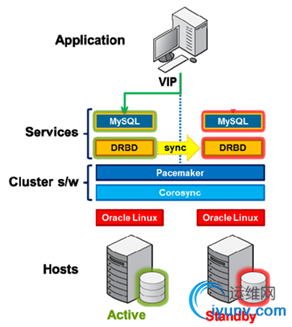

MySQL/DRBD/Pacemaker/Corosync Stack
编辑/etc/drbd.conf
# You can find an example in /usr/share/doc/drbd.../drbd.conf.example
include "drbd.d/global_common.conf";
include "drbd.d/*.res";
使用global_common.conf，后面还需要配置rabbitmq。
global {
usage-count no;
}
common {
protocol C; # C 同步 A 异步 B 半同步
handlers {
pri-on-incon-degr "/usr/lib/drbd/notify-pri-on-incon-degr.sh; /usr/lib/drbd/notify-emergency-reboot.sh; echo b > /proc/sysrq-trigger ; reboot -f";
pri-lost-after-sb "/usr/lib/drbd/notify-pri-lost-after-sb.sh; /usr/lib/drbd/notify-emergency-reboot.sh; echo b > /proc/sysrq-trigger ; reboot -f";
local-io-error "/usr/lib/drbd/notify-io-error.sh; /usr/lib/drbd/notify-emergency-shutdown.sh; echo o > /proc/sysrq-trigger ; halt -f";
}
startup {
wfc-timeout 30; #DRBD资源连接
degr-wfc-timeout 30; #节点在degraded cluster
}
disk {
on-io-error detach;
fencing resource-only;
}
net {
#通信使用的信息算法
cram-hmac-alg "sha1";
shared-secret "mydrbd";
}
syncer {
rate 100M; #设置同步的最大网速
}
}
新建/etc/drbd.d/mariadb.res
resource mariadb {
device /dev/drbd0;
disk /dev/mapper/data_vg-mariadb;
meta-disk internal; #此处根据是情况设置，下面有具体说明
on controller {
address 10.0.0.11:7789;
}
on controllerv {
address 10.0.0.12:7789;
}
}注意：关于DRBD元数据的一些注意事项请参考我另一篇博客。
因为我的数据已经存在了，所以防止数据丢失，先进行备份。
# dd if=/dev/data_vg/mariadb of=/root/back bs=1M count=150
在主节点上，先将对应文件系统umount，然后进行元数据设置。
# drbdadm create-md mariadb
md_offset 1077932032
al_offset 1077899264
bm_offset 1077862400
Found ext2 filesystem #这里有点怪，我使用的ext4，却显示ext2
1048576 kB data area apparently used
1052600 kB left usable by current configuration
Even though it looks like this would place the new meta data into
unused space, you still need to confirm, as this is only a guess.
Do you want to proceed?
[need to type 'yes' to confirm] yes
initializing activity log
NOT initializing bitmap
Writing meta data...
New drbd meta data block successfully created.
# drbdadm up mariadb
# cat /proc/drbd
version: 8.4.5 (api:1/proto:86-101)
GIT-hash: 1d360bde0e095d495786eaeb2a1ac76888e4db96 build by mockbuild@, 2014-08-17 22:54:26
0: cs:WFConnection ro:Secondary/Unknown ds:Inconsistent/DUnknown C r----s
ns:0 nr:0 dw:0 dr:0 al:0 bm:0 lo:0 pe:0 ua:0 ap:0 ep:1 wo:f oos:1052600
节点2上（事先已经建立了和主节点一样的LV和文件系统）：
# drbdadm create-md mariadb
initializing activity log
NOT initializing bitmap
Writing meta data...
New drbd meta data block successfully created.
# drbdadm up mariadb
# cat /proc/drbd
version: 8.4.5 (api:1/proto:86-101)
GIT-hash: 1d360bde0e095d495786eaeb2a1ac76888e4db96 build by mockbuild@, 2014-08-17 22:54:26
0: cs:Connected ro:Secondary/Secondary ds:Inconsistent/Inconsistent C r-----
ns:0 nr:0 dw:0 dr:0 al:0 bm:0 lo:0 pe:0 ua:0 ap:0 ep:1 wo:f oos:1052600
在主节点上，执行：
# drbdadm -- --force primary mariadb
# cat /proc/drbd
version: 8.4.5 (api:1/proto:86-101)
GIT-hash: 1d360bde0e095d495786eaeb2a1ac76888e4db96 build by mockbuild@, 2014-08-17 22:54:26
0: cs:Connected ro:Primary/Secondary ds:UpToDate/UpToDate C r-----
ns:0 nr:0 dw:0 dr:728 al:0 bm:0 lo:0 pe:0 ua:0 ap:0 ep:1 wo:f oos:0
在两个节点上都确保建立正确的挂载点，在主节点上挂载drbd，确认之前的数据还在。
# mount /dev/drbd0 /data/mariadb/
确认OK后，DRBD文件系统应该umount（DRBD主控释放资源）
# umount /dev/drbd0
# drbdadm secondary mariadb
RABBITMQ
新建/etc/drbd.d/rabbitmq.res
resource rabbitmq {
device /dev/drbd1;
disk /dev/data_vg/rabbitmq;
meta-disk internal;
on controller {
address 10.0.0.11:7790;
}
on controllerv {
address 10.0.0.12:7790;
}
}在两个节点上建立两个大小相同的LV，同时设置DRBD元数据。
# drbdadm create-md rabbitmq
initializing activity log
NOT initializing bitmap
Writing meta data...
New drbd meta data block successfully created.
两个节点上attach DRBD：
# drbdadm up rabbitmq
在主节点执行如下命令，可以看到有两个对象了。
# drbdadm -- --force primary rabbitmq
# cat /proc/drbd
version: 8.4.5 (api:1/proto:86-101)
GIT-hash: 1d360bde0e095d495786eaeb2a1ac76888e4db96 build by mockbuild@, 2014-08-17 22:54:26
0: cs:Connected ro:Secondary/Secondary ds:UpToDate/UpToDate C r-----
ns:4112 nr:8 dw:24 dr:6722 al:1 bm:0 lo:0 pe:0 ua:0 ap:0 ep:1 wo:f oos:0
1: cs:SyncSource ro:Primary/Secondary ds:UpToDate/Inconsistent C r-----
ns:557020 nr:0 dw:0 dr:559832 al:0 bm:0 lo:0 pe:1 ua:3 ap:0 ep:1 wo:f oos:492476
[=========>..........] sync'ed: 53.2% (492476/1048508)K
finish: 0:00:12 speed: 39,716 (39,716) K/sec创建文件系统，推荐使用xfs：
# mkfs -t xfs /dev/drbd1
然后和mariadb一样，变为secondary role：
# drbdadm secondary rabbitmq
准备工作
确保所有节点的RABBITMQ的.erlang.cookie文件完全一样。
# scp -p /var/lib/rabbitmq/.erlang.cookie controllerv:/var/lib/rabbitmq/
同时将这个文件复制到DRBD-backend文件系统：
# mount /dev/drbd1 /mnt
# cp -a /var/lib/rabbitmq/.erlang.cookie /mnt
# umount /mnt
集群资源配置
MARIADB
定义一个资源：
# crm configure
crm(live)configure# primitive p_drbd_mariadb ocf:linbit:drbd params drbd_resource="mariadb" op monitor interval=15s
关于上面ocf:linbit:drbd说明：
# pcs resource standards 显示可用资源标准
ocf
lsb
service
systemd
stonith
# pcs resource providers 显示可用的ocf资源提供者
heartbeat
linbit
pacemaker
rabbitmq
# pcs resource agents ocf:linbit 显示可用的资源agent
drbd
定义一个主从资源ms_drbd_mariadb：
crm(live)configure# ms ms_drbd_mariadb p_drbd_mariadb meta master-max="1" master-node-max="1" clone-max="2" clone-node-max="1" notify="true"
创建文件系统、VIP资源，然后创建service后面接命令行选项，组成资源组。（由于是centos7 mariadb所以使用systemd）
crm(live)configure# primitive p_fs_mariadb ocf:heartbeat:Filesystem params device="/dev/drbd0" directory="/data/mariadb/dbdata" fstype="ext4"
crm(live)configure# primitive p_ip_mariadb ocf:heartbeat:IPaddr2 params ip="10.0.0.10" cidr_netmask="24" nic="eth0"
crm(live)configure# primitive p_mariadb systemd:mariadb params op start timeout=120s op stop timeout=120s op monitor interval=20s timeout=30s
crm(live)configure# group g_mariadb p_fs_mariadb p_ip_mariadb p_mariadb
而Mariadb服务（组）需要运行在DRBD主节点，通过定义代管和时序约束（ |
|
