设置 FTP / HTTP 访问 RAC ASM 磁盘组

苗朗

　　XML Database（XDB）使我们能够使用FTP和HTML协议访问和管理ASM磁盘组中的文件，可以方便的浏览和移入和移出。
　　Oracle9i支持XML数据库，8080是Oracle XDB（XML数据库）Http服务的默认端口，Oracle XDB的Ftp服务，默认端口是2100。这2个端口与Tomcat的端口是冲突的，所以我们在设置的时候可以改成其他端口。如：HTTP:8888, FTP: 2222。
　　
　　一.查看端口信息
　　在Oracle 10g默认情况下，数据库FTP和HTTP的端口是关闭的。这个我们可以通过如下两个函数来验证。
　　
　　[oracle@racdb1 ~]$ sqlplus /nolog
　　SQL*Plus: Release 10.2.0.1.0 - Production on Sun Dec 5 11:15:06 2010
　　Copyright (c) 1982, 2005, Oracle.All rights reserved.
　　SQL> conn / as sysdba;
　　Connected.
　　SQL> select instance_name from v$instance;
　　INSTANCE_NAME
　　----------------
　　orcl1
　　SQL> select dbms_xdb.getFTPPort from dual;
　　GETFTPPORT
　　----------
　　0
　　SQL> select dbms_xdb.getHTTPPort from dual;
　　GETHTTPPORT
　　-----------
　　0
　　SQL>
　　
　　二.查看监听
　　先查看一下监听，等会修改之后好做个对比：
　　[oracle@racdb2 ~]$ lsnrctl status
　　LSNRCTL for Linux: Version 10.2.0.1.0 - Production on 05-DEC-2010 11:17:13
　　
　　Copyright (c) 1991, 2005, Oracle.All rights reserved.
　　
　　Connecting to (ADDRESS=(PROTOCOL=tcp)(HOST=)(PORT=1521))
　　STATUS of the LISTENER
　　------------------------
　　AliasLISTENER_RACDB2
　　VersionTNSLSNR for Linux: Version 10.2.0.1.0 - Production
　　Start Date05-DEC-2010 10:42:45
　　Uptime0 days 0 hr. 34 min. 27 sec
　　Trace Leveloff
　　SecurityON: Local OS Authentication
　　SNMPOFF
　　Listener Parameter File/u01/app/oracle/product/10.2.0/db_1/network/admin/listener.ora
　　Listener Log File/u01/app/oracle/product/10.2.0/db_1/network/log/listener_racdb2.log
　　Listening Endpoints Summary...
　　(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.6.228)(PORT=1521)))
　　(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.6.226)(PORT=1521)))
　　--这里只有2个
　　Services Summary...
　　Service "+ASM" has 1 instance(s).
　　Instance "+ASM2", status BLOCKED, has 1 handler(s) for this service...
　　Service "+ASM_XPT" has 1 instance(s).
　　Instance "+ASM2", status BLOCKED, has 1 handler(s) for this service...
　　Service "PLSExtProc" has 1 instance(s).
　　Instance "PLSExtProc", status UNKNOWN, has 1 handler(s) for this service...
　　Service "oltp" has 2 instance(s).
　　Instance "orcl1", status READY, has 1 handler(s) for this service...
　　Instance "orcl2", status READY, has 2 handler(s) for this service...
　　Service "orcl" has 2 instance(s).
　　Instance "orcl1", status READY, has 1 handler(s) for this service...
　　Instance "orcl2", status READY, has 2 handler(s) for this service...
　　Service "orclXDB" has 2 instance(s).
　　Instance "orcl1", status READY, has 1 handler(s) for this service...
　　Instance "orcl2", status READY, has 1 handler(s) for this service...
　　Service "orcl_XPT" has 2 instance(s).
　　Instance "orcl1", status READY, has 1 handler(s) for this service...
　　Instance "orcl2", status READY, has 2 handler(s) for this service...
　　The command completed successfully
　　
　　
　　三.配置FTP和HTTP端口
　　SQL>execute dbms_xdb.sethttpport(8888);
　　PL/SQL procedure successfully completed.
　　SQL>execute dbms_xdb.setftpport(2222);
　　PL/SQL procedure successfully completed.
　　SQL> commit;
　　Commit complete.
　　SQL>
　　
　　查看端口信息：
　　SQL>select dbms_xdb.getFTPPort from dual;
　　GETFTPPORT
　　----------
　　2222
　　SQL>select dbms_xdb.getHTTPPort from dual;
　　
　　GETHTTPPORT
　　-----------
　　8888
　　
　　四.再次查看监听：
　　[oracle@racdb2 ~]$ lsnrctl status
　　LSNRCTL for Linux: Version 10.2.0.1.0 - Production on 05-DEC-2010 12:08:23
　　
　　Copyright (c) 1991, 2005, Oracle.All rights reserved.
　　
　　Connecting to (ADDRESS=(PROTOCOL=tcp)(HOST=)(PORT=1521))
　　STATUS of the LISTENER
　　------------------------
　　AliasLISTENER
　　VersionTNSLSNR for Linux: Version 10.2.0.1.0 - Production
　　Start Date05-DEC-2010 11:31:30
　　Uptime0 days 0 hr. 36 min. 53 sec
　　Trace Leveloff
　　SecurityON: Local OS Authentication
　　SNMPOFF
　　Listener Parameter File/u01/app/oracle/product/10.2.0/db_1/network/admin/listener.ora
　　Listener Log File/u01/app/oracle/product/10.2.0/db_1/network/log/listener.log
　　Listening Endpoints Summary...
　　(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=racdb2)(PORT=1521)))
　　(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=racdb2)(PORT=8888))(Presentation=HTTP)(Session=RAW))
　　(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=racdb2)(PORT=2222))(Presentation=FTP)(Session=RAW))
　　Services Summary...
　　Service "+ASM" has 1 instance(s).
　　Instance "+ASM2", status BLOCKED, has 1 handler(s) for this service...
　　Service "+ASM_XPT" has 1 instance(s).
　　Instance "+ASM2", status BLOCKED, has 1 handler(s) for this service...
　　Service "orcl" has 2 instance(s).
　　Instance "orcl1", status READY, has 1 handler(s) for this service...
　　Instance "orcl2", status READY, has 2 handler(s) for this service...
　　Service "orclXDB" has 2 instance(s).
　　Instance "orcl1", status READY, has 1 handler(s) for this service...
　　Instance "orcl2", status READY, has 1 handler(s) for this service...
　　Service "orcl_XPT" has 2 instance(s).
　　Instance "orcl1", status READY, has 1 handler(s) for this service...
　　Instance "orcl2", status READY, has 2 handler(s) for this service...
　　The command completed successfully
　　
　　如果没有生效，可以重启数据库或者监听
　　$ srvctl stop database -d orcl
$ srvctl start database -d orcl
　　
　　五.验证FTP和HTTP访问ASM
　　
　　5.1FTP访问
　　[iyunv@racdb2 bin]# ftp racdb1 2222
　　Connected to racdb1.
　　220- racdb1
　　Unauthorised use of this FTP server is prohibited and may be subject to civil and criminal prosecution.
　　220 racdb1 FTP Server (Oracle XML DB/Oracle Database) ready.
　　530Please login with USER and PASS.
　　530Please login with USER and PASS.
　　KERBEROS_V4 rejected as an authentication type
　　Name (racdb1:root): system--数据库用户名
　　331 pass required for SYSTEM
　　Password:
　　230 SYSTEM logged in
　　Remote system type is Unix.
　　
　　连接成功。注意这里用的登录名和密码是数据库的用户和密码。并且是非sys用户。因为sys的密码需要家as sysdba.这里没办法输入。
　　登陆后在/sys/asm下可以找到ASM磁盘组信息。ftp的基本命令都可以使用。
　　
　　Linux终端访问 FTP 及 上传下载 文件
　　http://blog.csdn.net/xujinyang/article/details/6933324

　　

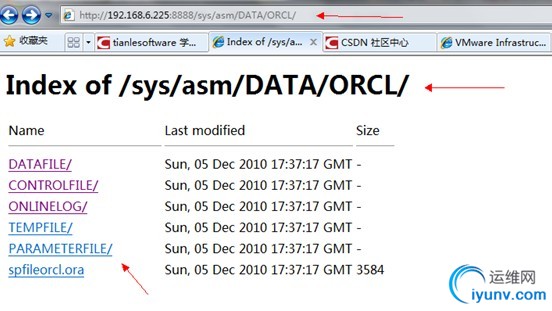

　　5.2HTTP访问

　　
　　登陆的用户名和密码也是数据库的。
　　
　　
　　
　　
　　
　　------------------------------------------------------------------------------
