lvs-keepalived实现高可用

4323e

实验环境：
ipvsadm-1.26-4.el6.x86_64
system:centos-6.6.x86_64
kernel:2.6.32-504.el6.x86_64
keepalived-1.2.13-4.el6.x86_64

配置DR：

1 2 3 4 5 6 7 8 9 10 11 12

[iyunv@centos-server ~]# sysctl -w net.ipv4.conf.all.send_redirects=0 net.ipv4.conf.all.send_redirects = 0 [iyunv@centos-server ~]# sysctl -w net.ipv4.conf.default.send_redirects=0 net.ipv4.conf.default.send_redirects = 0 [iyunv@centos-server ~]# sysctl -w net.ipv4.conf.eth2.send_redirects=0 net.ipv4.conf.eth2.send_redirects = 0 [iyunv@centos-server ~]# service ipvsadm stop [iyunv@centos-server ~]# ipvsadm -A -t 192.168.150.200:80 -s rr [iyunv@centos-server ~]# ipvsadm -a -t 192.168.150.200:80 -r 192.168.150.129 -g -w 1 [iyunv@centos-server ~]# ipvsadm -a -t 192.168.150.200:80 -r 192.168.150.142 -g -w 1 [iyunv@centos-server ~]# iptable  s -I INPUT -p tcp --dport 80 -j ACCEPT [iyunv@centos-server ~]# service ipvsadm save

配置real server:

1 2 3 4 5 6 7 8 9 10 11 12 13

[iyunv@centos-server ~]# vim /etc/sysctl.conf net.ipv4.conf.all.arp_ignore=1 net.ipv4.conf.all.arp_announce=2 net.ipv4.conf.default.arp_ignore=1 net.ipv4.conf.default.arp_announce=2 net.ipv4.conf.lo.arp_ignore=1 net.ipv4.conf.lo.arp_announce=2 [iyunv@centos-server ~]# sysctl -p [iyunv@centos-server ~]# ifconfig lo:0 192.168.150.200/32 [iyunv@centos-server ~]# route add -host 192.168.150.200 dev lo:0 [iyunv@centos-server ~]# setenforce 0 [iyunv@centos-server ~]# yum install httpd [iyunv@centos-server ~]# service httpd start

配置keepalived：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56

global_defs {    notification_email {      acassen@firewall.loc      failover@firewall.loc      sysadmin@firewall.loc    }    notification_email_from Alexandre.Cassen@firewall.loc    smtp_server 220.181.12.11    smtp_connect_timeout 30    router_id haproxy_DEVEL } vrrp_instance VI_1 {     state MASTER    #另一端为SLAVE     interface eth3    #根据自己网卡情况而定     virtual_router_id 51     priority 100    #另一端为80     advert_int 1     authentication {         auth_type PASS         auth_pass 1234     }    virtual_ipaddress {         192.168.150.200/24 dev eth3     } } virtual_server 192.168.150.200/24 80 {        delay_loop 6        lb_algo rr        lb_kind DR        persistence_timeout 50        protocol TCP        real_server 192.168.150.129 80 {            weight 3            TCP_CHECK {            connect_timeout 10            nb_get_retry 3            delay_before_retry 3            connect_port 80            }    }    real_server 192.168.150.142 80 {            weight 3            TCP_CHECK {            connect_timeout 10            nb_get_retry 3            delay_before_retry 3            connect_port 80            }        }    } [iyunv@centos-server ~]# service keepalived start

检测结果：

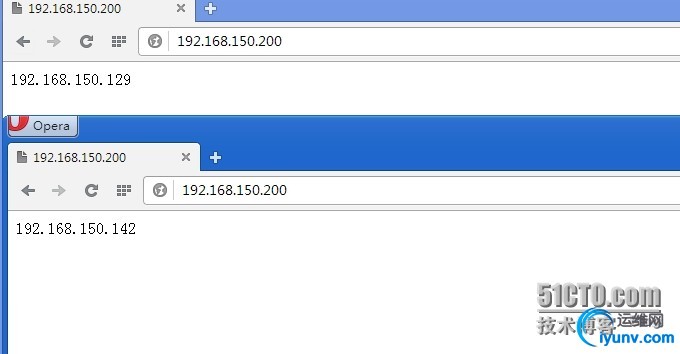

查看是否正常调度：

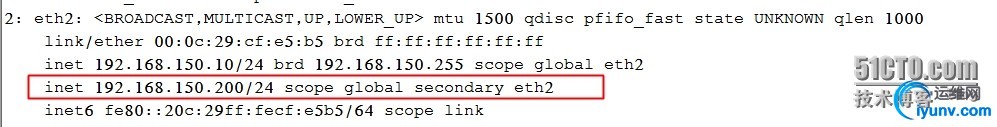

查看MASTER，获得vip：192.168.150.200，及检查后端

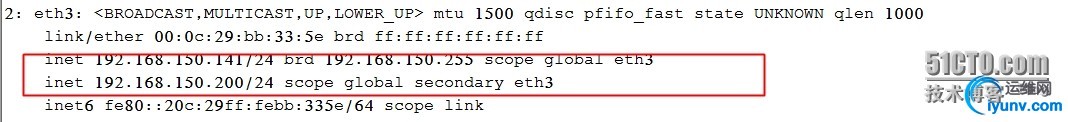

查看SLAVE，及检查后端服务：

故障转移：

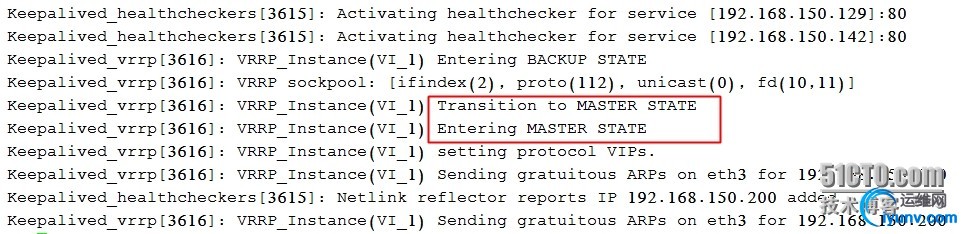

停掉MASTER的keepalived,查看SLAVE是否自动切换为MASTER
[iyunv@centos-server ~]# service keepalived stop



检测后端检查：
停掉其中一台后端httpd
[iyunv@centos-server ~]# service hdttp stop
