[经验分享] openstack运维实战系列(十六)之ceph存储安装

[复制链接]
09089
累计签到：2 天
连续签到：1 天
发表于 2016-1-29 08:20:29 | 显示全部楼层 |阅读模式
1.前言
  企业上线openstack，必须要思考和解决三方面的难题:1.控制集群的高可用和负载均衡，保障集群没有单点故障，持续可用，2.网络的规划和neutron L3的高可用和负载均衡，3. 存储的高可用性和性能问题。存储openstack中的痛点与难点之一，在上线和运维中，值得考虑和规划的重要点，openstack支持各种存储，包括分布式的文件系统，常见的有:ceph,glusterfs和sheepdog，同时也支持商业的FC存储，如IBM,EMC,NetApp和huawei的专业存储设备，一方面能够满足企业的利旧和资源的统一管理。

2. ceph概述
  ceph作为近年来呼声最高的统一存储，在云环境下适应而生，ceph成就了openstack和cloudstack这类的开源的平台方案，同时openstack的快速发展，也吸引了越来越多的人参与到ceph的研究中来，在过去的2015年中，ceph在整个社区的活跃度越来越高，越来越多的企业，使用ceph做为openstack的glance，nova，cinder的存储。

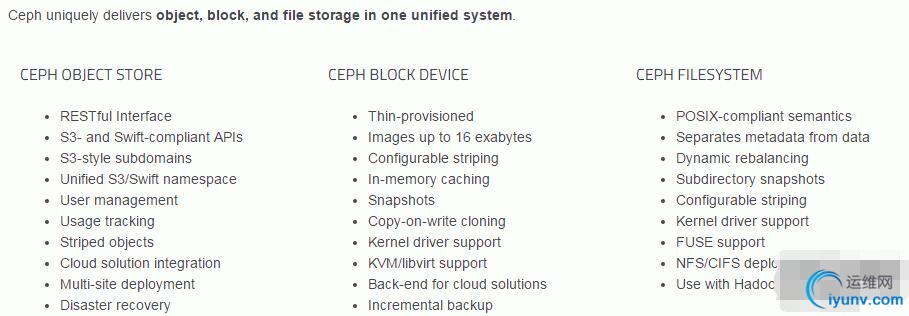

  ceph是一种统一的分布式文件系统，能够支持三种常用的接口:1.对象存储接口，兼容于S3，用于存储结构化的数据，如图片，视频，音频等文件，其他对象存储有:S3,Swift,FastDFS等；2. 文件系统接口，通过cephfs来完成，能够实现类似于nfs的挂载文件系统，需要由MDS来完成，类似的文件系存储有:nfs,samba,glusterfs等；3. 块存储，通过rbd实现，专门用于存储云环境下块设备，如openstack的cinder卷存储，这也是目前ceph应用最广泛的地方。

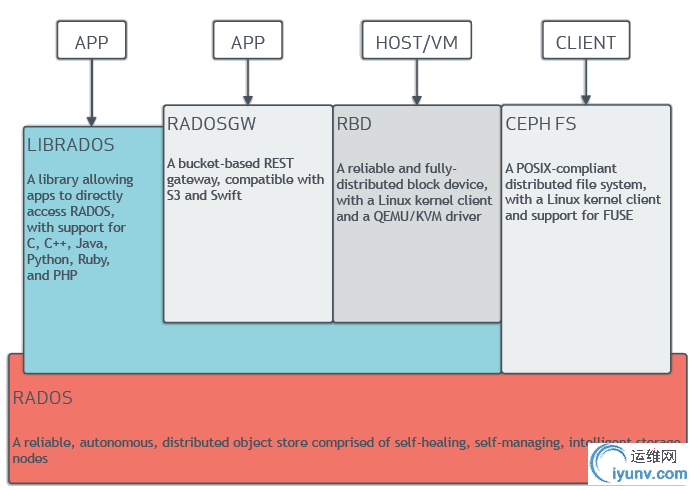

ceph的体系结构：

3.ceph的安装

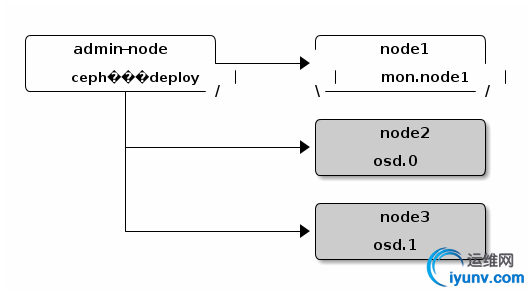

  • 环境介绍，通过ceph-depoly的方式部署ceph，三台角色如下,按照需求配置好hostname并格式化磁盘为xfs并挂载

ip主机名角色磁盘
10.1.2.230controller_10_1_2_230Monitor/admin-deploy
10.1.2.231network_10_1_2_231OSD/data1/osd0,格式化为xfs
10.1.2.232compute1_10_1_2_232OSD/data1/osd1,格式化为xfs

2.yum源的准备，需要配置好Epel源和ceph源
1
2
3
4
5
6
7
8
vim /etc/yum.repos.d/ceph.repo
[ceph-noarch]
name=Ceph noarch packages
baseurl=http://download.ceph.com/rpm-{ceph-release}/{distro}/noarch
enabled=1
gpgcheck=1
type=rpm-md
gpgkey=https://download.ceph.com/keys/release.asc



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
[iyunv@controller_10_1_2_230 ~]# yum repolist
Loaded plugins: fastestmirror, priorities
Repository epel is listed more than once in the configuration
Repository epel-debuginfo is listed more than once in the configuration
Repository epel-source is listed more than once in the configuration
Determining fastest mirrors
base                                                                                                                                                     | 3.7 kB     00:00
base/primary_db                                                                                                                                          | 4.4 MB     00:01
ceph                                                                                                                                                     | 2.9 kB     00:00
ceph/primary_db                                                                                                                                          |  24 kB     00:00
epel                                                                                                                                                     | 4.4 kB     00:00
epel/primary_db                                                                                                                                          | 6.3 MB     00:00
extras                                                                                                                                                   | 3.3 kB     00:00
extras/primary_db                                                                                                                                        |  19 kB     00:00
openstack-icehouse                                                                                                                                       | 2.9 kB     00:00
openstack-icehouse/primary_db                                                                                                                            | 902 kB     00:00
updates                                                                                                                                                  | 3.4 kB     00:00
updates/primary_db                                                                                                                                       | 5.3 MB     00:00
211 packages excluded due to repository priority protections
repo id                                                              repo name                                                                                         status
base                                                                 CentOS-6 - Base                                                                                    6,311+56
ceph                                                                 ceph                                                                                                   21+1
epel                                                                 Extra Packages for Enterprise Linux 6 - x86_64                                                    11,112+36
extras                                                               CentOS-6 - Extras                                                                                        15
openstack-icehouse                                                   OpenStack Icehouse Repository                                                                     1,353+309
updates                                                              CentOS-6 - Updates                                                                                1,397+118
repolist: 20,209




3.配置ntp，所有的机器均需要配置ntp服务器，统一同步到内网的ntp服务器，参考:
1
2
3
4
5
6
7
8
[iyunv@compute1_10_1_2_232 ~]# vim /etc/ntp.conf
server 10.1.2.230
[iyunv@compute1_10_1_2_232 ~]# /etc/init.d/ntpd restart
Shutting down ntpd:                                        [  OK  ]
Starting ntpd:                                             [  OK  ]
[iyunv@compute1_10_1_2_232 ~]# chkconfig ntpd on
[iyunv@compute1_10_1_2_232 ~]# chkconfig --list ntpd
ntpd            0:off   1:off   2:on    3:on    4:on    5:on    6:off




4.安装ceph，在所有的节点上都需要安装ceph，在admin节点，需要安装另外一个ceph-deploy，用于软件部署
1
2
3
[iyunv@controller_10_1_2_230 ~]# yum install ceph ceph-deploy  #管理节点
[iyunv@network_10_1_2_231 ~]# yum install ceph -y         #OSD节点
[iyunv@compute1_10_1_2_232 ~]# yum install ceph -y          #OSD节点



5.生成SSH key秘钥，并拷贝至远端
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
a、生成key
[iyunv@controller_10_1_2_230 ~]# ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
75:b4:24:cd:24:a6:a4:a4:a5:c7:da:6f:e7:29:ce:0f root@controller_10_1_2_230
The key's randomart image is:
+--[ RSA 2048]----+
|      o . +++    |
|     * o o =o.   |
|    o + . . o    |
|     +   . .     |
|    . . S        |
|       .         |
|        E .      |
|       o.+ .     |
|       .oo+      |
+-----------------+

b、将key拷贝至远端
[iyunv@controller_10_1_2_230 ~]# ssh-copy-id -i /root/.ssh/id_rsa.pub root@controller_10_1_2_230
The authenticity of host '[controller_10_1_2_230]:32200 ([10.1.2.230]:32200)' can't be established.
RSA key fingerprint is 7c:6b:e6:d5:b9:cc:09:d2:b7:bb:db:a4:41:aa:5e:34.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '[controller_10_1_2_230]:32200,[10.1.2.230]:32200' (RSA) to the list of known hosts.
root@controller_10_1_2_230's password:
Now try logging into the machine, with "ssh 'root@controller_10_1_2_230'", and check in:
  .ssh/authorized_keys
to make sure we haven't added extra keys that you weren't expecting.
[iyunv@controller_10_1_2_230 ~]# ssh-copy-id -i /root/.ssh/id_rsa.pub root@network_10_1_2_231
The authenticity of host '[network_10_1_2_231]:32200 ([10.1.2.231]:32200)' can't be established.
RSA key fingerprint is de:27:84:74:d3:9c:cf:d5:d8:3e:c4:65:d5:9d:dc:9a.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '[network_10_1_2_231]:32200,[10.1.2.231]:32200' (RSA) to the list of known hosts.
root@network_10_1_2_231's password:
Now try logging into the machine, with "ssh 'root@network_10_1_2_231'", and check in:
  .ssh/authorized_keys
to make sure we haven't added extra keys that you weren't expecting.
[iyunv@controller_10_1_2_230 ~]# ssh-copy-id -i /root/.ssh/id_rsa.pub root@compute1_10_1_2_232
The authenticity of host '[compute1_10_1_2_232]:32200 ([10.1.2.232]:32200)' can't be established.
RSA key fingerprint is d7:3a:1a:3d:b5:26:78:6a:39:5e:bd:5d:d4:96:29:0f.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '[compute1_10_1_2_232]:32200,[10.1.2.232]:32200' (RSA) to the list of known hosts.
root@compute1_10_1_2_232's password:
Now try logging into the machine, with "ssh 'root@compute1_10_1_2_232'", and check in:
  .ssh/authorized_keys
to make sure we haven't added extra keys that you weren't expecting.

c、测试是否能无密码登陆
[iyunv@controller_10_1_2_230 ~]# ssh root@compute1_10_1_2_232 'df -h'
Filesystem      Size  Used Avail Use% Mounted on
/dev/sda2       9.9G  3.3G  6.1G  35% /
tmpfs           3.9G  8.0K  3.9G   1% /dev/shm
/dev/sda1      1008M   82M  876M   9% /boot
/dev/sda4       913G   33M  913G   1% /data1



6.创建初始Monitor节点
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
a、创建配置目录，后续所有的操作都在该目录下执行
[iyunv@controller_10_1_2_230 ~]# mkdir ceph-deploy
[iyunv@controller_10_1_2_230 ~]# cd ceph-deploy/

b、新建一个集群
[iyunv@controller_10_1_2_230 ceph-deploy]# ceph-deploy new  --cluster-network 10.1.2.0/24  --public-network 10.1.2.0/24 controller_10_1_2_230
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO  ] Invoked (1.5.19): /usr/bin/ceph-deploy new --cluster-network 10.1.2.0/24 --public-network 10.1.2.0/24 controller_10_1_2_230
[ceph_deploy.new][DEBUG ] Creating new cluster named ceph
[ceph_deploy.new][INFO  ] making sure passwordless SSH succeeds
[controller_10_1_2_230][DEBUG ] connected to host: controller_10_1_2_230
[controller_10_1_2_230][DEBUG ] detect platform information from remote host
[controller_10_1_2_230][DEBUG ] detect machine type
[controller_10_1_2_230][DEBUG ] find the location of an executable
[controller_10_1_2_230][INFO  ] Running command: /sbin/ip link show
[controller_10_1_2_230][INFO  ] Running command: /sbin/ip addr show
[controller_10_1_2_230][DEBUG ] IP addresses found: ['10.1.2.230']
[ceph_deploy.new][DEBUG ] Resolving host controller_10_1_2_230
[ceph_deploy.new][DEBUG ] Monitor controller_10_1_2_230 at 10.1.2.230
[ceph_deploy.new][DEBUG ] Monitor initial members are ['controller_10_1_2_230']
[ceph_deploy.new][DEBUG ] Monitor addrs are ['10.1.2.230']
[ceph_deploy.new][DEBUG ] Creating a random mon key...
[ceph_deploy.new][DEBUG ] Writing monitor keyring to ceph.mon.keyring...
[ceph_deploy.new][DEBUG ] Writing initial config to ceph.conf...
Error in sys.exitfunc:

c、修改副本的个数
[iyunv@controller_10_1_2_230 ceph-deploy]# vim ceph.conf
[global]
auth_service_required = cephx
filestore_xattr_use_omap = true
auth_client_required = cephx
auth_cluster_required = cephx                    #开启ceph认证
mon_host = 10.1.2.230                            #monitor的ip地址
public_network = 10.1.2.0/24                     #ceph共有网络，即访问的网络
mon_initial_members = controller_10_1_2_230      #初始的monitor，建议是奇数，防止脑裂
cluster_network = 10.1.2.0/24                    #ceph集群内网
fsid = 07462638-a00f-476f-8257-3f4c9ec12d6e      #fsid号码
osd pool default size = 2                        #replicate的个数

d、monitor初始化
[iyunv@controller_10_1_2_230 ceph-deploy]# ceph-deploy mon create-initial
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO  ] Invoked (1.5.19): /usr/bin/ceph-deploy mon create-initial
[ceph_deploy.mon][DEBUG ] Deploying mon, cluster ceph hosts controller_10_1_2_230
[ceph_deploy.mon][DEBUG ] detecting platform for host controller_10_1_2_230 ...
[controller_10_1_2_230][DEBUG ] connected to host: controller_10_1_2_230
[controller_10_1_2_230][DEBUG ] detect platform information from remote host
[controller_10_1_2_230][DEBUG ] detect machine type
[ceph_deploy.mon][INFO  ] distro info: CentOS 6.5 Final
[controller_10_1_2_230][DEBUG ] determining if provided host has same hostname in remote
[controller_10_1_2_230][DEBUG ] get remote short hostname
[controller_10_1_2_230][DEBUG ] deploying mon to controller_10_1_2_230
[controller_10_1_2_230][DEBUG ] get remote short hostname
[controller_10_1_2_230][DEBUG ] remote hostname: controller_10_1_2_230
[controller_10_1_2_230][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[controller_10_1_2_230][DEBUG ] create the mon path if it does not exist
[controller_10_1_2_230][DEBUG ] checking for done path: /var/lib/ceph/mon/ceph-controller_10_1_2_230/done
[controller_10_1_2_230][DEBUG ] done path does not exist: /var/lib/ceph/mon/ceph-controller_10_1_2_230/done
[controller_10_1_2_230][INFO  ] creating keyring file: /var/lib/ceph/tmp/ceph-controller_10_1_2_230.mon.keyring
[controller_10_1_2_230][DEBUG ] create the monitor keyring file
[controller_10_1_2_230][INFO  ] Running command: ceph-mon --cluster ceph --mkfs -i controller_10_1_2_230 --keyring /var/lib/ceph/tmp/ceph-controller_10_1_2_230.mon.keyring
[controller_10_1_2_230][DEBUG ] ceph-mon: renaming mon.noname-a 10.1.2.230:6789/0 to mon.controller_10_1_2_230
[controller_10_1_2_230][DEBUG ] ceph-mon: set fsid to 07462638-a00f-476f-8257-3f4c9ec12d6e
[controller_10_1_2_230][DEBUG ] ceph-mon: created monfs at /var/lib/ceph/mon/ceph-controller_10_1_2_230 for mon.controller_10_1_2_230
[controller_10_1_2_230][INFO  ] unlinking keyring file /var/lib/ceph/tmp/ceph-controller_10_1_2_230.mon.keyring
[controller_10_1_2_230][DEBUG ] create a done file to avoid re-doing the mon deployment
[controller_10_1_2_230][DEBUG ] create the init path if it does not exist
[controller_10_1_2_230][DEBUG ] locating the `service` executable...
[controller_10_1_2_230][INFO  ] Running command: /sbin/service ceph -c /etc/ceph/ceph.conf start mon.controller_10_1_2_230
[controller_10_1_2_230][DEBUG ] === mon.controller_10_1_2_230 ===
[controller_10_1_2_230][DEBUG ] Starting Ceph mon.controller_10_1_2_230 on controller_10_1_2_230...
[controller_10_1_2_230][DEBUG ] Starting ceph-create-keys on controller_10_1_2_230...
[controller_10_1_2_230][INFO  ] Running command: chkconfig ceph on
[controller_10_1_2_230][INFO  ] Running command: ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.controller_10_1_2_230.asok mon_status
[controller_10_1_2_230][DEBUG ] ********************************************************************************
[controller_10_1_2_230][DEBUG ] status for monitor: mon.controller_10_1_2_230
[controller_10_1_2_230][DEBUG ] {
[controller_10_1_2_230][DEBUG ]   "election_epoch": 2,
[controller_10_1_2_230][DEBUG ]   "extra_probe_peers": [],
[controller_10_1_2_230][DEBUG ]   "monmap": {
[controller_10_1_2_230][DEBUG ]     "created": "0.000000",
[controller_10_1_2_230][DEBUG ]     "epoch": 1,
[controller_10_1_2_230][DEBUG ]     "fsid": "07462638-a00f-476f-8257-3f4c9ec12d6e",
[controller_10_1_2_230][DEBUG ]     "modified": "0.000000",
[controller_10_1_2_230][DEBUG ]     "mons": [
[controller_10_1_2_230][DEBUG ]       {
[controller_10_1_2_230][DEBUG ]         "addr": "10.1.2.230:6789/0",
[controller_10_1_2_230][DEBUG ]         "name": "controller_10_1_2_230",
[controller_10_1_2_230][DEBUG ]         "rank": 0
[controller_10_1_2_230][DEBUG ]       }
[controller_10_1_2_230][DEBUG ]     ]
[controller_10_1_2_230][DEBUG ]   },
[controller_10_1_2_230][DEBUG ]   "name": "controller_10_1_2_230",
[controller_10_1_2_230][DEBUG ]   "outside_quorum": [],
[controller_10_1_2_230][DEBUG ]   "quorum": [
[controller_10_1_2_230][DEBUG ]     0
[controller_10_1_2_230][DEBUG ]   ],
[controller_10_1_2_230][DEBUG ]   "rank": 0,
[controller_10_1_2_230][DEBUG ]   "state": "leader",
[controller_10_1_2_230][DEBUG ]   "sync_provider": []
[controller_10_1_2_230][DEBUG ] }
[controller_10_1_2_230][DEBUG ] ********************************************************************************
[controller_10_1_2_230][INFO  ] monitor: mon.controller_10_1_2_230 is running
[controller_10_1_2_230][INFO  ] Running command: ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.controller_10_1_2_230.asok mon_status
[ceph_deploy.mon][INFO  ] processing monitor mon.controller_10_1_2_230
[controller_10_1_2_230][DEBUG ] connected to host: controller_10_1_2_230
[controller_10_1_2_230][INFO  ] Running command: ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.controller_10_1_2_230.asok mon_status
[ceph_deploy.mon][INFO  ] mon.controller_10_1_2_230 monitor has reached quorum!
[ceph_deploy.mon][INFO  ] all initial monitors are running and have formed quorum
[ceph_deploy.mon][INFO  ] Running gatherkeys...
[ceph_deploy.gatherkeys][DEBUG ] Checking controller_10_1_2_230 for /etc/ceph/ceph.client.admin.keyring
[controller_10_1_2_230][DEBUG ] connected to host: controller_10_1_2_230
[controller_10_1_2_230][DEBUG ] detect platform information from remote host
[controller_10_1_2_230][DEBUG ] detect machine type
[controller_10_1_2_230][DEBUG ] fetch remote file
[ceph_deploy.gatherkeys][DEBUG ] Got ceph.client.admin.keyring key from controller_10_1_2_230.
[ceph_deploy.gatherkeys][DEBUG ] Have ceph.mon.keyring
[ceph_deploy.gatherkeys][DEBUG ] Checking controller_10_1_2_230 for /var/lib/ceph/bootstrap-osd/ceph.keyring
[controller_10_1_2_230][DEBUG ] connected to host: controller_10_1_2_230
[controller_10_1_2_230][DEBUG ] detect platform information from remote host
[controller_10_1_2_230][DEBUG ] detect machine type
[controller_10_1_2_230][DEBUG ] fetch remote file
[ceph_deploy.gatherkeys][DEBUG ] Got ceph.bootstrap-osd.keyring key from controller_10_1_2_230.
[ceph_deploy.gatherkeys][DEBUG ] Checking controller_10_1_2_230 for /var/lib/ceph/bootstrap-mds/ceph.keyring
[controller_10_1_2_230][DEBUG ] connected to host: controller_10_1_2_230
[controller_10_1_2_230][DEBUG ] detect platform information from remote host
[controller_10_1_2_230][DEBUG ] detect machine type
[controller_10_1_2_230][DEBUG ] fetch remote file
[ceph_deploy.gatherkeys][DEBUG ] Got ceph.bootstrap-mds.keyring key from controller_10_1_2_230.
Error in sys.exitfunc:

e、校验ceph状态
[iyunv@controller_10_1_2_230 ceph-deploy]# ceph -s
    cluster 07462638-a00f-476f-8257-3f4c9ec12d6e
     health HEALTH_ERR 64 pgs stuck inactive; 64 pgs stuck unclean; no osds
     monmap e1: 1 mons at {controller_10_1_2_230=10.1.2.230:6789/0}, election epoch 2, quorum 0 controller_10_1_2_230
     osdmap e1: 0 osds: 0 up, 0 in
      pgmap v2: 64 pgs, 1 pools, 0 bytes data, 0 objects
            0 kB used, 0 kB / 0 kB avail
                  64 creating
PS:由于目前还没有OSD，所有集群目前的health健康状态为:HEALTH_ERR,添加之后，就不会报错了@@



7.添加OSD，按照准备条件，先格式化为xfs文件系统并挂载
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
a、创建目录
[iyunv@controller_10_1_2_230 ceph-deploy]# ssh root@network_10_1_2_231 'mkdir -pv /data1/osd0'
mkdir: created directory `/data1/osd0'
[iyunv@controller_10_1_2_230 ceph-deploy]# ssh compute1_10_1_2_232 'mkdir -pv /data1/osd1'
mkdir: created directory `/data1/osd1'

b、OSD准备
[iyunv@controller_10_1_2_230 ceph-deploy]# ceph-deploy osd prepare network_10_1_2_231:/data1/osd0 compute1_10_1_2_232:/data1/osd1
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO  ] Invoked (1.5.19): /usr/bin/ceph-deploy osd prepare network_10_1_2_231:/data1/osd0 compute1_10_1_2_232:/data1/osd1
[ceph_deploy.osd][DEBUG ] Preparing cluster ceph disks network_10_1_2_231:/data1/osd0: compute1_10_1_2_232:/data1/osd1:
[network_10_1_2_231][DEBUG ] connected to host: network_10_1_2_231
[network_10_1_2_231][DEBUG ] detect platform information from remote host
[network_10_1_2_231][DEBUG ] detect machine type
[ceph_deploy.osd][INFO  ] Distro info: CentOS 6.5 Final
[ceph_deploy.osd][DEBUG ] Deploying osd to network_10_1_2_231
[network_10_1_2_231][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[network_10_1_2_231][WARNIN] osd keyring does not exist yet, creating one
[network_10_1_2_231][DEBUG ] create a keyring file
[network_10_1_2_231][INFO  ] Running command: udevadm trigger --subsystem-match=block --action=add
[ceph_deploy.osd][DEBUG ] Preparing host network_10_1_2_231 disk /data1/osd0 journal None activate False
[network_10_1_2_231][INFO  ] Running command: ceph-disk -v prepare --fs-type xfs --cluster ceph -- /data1/osd0
[network_10_1_2_231][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=fsid
[network_10_1_2_231][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_mkfs_options_xfs
[network_10_1_2_231][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_fs_mkfs_options_xfs
[network_10_1_2_231][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_mount_options_xfs
[network_10_1_2_231][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_fs_mount_options_xfs
[network_10_1_2_231][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=osd_journal_size
[network_10_1_2_231][WARNIN] DEBUG:ceph-disk:Preparing osd data dir /data1/osd0
[network_10_1_2_231][INFO  ] checking OSD status...
[network_10_1_2_231][INFO  ] Running command: ceph --cluster=ceph osd stat --format=json
[ceph_deploy.osd][DEBUG ] Host network_10_1_2_231 is now ready for osd use.
[compute1_10_1_2_232][DEBUG ] connected to host: compute1_10_1_2_232
[compute1_10_1_2_232][DEBUG ] detect platform information from remote host
[compute1_10_1_2_232][DEBUG ] detect machine type
[ceph_deploy.osd][INFO  ] Distro info: CentOS 6.5 Final
[ceph_deploy.osd][DEBUG ] Deploying osd to compute1_10_1_2_232
[compute1_10_1_2_232][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[compute1_10_1_2_232][WARNIN] osd keyring does not exist yet, creating one
[compute1_10_1_2_232][DEBUG ] create a keyring file
[compute1_10_1_2_232][INFO  ] Running command: udevadm trigger --subsystem-match=block --action=add
[ceph_deploy.osd][DEBUG ] Preparing host compute1_10_1_2_232 disk /data1/osd1 journal None activate False
[compute1_10_1_2_232][INFO  ] Running command: ceph-disk -v prepare --fs-type xfs --cluster ceph -- /data1/osd1
[compute1_10_1_2_232][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=fsid
[compute1_10_1_2_232][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_mkfs_options_xfs
[compute1_10_1_2_232][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_fs_mkfs_options_xfs
[compute1_10_1_2_232][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_mount_options_xfs
[compute1_10_1_2_232][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_fs_mount_options_xfs
[compute1_10_1_2_232][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=osd_journal_size
[compute1_10_1_2_232][WARNIN] DEBUG:ceph-disk:Preparing osd data dir /data1/osd1
[compute1_10_1_2_232][INFO  ] checking OSD status...
[compute1_10_1_2_232][INFO  ] Running command: ceph --cluster=ceph osd stat --format=json
[ceph_deploy.osd][DEBUG ] Host compute1_10_1_2_232 is now ready for osd use.
Error in sys.exitfunc:

c、激活OSD
[iyunv@controller_10_1_2_230 ceph-deploy]# ceph-deploy osd activate network_10_1_2_231:/data1/osd0 compute1_10_1_2_232:/data1/osd1
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO  ] Invoked (1.5.19): /usr/bin/ceph-deploy osd activate network_10_1_2_231:/data1/osd0 compute1_10_1_2_232:/data1/osd1
[ceph_deploy.osd][DEBUG ] Activating cluster ceph disks network_10_1_2_231:/data1/osd0: compute1_10_1_2_232:/data1/osd1:
[network_10_1_2_231][DEBUG ] connected to host: network_10_1_2_231
[network_10_1_2_231][DEBUG ] detect platform information from remote host
[network_10_1_2_231][DEBUG ] detect machine type
[ceph_deploy.osd][INFO  ] Distro info: CentOS 6.5 Final
[ceph_deploy.osd][DEBUG ] activating host network_10_1_2_231 disk /data1/osd0
[ceph_deploy.osd][DEBUG ] will use init type: sysvinit
[network_10_1_2_231][INFO  ] Running command: ceph-disk -v activate --mark-init sysvinit --mount /data1/osd0
[network_10_1_2_231][DEBUG ] === osd.0 ===
[network_10_1_2_231][DEBUG ] Starting Ceph osd.0 on network_10_1_2_231...
[network_10_1_2_231][DEBUG ] starting osd.0 at :/0 osd_data /var/lib/ceph/osd/ceph-0 /var/lib/ceph/osd/ceph-0/journal
[network_10_1_2_231][WARNIN] DEBUG:ceph-disk:Cluster uuid is 07462638-a00f-476f-8257-3f4c9ec12d6e
[network_10_1_2_231][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=fsid
[network_10_1_2_231][WARNIN] DEBUG:ceph-disk:Cluster name is ceph
[network_10_1_2_231][WARNIN] DEBUG:ceph-disk:OSD uuid is 6d298aa5-b33b-4d93-8ac4-efaa671200e5
[network_10_1_2_231][WARNIN] DEBUG:ceph-disk:Allocating OSD id...
[network_10_1_2_231][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph --cluster ceph --name client.bootstrap-osd --keyring /var/lib/ceph/bootstrap-osd/ceph.keyring osd create --concise 6d298aa5-b33b-4d93-8ac4-efaa671200e5
[network_10_1_2_231][WARNIN] DEBUG:ceph-disk:OSD id is 0
[network_10_1_2_231][WARNIN] DEBUG:ceph-disk:Initializing OSD...
[network_10_1_2_231][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph --cluster ceph --name client.bootstrap-osd --keyring /var/lib/ceph/bootstrap-osd/ceph.keyring mon getmap -o /data1/osd0/activate.monmap
[network_10_1_2_231][WARNIN] got monmap epoch 1
[network_10_1_2_231][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-osd --cluster ceph --mkfs --mkkey -i 0 --monmap /data1/osd0/activate.monmap --osd-data /data1/osd0 --osd-journal /data1/osd0/journal --osd-uuid 6d298aa5-b33b-4d93-8ac4-efaa671200e5 --keyring /data1/osd0/keyring
[network_10_1_2_231][WARNIN] 2016-01-28 15:48:59.836760 7f2ec01337a0 -1 journal FileJournal::_open: disabling aio for non-block journal.  Use journal_force_aio to force use of aio anyway
[network_10_1_2_231][WARNIN] 2016-01-28 15:49:00.053509 7f2ec01337a0 -1 journal FileJournal::_open: disabling aio for non-block journal.  Use journal_force_aio to force use of aio anyway
[network_10_1_2_231][WARNIN] 2016-01-28 15:49:00.053971 7f2ec01337a0 -1 filestore(/data1/osd0) could not find 23c2fcde/osd_superblock/0//-1 in index: (2) No such file or directory
[network_10_1_2_231][WARNIN] 2016-01-28 15:49:00.262211 7f2ec01337a0 -1 created object store /data1/osd0 journal /data1/osd0/journal for osd.0 fsid 07462638-a00f-476f-8257-3f4c9ec12d6e
[network_10_1_2_231][WARNIN] 2016-01-28 15:49:00.262234 7f2ec01337a0 -1 auth: error reading file: /data1/osd0/keyring: can't open /data1/osd0/keyring: (2) No such file or directory
[network_10_1_2_231][WARNIN] 2016-01-28 15:49:00.262280 7f2ec01337a0 -1 created new key in keyring /data1/osd0/keyring
[network_10_1_2_231][WARNIN] DEBUG:ceph-disk:Marking with init system sysvinit
[network_10_1_2_231][WARNIN] DEBUG:ceph-disk:Authorizing OSD key...
[network_10_1_2_231][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph --cluster ceph --name client.bootstrap-osd --keyring /var/lib/ceph/bootstrap-osd/ceph.keyring auth add osd.0 -i /data1/osd0/keyring osd allow * mon allow profile osd
[network_10_1_2_231][WARNIN] added key for osd.0
[network_10_1_2_231][WARNIN] DEBUG:ceph-disk:ceph osd.0 data dir is ready at /data1/osd0
[network_10_1_2_231][WARNIN] DEBUG:ceph-disk:Creating symlink /var/lib/ceph/osd/ceph-0 -> /data1/osd0
[network_10_1_2_231][WARNIN] DEBUG:ceph-disk:Starting ceph osd.0...
[network_10_1_2_231][WARNIN] INFO:ceph-disk:Running command: /sbin/service ceph start osd.0
[network_10_1_2_231][WARNIN] create-or-move updating item name 'osd.0' weight 0.89 at location {host=network_10_1_2_231,root=default} to crush map
[network_10_1_2_231][INFO  ] checking OSD status...
[network_10_1_2_231][INFO  ] Running command: ceph --cluster=ceph osd stat --format=json
[network_10_1_2_231][INFO  ] Running command: chkconfig ceph on
[compute1_10_1_2_232][DEBUG ] connected to host: compute1_10_1_2_232
[compute1_10_1_2_232][DEBUG ] detect platform information from remote host
[compute1_10_1_2_232][DEBUG ] detect machine type
[ceph_deploy.osd][INFO  ] Distro info: CentOS 6.5 Final
[ceph_deploy.osd][DEBUG ] activating host compute1_10_1_2_232 disk /data1/osd1
[ceph_deploy.osd][DEBUG ] will use init type: sysvinit
[compute1_10_1_2_232][INFO  ] Running command: ceph-disk -v activate --mark-init sysvinit --mount /data1/osd1
[compute1_10_1_2_232][DEBUG ] === osd.1 ===
[compute1_10_1_2_232][DEBUG ] Starting Ceph osd.1 on compute1_10_1_2_232...
[compute1_10_1_2_232][DEBUG ] starting osd.1 at :/0 osd_data /var/lib/ceph/osd/ceph-1 /var/lib/ceph/osd/ceph-1/journal
[compute1_10_1_2_232][WARNIN] DEBUG:ceph-disk:Cluster uuid is 07462638-a00f-476f-8257-3f4c9ec12d6e
[compute1_10_1_2_232][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=fsid
[compute1_10_1_2_232][WARNIN] DEBUG:ceph-disk:Cluster name is ceph
[compute1_10_1_2_232][WARNIN] DEBUG:ceph-disk:OSD uuid is 770582a6-e408-4fb8-b59b-8b781d5e226b
[compute1_10_1_2_232][WARNIN] DEBUG:ceph-disk:Allocating OSD id...
[compute1_10_1_2_232][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph --cluster ceph --name client.bootstrap-osd --keyring /var/lib/ceph/bootstrap-osd/ceph.keyring osd create --concise 770582a6-e408-4fb8-b59b-8b781d5e226b
[compute1_10_1_2_232][WARNIN] DEBUG:ceph-disk:OSD id is 1
[compute1_10_1_2_232][WARNIN] DEBUG:ceph-disk:Initializing OSD...
[compute1_10_1_2_232][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph --cluster ceph --name client.bootstrap-osd --keyring /var/lib/ceph/bootstrap-osd/ceph.keyring mon getmap -o /data1/osd1/activate.monmap
[compute1_10_1_2_232][WARNIN] got monmap epoch 1
[compute1_10_1_2_232][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph-osd --cluster ceph --mkfs --mkkey -i 1 --monmap /data1/osd1/activate.monmap --osd-data /data1/osd1 --osd-journal /data1/osd1/journal --osd-uuid 770582a6-e408-4fb8-b59b-8b781d5e226b --keyring /data1/osd1/keyring
[compute1_10_1_2_232][WARNIN] 2016-01-28 15:49:08.734889 7fad7e2a3800 -1 journal FileJournal::_open: disabling aio for non-block journal.  Use journal_force_aio to force use of aio anyway
[compute1_10_1_2_232][WARNIN] 2016-01-28 15:49:08.976634 7fad7e2a3800 -1 journal FileJournal::_open: disabling aio for non-block journal.  Use journal_force_aio to force use of aio anyway
[compute1_10_1_2_232][WARNIN] 2016-01-28 15:49:08.976965 7fad7e2a3800 -1 filestore(/data1/osd1) could not find 23c2fcde/osd_superblock/0//-1 in index: (2) No such file or directory
[compute1_10_1_2_232][WARNIN] 2016-01-28 15:49:09.285254 7fad7e2a3800 -1 created object store /data1/osd1 journal /data1/osd1/journal for osd.1 fsid 07462638-a00f-476f-8257-3f4c9ec12d6e
[compute1_10_1_2_232][WARNIN] 2016-01-28 15:49:09.285287 7fad7e2a3800 -1 auth: error reading file: /data1/osd1/keyring: can't open /data1/osd1/keyring: (2) No such file or directory
[compute1_10_1_2_232][WARNIN] 2016-01-28 15:49:09.285358 7fad7e2a3800 -1 created new key in keyring /data1/osd1/keyring
[compute1_10_1_2_232][WARNIN] DEBUG:ceph-disk:Marking with init system sysvinit
[compute1_10_1_2_232][WARNIN] DEBUG:ceph-disk:Authorizing OSD key...
[compute1_10_1_2_232][WARNIN] INFO:ceph-disk:Running command: /usr/bin/ceph --cluster ceph --name client.bootstrap-osd --keyring /var/lib/ceph/bootstrap-osd/ceph.keyring auth add osd.1 -i /data1/osd1/keyring osd allow * mon allow profile osd
[compute1_10_1_2_232][WARNIN] added key for osd.1
[compute1_10_1_2_232][WARNIN] DEBUG:ceph-disk:ceph osd.1 data dir is ready at /data1/osd1
[compute1_10_1_2_232][WARNIN] DEBUG:ceph-disk:Creating symlink /var/lib/ceph/osd/ceph-1 -> /data1/osd1
[compute1_10_1_2_232][WARNIN] DEBUG:ceph-disk:Starting ceph osd.1...
[compute1_10_1_2_232][WARNIN] INFO:ceph-disk:Running command: /sbin/service ceph --cluster ceph start osd.1
[compute1_10_1_2_232][WARNIN] libust[36314/36314]: Warning: HOME environment variable not set. Disabling LTTng-UST per-user tracing. (in setup_local_apps() at lttng-ust-comm.c:305)
[compute1_10_1_2_232][WARNIN] create-or-move updating item name 'osd.1' weight 0.89 at location {host=compute1_10_1_2_232,root=default} to crush map
[compute1_10_1_2_232][WARNIN] libust[36363/36363]: Warning: HOME environment variable not set. Disabling LTTng-UST per-user tracing. (in setup_local_apps() at lttng-ust-comm.c:305)
[compute1_10_1_2_232][INFO  ] checking OSD status...
[compute1_10_1_2_232][INFO  ] Running command: ceph --cluster=ceph osd stat --format=json
[compute1_10_1_2_232][INFO  ] Running command: chkconfig ceph on
Error in sys.exitfunc:

d、再次校验ceph状态
[iyunv@controller_10_1_2_230 ceph-deploy]# ceph -s
    cluster 07462638-a00f-476f-8257-3f4c9ec12d6e
     health HEALTH_OK                                #状态为OK了
     monmap e1: 1 mons at {controller_10_1_2_230=10.1.2.230:6789/0}, election epoch 2, quorum 0 controller_10_1_2_230   #monitor信息
     osdmap e8: 2 osds: 2 up, 2 in                   #osd信息，有2个OSD，2个状态都是up
      pgmap v14: 64 pgs, 1 pools, 0 bytes data, 0 objects
            10305 MB used, 1814 GB / 1824 GB avail
                  64 active+clean



8. 拷贝管理秘钥至其他节点
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
[iyunv@controller_10_1_2_230 ceph-deploy]# ceph-deploy admin controller_10_1_2_230 network_10_1_2_231 compute1_10_1_2_232
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO  ] Invoked (1.5.19): /usr/bin/ceph-deploy admin controller_10_1_2_230 network_10_1_2_231 compute1_10_1_2_232
[ceph_deploy.admin][DEBUG ] Pushing admin keys and conf to controller_10_1_2_230
[controller_10_1_2_230][DEBUG ] connected to host: controller_10_1_2_230
[controller_10_1_2_230][DEBUG ] detect platform information from remote host
[controller_10_1_2_230][DEBUG ] detect machine type
[controller_10_1_2_230][DEBUG ] get remote short hostname
[controller_10_1_2_230][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[ceph_deploy.admin][DEBUG ] Pushing admin keys and conf to network_10_1_2_231
[network_10_1_2_231][DEBUG ] connected to host: network_10_1_2_231
[network_10_1_2_231][DEBUG ] detect platform information from remote host
[network_10_1_2_231][DEBUG ] detect machine type
[network_10_1_2_231][DEBUG ] get remote short hostname
[network_10_1_2_231][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[ceph_deploy.admin][DEBUG ] Pushing admin keys and conf to compute1_10_1_2_232
[compute1_10_1_2_232][DEBUG ] connected to host: compute1_10_1_2_232
[compute1_10_1_2_232][DEBUG ] detect platform information from remote host
[compute1_10_1_2_232][DEBUG ] detect machine type
[compute1_10_1_2_232][DEBUG ] get remote short hostname
[compute1_10_1_2_232][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
Error in sys.exitfunc:

其他节点也能够管理ceph集群
[iyunv@network_10_1_2_231 ~]# ll /etc/ceph/ceph.client.admin.keyring
-rw-r--r-- 1 root root 63 Jan 28 15:52 /etc/ceph/ceph.client.admin.keyring
[iyunv@network_10_1_2_231 ~]# ceph health
HEALTH_OK
[iyunv@network_10_1_2_231 ~]# ceph -s
    cluster 07462638-a00f-476f-8257-3f4c9ec12d6e
     health HEALTH_OK
     monmap e1: 1 mons at {controller_10_1_2_230=10.1.2.230:6789/0}, election epoch 2, quorum 0 controller_10_1_2_230
     osdmap e8: 2 osds: 2 up, 2 in
      pgmap v15: 64 pgs, 1 pools, 0 bytes data, 0 objects
            10305 MB used, 1814 GB / 1824 GB avail
                  64 active+clean



至此，基本的ceph配置完毕！！！
4. 总结
  以上配置是ceph的最基本的配置，此处只是作为练习使用，在生产中，实际用ceph，需要考虑的因素非常多，如monitor需要有3个，ceph的集群网络和公共网络的规划，OSD策略的调整等等，请继续关注我的blog，后续将会以ceph系列文章的形式出现，此处只是做简单的演示，接下来的博客，将介绍ceph和glance，nova，以及cinder结合，敬请关注！

5.参考链接
http://docs.ceph.com/docs/master/start/quick-ceph-deploy



运维网声明 1、欢迎大家加入本站运维交流群:群②:261659950 群⑤:202807635 群⑦870801961 群⑧679858003
2、本站所有主题由该帖子作者发表，该帖子作者与运维网享有帖子相关版权
3、所有作品的著作权均归原作者享有，请您和我们一样尊重他人的著作权等合法权益。如果您对作品感到满意，请购买正版
4、禁止制作、复制、发布和传播具有反动、淫秽、色情、暴力、凶杀等内容的信息，一经发现立即删除。若您因此触犯法律，一切后果自负，我们对此不承担任何责任
5、所有资源均系网友上传或者通过网络收集，我们仅提供一个展示、介绍、观摩学习的平台，我们不对其内容的准确性、可靠性、正当性、安全性、合法性等负责，亦不承担任何法律责任
6、所有作品仅供您个人学习、研究或欣赏，不得用于商业或者其他用途，否则，一切后果均由您自己承担，我们对此不承担任何法律责任
7、如涉及侵犯版权等问题，请您及时通知我们，我们将立即采取措施予以解决
8、联系人Email：admin@iyunv.com 网址：www.yunweiku.com

所有资源均系网友上传或者通过网络收集,我们仅提供一个展示、介绍、观摩学习的平台,我们不对其承担任何法律责任,如涉及侵犯版权等问题,请您及时通知我们,我们将立即处理,联系人Email:kefu@iyunv.com,QQ:1061981298 本贴地址：https://www.yunweiku.com/thread-170856-1-1.html 上篇帖子： ceph集群报 Monitor clock skew detected 错误问题排查，解决 下篇帖子： openstack运维实战系列(十七)之glance与ceph结合
回复

使用道具 举报

返回列表
高级模式
B Color Image Link Quote Code Smilies
您需要登录后才可以回帖 登录 | 立即注册

本版积分规则

扫码加入运维网微信交流群X

扫码加入运维网微信交流群

扫描二维码加入运维网微信交流群，最新一手资源尽在官方微信交流群！快快加入我们吧...

扫描微信二维码查看详情

客服 E-mail:iyunvcom@gmail.com

本站由青云提供云计算服务

运维网--中国最专业的运维工程师交流社区

豫ICP备20007574号-1 Copyright © 2012-2025

关于我们

发展历程

联系我们

关注我们

广告服务

广告案例

隐私条款

免责声明

用户登录

用户注册

版主守则

申请版主

手机版

金币获取

帮助中心

每日签到

Good Good

Study

Day Day

UP


客服E-mail:kefu@iyunv.com 客服QQ：1061981298


QQ群⑦：运维网交流群⑦ QQ群⑧：运维网交流群⑧ k8s群：运维网kubernetes交流群


提醒：禁止发布任何违反国家法律、法规的言论与图片等内容；本站内容均来自个人观点与网络等信息，非本站认同之观点.


本站大部分资源是网友从网上搜集分享而来，其版权均归原作者及其网站所有，我们尊重他人的合法权益，如有内容侵犯您的合法权益，请及时与我们联系进行核实删除！



合作伙伴: 青云cloud

快速回复 返回顶部 返回列表
