WEB文件上传之apache common upload使用（一）

妖怪幻

　　文件上传一个经常用到的功能，它有许多中实现的方案。
页面表单 + RFC1897规范 + http协议上传
页面控件(flash/html5/activeX/applet) + RFC1897规范 + http协议上传
页面控件(flash/html5/activeX/applet) + 自定义数据规范 + http协议上传
页面控件(flash/html5/activeX/applet) + FTP协议上传
页面控件(flash/html5/activeX/applet) + 自定义协议
　　用apache common upload组件实际就是采用的“页面表单 + RFC1897规范 + http协议上传”实现方式，需要实现的技术点：
1. 多文件数据的提交
2. 文件数据包接收存储功能
3. 文件数据上传进度
4. WEB页面无刷新异步提交
　　时序图：

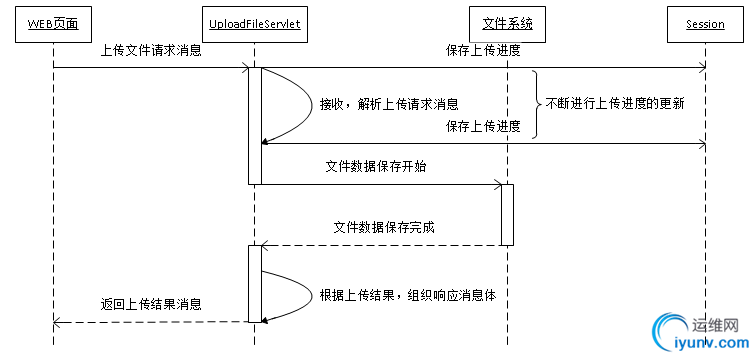

• 文件上传时序图


　　

• 文件上传进度获取时序图



实现思路：


1. 多文件数据的提交
在WEB页面采用多个<input type="file">利用form表单进行文件提交

2. 文件数据包接收存储功能
服务端采用servlet，利用apache common upload组件接收解析数据包，接收解析的过程中保存进度到session, 文件接收完毕后保存到指定目录

3. 文件数据上传进度
在WEB页面在界面写一个定时器，定时访问服务器提供上传进度获取功能的servlet，获取文件上传进度信息

4. WEB页面无刷新异步提交
利用iframe来实现WEB页面无刷新异步上传

　　关键代码：
　　UploadFileServlet.java

package com.test.servlet;
import java.io.File;
import java.io.IOException;
import java.io.Writer;
import java.util.Iterator;
import java.util.List;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.apache.commons.fileupload.FileItem;
import org.apache.commons.fileupload.FileUploadBase.FileSizeLimitExceededException;
import org.apache.commons.fileupload.disk.DiskFileItemFactory;
import org.apache.commons.fileupload.servlet.FileCleanerCleanup;
import org.apache.commons.fileupload.servlet.ServletFileUpload;
import org.apache.commons.io.FileCleaningTracker;
import org.apache.commons.io.FileUtils;
import org.apache.commons.io.FilenameUtils;
import org.apache.commons.io.IOUtils;
import org.apache.commons.lang3.ArrayUtils;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
/**
* 文件上传数据接收类
*
* @author chengqi
*
*/
public class UploadFileServlet extends HttpServlet {
/** 日志对象*/
private Log logger = LogFactory.getLog(this.getClass());
private static final long serialVersionUID = 1L;
/** 上传目录名*/
private static final String uploadFolderName = "uploadFiles";
/** 上传临时文件存储目录*/
private static final String tempFolderName = "tempFiles";
/** 上传文件最大为30M*/
private static final Long fileMaxSize = 30000000L;
/** 允许上传的扩展名*/
private static final String [] extensionPermit = {"txt", "xls", "zip"};
/** 统一的编码格式*/
private static final String encode = "UTF-8";
@Override
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
logger.info("UploadFileServlet#doPost() start");
try {
String curProjectPath = this.getServletContext().getRealPath("/");
String saveDirectoryPath = curProjectPath + "/" + uploadFolderName;
String tempDirectoryPath = curProjectPath + "/" + tempFolderName;
File saveDirectory = new File(saveDirectoryPath);
File tempDirectory = new File(tempDirectoryPath);
logger.debug("Project real path [" + saveDirectory.getAbsolutePath() + "]");
//上传时产生的临时文件的默认保存目录
logger.debug("Temp files default save path [" + System.getProperty("java.io.tmpdir") + "]");
DiskFileItemFactory factory = new DiskFileItemFactory();
//DiskFileItemFactory中DEFAULT_SIZE_THRESHOLD=10240表示如果上传文件大于10K则会产生上传临时文件
//上传临时文件的默认目录为java.io.tmpdir中保存的路径，根据操作系统的不同会有区别
if(!tempDirectory.exists()) {
tempDirectory.mkdir();
}
//重新设置临时文件保存目录
factory.setRepository(tempDirectory);
//设置文件清除追踪器，文件上传过程中产生的临时文件会在
FileCleaningTracker fileCleaningTracker = FileCleanerCleanup.getFileCleaningTracker(this.getServletContext());
factory.setFileCleaningTracker(fileCleaningTracker);
ServletFileUpload upload = new ServletFileUpload(factory);
//设置文件上传进度监听器
FileProcessListener processListener = new FileProcessListener(request.getSession());
upload.setProgressListener(processListener);
// 设置文件上传的大小限制
upload.setFileSizeMax(fileMaxSize);
// 设置文件上传的头编码，如果需要正确接收中文文件路径或者文件名
// 这里需要设置对应的字符编码，为了通用这里设置为UTF-8
upload.setHeaderEncoding(encode);
//解析请求数据包
List<FileItem> fileItems = upload.parseRequest(request);
//遍历解析完成后的Form数据和上传文件数据
for (Iterator<FileItem> iterator = fileItems.iterator(); iterator.hasNext();) {
FileItem fileItem = iterator.next();
String fieldName = fileItem.getFieldName();
String name = fileItem.getName();
//如果为上传文件数据
if(!fileItem.isFormField()) {
logger.debug("fieldName[" + fieldName + "] fileName[" + name + "] ");
if(fileItem.getSize() > 0) {
String fileExtension = FilenameUtils.getExtension(name);
if(!ArrayUtils.contains(extensionPermit, fileExtension)) {
throw new NoSupportExtensionException("No Support extension.");
}
String fileName = FilenameUtils.getName(name);
FileUtils.copyInputStreamToFile(fileItem.getInputStream(),
new File(saveDirectory, fileName));
}
} else { //Form表单数据
String value = fileItem.getString(encode);
logger.debug("fieldName[" + value + "] fieldValue[" + fieldName + "]");
}
}
responseMessage(response, State.OK);
} catch(FileSizeLimitExceededException e) {
logger.error(e.getMessage(), e);
responseMessage(response, State.OVER_FILE_LIMIT);
} catch(NoSupportExtensionException e) {
logger.error(e.getMessage(), e);
responseMessage(response, State.NO_SUPPORT_EXTENSION);
} catch(Exception e) {
logger.error(e.getMessage(), e);
responseMessage(response, State.ERROR);
} finally {
//清除上传进度信息
request.getSession().removeAttribute("fileUploadProcess");
}
logger.info("UploadFileServlet#doPost() end");
}
public enum State {
OK(200, "上传成功"),
ERROR(500, "上传失败"),
OVER_FILE_LIMIT(501, "超过上传大小限制"),
NO_SUPPORT_EXTENSION(502, "不支持的扩展名");
private int code;
private String message;
private State(int code, String message) {
this.code = code;
this.message = message;
}
public int getCode() {
return code;
}
public String getMessage() {
return message;
}
}
/**
* 返回结果函数
* @param response
* @param state
*/
private void responseMessage(HttpServletResponse response, State state) {
response.setCharacterEncoding(encode);
response.setContentType("text/html; charset=" + encode);
Writer writer = null;
try {
writer = response.getWriter();
writer.write("<script>");
writer.write("window.parent.fileUploadCallBack({\"code\":" + state.getCode() +",\"message\":\"" + state.getMessage()+ "\"});");
writer.write("</script>");
writer.flush();
writer.close();
} catch(Exception e) {
logger.error(e.getMessage(), e);
} finally {
IOUtils.closeQuietly(writer);
}
}

}

　　GetFileProcessServlet.java

package com.test.servlet;
import java.io.IOException;
import java.io.Writer;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.apache.commons.io.IOUtils;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
/**
* 文件上传进度获取Servlet
*
* @author chengqi
*
*/
public class GetFileProcessServlet extends HttpServlet {
/** 日志对象*/
private Log logger = LogFactory.getLog(this.getClass());
private static final long serialVersionUID = 1L;
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
logger.info("GetFileProcessServlet#doGet start");
String fileUploadPercent = (String)request.getSession().getAttribute("fileUploadProcess");
Writer writer = null;
try {
writer = response.getWriter();
logger.info("percent:" + fileUploadPercent);
IOUtils.write(fileUploadPercent == null ? "0%" : fileUploadPercent, writer);
writer.flush();
writer.close();
} catch(Exception e) {
logger.error(e.getMessage(), e);
} finally {
IOUtils.closeQuietly(writer);
}
logger.info("GetFileProcessServlet#doGet end");
}
}

　　FileProcessListener.java

package com.test.servlet;
import java.text.NumberFormat;
import javax.servlet.http.HttpSession;
import org.apache.commons.fileupload.ProgressListener;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
/**
* 文件进度监听器
*
* @author chengqi
*
*/
public class FileProcessListener implements ProgressListener{
/** 日志对象*/
private Log logger = LogFactory.getLog(this.getClass());
private HttpSession session;
public FileProcessListener(HttpSession session) {
this.session = session;
}

public void update(long pBytesRead, long pContentLength, int pItems) {
double readByte = pBytesRead;
double totalSize = pContentLength;
if(pContentLength == -1) {
logger.debug("item index[" + pItems + "] " + pBytesRead + " bytes have been read.");
} else {
logger.debug("item index[" + pItems + "] " + pBytesRead + " of " + pContentLength + " bytes have been read.");
String p = NumberFormat.getPercentInstance().format(readByte / totalSize);
session.setAttribute("fileUploadProcess", p);
}
}
}


　　apacheUploadDemo.html

<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<title>Apache common实现基本文件上传</title>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<script type="text/javascript" src="js/jquery/jquery-1.9.1.js"></script>
<script type="text/javascript" src="js/jquery/jquery.form.js"></script>
<script type="text/javascript">
//定时器对象
var uploadProcessTimer = null;
$(function (){
//绑定定时器开始操作到提交按钮
$('input[type=submit]').click(function () {
//启动上传进度查询定时器
uploadProcessTimer = window.setInterval(getFileUploadProcess, 20);
})
});
//获取文件上传进度
function getFileUploadProcess() {
$.get('/upload/getFileProcessServlet', function(data) {
$('#fileUploadProcess').html(data);
});
}
//上传完成后，由iframe返回脚本自动调用
function fileUploadCallBack(res) {
//清除定时器
if(uploadProcessTimer) {
window.clearInterval(uploadProcessTimer);
}
var message = res['message'];
var code = res['code'];
if(code != 200) {
$('#fileUploadProcess').html('0%');
}
alert(message);
}
</script>
</head>
<body>
<h2>上传文件1</h2>
用户信息：  <br/>
<form id="testForm" action="/upload/uploadServlet" method="post" enctype="multipart/form-data" target="iframeUpload">
姓名：<input name="name" type="text"> <br/>
附件1：<input name="file1" type="file" > <br/>
附件2：<input name="file2" type="file" > <br/>
<br><br>
<input type="submit" value="提交" ><br/>
</form>
上传进度：<label id="fileUploadProcess"></label>
<iframe name="iframeUpload" src="" width="350" height="35" frameborder=0  SCROLLING="no" style="display:NONE"></iframe>
</body>
</html>


总结：


虽然使用apache common upload组件实现了文件上传，但是从上传的效果来看，并不是一个很完美的解决方案。

有如下缺点：

1. 当有多个文件上传时，无法知道单个文件的上传进度，因为文件上传消息中根本就没有关于单个文件大小的信息

文件上传消息

HTTP/1.1 200 OK
Server: Apache-Coyote/1.1
Content-Type: text/html;charset=UTF-8
Transfer-Encoding: chunked
Date: Tue, 22 Apr 2014 07:45:45 GMT

POST /upload/uploadServlet HTTP/1.1
Host: localhost:8080
User-Agent: Mozilla/5.0 (Windows NT 6.1; WOW64; rv:28.0) Gecko/20100101 Firefox/28.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
Accept-Language: zh-cn,zh;q=0.8,en-us;q=0.5,en;q=0.3
Accept-Encoding: gzip, deflate
Referer: http://localhost:8080/upload/apacheUploadDemo.html
Cookie: JSESSIONID=33498CE814284D67F957CA53D45F0174
Connection: keep-alive

Content-Length 2363
Content-Type multipart/form-data; boundary=---------------------------189163093917262

-----------------------------189163093917262
Content-Disposition: form-data; name="name"

-----------------------------189163093917262
Content-Disposition: form-data; name="file1"; filename="New Text Document.txt" Content-Type: text/plain
文件数据

-----------------------------189163093917262
Content-Disposition: form-data; name="file2"; filename="New Text Document (2).txt" Content-Type: text/plain
文件数据

-----------------------------189163093917262--
　　2. 浏览器必须将所有文件读取完毕才开始上传，并且是一次性提交所有的数据文件，在互联网环境下，会http连接超时，大文件无法上传成功。
　　3. 服务端判断是否超过大小限制，是通过计算接收数据的累积字节数和限制大小比较，这种情况下，如果限制大小是30M，那么在服务端已经读取了30M完成后才会抛出异常，多余的消耗的服务器的内存和硬盘空间
　　所以基于这些原因，页面表单 + RFC1897规范 + http协议上传 + 后台apache common upload组件接收的这种解决方案，不适合解决WEB页面一次多文件上传，大文件上传情况，比较适合一次单个小文件附件的情况，如：博客附件，登记照片上传，预览等情况。
　　Demo源码见附件
