logstash 过虑nginx访问日志

trsgw · 发表于 2015-5-7 08:33:12

标题是不是可以翻译成这样：logstash Filters nginx access log

好了，进入正题，日志管理服务器我用ElasticSearch+LogStash+Kibana+Redis

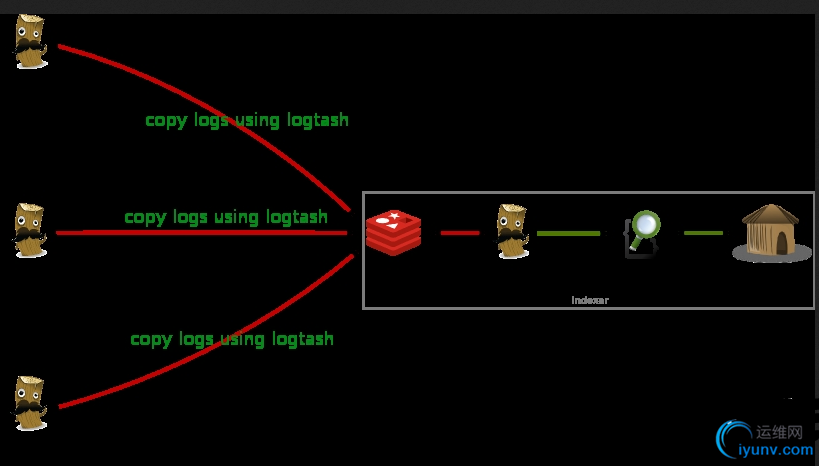

先说下我的架构：

远程NGINX采集日志数据到REDIS+logstash+elasticsearch+kibana服务器
至于怎么部署，因本人之前用baidu博客写在那上面了，以后有时间把百度的搬过来
好了，这里就先不说部署了，我们直接进入配置正题
在nginx服务器，我们一、先配置nginx的日志格式

1
2
3

log_format main '$http_host $remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$upstream_addr" $request_time';

二、配置logstash采集文件
1.1 配置logstash patterns

1
2
3
4

logstash/patterns# vi nginx
NGUSERNAME [a-zA-Z\.\@\-\+_%]+
NGUSER %{NGUSERNAME}
NGINXACCESS %{IPORHOST:http_host} %{IPORHOST:clientip} - %{USERNAME:remote_user} \[%{HTTPDATE:timestamp}\] \"(?:%{WORD:http_verb} %{NOTSPACE:http_request}(?: HTTP/%{NUMBER:http_version})?|%{DATA:raw_http_request})\" %{NUMBER:response} (?:%{NUMBER:bytes_read}|-) %{QS:referrer} %{QS:agent} %{QS:xforwardedfor} %{NUMBER:request_time:float}

注意，我们配置的日志格式完全要和我们的patterns解析出来

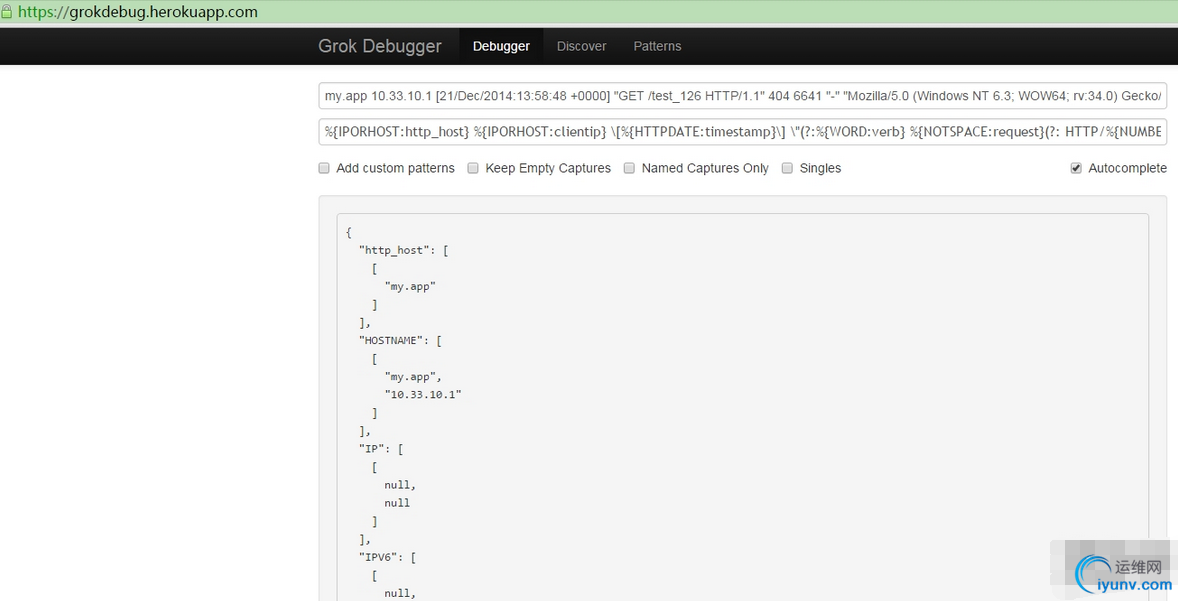

具体解析方式，可以到https://grokdebug.herokuapp.com/
input：nginx的日志
patterns:就是要过滤的格式，如图

2.1 配置nginx日志采集脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

logstash#vi nginx_logs.conf
input {
file {
   type => "nginx-access"
   path => "/www/log/nginx/access/default.log"
   start_position => "beginning"
}
}

filter {

if [type] == "nginx-access" {
  grok {
match => { "message" => "%{NGINXACCESS}" }
  }
  date {
match => [ "timestamp" , "dd/MMM/YYYY:HH:mm:ss Z" ]
  }
  geoip {
source => "clientip"
target => "geoip"
database =>"/server/logstash/vendor/geoip/GeoLiteCity.dat"
add_field => [ "[geoip][coordinates]", "%{[geoip][longitude]}" ]
add_field => [ "[geoip][coordinates]", "%{[geoip][latitude]}"  ]

}
mutate {
convert => [ "[geoip][coordinates]", "float" ]
  }
}
}

output {

redis {
      host => "10.252.35.170"
      port => 6379
      data_type => "list"
      key => "logstash"
}
}

这个脚本里，我主要采集了geoip的信息，当然，你也直接可以将数据导入到redis,我就附上我的全脚本吧~~
启动：

1	#/server/logstash/bin/logstash agent -f /alidata/server/logstash/nginx_logs.conf &

三、配置REDIS+logstash
直接写logstash脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

logstash# vi nginx.conf
input {
      redis {
host => "127.0.0.1"
port => "6379"
data_type => "list"
key => "logstash"
type => "redis-input"
codec => "json"
         }
}

output {
      elasticsearch {
            embedded => false
            protocol => "http"
            host => "localhost"
            port => "9200"
      }
}

启动脚本
