zabbix实现炫酷图表插件grafana

fdjhj

1、安装grafana

[iyunv@Monitor ~]# wget https://grafanarel.s3.amazonaws. ... -2.0.2-1.x86_64.rpm

[iyunv@Monitor ~]# yum –y install grafana-2.0.2-1.x86_64.rpm

安装之后会有如下文件

二进制文件    /usr/sbin/grafana-server

启动脚本        /etc/init.d/grafana-server

环境变量        /etc/sysconfig/grafana-server

配置文件        /etc/grafana/grafana.ini

systemd服务  grafana-server.service

日志                /var/log/grafana/grafana.log

sqlite3数据库  /var/lib/grafana/grafana.db

2、启动grafana服务

[iyunv@Monitor ~]# service grafana-server start

Starting Grafana Server: .... nohup: redirecting stderr to stdout

OK

[iyunv@Monitor ~]# chkconfig --add grafana-server

[iyunv@Monitor ~]# chkconfig grafana-server on

[iyunv@Monitor ~]# netstat -anpt | grep grafana

tcp       0      0 :::3000                     :::*                        LISTEN      15444/grafana-serve

            服务详情

启动用户 grafana

服务名称 grafana-server

默认端口 3000

账号        admin

密码        admin

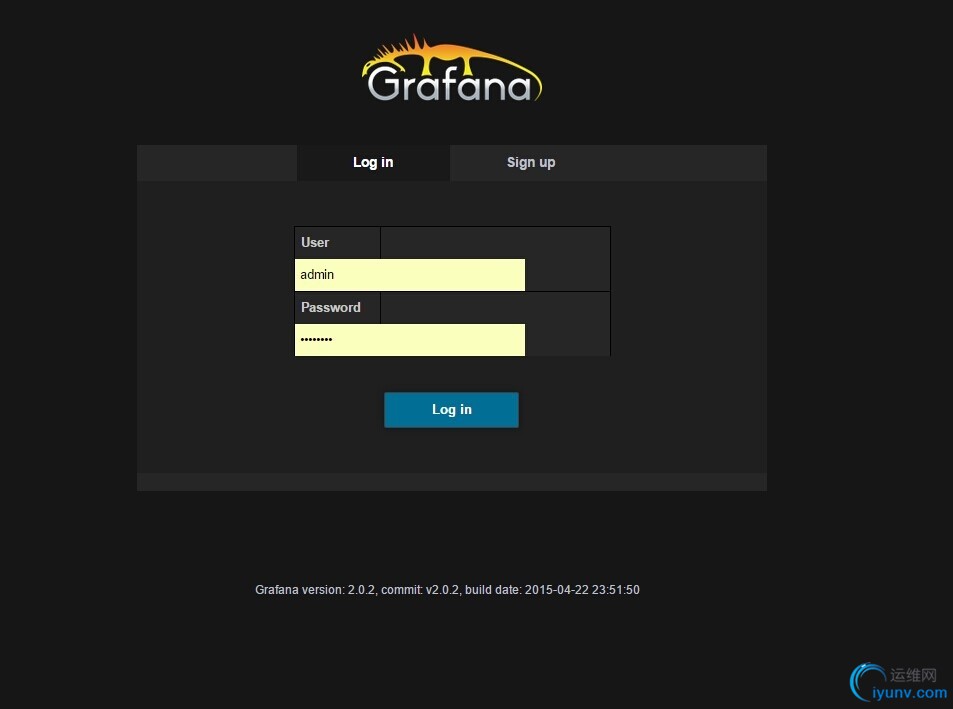

3、 登录管理界面（至此grafana安装成功）

4、安装grafana-zabbix插件

（也可通过下载源码包之后，解压https://github.com/alexanderzobn ... releases/tag/v2.0.1。这里采用git clone命令）https://github.com/alexanderzobnin/grafana-zabbix

[iyunv@Monitor ~]# yum -y install git

[iyunv@Monitor ~]# git clone https://github.com/alexanderzobnin/grafana-zabbix/

Initialized empty Git repository in/root/grafana-zabbix/.git/

remote: Counting objects: 955, done.

remote: Compressing objects: 100% (18/18),done.

remote: Total 955 (delta 10), reused 0(delta 0), pack-reused 937

Receiving objects: 100% (955/955), 176.96KiB | 159 KiB/s, done.

Resolving deltas: 100% (606/606), done.

[iyunv@Monitor ~]# cp -r grafana-zabbix/zabbix/ /usr/share/grafana/public/app/plugins/datasource/

[iyunv@Monitor ~]# vim /usr/share/grafana/public/app/plugins/datasource/zabbix/plugin.json

{

"pluginType": "datasource",

"name": "Zabbix",

"type": "zabbix",

"serviceName": "ZabbixAPIDatasource",

"module": "plugins/datasource/zabbix/datasource",

"partials": {

   "config":"app/plugins/datasource/zabbix/partials/config.html",

   "query":"app/plugins/datasource/zabbix/partials/query.editor.html",

   "annotations":"app/plugins/datasource/zabbix/partials/annotations.editor.html"

  }，

"username": "zabbix",    #配置用户名，注意此用户在zabbix中存在，且对zabbix数据有只读权限（不需要写权限）

"password": "zabbix",    #配置密码

"trends": false,

"trendsFrom": "7d",

"limitmetrics": 100,

"metrics": true,

"annotations": true

}

5、重启服务

[iyunv@Monitor ~]# service grafana-server restart

OKopping Grafana Server ...                                [  OK  ]

Starting Grafana Server: .... nohup:redirecting stderr to stdout

OK

修改Zabbix的API文件，由于Zabbix2.2支持跨域问题，故添加以下配置（zabbix2.2版本已上不需要改动）

#sudo vim /usr/share/zabbix/api_jsonrpc.php

header('Access-Control-Allow-Origin: *');

header('Access-Control-Allow-Headers: Content-Type');

header('Access-Control-Allow-Methods: POST');

header('Access-Control-Max-Age: 1000');

if ($_SERVER['REQUEST_METHOD'] === 'OPTIONS') {

    return;

}

#添加（2.2已经有了，不用添加了）

require_once dirname(__FILE__).'/include/func.inc.php';

require_oncedirname(__FILE__).'/include/classes/core/CHttpRequest.php';

6、配置grafana

添加Datasource数据源

其中http settiong

URL:http://zabbix服务器IP/zabbix/api_jsonrpc.php

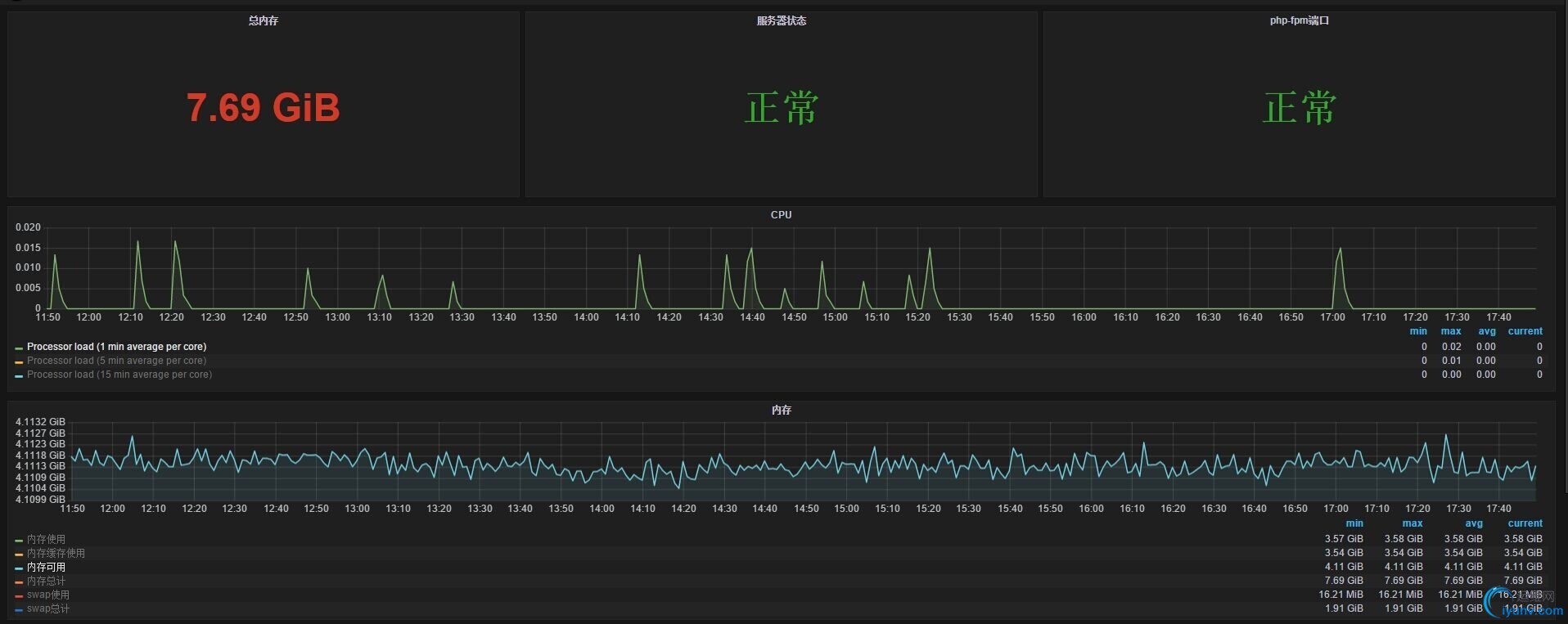

图形化界面参考

参考https://github.com/alexanderzobnin/grafana-zabbix/wiki/Usage
