Keepalived双机热备

重温战场

　　一，Keepalived双机热备的应用场景
1，网站流量不高，压力不大，但是对服务器的可靠性要求极其高，例如实时在线OA系统，政府部门网站系统，医院实时报医系统，公安局在线报案系统，股市后台网站系统等等，他们的压力不是很大，但是对可靠性要求是非常高的
2，有钱没地方花的，典型的政府企业，公办学校等等
二，Keepalived双机热备的特性以及优缺点
特性：
1，至少需要两台服务器，其中一台为master始终提供服务，另外一台作为backup始终处于空闲状态，只有在主服务器挂掉的时候他就来帮忙了，这是典型的双击热备
2，能根据需求判断服务是否可用，在不可用的时候要即使切换
优缺点：
优点：数据同步非常简单，不像负载均衡对数据一致性要求非常高，实现起来相对复杂维护也颇为不便，双机热备用rsync就可以实现了操作和维护非常简单
缺点：服务器有点浪费，始终有一台处于空闲状态

三，Keepalived双机热备的配置

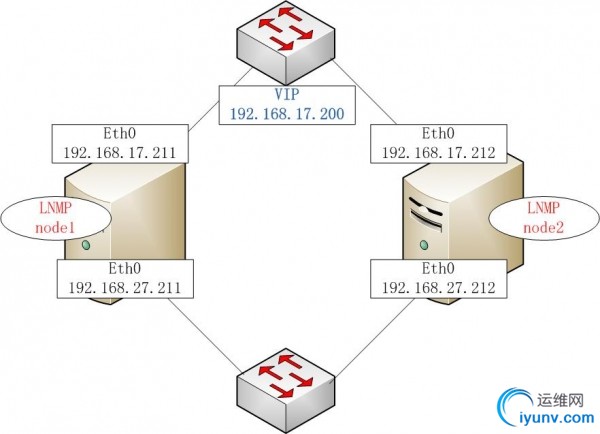

首先画个双机热备拓扑图吧：


<ignore_js_op> 　　
这里我只写最终实现的配置，至于Keepalived的理论知识请参考《Keepalived原理与实战精讲》
1，本例通过Keepalived来实现两台LNMP(也就是linux+nginx+mysql+php)架构服务器的双机热备
LNMP的配置请参考：《Lnmp配置精讲第一版》
2，Keepalived配置双机安装配置
1》Keepalived安装
keepalived官方地址：http://www.keepalived.org/download.html，大家可以到这里下载最新版本的keepalived
操作系统：centos 5.5 32bit
系统安装：最小化安装，也就是去掉所有组件
环境配置：安装make 和 gcc openssl openssl-devel等等

• yum -y install gcc make openssl openssl-devel wget kernel-devel

• mkdir -p /usr/local/src/hasoft

• cd /usr/local/src/hasoft

• wget http://www.keepalived.org/software/keepalived-1.2.2.tar.gz

• tar -zxvf keepalived-1.2.2.tar.gz

• cd keepalived-1.2.2

• ./configure --prefix=/usr/local/keepalived --with-kernel-dir=/usr/src/kernels/2.6.18-238.19.1.el5-i686/


复制代码　　预编译后出现：

• Keepalived configuration

• ------------------------

• Keepalived version       : 1.2.2

• Compiler                 : gcc

• Compiler flags           : -g -O2 -DETHERTYPE_IPV6=0x86dd

• Extra Lib                : -lpopt -lssl -lcrypto

• Use IPVS Framework       : Yes

• IPVS sync daemon support : Yes

• IPVS use libnl           : No

• Use VRRP Framework       : Yes

• Use Debug flags          : No


复制代码

• make && make install


复制代码　　这里注意哦，我上面是指通用的安装方法，如果你没有用到LVS可以把lvs去掉即
./configure --prefix=/usr/local/keepalived --with-kernel-dir=/usr/src/kernels/2.6.18-238.19.1.el5-i686/ --disable-lvs-syncd --disable-lvs
但这个没有影响，就按照我的来配置吧，不过如果你要是集成了LVS，那么就不可加这两个参数了哦
整理管理文件：
cp /usr/local/keepalived/sbin/keepalived /usr/sbin/
cp /usr/local/keepalived/etc/sysconfig/keepalived /etc/sysconfig/
cp /usr/local/keepalived/etc/rc.d/init.d/keepalived /etc/init.d/


建立配置文件目录(注意：keepalived的配置文件默认在/etc/keepalived/目录)
mkdir -p /etc/etc/keepalived/
两台服务器(两个节点)都这样安装即可
2》配置
节点A配置如下：
vi /etc/keepalived/keepalived.conf

• global_defs

• {

• notification_email

• {

• admin@example.com

• admin@ywlm.net

• }

• notification_email_from admin@example.com

• smtp_server 127.0.0.1

• stmp_connect_timeout 30

• router_id lnmp_node1

• }

•

• vrrp_instance lnmp {

• state MASTER

• interface eth0

• virtual_router_id 100

• priority 200

• advert_int 5

• track_interface {

• eth0

• eth1

• }

• authentication {

• auth_type PASS

• auth_pass 123456

• }

• virtual_ipaddress {

• 192.168.17.200

• }

• }


复制代码　　
节点B配置如下：
vi /etc/keepalived/keepalived.conf

• global_defs

• {

• notification_email

• {

• admin@example.com

• admin@ywlm.net

• }

• notification_email_from admin@example.com

• smtp_server 127.0.0.1

• stmp_connect_timeout 30

• router_id lnmp_node1

• }

•

• vrrp_instance lnmp {

• state MASTER

• interface eth0

• virtual_router_id 100

• priority 150

• advert_int 5

• track_interface {

• eth0

• eth1

• }

• authentication {

• auth_type PASS

• auth_pass 123456

• }

• virtual_ipaddress {

• 192.168.17.200

• }

• }


复制代码　　四，启动调试
在节点A上启动
/usr/local/keepalived/sbin/keepalived
启动日志：
Sep  8 18:26:02 centosa Keepalived_vrrp: Registering Kernel netlink reflector
Sep  8 18:26:02 centosa Keepalived_vrrp: Registering Kernel netlink command channel
Sep  8 18:26:02 centosa Keepalived_vrrp: Registering gratutious ARP shared channel
Sep  8 18:26:02 centosa Keepalived_vrrp: Opening file '/etc/keepalived/keepalived.conf'.
Sep  8 18:26:02 centosa Keepalived_vrrp: Configuration is using : 36076 Bytes
Sep  8 18:26:02 centosa Keepalived_vrrp: Using LinkWatch kernel netlink reflector...
Sep  8 18:26:02 centosa Keepalived: Starting VRRP child process, pid=5606
Sep  8 18:26:07 centosa Keepalived_vrrp: VRRP_Instance(lnmp) Transition to MASTER STATE
Sep  8 18:26:12 centosa Keepalived_vrrp: VRRP_Instance(lnmp) Entering MASTER STATE
Sep  8 18:26:12 centosa avahi-daemon[2528]: Registering new address record for 192.168.17.200 on eth0.

在节点B上启动
/usr/local/keepalived/sbin/keepalived
开机自动启动
echo /usr/local/keepalived/sbin/keepalived >> /etc/rc.local
启动日志：
Sep  8 18:30:02 centosb Keepalived: Starting Keepalived v1.2.2 (09/08,2011)
Sep  8 18:30:02 centosb Keepalived: Starting Healthcheck child process, pid=5837
Sep  8 18:30:02 centosb Keepalived_vrrp: Registering Kernel netlink reflector
Sep  8 18:30:02 centosb Keepalived_vrrp: Registering Kernel netlink command channel
Sep  8 18:30:02 centosb Keepalived_vrrp: Registering gratutious ARP shared channel
Sep  8 18:30:02 centosb Keepalived: Starting VRRP child process, pid=5839
Sep  8 18:30:02 centosb kernel: IPVS: Registered protocols (TCP, UDP, AH, ESP)
Sep  8 18:30:02 centosb kernel: IPVS: Connection hash table configured (size=4096, memory=32Kbytes)
Sep  8 18:30:02 centosb kernel: IPVS: ipvs loaded.
Sep  8 18:30:02 centosb Keepalived_healthcheckers: Registering Kernel netlink reflector
Sep  8 18:30:02 centosb Keepalived_healthcheckers: Registering Kernel netlink command channel
Sep  8 18:30:02 centosb Keepalived_healthcheckers: Opening file '/etc/keepalived/keepalived.conf'.
Sep  8 18:30:02 centosb Keepalived_vrrp: Opening file '/etc/keepalived/keepalived.conf'.
Sep  8 18:30:02 centosb Keepalived_vrrp: Configuration is using : 36252 Bytes
Sep  8 18:30:02 centosb Keepalived_vrrp: Using LinkWatch kernel netlink reflector...
Sep  8 18:30:02 centosb Keepalived_healthcheckers: Configuration is using : 6271 Bytes
Sep  8 18:30:02 centosb Keepalived_healthcheckers: Using LinkWatch kernel netlink reflector...
Sep  8 18:30:02 centosb Keepalived_vrrp: VRRP_Instance(lnmp) Entering BACKUP STATE
从日志可以看出，启动都没有问题，并且安装我给的优先级完成了竞选，各自成就了各自的状态
关闭节点A的网卡测试切换是否正常
ifdown eth0
观察节点B的日志：
Sep  8 18:32:55 centosb Keepalived_vrrp: VRRP_Instance(lnmp) Transition to MASTER STATE
Sep  8 18:33:00 centosb Keepalived_vrrp: VRRP_Instance(lnmp) Entering MASTER STATE
Sep  8 18:33:00 centosb avahi-daemon[2531]: Registering new address record for 192.168.17.200 on eth0.

启动节点A的网卡测试切换是否正常
ifup eth0
观察节点B的日志：
Sep  8 18:33:31 centosb Keepalived_vrrp: VRRP_Instance(lnmp) Received higher prio advert
Sep  8 18:33:31 centosb Keepalived_vrrp: VRRP_Instance(lnmp) Entering BACKUP STATE
Sep  8 18:33:31 centosb avahi-daemon[2531]: Withdrawing address record for 192.168.17.200 on eth0.
Received higher prio advert：表示接收到更高优先级的公告(advert公告的意思)
Withdrawing：撤回的意思，可以看出切换过程一目了然

OK，到这里我们的安装部分完成，下面我们来看看如何监控服务吧，我们这里仅仅是监控了网络故障和keepalived本身进程，在网络或者keepalived进程出现问题的时候会切换，但是我的节点A里面还有很多服务呢，例如nginx，PHP，mysql进程出问题或高负载的时候相应过慢怎么办，怎么切换的呢，这时就要用到脚本了，下面我们来看看keepalived是如何控制脚本来实现对服务器的监控和切换的
写个脚本来实时监控三个服务，若有一个出现问题遍切换mkdir /root/shell/
cd /root/shell
vi keepcheck.sh

• #!/bin/bash

• while  :

• do

• mysqlcheck=`/usr/local/lnmp/mysql/bin/mysqladmin -uroot ping 2>&1`

• mysqlcode=`echo $?`

• phpcheck=`ps -C php-fpm --no-header | wc -l`

• nginxcheck=`ps -C nginx --no-header | wc -l`

• keepalivedcheck=`ps -C keepalived --no-header | wc -l`

• if [ $nginxcheck -eq 0 ]|| [ $phpcheck -eq 0 ]||[ $mysqlcode -ne 0 ];then

•                 if [ $keepalivedcheck -ne 0 ];then

•                    killall -TERM keepalived

•                 else

•                    echo "keepalived is stoped"

•                 fi

•         else

•                 if [ $keepalivedcheck -eq 0 ];then

•                    /etc/init.d/keepalived start

•                 else

•                    echo "keepalived is running"

•                 fi

• fi

• sleep 5

• done

•


复制代码　　注意，用/etc/init.d/keepalived start如果起不来，可以用/usr/local/keepalived/sbin/keepalived二进制文件直接执行启动即可
启动脚本：

• chmod +x /root/shell/keepcheck.sh

• nohup sh /root/shell/keepcheck.sh &


复制代码　　节点B也用这个脚本
写入/etc/rc.local开机自动启动

• echo "nohup sh /root/shell/keepcheck.sh &" >> /etc/rc.loal


复制代码　　可以测试了
