基于zookeeper的远程方法调用(RMI)的实现

lang110

　　采用zookeeper的命令服务，采用不同的目录结构存储不同模块不同服务的rmi的url，使用key来对应不同的服务。同时采用zookeeper解决了单点问题。
　　当有两个相同的服务注册时，因为采用的是临时有序znode，也会注册成功，客户端在调用时，发现有多个不同url，则会随机调取一个使用。
　　当一个服务down时，zookeeper会通知客户端更新url缓存，从而去掉down服务的链接。加入时，也会同步客户端url数据。

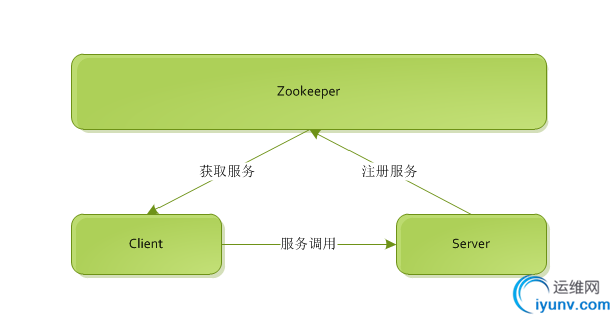

　　原理图如下：
　　1).目录结构

　　2).zookeeper调用

　　3).分布式调用

　　实现代码如下：
　　1.定义测试服务接口与实现



public interface Service extends Remote,Serializable{
public void service(String name);
}




public class ServiceImpl implements Service{
@Override
public void service(String name) {
System.out.println(name);
}
}
　　
　　2.RMIServer



public class RMIServer {
private static final Logger logger = LoggerFactory
.getLogger(RMIServer.class);
private static ZooKeeper zk;
private boolean isRegistry = false;
//同步锁
private Lock _lock = new ReentrantLock();
private static final Map<String,String> CACHED_URL = new HashMap<String,String>();
public RMIServer() {
zk = connectServer();
new Thread(new Runnable() {
@Override
public void run() {
while (true) {
try {
Thread.currentThread().sleep(3000);
} catch (InterruptedException e) {
e.printStackTrace();
}
logger.info("check zk...");
_lock.lock();
if (zk != null) {
if (zk.getState().isAlive()
&& zk.getState().isConnected()) {
logger.info("zk is ok");
_lock.unlock();
continue;
}
}
close();
logger.info("reConnectServer ...");
zk = connectServer();
Iterator<String> it = CACHED_URL.keySet().iterator();
while(it.hasNext()){
String key = it.next();
String url = CACHED_URL.get(key);
createNode(zk,url,key);
}
logger.info("reConnectServer ok");
_lock.unlock();
}
}
private void close() {
if(zk!=null){
try {
zk.close();
} catch (InterruptedException e) {
e.printStackTrace();
}
zk = null;
}
}
}).start();
}
// 用于等待 SyncConnected 事件触发后继续执行当前线程
private CountDownLatch latch = new CountDownLatch(1);
// 发布 RMI 服务并注册 RMI 地址到 ZooKeeper 中
public void publish(Remote remote, String key) {
_lock.lock();
String url = publishService(remote); // 发布 RMI 服务并返回 RMI 地址
if (url != null) {
if (zk != null) {
if (zk.getState().isAlive() && zk.getState().isConnected()) {
} else {
if(zk!=null){
try {
zk.close();
} catch (InterruptedException e) {
e.printStackTrace();
}
zk = null;
}
zk = connectServer();
}
createNode(zk, url, key); // 创建 ZNode 并将 RMI 地址放入 ZNode 上
            }
}
_lock.unlock();
}
// 发布 RMI 服务
private String publishService(Remote remote) {
String url = null;
try {
String host = ConfigHelp.getLocalConifg("rmiIP", "127.0.0.1");
int port = Integer.valueOf(ConfigHelp.getLocalConifg("rmiPort",
"10990"));
url = String.format("rmi://%s:%d/%s", host, port, remote.getClass()
.getName());
if (!isRegistry) {
LocateRegistry.createRegistry(port);
isRegistry = true;
}
Naming.rebind(url, remote);
logger.debug("publish rmi service (url: {})", url);
} catch (RemoteException | MalformedURLException e) {
logger.error("", e);
}
return url;
}
// 连接 ZooKeeper 服务器
private ZooKeeper connectServer() {
ZooKeeper zk = null;
try {
zk = new ZooKeeper(ConfigHelp.ZK_CONNECTION_STRING,
ConfigHelp.ZK_SESSION_TIMEOUT, new Watcher() {
@Override
public void process(WatchedEvent event) {
if (event.getState() == Event.KeeperState.SyncConnected) {
latch.countDown(); // 唤醒当前正在执行的线程
                            }
}
});
latch.await(); // 使当前线程处于等待状态
} catch (IOException | InterruptedException e) {
logger.error("", e);
}
if (zk != null) {
try {
Stat stat = zk.exists(ConfigHelp.ZK_ROOT_PATH, false);
if (stat == null) {
String path = zk.create(ConfigHelp.ZK_ROOT_PATH,
"".getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE,
CreateMode.PERSISTENT); // 创建一个临时性且有序的 ZNode
logger.info("create zookeeper node ({})", path);
}
stat = zk.exists(ConfigHelp.ZK_RMI_PATH, false);
if (stat == null) {
String path = zk.create(ConfigHelp.ZK_RMI_PATH,
"".getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE,
CreateMode.PERSISTENT); // 创建一个临时性且有序的 ZNode
logger.info("create zookeeper node ({})", path);
}
} catch (KeeperException | InterruptedException e) {
e.printStackTrace();
}
}
return zk;
}
// 创建 ZNode
private void createNode(ZooKeeper zk, String url, String key) {
try {
CACHED_URL.put(key, url);
byte[] data = (key + "#:#" + url).getBytes();
String path = zk.create(ConfigHelp.ZK_RMI_PATH + "/", data,
ZooDefs.Ids.OPEN_ACL_UNSAFE,
CreateMode.EPHEMERAL_SEQUENTIAL); // 创建一个临时性且有序的 ZNode
logger.info("create zookeeper node ({} => {})", path, url);
} catch (KeeperException | InterruptedException e) {
logger.error("", e);
e.printStackTrace();
}
}
public static void main(String[] args) throws Exception {
RMIServer server = new RMIServer();
Service service = new ServiceImpl();
server.publish(service, "Test");
server.publish(service, "Test1");
Thread.currentThread().sleep(50000);
server.publish(service, "Test3");
Thread.currentThread().sleep(Integer.MAX_VALUE);
}
}
　　
　　3.RMIClient



public class RMIClient {

private static final Logger logger = LoggerFactory.getLogger(RMIClient.class);
// 用于等待 SyncConnected 事件触发后继续执行当前线程
private CountDownLatch latch = new CountDownLatch(1);
// 定义一个 volatile 成员变量，用于保存最新的 RMI 地址（考虑到该变量或许会被其它线程所修改，一旦修改后，该变量的值会影响到所有线程）
private volatile HashMap<String,List<String>> dataMap = new HashMap<String, List<String>>();
private Lock _lock = new ReentrantLock();
private static  ZooKeeper zk;
// 构造器
public RMIClient() {
zk = connectServer(); // 连接 ZooKeeper 服务器并获取 ZooKeeper 对象
        watchNode();
new Thread(new Runnable() {
@Override
public void run() {
while (true) {
try {
Thread.currentThread().sleep(3000);
} catch (InterruptedException e) {
e.printStackTrace();
}
_lock.lock();
if (zk != null) {
if (zk.getState().isAlive()
&& zk.getState().isConnected()) {
_lock.unlock();
continue;
}
}
if(zk!=null){
try {
zk.close();
} catch (InterruptedException e) {
e.printStackTrace();
}
zk = null;
}
zk = connectServer();
_lock.unlock();
}
}
}).start();
}
// 查找 RMI 服务
public <T extends Remote> T lookup(String key) {
T service = null;
int size = dataMap.size();
if (size > 0) {
String url = null;
if(dataMap.containsKey(key)){
List<String> urlList = dataMap.get(key);
if(urlList.size()>0){
if(urlList.size()==1){
url = urlList.get(0);
}else{
url = urlList.get(ThreadLocalRandom.current().nextInt(size));
}
}
service = lookupService(url,key); // 从 JNDI 中查找 RMI 服务
            }
}
return service;
}
// 连接 ZooKeeper 服务器
private ZooKeeper connectServer() {
ZooKeeper zk = null;
try {
zk = new ZooKeeper(ConfigHelp.ZK_CONNECTION_STRING, ConfigHelp.ZK_SESSION_TIMEOUT, new Watcher() {
@Override
public void process(WatchedEvent event) {
if (event.getState() == Event.KeeperState.SyncConnected) {
latch.countDown(); // 唤醒当前正在执行的线程
                    }
}
});
latch.await(); // 使当前线程处于等待状态
} catch (IOException | InterruptedException e) {
logger.error("", e);
}
return zk;
}
// 观察 /registry 节点下所有子节点是否有变化
private void watchNode() {
_lock.lock();
if(zk!=null&&zk.getState().isAlive()&&zk.getState().isConnected()){
}else{
if(zk!=null){
try {
zk.close();
} catch (InterruptedException e) {
e.printStackTrace();
}
zk = null;
}
zk = connectServer();
}
try {
List<String> nodeList = zk.getChildren(ConfigHelp.ZK_RMI_PATH, new Watcher() {
@Override
public void process(WatchedEvent event) {
if (event.getType() == Event.EventType.NodeChildrenChanged) {
watchNode(); // 若子节点有变化，则重新调用该方法（为了获取最新子节点中的数据）
                    }
}
});
List<String> dataList = new ArrayList<>(); // 用于存放 /registry 所有子节点中的数据
HashMap<String,List<String>> dataMap = new HashMap<String, List<String>>();
for (String node : nodeList) {
byte[] data = zk.getData(ConfigHelp.ZK_RMI_PATH + "/" + node, false, null); // 获取 /registry 的子节点中的数据
dataList.add(new String(data));
String d = new String(data).toString();
String key = d.split("#:#")[0];
String url = d.split("#:#")[1];
if(dataMap.containsKey(key)){
dataMap.get(key).add(url);
}else{
List<String> list = new ArrayList<String>();
list.add(url);
dataMap.put(key, list);
}
}
logger.debug("node data: {}", dataList);
this.dataMap = dataMap;
} catch (KeeperException | InterruptedException e) {
logger.error("", e);
}
_lock.unlock();
}
// 在 JNDI 中查找 RMI 远程服务对象
@SuppressWarnings("unchecked")
private <T> T lookupService(String url,String key) {
T remote = null;
try {
remote = (T) Naming.lookup(url);
} catch (NotBoundException | MalformedURLException | RemoteException e) {
if (e instanceof ConnectException) {
// 若连接中断，则使用 urlList 中第一个 RMI 地址来查找（这是一种简单的重试方式，确保不会抛出异常）
logger.error("ConnectException -> url: {}", url);
if(dataMap.containsKey(key)){
List<String> urlList = dataMap.get(key);
if(urlList.size()>0){
return lookupService(urlList.get(0),key);
}
}
}
logger.error("", e);
}
return remote;
}
public static void main(String[] args) {
RMIClient client = new RMIClient();
while(true){
Service service = client.lookup("Test");
service.service("test12");
try {
Thread.sleep(2000);
} catch (InterruptedException e) {
e.printStackTrace();
}
}
}
}
　　
　　4.RMIHelper



public class RMIHelper {
private static final RMIServer SERVER = new RMIServer();
private static final RMIClient CLIENT = new RMIClient();
public static synchronized void publish(Remote remote,String key){
SERVER.publish(remote, key);
}
public static synchronized <T extends Remote> T lookup(String key){
return CLIENT.lookup(key);
}
public static void main(String[] args) throws Exception {
while(true){
Service service = RMIHelper.lookup("Test");
service.service("test12");
Service service1 = RMIHelper.lookup("Test1");
service1.service("test12");
try {
Thread.sleep(2000);
} catch (Exception e) {
e.printStackTrace();
}
}
}
}
