【原】Linux利用sendmail和fetion发送报警通知

一总

　　一、sendmail报警通知

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

1、停止系统自带的sendmail服务 # /etc/init.d/postfix stop 2、安装sendmail和mailx # yum -y install sendmail mailx 3、修改sendmail配置文件 # cp /etc/mail.rc /etc/mail.rc.bak # cat >> /etc/mail.rc << EOF set from=13260071987@139.com smtp=smtp.139.com set smtp-auth-user=13260071987@139.com smtp-auth-password=yi150935470xx smtp-auth=login EOF 4、重新启动sendmail服务 # service sendmail restart 5、发送邮件通知 # echo "I love Nagios" | mail -s '邮件主题01:Today learn Nagios' 13260071987@139.com # cat /etc/passwd | mail -s '邮件主题02:Today learn Nagios' 13260071987@139.com # mail -s '邮件主题03:Today learn Nagios' 13260071987@139.com < /etc/issue

　　
　　邮件通知如下图所示

　　
　　手机短信通知如下图所示

　　
　　
　　
　　二、fetion报警通知
　　1、安装解压rar格式的解压软件

1 2 3 4 5 6 7 8 9 10

[iyunv@fetion ~]# wget http://www.rarsoft.com/rar/rarlinux-4.0.1.tar.gz [iyunv@fetion ~]# tar xf rarlinux-4.0.1.tar.gz [iyunv@fetion ~]# cd rar [iyunv@fetion rar]# make mkdir -p /usr/local/bin mkdir -p /usr/local/lib cp rar unrar /usr/local/bin cp rarfiles.lst /etc cp default.sfx /usr/local/lib [iyunv@fetion rar]# cd ..

　　2、下载并安装飞信的支持库

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

[iyunv@fetion ~]# wget http://www.it-adv.net/fetion/linuxso_20101113.rar [iyunv@fetion ~]# unrar x linuxso_20101113.rar -bash: /usr/local/bin/unrar: /lib/ld-linux.so.2: bad ELF interpreter: 没有那个文件或目录 [iyunv@fetion ~]# yum -y install glibc.i686 [iyunv@fetion ~]# unrar x linuxso_20101113.rar unrar: error while loading shared libraries: libstdc++.so.6: cannot open shared object file: No such file or directory [iyunv@fetion ~]# yum -y install libstdc++.so.6 [iyunv@fetion ~]# yum -y install libstdc++ [iyunv@fetion ~]# yum -y install libstdc++.so.6 [iyunv@fetion ~]# unrar x linuxso_20101113.rar UNRAR 4.01 freeware      Copyright (c) 1993-2011 Alexander Roshal Extracting from linuxso_20101113.rar Extracting  libcrypto.so.4                                            OK Extracting  libssl.so.4                                               OK Extracting  libACE_SSL-5.7.2.so                                       OK Extracting  libACE-5.7.2.so                                           OK All OK [iyunv@fetion ~]# mkdir -p /usr/local/fetion/lib [iyunv@fetion ~]# mv lib*so* /usr/local/fetion/lib/ [iyunv@fetion ~]# echo "/usr/local/fetion/lib/" > /etc/ld.so.conf.d/fetion.conf [iyunv@fetion ~]# ldconfig

　　3、下载飞信可执行程序并传到服务器里

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53

[iyunv@fetion ~]# mv fetion /usr/local/fetion/ [iyunv@fetion ~]# cd /usr/local/fetion/ [iyunv@fetion fetion]# chmod 777 fetion [iyunv@fetion fetion]# chown nagios.nagios fetion [iyunv@fetion fetion]# ll 总用量 628 -rwxrwxrwx 1 nagios nagios 503425 9月  28 23:52 fetion drwxr-xr-x 2 root   root     4096 9月  28 23:48 lib [iyunv@fetion fetion]# ./fetion ./fetion: error while loading shared libraries: libgssapi_krb5.so.2: cannot open shared object file: No such file or directory [iyunv@fetion ~]# yum -y install krb5-libs libgssapi_krb5.so.2 [iyunv@fetion fetion]# ./fetion ./fetion: error while loading shared libraries: libz.so.1: cannot open shared object file: No such file or directory [iyunv@fetion ~]# yum -y install libz.so.1 [iyunv@fetion fetion]# ./fetion ************************ IMPORTANT STATEMENT ************************ **                                                                 ** **   PLEASE DON'T USE THIS SOFTWARE TO SEND JUNK SHORT MESSAGES.   ** **   OTHERWISE PLEASE BEAR YOUR OWN CONSEQUENCES.                  ** **                                                                 ** **                                Version:[20101205002-linux]      ** ********************************************************************* This program is the console version of China Fetion! It's free for personal user. This project website: http://www.it-adv.net/ AUTHOR:KelvinH MSN/EMAIL:shichangguo@msn.com Usage:     --mobile=[mobile]  #自已的手机号     --sid=[sid]     --pwd=[pwd]        #自已的飞信密码     --config=[config file] *format:index mobile password     --index=[index no in config file,refer to sample.conf]     --debug  *debug mode on     --hide  *login fetion in hidden state     --to=[mobile/sid]   #指定接收短信者，必须是自已好友     --command-path=[command file path]     --robotmode     --daemon(linux only)     --proxy-ip(http proxy ip)     --proxy-port(http proxy port)     --msg-gb=[gb2312/gbk message]     --msg-utf8=[utf8 message]    #短信的内容，注意不能太长，否则会拆分成多条消息     --msg-type=[0/1/2 sms longsms smartmsg]     --file-gb=[gb2312/gbk file]     --file-utf8=[utf8 file]     --query-cmcc-no     --auto-retry     --exit-on-verifycode     --t3key=[http://www.tui3.com/page/smssend/]

　　
　　4、执行命令测试飞信能否正常发送短信

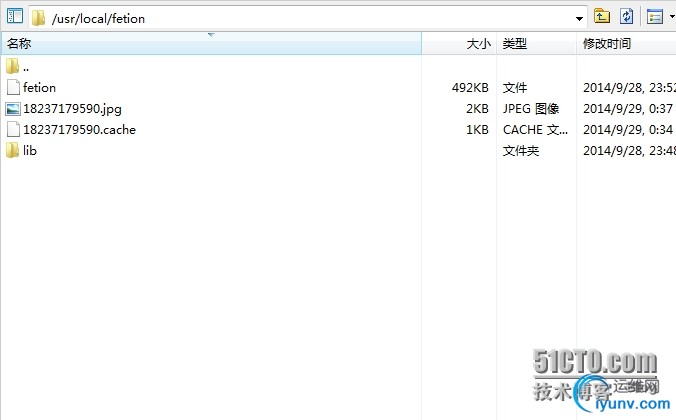

　　注释：第一次执行命令发送通知会提示输入验证码，这个验证码会自动保存在当前主程序目录下面，并以自已的手机号命名的一个图片，也就是下面的图面。然后再Windows下打开这个图片并输入验证码。

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46

[iyunv@fetion fetion]# ./fetion --mobile=18237179590 --pwd=123*345 --to=18237179590 --msg-utf8="QinHeng" --debug [ 00:25:58.021626] [User.cpp] [1484] nav.fetion.com.cn=221.130.45.201 [ 00:25:58.022126] [User.cpp] [1506] Before connect to nav.fetion.com.cn [ 00:25:58.040545] [User.cpp] [1518] After connected to nav.fetion.com.cn [ 00:25:58.251901] [SystemConfig.cpp] [104] sipc-proxy=221.176.31.1:8080 [ 00:25:58.251944] [SystemConfig.cpp] [115] parseSystemConfig 221.176.31.1:8080 [ 00:25:58.266999] [User.cpp] [1615] Before connect to uid.fetion.com.cn:443 [ 00:25:58.313536] [User.cpp] [1628] After connect to uid.fetion.com.cn:443 [ 00:25:58.417277] [User.cpp] [1431] parseSSIResult:18237179590 165618352 20472 1012841212 101 [ 00:25:58.433929] [User.cpp] [1924] After connected to  221.176.31.1:8080 [ 00:25:58.750377] [User.cpp] [2005] Need picture authentication! [ 00:25:58.750441] [User.cpp] [756] Geting piccode..... [ 00:25:58.757552] [User.cpp] [841] get-pic-code from nav.fetion.com.cn [ 00:25:58.757603] [User.cpp] [849] Before connect to nav.fetion.com.cn [ 00:25:58.768193] [User.cpp] [862] After connected to pic-code-server HTTP/1.1 200 OK Connection: close Date: Sun, 28 Sep 2014 16:25:59 GMT Server: Microsoft-IIS/6.0 X-Powered-By: ASP.NET Content-Location: nav.fetion.com.cn X-AspNet-Version: 4.0.30319 Cache-Control: private Content-Type: text/html; charset=utf-8 Content-Length: 2361 <?xml version="1.0" encoding="UTF-8"?><results><pic-certificate id="937e4f7d-1ec6-4b51-aeac-4e6d92ac58b1" pic="/9j/4AAQSkZJRgABAQEAYABgAAD/2wBDAAgGBgcGBQgHBwcJCQgKDBQNDAsLDBkSEw8UHRofHh0aHBwgJC4nICIsIxwcKDcpLDAxNDQ0Hyc5PTgyPC4zNDL/2wBDAQkJCQwLDBgNDRgyIRwhMjIyMjIyMjIyMjIyMjIyMjIyMjIyMjIyMjIyMjIyMjIyMjIyMjIyMjIyMjIyMjIyMjL/wAARCAAkAFoDASIAAhEBAxEB/8QAHwAAAQUBAQEBAQEAAAAAAAAAAAECAwQFBgcICQoL/8QAtRAAAgEDAwIEAwUFBAQAAAF9AQIDAAQRBRIhMUEGE1FhByJxFDKBkaEII0KxwRVS0fAkM2JyggkKFhcYGRolJicoKSo0NTY3ODk6Q0RFRkdISUpTVFVWV1hZWmNkZWZnaGlqc3R1dnd4eXqDhIWGh4iJipKTlJWWl5iZmqKjpKWmp6ipqrKztLW2t7i5usLDxMXGx8jJytLT1NXW19jZ2uHi4+Tl5ufo6erx8vP09fb3+Pn6/8QAHwEAAwEBAQEBAQEBAQAAAAAAAAECAwQFBgcICQoL/8QAtREAAgECBAQDBAcFBAQAAQJ3AAECAxEEBSExBhJBUQdhcRMiMoEIFEKRobHBCSMzUvAVYnLRChYkNOEl8RcYGRomJygpKjU2Nzg5OkNERUZHSElKU1RVVldYWVpjZGVmZ2hpanN0dXZ3eHl6goOEhYaHiImKkpOUlZaXmJmaoqOkpaanqKmqsrO0tba3uLm6wsPExcbHyMnK0tPU1dbX2Nna4uPk5ebn6Onq8vP09fb3+Pn6/9oADAMBAAIRAxEAPwD3PVb99M02a8jsLu/MS7jb2iq0rDvtDMoJ9s5PYE8Vw3hz4tWni3xSuh6Ro91DLErtdnUpFt3jCkAhEXeXbk5B24x1rvrwXTWkgsZIY7nHyNOhdAc9wCCePevnv4oeHfEXg7xPafEO1ez80Tr9oazR0UPjGWVieGGVJz36c8pNKS5tgabi7bnrXjPU/FWk3GnHQ5dIkjvbyK0EF3ayM6FgSX3LIAwABONo4B5qxJ468N6VDFbX/iWwu79ZBbvHafvZXlJxgQx7nBzxjBxXJ6X4l1rxtqnh7UbHTdHnigt5b8IdQkTY7fugHPkttYZk4Gc88jHNP4ifD3V/GlvHd2/h/T9P1i3x5d1BqOS4HRWHlLnpwcgj6cUO8V8/6/UFaW3b+v0O/wDEXiiXRNPt7q10PUNRNztSFY/Li/eOQERxIwdckjOFO3nOMVTtfiV4Xa+k0zUNXtdO1S3Ufabe6LwqjcZCvKqBxzwR1HOK898B+N/E/i7ULbSL7SbefUfD+97g3F0YDLJ/q1ZgEblQXzwckg8YxWN8Vv7b8M/EDw/41uLOwtJSwiIt7l7hSU7tmOM8qxGB6darRNdm/wAOgatPuvz/AOGPedQ13R9JjEmparY2aF9ga5uEjG7GcZYjnHOPSmWniLQ9QtLi7stZ065trYbp5obpHSIYzlmBwvAJ5ry2+8HX3xRkudZuJ9FNtHDJZWVwtg48/PWZW8zOFbIXOR94gcgnh/A994g1Pw5qXwvjNtDcG4eJvNJDxp8zSAEZGAUxnB/1gqddV1t/X+YaaPp1Poq48RaHaadBqFzrOnQ2VwcQ3Ml0ixyHr8rE4PQ9PSrtrd219ax3VpcRXFvKN0csLh0ceoI4Ir5z+H+ua2+lXHw0fTre4mhvikiTXBjIhDF5Ux5bDaSjKSSD+9GAe3uQ1fxBEMSeFmfHH+j38TD/AMf2cVTS3Wwtb2Z0FFUNMv7m/WQ3Oj3unFCABdPC2/6eXI/T3x1q/SGFUdY0m013R7vS7+PzLW6jMci5wcHuD2I6g+oq9RSaTVmNO2p5z8KPhvc/D6HVhe3NvcTXcy+W8Jb/AFS525yBhsscgZ+pr0VywRigBbHAJwCfrS0VTbYkrHkFr4E8T+GfEHiLx1a3Vgl9cJNINIgge6SZSA+3eTEd5Zeyn8c4qJdVtvjr4dsrFtFu7JYL8SXkzNmOFUHKpJgb2dWxjHy8k9F3eyUUlZJLorW+QPq+rIrW2gsrSG1tokit4UEccaDARQMAAemK5+w8C6Np3je/8WW6zDUb2Ly5FLAxr93LKMZBO0Z59fWuloo636h0sc7YeCdH03xnqHim3SUahfRCOUEjYvTJUYyCdozya6KiijpYOtwooooAKKKKACiiigAooooAKKKKACiiigAooooA/9k=" /></results> [ 00:25:58.780389] [User.cpp] [932] Write to picture file:18237179590.jpg 图形验证码已经生成，文件名为:18237179590.jpg请识别后输入图形验证码: VYyW 您输入的识别码是:VYyW [ 00:26:25.955548] [User.cpp] [1464] getPublicIP:10.0.0.1 [ 00:26:25.955585] [User.cpp] [2083] Register renew time:600 [ 00:26:25.955642] [User.cpp] [1270] sending to:18237179590 [ 00:26:25.955657] [User.cpp] [1276] run,using cmcc mobile:18237179590 [ 00:26:25.956545] [User.cpp] [2228] wait send result [ 00:26:25.961531] [User.cpp] [2228] wait send result [ 00:26:25.967620] [User.cpp] [2228] wait send result SIP-C/4.0 280 Send SMS OK T: sip:165618352@fetion.com.cn;p=20472 I: 2 Q: 1 M RQ: 75003170806 L: 112 XI: 330a2e0248f142f5a3c15a0602524436

　　当第二次或者以后多次执行命令的时候已经被保存在缓存文件中了，所以就不用在此输入验证码了

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

[iyunv@fetion fetion]# ./fetion --mobile=18237179590 --pwd=qinh132619 --to=18237179590 --msg-utf8="QinHeng To Allentuns" --debug [ 00:41:24.719329] [User.cpp] [1924] After connected to  221.176.31.1:8080 [ 00:41:25.128726] [User.cpp] [1464] getPublicIP:10.0.0.1 [ 00:41:25.128765] [User.cpp] [2083] Register renew time:600 [ 00:41:25.128807] [User.cpp] [1270] sending to:18237179590 [ 00:41:25.128821] [User.cpp] [1276] run,using cmcc mobile:18237179590 [ 00:41:25.133096] [User.cpp] [2228] wait send result [ 00:41:25.133885] [User.cpp] [2228] wait send result [ 00:41:25.137441] [User.cpp] [2228] wait send result SIP-C/4.0 280 Send SMS OK T: sip:165618352@fetion.com.cn;p=20472 I: 2 Q: 1 M RQ: 75003437798 L: 112 XI: c97076e9c01345eaaca6b5894e3b79df

　　
　　查看手机短信通知

　　
　　错误解决方案：
　　1、如下图所示
　　飞信是针对移动手机端的，如果用联通的飞信客户端就会出现以下错误，请朋友们切记

　　
　　三、Nagios的飞信fetion报警
　　1、配置文件的介绍

1 2 3 4 5

commands.cfg：定义飞信发送短信的命令 contacts.cfg：定义发送短息你的用户和组 templates.cfg：定义触发后要执行的动作，比如发飞信或者邮件，什么时候发，用哪个用户发 timeperiods.cfg：定义时间，工作日或者7*24，这里我使用7*24 windows106.cfg：自已创建的文件，定义监控的主机和服务，监控的动作

　　2、定义飞信命令

1 2 3 4 5 6 7 8 9 10 11 12

[iyunv@Nagios ~]# vim /usr/local/nagios/etc/objects/commands.cfg # 'notify-host-by-fei' command definition   define command{         command_name    notify-host-by-fetion         command_line    /usr/local/fetion/fetion --mobile=18237179590 --pwd=qinh132619 --to=18237179590 --msg-utf8="$NOTIFICATIONTYPE$ Host: $HOSTNAME$ State: $HOSTSTATE$ Address: $HOSTADDRESS$ Info: $HOSTOUTPUT$ Date Time: $LONGDATETIME$"         }           # 'notify-service-by-fei' command definition    define command{         command_name    notify-service-by-fetion         command_line    /usr/local/fetion/fetion --mobile=18237179590 --pwd=qinh132619 --to=18237179590 --msg-utf8="$NOTIFICATIONTYPE$ Host: $HOSTNAME$ State: $HOSTSTATE$ Address: $HOSTADDRESS$ Info: $HOSTOUTPUT$ Date Time: $LONGDATETIME$"         }

　　3、在模板里增加飞信报警方式

1 2 3 4 5 6 7 8 9 10 11

[iyunv@NagiosServer objects]# vim templates.cfg define contact{         name                            generic-contact                  service_notification_period     24x7                             host_notification_period        24x7                             service_notification_options    w,u,c,r,f,s                     host_notification_options       d,u,r,f,s                        service_notification_commands   notify-service-by-fetion  #增加飞信报报警，先关闭邮箱报警方式              host_notification_commands      notify-host-by-fetion            register                        0                                }

　　4、重启nagios服务

1 2 3 4

[iyunv@NagiosServer objects]# service nagios restart Running configuration check... Stopping nagios: done. Starting nagios: done.

　　5、测试：现在停止客户端的服务，比如ssh

1 2 3 4 5 6 7 8

[iyunv@NagiosClient etc]# netstat -tnlp |grep :22 tcp        0      0 0.0.0.0:22                  0.0.0.0:*                   LISTEN      4344/sshd            tcp        0      0 :::22                       :::*                        LISTEN      4344/sshd            [iyunv@NagiosClient etc]# netstat -tnlp |grep :22 |grep -v ':::' tcp        0      0 0.0.0.0:22                  0.0.0.0:*                   LISTEN      4344/sshd            [iyunv@NagiosClient etc]# service sshd stop 停止 sshd：                                                [确定] [iyunv@NagiosClient etc]# netstat -tnlp |grep :22 |grep -v ':::'

　　6、查看nagios日志信息
　　

1 2 3 4 5

[iyunv@NagiosServer var]# tail -f nagios.log [1412061198] SERVICE ALERT: Linux Server;SSH;CRITICAL;SOFT;1;connect to address 192.168.1.120 and port 22: 拒绝连接 [1412061258] SERVICE ALERT: Linux Server;SSH;CRITICAL;SOFT;2;connect to address 192.168.1.120 and port 22: 拒绝连接 [1412061318] SERVICE ALERT: Linux Server;SSH;CRITICAL;HARD;3;connect to address 192.168.1.120 and port 22: 拒绝连接 [1412061318] SERVICE NOTIFICATION: nagiosadmin;Linux Server;SSH;CRITICAL;notify-service-by-fetion;connect to address 192.168.1.120 and port 22: 拒绝连接

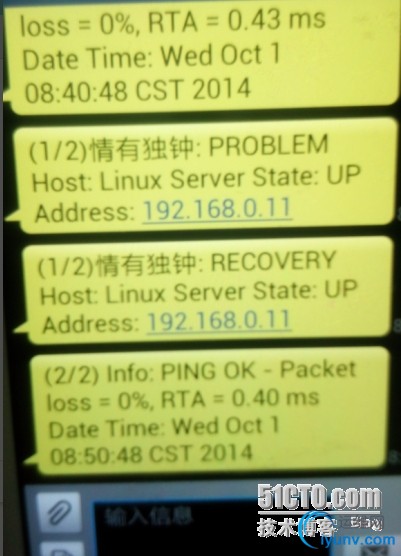

　　7、手机客户端查看短信通知
　　注释：这里有点问题，短信拆分了。也即是一条短信由于短信内容过多，拆分成了两条短信或者更多，后面会讲解如何解决这个问题

　　8、查看监控页面

　　9.启动ssh服务的时候，仍然会出发报警，依次查看



　　
　　
　　
　　四、Nagios的139邮箱报警
　　1、定义command命令

1 2 3 4 5 6 7 8 9 10 11 12 13

[iyunv@NagiosServer objects]# vim commands.cfg #注释：其实配置文件中已经有了email定义的command，我们只需要修改必要的参数即可，如发送者的邮箱、登陆密码等等 # 'notify-host-by-email' command definition define command{         command_name    notify-host-by-email         command_line    /usr/bin/printf "%b" "***** Nagios *****\n\nNotification Type: $NOTIFICATIONTYPE$\nHost: $HOSTNAME$\nState: $HOSTSTATE$\nAddress: $HOSTADDRESS$\nInfo: $HOSTOUTPUT$\n\nDate/Time: $LONGDATETIME$\n" | /bin/mail -s '邮件主题01:Today learn Nagios' 13260071987@139.com < /etc/issue         } # 'notify-service-by-email' command definition define command{         command_name    notify-service-by-email         command_line    /usr/bin/printf "%b" "***** Nagios *****\n\nNotification Type: $NOTIFICATIONTYPE$\n\nService: $SERVICEDESC$\nHost: $HOSTALIAS$\nAddress: $HOSTADDRESS$\nState: $SERVICESTATE$\n\nDate/Time: $LONGDATETIME$\n\nAdditional Info:\n\n$SERVICEOUTPUT$\n" | /bin/mail -s '邮件主题01:Today learn Nagios' 13260071987@139.com < /etc/issue         }

　　2、添加联系人组报警方式

1 2 3 4 5 6 7 8 9 10 11

[iyunv@NagiosServer objects]# vim contacts.cfg define contact{        contact_name                    nagiosadmin        use                             generic-contact        alias                           Nagios Admin        email                           13260071987@139.com        service_notification_commands   notify-service-by-email        host_notification_commands      notify-host-by-email        pager                           13260071987         }

　　3、然后测试就可以了！在这里就不在说明
　　
　　飞信报警请参考：
　　http://www.it-adv.net/  飞信机器人官网：
　　http://dl528888.blog.iyunv.com/2382721/770684  学习博文
　　http://school.21tx.com/2013/10/18/10247.shtml  解决安装fetino的依赖关系
　　http://bbs.it-adv.net/viewthread.php?action=printable&tid=156  fetion官网解决发送失败的方法
　　因为我在发送通知的时候报错，错误如下，本来还没有解决。也希望大神帮助
　　http://www.iyunv.com/Linux/2012-08/69346.htm  验证码帮助
　　
