Zabbix告警集成 实时接收Zabbix告警，提供微信、移动APP、短信邮件提醒。

ljhk

1.下载agent软件包
请在Zabbix服务器中，使用root或zabbix用户下载软件。下载agent

2.添加应用

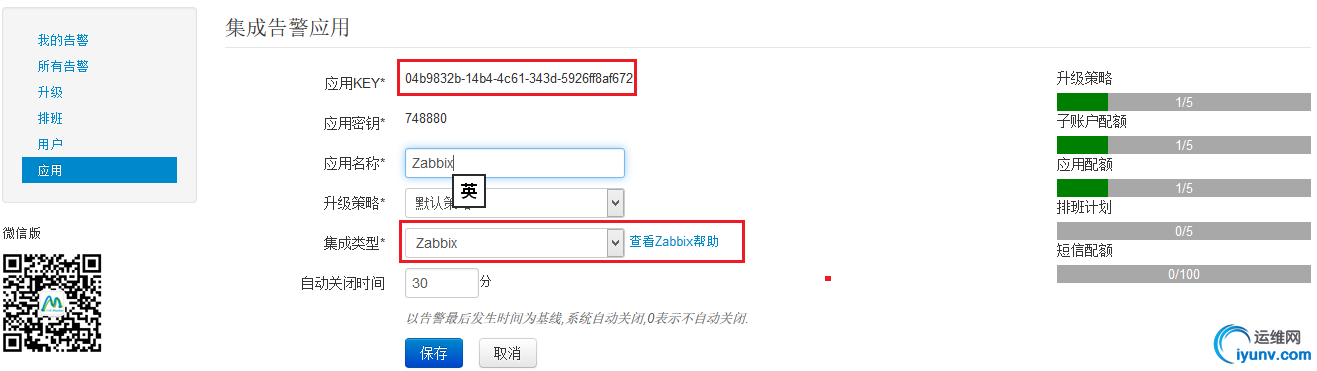

创建Zabbix应用，并获取appkey，见下图04b9832b-14b4-4c61-343d-5926ff8af672

3.安装Agent
将agent更新到zabbix的外部告警脚本目录alertscripts，如果是源码安装的请自行更改目录。

tar xvf alert-agent-4.0.1-RC2.tar.gzcp -R alert-agent /usr/lib/zabbix/alertscriptscd /usr/lib/zabbix/alertscriptschown -R zabbix:zabbix alert-agentcp alert-agent/plugin/zabbix-plugin/110monitor /usr/lib/zabbix/alertscripts/chmod +x /usr/lib/zabbix/alertscripts/110monitor
注意！源码安装的盆友需要注意看配置文件/etc/zabbix/zabbix_server.conf

# AlertScriptsPath=/zabbix/alertscriptsAlertScriptsPath=/usr/lib/zabbix/alertscripts

• 请将agent更新至AlertScriptsPath目录中

• alert-agent目录和110monitor需要放在同一级目录里面



4.创建110monitor通知方式
创建媒体类型Media types,，“Administrator”->“Media types”->“Create media type”

采用脚本模式script,脚本名为110monitor. 系统会在/usr/lib/zabbix/alertscripts/下查找上面的110monitor指令

5.创建110monitor用户
创建用户110monitor并设置通知媒介，登录zabbix，“Administrator”->“Users”->“create user”.

• 将110monitor用户加入到"Zabbix Administrator组"或者是新建组.

• 媒体类型，添加110monitor，并且设置appkey为发送目标.

• 设置所有权限"Zabbix Super Admin"

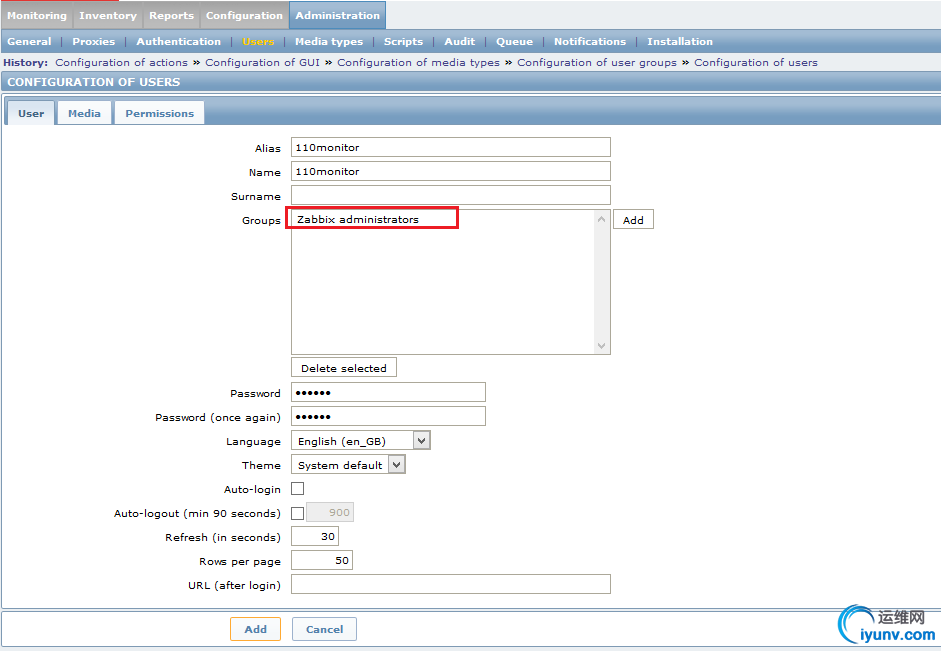

新建110monitor用户.

设置媒介类型.

设置权限.

6.创建触发动作发送通知

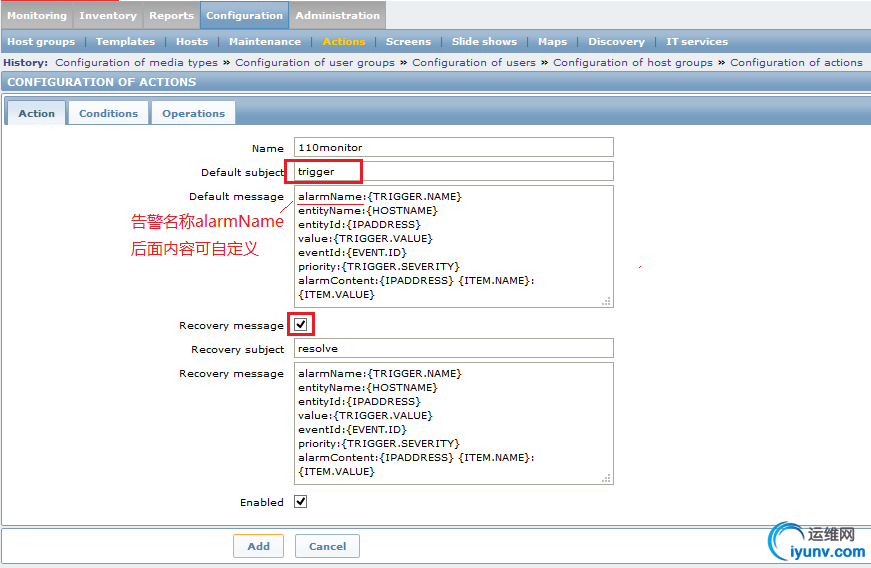

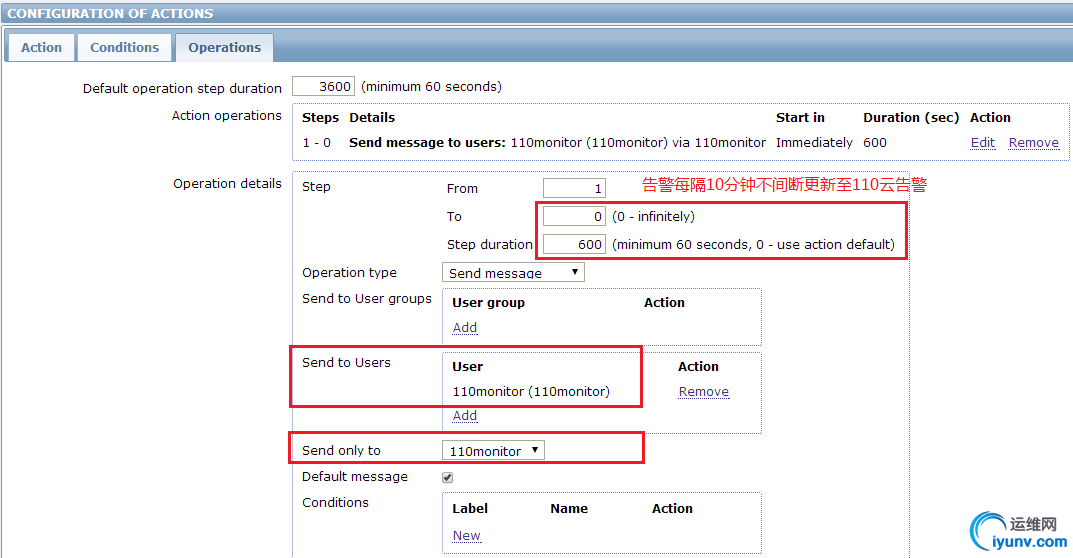

创建告警通知策略，"Configurationg"->"Actions"->"Create action"

• 名称110monitor

• 主题为trigger和resolve，意味着告警触发和恢复都会同步到110monitor

• 设置告警内容，注意冒号":"前的内容不可变更，冒号":"后的内容可以自行编辑



alarmName:{TRIGGER.NAME}entityName:{HOSTNAME}entityId:{IPADDRESS}value:{TRIGGER.VALUE}eventId:{EVENT.ID}priority:{TRIGGER.SEVERITY}alarmContent:{IPADDRESS} {ITEM.NAME}:{ITEM.VALUE}

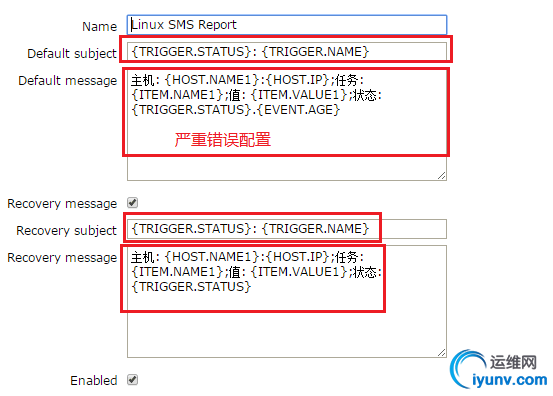

注意！自行配制的通知模板是不行的，需要严格按照以上配置。

6.测试验证
如找台机器验证，如加了"Template ICMP Ping"监控的机器，禁用ping测试是否正常通知

echo 1 > /proc/sys/net/ipv4/icmp_echo_ignore_all 禁pingecho 0 > /proc/sys/net/ipv4/icmp_echo_ignore_all 恢复ping
查看agent日志，出现sucess字样代表成功，如果发送的告警通知，则会同步发送微信、移动app、短信、邮件

tail -f /usr/lib/zabbix/alertscripts/alert-agent/log/agent.log
正常返回success即表示成功

15-05-2015 18:16:17,698 CST INFO  [main] [com.upyoo.agent.ZabbixClient@68] start to call alert ...15-05-2015 18:16:18,048 CST INFO  [main] [com.upyoo.agent.ZabbixClient@68] start to call alert ...15-05-2015 18:16:18,057 CST INFO  [main] [com.upyoo.agent.CommandClient@82] app:04b9832b-14b4-4c61-343d-5926ff8af67215-05-2015 18:16:18,057 CST INFO  [main] [com.upyoo.agent.CommandClient@82] eventType:trigger15-05-2015 18:16:18,059 CST INFO  [main] [com.upyoo.agent.CommandClient@82] alarmName:monitor-agent-nm5 is unavailable by ICMP15-05-2015 18:16:18,059 CST INFO  [main] [com.upyoo.agent.CommandClient@82] entityName:monitor-agent-nm515-05-2015 18:16:18,060 CST INFO  [main] [com.upyoo.agent.CommandClient@82] entityId:172.19.0.515-05-2015 18:16:18,061 CST INFO  [main] [com.upyoo.agent.CommandClient@82] eventId:28015-05-2015 18:16:18,061 CST INFO  [main] [com.upyoo.agent.CommandClient@82] priority:Average15-05-2015 18:16:18,062 CST INFO  [main] [com.upyoo.agent.CommandClient@82] alarmContent:172.19.0.5 ICMP ping:Down (0)15-05-2015 18:16:18,067 CST INFO  [main] [com.upyoo.agent.CommandClient@58] start to post url:http://api.110monitor.com/alert/api/event15-05-2015 18:16:18,144 CST INFO  [main] [com.upyoo.agent.CommandClient@65] body:{"app":"04b9832b-14b4-4c61-343d-5926ff8af672","alarmContent":"172.19.0.5 ICMP ping:Down (0)","eventId":"280","priority":"3","entityId":"172.19.0.5","alarmName":"monitor-agent-nm5 is unavailable by ICMP","eventType":"trigger","entityName":"monitor-agent-nm5"}15-05-2015 18:16:18,728 CST INFO  [main] [com.upyoo.agent.CommandClient@68] result:{"result":"success","message":null,"data":"3690","totalCount":0,"code":"200"}                完成
恭喜你 完成Zabbix集成配置,微信即可接收告警提醒，并通过”我的告警“查询所有未处理告警哦。

注意！注册完毕后默认仅发送邮件提醒，请关注微信号alert110，或者到”用户“->“具体用户”下配置短信提醒规则。或参考提醒设置

亲，到现在可以抛弃老的139邮箱、飞信、短信猫、qq邮箱等间接短信配置提醒方式。
