　　This blog will give you details on setting up Single sign on (SSO) with SAP Hana using Kerberos.
　　Why do we need SSO ?
　　By enabling SSO, users can directly login from BO ( or any Front end Application) & access Hana database without providing login credentials again
　　There are different teams involved for this set up ( This may change based on your organization structure)
　　1) System administrator needs to install Kerberos Client on Hana server
　　2) Active Directory & Service account set up is done by of Identity Management Administrator
　　3) Hana Administrator needs to set  up  the configuration & user creation
　　Note: I have greyed out server names & service account names in screen shots for security reasons
　　Kerberos Client Installation:

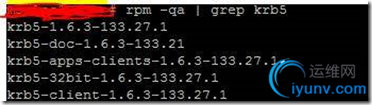

　　Please make sure that the Kerberos client & libraries are installed on the Hana Database server

　　
　　Creation of service account:

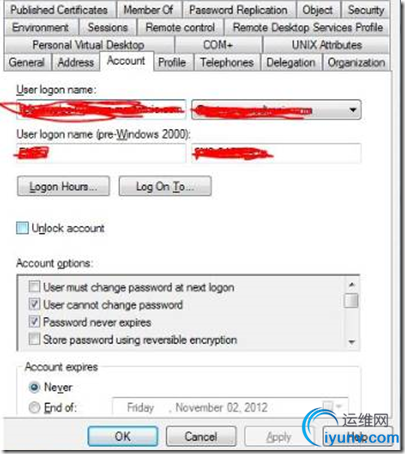

　　Identity Management Administrator will need to create a service user & a Service Principal Name( SPN) for each host on the system . For scale out box, we need to create 1 SPN for each host . Please find screen shot


　　The SPN needs to have the following syntax:
　　hdb/ <Domain Name >@Kerberos realm name
　　<Domain Name>: fully qualified domain name of the host
　　Generating a key Tab :
　　ktpass -princ hdb/ <servername.Domain Name>@ <REALM> -mapuser  <Domain>\<serviceuser> -pass <password> -out <keytabfile >.keytab -ptype<PRINCIPAL> -crypto <CRYPTOGRAPHIC TYPE>
　　<PRINCIPAL> = KRB5_NT_PRINCIPAL
　　<CRYPTOGRAPHIC TYPE> = RC4-HMAC-NT
　　Using the above syntax key tab file is generated
　　Hana Admin configuration:
　　Login  as root & update the krb5.conf file. This is located at /etc/krb5.conf
　　Entries in the file
　　[libdefaults]
　　default_realm= <realm>
　　[realms]
　　<realm>={ kdc=<kdc_name>}
　　Where <realm> and <kdc name>are the names of your Kerberos realm and KDC.
　　Realm is your domain name in uppercase letters, such as DOMAIN_NAME.
　　Note : if you are not aware of the above parameters like realm , KDC Name , Domain Name please contact your Active directory Adminstrator

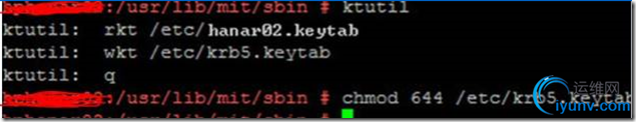

　　Import the key tab which was generated into Hana Box.
　　Make sure the permissions are changed

　　
　　Creation of  user  in HANA:
　　This can be done via GUI screen or via sql syntax
　　CREATE USER Kiran IDENTIFIED EXTERNALLY AS ‘Kiran@Realm’ ;
　　Please assign the appropriate role to this user

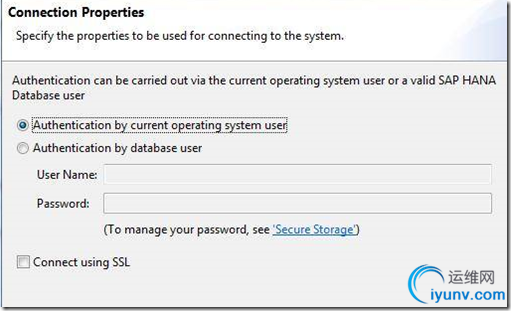

　　While configuring the user in Hana studio , Please check the authentication by OS user as shown below
