SAP Control framework–实例

yanghongjun

　　引用：翱翔云天
　　274 views

　　1.1 例子
　　好了，说了这么多，我们举一个小例子，来使用这三个类，关于dragdrop类，我们会在后面介绍其具体的使用方法。
　　背景：
　　我们得到了一个图片，然后把它显示在picture control中。添加一个toolbar,通过toolbar中的按钮控制图片的大小以及显示方式。通过使用context menu，可以实现一些控制，比如删除图片，打开新图片等等。
　　
　　8.4.1 定义数据
　　*Class pre-define which used to reference
　　class lcl_pic_container definition deferred.
　　class event_receiver definition deferred.
　　class lcl_toolbar definition deferred.
　　class cl_gui_cfw definition load.
　　*Screen field for program
　　data: ok_code like sy-ucomm.
　　data: s_object_id type string,
　　s_object_value type string.
　　data: ename(50) type c.
　　*Picture container and custom container
　　data: container_pic type ref to cl_gui_custom_container,
　　container_h type ref to cl_gui_custom_container,
　　container_v type ref to cl_gui_custom_container.
　　data: ref_pic type ref to lcl_pic_container,
　　ref_tool type ref to lcl_toolbar.
　　*If the control created indicator
　　data: init type c.
　　*Data For Load Pre-Defined context menu*******
　　data: prog type sy-repid.

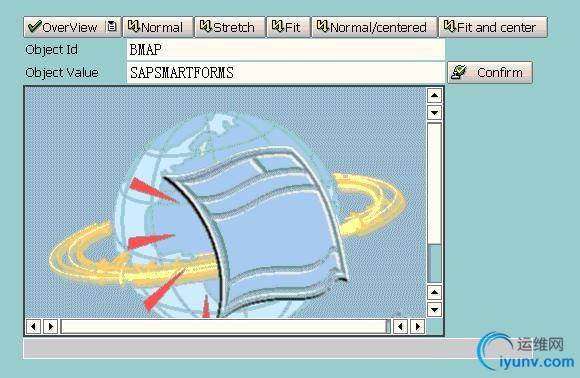

　　8.4.2 创建屏幕

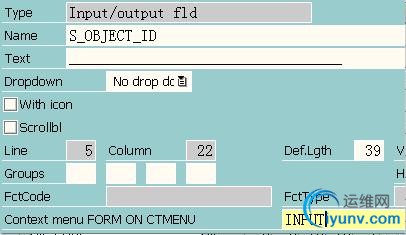

　　定义context menu form

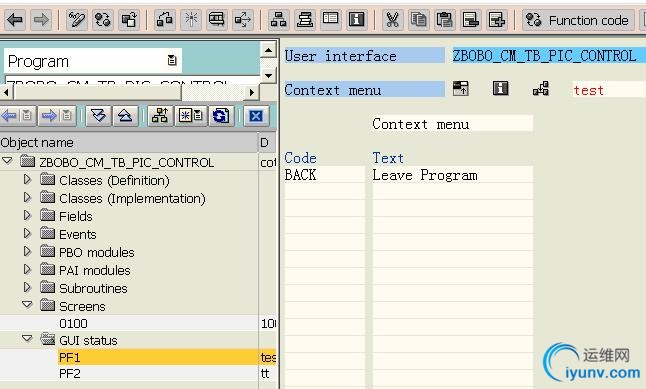

　　定义context menu

　　处理pre-defined context
　　*Using the form routine which defined in you dynpro
　　form on_ctmenu_input using l_menu type ref to cl_ctmenu.
　　prog = sy-repid.
　　call method:l_menu->load_gui_status
　　exporting program = prog
　　status = 'PF1' "Your context menu name
　　menu = l_menu.
　　call method l_menu->add_function
　　exporting fcode = 'GETN'
　　text = 'Select new picture'.
　　endform.
　　定义pic类
　　class lcl_pic_container definition.
　　public section.
　　data: object_id type string,
　　object_value type string.
　　constants:
　　id_bmap(5) value 'BMAP',
　　value_enjoy(20) value 'ENJOY',
　　value_sapsmartforms(20) value 'SAPSMARTFORMS',
　　value_mysapcom(20) value 'MYSAPCOM'.
　　methods:
　　* Initialize screen
　　init_screen,
　　* Add picture to picture container
　　add_pic,
　　* Free objects
　　free,
　　* Setter, set picture id and type
　　set_object
　　importing i_object_id type string
　　i_object_value type string,
　　get_object
　　exporting value(e_id) type string
　　value(e_name) type string.
　　private section.
　　data:
　　pic type ref to cl_gui_picture,
　　url(255).
　　* For picture control events
　　data:
　　event type cntl_simple_event,
　　events type cntl_simple_events.
　　data:
　　event_ref type ref to event_receiver.
　　methods:
　　* Get picture url
　　get_pic_url
　　importing i_object_id type string
　　i_object_value type string
　　returning value(s_url) type string,
　　* Set pf-status
　　set_pf_status,
　　* Set handler for picture control
　　set_handler.
　　endclass.
　　8.4.4 定义toolbar类
　　class lcl_toolbar definition.
　　public section.
　　methods:
　　* Create class
　　constructor
　　importing pic_ref type ref to cl_gui_picture,
　　free.
　　private section.
　　* Define two toolbar
　　data:
　　h_ref type ref to cl_gui_toolbar,
　　v_ref type ref to cl_gui_toolbar.
　　* Toolbar events
　　data:
　　event type cntl_simple_event,
　　events type cntl_simple_events.
　　data:
　　event_ref type ref to event_receiver.
　　* Define button group table
　　data:
　　bgroup type ttb_button.
　　data: pict type ref to cl_gui_picture.
　　* Private method for add toolbar button group
　　methods:
　　add_button_group importing
　　fcode type ui_func
　　icon type iconname
　　type type tb_btype
　　text type text40
　　tip type iconquick.
　　endclass.
　　8.4.5 定义event处理类
　　*For toolbar and picture control and context menu event handle
　　class event_receiver definition.
　　public section.
　　methods:
　　* For create class, get the object which created it
　　constructor
　　importing pic_ref type ref to object,
　　* Events for picture control ****************
　　event_dblclick for event picture_dblclick
　　of cl_gui_picture
　　importing sender,
　　event_click for event picture_click
　　of cl_gui_picture
　　importing sender,
　　event_con_menu for event context_menu
　　of cl_gui_picture
　　importing sender,
　　event_con_menu_sel for event context_menu_selected
　　of cl_gui_picture
　　importing fcode sender,
　　* Events for picture control ****************
　　* Events for toolbar control ****************
　　event_t_f_sel for event function_selected
　　of cl_gui_toolbar
　　importing fcode sender,
　　event_t_d_clk for event dropdown_clicked
　　of cl_gui_toolbar
　　importing fcode posx posy sender.
　　* Events for toolbar control ****************
　　private section.
　　* Indicator for object swich
　　data: flag type c.
　　data: flag_vh type c.
　　* Catch cast exception
　　data: cast type c.
　　data: pict type ref to cl_gui_picture.
　　endclass.
　　8.4.6 Implementation 各个类
　　对于pic类，方法init_screen初始化屏幕
　　method init_screen.
　　call method set_pf_status.
　　* Create custom container for picture container
　　create object container_pic
　　exporting
　　container_name = 'CONTAINER_PIC' .
　　* Create picture control
　　create object pic
　　exporting
　　parent = container_pic .
　　* Create toolbar in screen
　　create object ref_tool
　　exporting pic_ref = pic.
　　* Add events for picture control
　　event-eventid = cl_gui_picture=>eventid_picture_click.
　　event-appl_event = 'X'.
　　append event to events.
　　event-eventid = cl_gui_picture=>eventid_picture_dblclick.
　　event-appl_event = 'X'.
　　append event to events.
　　event-eventid = cl_gui_picture=>eventid_context_menu.
　　event-appl_event = 'X'.
　　append event to events.
　　event-eventid = cl_gui_picture=>eventid_context_menu_selected.
　　event-appl_event = 'X'.
　　append event to events.
　　* Register events for picture control
　　call method pic->set_registered_events
　　exporting events = events.
　　* Set handler for picture control
　　call method set_handler.
　　* Set picture control border type
　　call method pic->set_3d_border
　　exporting border = 1.
　　* Set picture id and name
　　call method ref_pic->set_object
　　exporting i_object_id = s_object_id
　　i_object_value = s_object_value.
　　* Add picture to picture control
　　call method add_pic.
　　* Set object created indicator
　　init = 'X'.
　　endmethod.
　　PBO 处理
　　module status_0100 output.
　　if init is initial.
　　create object ref_pic.
　　s_object_id = lcl_pic_container=>id_bmap.
　　s_object_value = lcl_pic_container=>value_sapsmartforms.
　　call method ref_pic->init_screen.
　　endif.
　　endmodule. " STATUS_0100 OUTPUT
　　所有代码
　　1.2 测试结果
