Centos 7.1 配置DNS view

ljhku · 发表于 2015-9-22 09:26:21

————————————————————————————————————

概览：

1.环境准备

2.配置主配置文件

3.配置区域文件

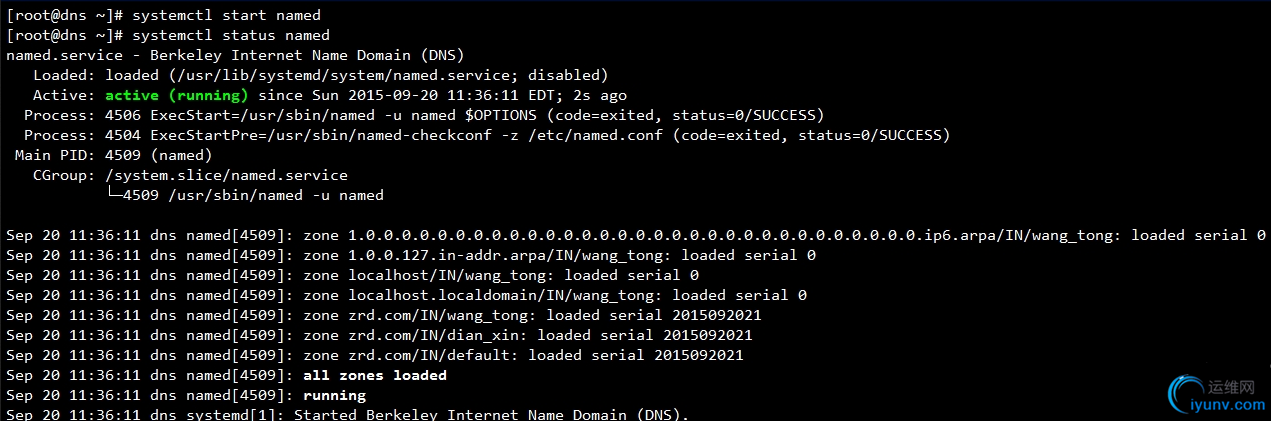

4.启动服务以及测试

————————————————————————————————————

1.环境准备：

OS：

软件安装

1
2
3
4
5
6
7
8

~]# yum install bindbind-utils

[iyunv@dns ~]# rpm-qa | grep bind
bind-license-9.9.4-18.el7_1.5.noarch
bind-utils-9.9.4-18.el7_1.5.x86_64
bind-libs-9.9.4-18.el7_1.5.x86_64
bind-libs-lite-9.9.4-18.el7_1.5.x86_64
bind-9.9.4-18.el7_1.5.x86_64

关闭防火墙和selinux

1 2	~]# systemctl stopfirewalld ~]# setenforce 0

模拟两个不同的网段都可以进行主机名的解析

两张网卡IP信息：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

[iyunv@dns ~]# ip a
1: lo:<LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN
link/loopback 00:00:00:00:00:00 brd00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
   valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
   valid_lft forever preferred_lft forever
2: eno16777736:<BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen1000
link/ether 00:0c:29:ca:24:8e brdff:ff:ff:ff:ff:ff
inet 192.168.1.50/24brd 192.168.1.255 scope global eno16777736
   valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:feca:248e/64 scopelink
   valid_lft forever preferred_lft forever
3: eno33554984:<BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen1000
link/ether 00:0c:29:ca:24:98 brdff:ff:ff:ff:ff:ff
inet 1.1.1.50/24brd 1.1.1.255 scope global dynamic eno33554984
   valid_lft 1573sec preferred_lft 1573sec
inet6 fe80::20c:29ff:feca:2498/64 scopelink
   valid_lft forever preferred_lft forever

————————————————————————————————————

2.配置主配置文件

----------

2.1 配置/etc/named.conf 文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56

[iyunv@dns ~]# vim/etc/named.conf

//
// named.conf
//
// Provided by RedHat bind package to configure the ISC BIND named(8) DNS
// server as acaching only nameserver (as a localhost DNS resolver only).
//
// See/usr/share/doc/bind*/sample/ for example named configuration files.
//

options {
//    listen-on port 53 { 127.0.0.1; };
//    listen-on-v6 port 53 { ::1; };
      directory    "/var/named";
      dump-file    "/var/named/data/cache_dump.db";
      statistics-file"/var/named/data/named_stats.txt";
      memstatistics-file"/var/named/data/named_mem_stats.txt";
      allow-query    { any; };

      /*
      - If you are building an AUTHORITATIVEDNS server, do NOT enable recursion.
      - If you are building a RECURSIVE(caching) DNS server, you need to enable
         recursion.
      - If your recursive DNS server has apublic IP address, you MUST enable access
         control to limit queries to yourlegitimate users. Failing to do so will
         cause your server to become part oflarge scale DNS amplification
         attacks. Implementing BCP38 withinyour network would greatly
         reduce such attack surface
      */
      recursion yes;

//    dnssec-enable yes;
//    dnssec-validation yes;
//    dnssec-lookaside auto;

      /* Path to ISC DLV key */
//    bindkeys-file"/etc/named.iscdlv.key";

//    managed-keys-directory"/var/named/dynamic";

      pid-file"/run/named/named.pid";
//    session-keyfile"/run/named/session.key";
};

logging {
      channel default_debug {
            file"data/named.run";
            severity dynamic;
      };
};



include"/etc/named.rfc1912.zones";
//include"/etc/named.root.key";

----------

2.2. 配置/etc/named.rfc1912.zones 文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70

[iyunv@dns ~]# vim/etc/named.rfc1912.zones

//named.rfc1912.zones:
//
// Provided by RedHat caching-nameserver package
//
// ISC BIND namedzone configuration for zones recommended by
// RFC 1912 section4.1 : localhost TLDs and address zones
// and http://www.ietf.org/internet-dra ... -local-zones-02.txt
// (c)2007 R WFranks
//
// See/usr/share/doc/bind*/sample/ for example named configuration files.
//
view wang_tong {
      match-clients {  1.1.1.0/24; };

zone "."IN {
      type hint;
      file "named.ca";
};

zone"localhost.localdomain" IN {
      type master;
      file "named.localhost";
      allow-update { none; };
};

zone"localhost" IN {
      type master;
      file "named.localhost";
      allow-update { none; };
};

zone"1.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.ip6.arpa"IN {
      type master;
      file "named.loopback";
      allow-update { none; };
};

zone"1.0.0.127.in-addr.arpa" IN {
      type master;
      file "named.loopback";
      allow-update { none; };
};

zone"0.in-addr.arpa" IN {
      type master;
      file "named.empty";
      allow-update { none; };
};
      zone "zrd.com" IN {
            type master;
            file"zrd.com.wang_tong";
      };
};
view dian_xin {
      match-clients { 192.168.1.0/24; };
      zone "zrd.com" IN {
            type master;
            file"zrd.com.dian_xin";
                        };
};

view default {
      match-clients { any; };
      zone "zrd.com" IN {
            type master;
            file"zrd.com.dian_xin";
      };
};

————————————————————————————————————

3.配置区域文件

---------

3.1. 创建zrd.com.dian_xin 区域文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

[iyunv@dns ~]# cd/var/named/
[iyunv@dns named]#vim zrd.com.dian_xin

$TTL 86400
@    IN    SOA    dns.zrd.com. admin.zrd.com. (
                     2015092021
                     1D
                     2D
                     1D
                     7D
)
      IN    NS    dns
      IN    MX 10 mail
www    IN    A    192.168.1.11
dns    IN    A    192.168.1.50
mail IN A    192.168.1.12

-----

3.2. 创建zrd.com.wang_tong 文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

[iyunv@dns named]#vim zrd.com.wang_tong

$TTL 86400
@    IN    SOA    dns.zrd.com. admin.zrd.com. (
                     2015092021
                     1D
                     2D
                     1D
                     7D
)
      IN    NS    dns
      IN    MX 10 mail
www    IN    A    1.1.1.11
dns    IN    A    1.1.1.50
mail IN    A    1.1.1.12

----

3.3. 修改文件属性
