  本文将带领大家使用SharePoint Designer创建基于WCF服务的外部内容类型。
步骤
  1、检查你的WCF服务已经宿主并可用。本文将使用封装AdventureWorks2000数据库的Contact表得到的WCF服务。 首先打开你的IIS管理器,导航到宿主你的WCF服务的网站,确保其正常运行。

  2、打开IE浏览器并导航到该服务的.svc文件。 你应该能够看到类型如下的页面,表示该WCF服务正在工作。


  WCF的检查工作结束。现在我们开始基于该WCF在SPD中创建我们的外部内容类型。
  3、打开SharePoint Designer 2010并点击“打开网站”大按钮。
[点击图片可查看完整尺寸]

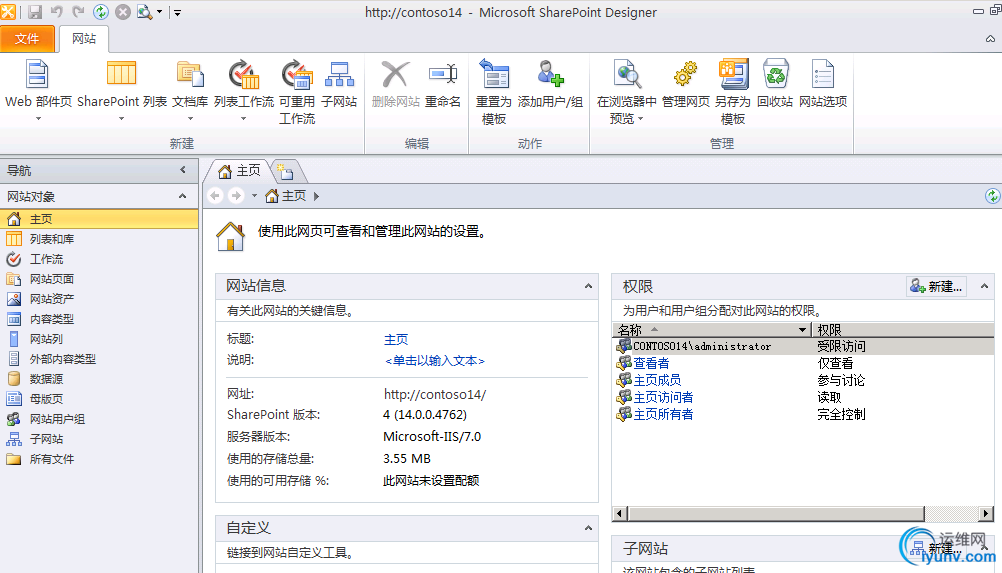

  4、输入你的SharePoint站点URL地址并回车。SPD将会连接到该站点并获取信息。
[点击图片可查看完整尺寸]
  5、从左侧导航窗格中点击外部内容类型。可以看到顶部的功能区也进行了相应的改变,反映当前的工作状态。

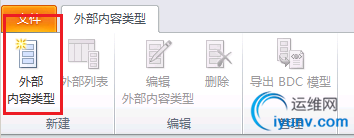

  6、在功能区中,点击新建中的外部内容类型。
DSC0004.png   7、打开的摘要页面中,可以编辑和管理外部内容类型。
[点击图片可查看完整尺寸]
  这里有一些类似超链接的标签,点击可设置值 。最上面的两个是名称和显示名称,设置其值为:

  名称:联系人
  显示名称:联系人

  接下来,我们选择一个外部数据源来进行连接。点击链接“点击此处发现数据源并定义操作”。
  8、进入操作设计器视图。点击添加连接按钮。
[点击图片可查看完整尺寸]
  9、选择数据源类型为 “WCF服务”
  10、WCF连接窗口打开。这里我们需要填写有关我们WCF服务的一些连接信息,以便SharePoint Designer进行连接。根据上面我们检查到的WCF宿主情况,这里我填入:
  服务元数据URL:http://contact/service.svc?WSDL
  服务终结点URL:http://contact/service.svc
  11、配置好WCF连接后,点击确定。这时将尝试连接到你的WCF服务。如果一切正常,你会看到所有可用的Web方法。
  12、我们需要创建相应的BCS操作。本例中,我们将使用GetContactFinder作为“读取列表”操作,使用GetContactSpecificFinder作为“读取项”操作。
  13、右击 GetContactFinder并选择“新建读取列表”操作。
  14、在弹出的向导中,“返回参数” 一节中会提示一个错误信息,“应至少指定一个标识符”。选择ContactID并勾选“映射到标识符”。在标识符下拉框中选中ContactID。点击完成,创建好了读取列表操作。

  15、右击GetContactSpecificFinder并选择新建“读取项”操作。
  16、在操作属性窗口中,输入参数一节我们需要映射该输入参数到标识符。选中contactid并在右侧的面板中勾上“映射到标识符”,并在标识符下拉框中选中ContactID。点击下一步。

  17、在返回参数一节,也包含一条错误提示指出需要映射标识符。为了修复该错误,在左侧选择ContactID,右侧勾选“映射到标识符” 并在标识符下拉框中选中ContactID。点击完成按钮。

  18、现在,右侧的ECT操作中已经有两个操作了。你也可以根据需要添加其他操作,如创建,更新等等。

  19、按“Ctrl+S”键保存该ECT。

  20、我们可以打开SharePoint站点,创建外部列表绑到我们的外部内容类型。

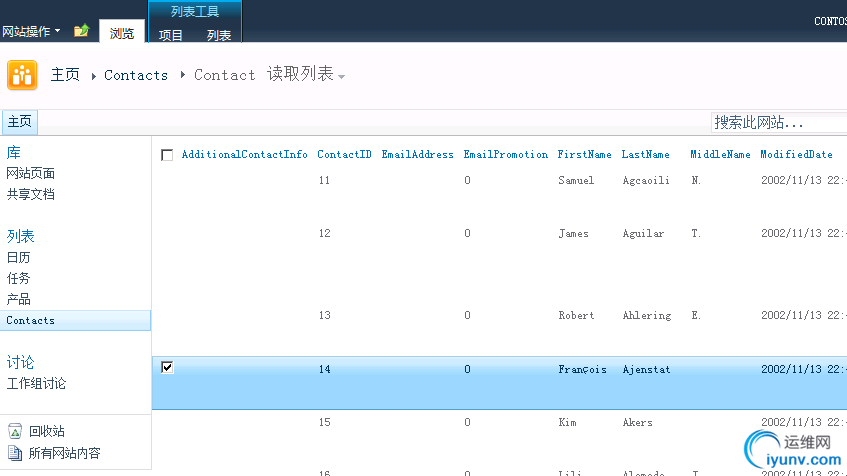

  21、它会调用“读取列表”操作 (WCF中的Finder方法)来获取数据。


  22、选中任意一条数据,然后点击“项目”功能区,其中的“查看项目”操作会调用WCF的Specific Finder方法,在弹出框中显示选中的项。


  附上本例中涉及的WCF相关代码,以备参考。
  1、IAdventureWorks2000WCFService.cs

DSC00021.gif DSC00022.gif 代码

using System;
using System.Collections.Generic;
using System.Runtime.Serialization;
using System.ServiceModel;
[ServiceContract]
public interface IAdventureWorks2000WCFService
{

      [OperationContract]
      List<Contact> GetContactFinder();

      [OperationContract]
      Contact GetContactSpecificFinder(Int32 contactid);

      [OperationContract]
      List<Int32> GetContactIdEnumerator();

}
[DataContract]
public class Contact
{

      [DataMember]
      public Int32 ContactID
      {
      get;
      set;
      }

      [DataMember]
      public String Salutation
      {
      get;
      set;
      }

      [DataMember]
      public String FirstName
      {
      get;
      set;
      }

      [DataMember]
      public String MiddleName
      {
      get;
      set;
      }

      [DataMember]
      public String LastName
      {
      get;
      set;
      }

      [DataMember]
      public Boolean NameStyle
      {
      get;
      set;
      }

      [DataMember]
      public String Phone
      {
      get;
      set;
      }

      [DataMember]
      public String Suffix
      {
      get;
      set;
      }

      [DataMember]
      public String EmailAddress
      {
      get;
      set;
      }

      [DataMember]
      public String Password
      {
      get;
      set;
      }

      [DataMember]
      public Int32 EmailPromotion
      {
      get;
      set;
      }

      [DataMember]
      public DateTime ModifiedDate
      {
      get;
      set;
      }

      [DataMember]
      public Guid rowguid
      {
      get;
      set;
      }

      [DataMember]
      public String AdditionalContactInfo
      {
      get;
      set;
      }

}

  2、 AdventureWorks2000WCFService.cs

代码

using System;
using System.Collections.Generic;
using System.Data;
using System.Data.SqlClient;
public class AdventureWorks2000WCFService : IAdventureWorks2000WCFService
{
  private const string connectionString = @"Persist Security Info=False;User ID=xxx;Password=xxx;Server=localhost;Connect Timeout=30;Initial Catalog=AdventureWorks2000";



  AdventureWorks2000WCFService()
  {
  }

  public List<Contact> GetContactFinder()
  {
  List<Contact> contactList = new List<Contact>();
  const string sqlQuery = @"Select * From dbo.[Contact] ";
  using (SqlConnection sqlConnection = new SqlConnection(connectionString))
  {
  sqlConnection.Open();
  SqlCommand comm = new SqlCommand(sqlQuery, sqlConnection);

  DataSet dataSet = new DataSet();
  SqlDataAdapter adapter = new SqlDataAdapter(comm);
  adapter.Fill(dataSet, @"dbo.[Contact]");
  foreach (DataRow dr in dataSet.Tables[0].Rows)
  {
  Contact contact = new Contact();
  contact.ContactID = dr["ContactID"] is DBNull ? 0 : (Int32)dr["ContactID"];
contact.Salutation = dr["Salutation"] is DBNull ? string.Empty : (String)dr["Salutation"];
contact.FirstName = dr["FirstName"] is DBNull ? string.Empty : (String)dr["FirstName"];
contact.MiddleName = dr["MiddleName"] is DBNull ? string.Empty : (String)dr["MiddleName"];
contact.LastName = dr["LastName"] is DBNull ? string.Empty : (String)dr["LastName"];
contact.NameStyle = dr["NameStyle"] is DBNull ? false : (Boolean)dr["NameStyle"];
contact.Phone = dr["Phone"] is DBNull ? string.Empty : (String)dr["Phone"];
contact.Suffix = dr["Suffix"] is DBNull ? string.Empty : (String)dr["Suffix"];
contact.EmailAddress = dr["EmailAddress"] is DBNull ? string.Empty : (String)dr["EmailAddress"];
contact.Password = dr["Password"] is DBNull ? string.Empty : (String)dr["Password"];
contact.EmailPromotion = dr["EmailPromotion"] is DBNull ? 0 : (Int32)dr["EmailPromotion"];
contact.ModifiedDate = dr["ModifiedDate"] is DBNull ? DateTime.MinValue : (DateTime)dr["ModifiedDate"];
contact.rowguid = dr["rowguid"] is DBNull ? Guid.Empty : (Guid)dr["rowguid"];
contact.AdditionalContactInfo = dr["AdditionalContactInfo"] is DBNull ? string.Empty : (String)dr["AdditionalContactInfo"];

  contactList.Add(contact);
  }
  }

  return contactList;
  }
public Contact GetContactSpecificFinder(Int32 contactid)
  {
  Contact contact = new Contact();
  const string sqlQuery = @"Select * From dbo.[Contact] Where (ContactID=@ContactID)";
  using (SqlConnection sqlConnection = new SqlConnection(connectionString))
  {
  sqlConnection.Open();
  SqlCommand comm = new SqlCommand(sqlQuery, sqlConnection);
  comm.Parameters.AddWithValue("@ContactID", contactid);
  DataSet dataSet = new DataSet();
  SqlDataAdapter adapter = new SqlDataAdapter(comm);
  adapter.Fill(dataSet, @"dbo.[Contact]");
  if(dataSet.Tables[0].Rows.Count > 0)
  {
  DataRow dr = dataSet.Tables[0].Rows[0];
  contact.ContactID = dr["ContactID"] is DBNull ? 0 : (Int32)dr["ContactID"];
contact.Salutation = dr["Salutation"] is DBNull ? string.Empty : (String)dr["Salutation"];
contact.FirstName = dr["FirstName"] is DBNull ? string.Empty : (String)dr["FirstName"];
contact.MiddleName = dr["MiddleName"] is DBNull ? string.Empty : (String)dr["MiddleName"];
contact.LastName = dr["LastName"] is DBNull ? string.Empty : (String)dr["LastName"];
contact.NameStyle = dr["NameStyle"] is DBNull ? false : (Boolean)dr["NameStyle"];
contact.Phone = dr["Phone"] is DBNull ? string.Empty : (String)dr["Phone"];
contact.Suffix = dr["Suffix"] is DBNull ? string.Empty : (String)dr["Suffix"];
contact.EmailAddress = dr["EmailAddress"] is DBNull ? string.Empty : (String)dr["EmailAddress"];
contact.Password = dr["Password"] is DBNull ? string.Empty : (String)dr["Password"];
contact.EmailPromotion = dr["EmailPromotion"] is DBNull ? 0 : (Int32)dr["EmailPromotion"];
contact.ModifiedDate = dr["ModifiedDate"] is DBNull ? DateTime.MinValue : (DateTime)dr["ModifiedDate"];
contact.rowguid = dr["rowguid"] is DBNull ? Guid.Empty : (Guid)dr["rowguid"];
contact.AdditionalContactInfo = dr["AdditionalContactInfo"] is DBNull ? string.Empty : (String)dr["AdditionalContactInfo"];
  }
  }

  return contact;
  }
public List<Int32> GetContactIdEnumerator()
  {
  List<Int32> ids = new List<Int32>();
  const string sqlQuery = @"Select ContactID from dbo.[Contact]";
  using (SqlConnection sqlConnection = new SqlConnection(connectionString))
  {
  sqlConnection.Open();
  SqlCommand comm = new SqlCommand(sqlQuery, sqlConnection);
  DataSet dataSet = new DataSet();
  SqlDataAdapter adapter = new SqlDataAdapter(comm);
  adapter.Fill(dataSet, @"dbo.[Contact]");
  foreach (DataRow dr in dataSet.Tables[0].Rows)
  {
  ids.Add(dr["ContactID"] is DBNull ? 0 : (Int32)dr["ContactID"]);
  }
  }

  return ids;
  }

}

  3、Service.svc


<%@ ServiceHost Language="C#" Debug="true" Service="AdventureWorks2000WCFService" CodeBehind="~/App_Code/AdventureWorks2000WCFService.cs" %>
  4、Web.config

代码

<?xml version="1.0"?>
<!--
    Note: As an alternative to hand editing this file you can use the
    web admin tool to configure settings for your application. Use
    the Website->Asp.Net Configuration option in Visual Studio.
    A full list of settings and comments can be found in
    machine.config.comments usually located in
    \Windows\Microsoft.Net\Framework\v2.x\Config
-->
<configuration>
    <configSections>
        <sectionGroup name="system.web.extensions" type="System.Web.Configuration.SystemWebExtensionsSectionGroup, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35">
            <sectionGroup name="scripting" type="System.Web.Configuration.ScriptingSectionGroup, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35">
                <section name="scriptResourceHandler" type="System.Web.Configuration.ScriptingScriptResourceHandlerSection, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" requirePermission="false" allowDefinition="MachineToApplication"/>
                <sectionGroup name="webServices" type="System.Web.Configuration.ScriptingWebServicesSectionGroup, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35">
                    <section name="jsonSerialization" type="System.Web.Configuration.ScriptingJsonSerializationSection, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" requirePermission="false" allowDefinition="Everywhere"/>
                    <section name="profileService" type="System.Web.Configuration.ScriptingProfileServiceSection, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" requirePermission="false" allowDefinition="MachineToApplication"/>
                    <section name="authenticationService" type="System.Web.Configuration.ScriptingAuthenticationServiceSection, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" requirePermission="false" allowDefinition="MachineToApplication"/>
                    <section name="roleService" type="System.Web.Configuration.ScriptingRoleServiceSection, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" requirePermission="false" allowDefinition="MachineToApplication"/>
                </sectionGroup>
            </sectionGroup>
        </sectionGroup>
    </configSections>
    <appSettings/>
    <connectionStrings/>
    <system.web>
        <!--
            Set compilation debug="true" to insert debugging
            symbols into the compiled page. Because this
            affects performance, set this value to true only
            during development.
        -->
        <compilation debug="true">
            <assemblies>
                <add assembly="System.Core, Version=3.5.0.0, Culture=neutral, PublicKeyToken=B77A5C561934E089"/>
                <add assembly="System.Xml.Linq, Version=3.5.0.0, Culture=neutral, PublicKeyToken=B77A5C561934E089"/>
                <add assembly="System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"/>
                <add assembly="System.Data.DataSetExtensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=B77A5C561934E089"/>

      </assemblies>
        </compilation>
        <!--
            The <authentication> section enables configuration
            of the security authentication mode used by
            ASP.NET to identify an incoming user.
        -->
        <authentication mode="Windows"/>
        <!--
            The <customErrors> section enables configuration
            of what to do if/when an unhandled error occurs
            during the execution of a request. Specifically,
            it enables developers to configure html error pages
            to be displayed in place of a error stack trace.
        <customErrors mode="RemoteOnly" defaultRedirect="GenericErrorPage.htm">
            <error statusCode="403" redirect="NoAccess.htm" />
            <error statusCode="404" redirect="FileNotFound.htm" />
        </customErrors>
        -->
        <pages>
            <controls>
                <add tagPrefix="asp" namespace="System.Web.UI" assembly="System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"/>
            </controls>
        </pages>
        <httpHandlers>
            <remove verb="*" path="*.asmx"/>
            <add verb="*" path="*.asmx" validate="false" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"/>
            <add verb="*" path="*_AppService.axd" validate="false" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"/>
            <add verb="GET,HEAD" path="ScriptResource.axd" type="System.Web.Handlers.ScriptResourceHandler, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" validate="false"/>
        </httpHandlers>
        <httpModules>
            <add name="ScriptModule" type="System.Web.Handlers.ScriptModule, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"/>
        </httpModules>
    </system.web>
    <system.codedom>
        <compilers>
            <compiler language="c#;cs;csharp" extension=".cs" warningLevel="4" type="Microsoft.CSharp.CSharpCodeProvider, System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089">
                <providerOption name="CompilerVersion" value="v3.5"/>
                <providerOption name="WarnAsError" value="false"/>
            </compiler>
            <compiler language="vb;vbs;visualbasic;vbscript" extension=".vb" warningLevel="4" type="Microsoft.VisualBasic.VBCodeProvider, System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089">
                <providerOption name="CompilerVersion" value="v3.5"/>
                <providerOption name="OptionInfer" value="true"/>
                <providerOption name="WarnAsError" value="false"/>
            </compiler>
        </compilers>
    </system.codedom>
    <system.web.extensions>
        <scripting>
            <webServices>
                <!--
              Uncomment this section to enable the authentication service. Include
              requireSSL="true" if appropriate.
          <authenticationService enabled="true" requireSSL = "true|false"/>
          -->
                <!--
              Uncomment these lines to enable the profile service, and to choose the
              profile properties that can be retrieved and modified in ASP.NET AJAX
              applications.
           <profileService enabled="true"
                           readAccessProperties="propertyname1,propertyname2"
                           writeAccessProperties="propertyname1,propertyname2" />
          -->
                <!--
              Uncomment this section to enable the role service.
          <roleService enabled="true"/>
          -->
            </webServices>
            <!--
        <scriptResourceHandler enableCompression="true" enableCaching="true" />
        -->
        </scripting>
    </system.web.extensions>
    <!--
        The system.webServer section is required for running ASP.NET AJAX under Internet
        Information Services 7.0.  It is not necessary for previous version of IIS.
    -->
    <system.webServer>
        <validation validateIntegratedModeConfiguration="false"/>
        <modules>
            <add name="ScriptModule" preCondition="integratedMode" type="System.Web.Handlers.ScriptModule, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"/>
        </modules>
        <handlers>
            <remove name="WebServiceHandlerFactory-Integrated"/>
            <add name="ScriptHandlerFactory" verb="*" path="*.asmx" preCondition="integratedMode" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"/>
            <add name="ScriptHandlerFactoryAppServices" verb="*" path="*_AppService.axd" preCondition="integratedMode" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"/>
            <add name="ScriptResource" preCondition="integratedMode" verb="GET,HEAD" path="ScriptResource.axd" type="System.Web.Handlers.ScriptResourceHandler, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"/>
        </handlers>
    <directoryBrowse enabled="true" />
    </system.webServer>
    <system.serviceModel>
        <services>
            <service name="AdventureWorks2000WCFService" behaviorConfiguration="ServiceBehavior">
                <!-- Service Endpoints -->
                <endpoint address="" binding="basicHttpBinding" contract="IAdventureWorks2000WCFService">
                    <!--
              Upon deployment, the following identity element should be removed or replaced to reflect the
              identity under which the deployed service runs.  If removed, WCF will infer an appropriate identity
              automatically.
          -->
                    <identity>
                        <dns value="contact"/>
                    </identity>
                </endpoint>
                <endpoint address="mex" binding="mexHttpBinding" contract="IMetadataExchange"/>
            </service>
        </services>
    <behaviors>
            <serviceBehaviors>
                <behavior name="ServiceBehavior">
          <dataContractSerializer maxItemsInObjectGraph="2147483647"/>
                    <!-- To avoid disclosing metadata information, set the value below to false and remove the metadata endpoint above before deployment -->
                    <serviceMetadata httpGetEnabled="true"/>
                    <!-- To receive exception details in faults for debugging purposes, set the value below to true.  Set to false before deployment to avoid disclosing exception information -->
                    <serviceDebug includeExceptionDetailInFaults="false"/>
                </behavior>
            </serviceBehaviors>
        </behaviors>
    </system.serviceModel>
</configuration>


  参考资料
  spd external content type from wcf
  Large List Throttling for External Lists inSharePoint 2010
BCS PowerShell: Introduction and ThrottleManagement

运维网声明 1、欢迎大家加入本站运维交流群:群②:261659950 群⑤:202807635 群⑦870801961 群⑧679858003
2、本站所有主题由该帖子作者发表,该帖子作者与运维网享有帖子相关版权
3、所有作品的著作权均归原作者享有,请您和我们一样尊重他人的著作权等合法权益。如果您对作品感到满意,请购买正版
4、禁止制作、复制、发布和传播具有反动、淫秽、色情、暴力、凶杀等内容的信息,一经发现立即删除。若您因此触犯法律,一切后果自负,我们对此不承担任何责任
5、所有资源均系网友上传或者通过网络收集,我们仅提供一个展示、介绍、观摩学习的平台,我们不对其内容的准确性、可靠性、正当性、安全性、合法性等负责,亦不承担任何法律责任
6、所有作品仅供您个人学习、研究或欣赏,不得用于商业或者其他用途,否则,一切后果均由您自己承担,我们对此不承担任何法律责任
7、如涉及侵犯版权等问题,请您及时通知我们,我们将立即采取措施予以解决
8、联系人Email:admin@iyunv.com 网址:www.yunweiku.com

所有资源均系网友上传或者通过网络收集,我们仅提供一个展示、介绍、观摩学习的平台,我们不对其承担任何法律责任,如涉及侵犯版权等问题,请您及时通知我们,我们将立即处理,联系人Email:kefu@iyunv.com,QQ:1061981298 本贴地址:https://www.yunweiku.com/thread-118481-1-1.html 上篇帖子: Sharepoint之升级篇 下篇帖子: Sharepoint学习笔记—习题系列--70-573习题解析
您需要登录后才可以回帖 登录 | 立即注册

本版积分规则

扫码加入运维网微信交流群X

扫码加入运维网微信交流群

扫描二维码加入运维网微信交流群,最新一手资源尽在官方微信交流群!快快加入我们吧...

扫描微信二维码查看详情

客服E-mail:kefu@iyunv.com 客服QQ:1061981298


QQ群⑦:运维网交流群⑦ QQ群⑧:运维网交流群⑧ k8s群:运维网kubernetes交流群


提醒:禁止发布任何违反国家法律、法规的言论与图片等内容;本站内容均来自个人观点与网络等信息,非本站认同之观点.


本站大部分资源是网友从网上搜集分享而来,其版权均归原作者及其网站所有,我们尊重他人的合法权益,如有内容侵犯您的合法权益,请及时与我们联系进行核实删除!



合作伙伴: 青云cloud

快速回复 返回顶部 返回列表
