SharePoint 2013 Client Side Rendering

ms133

　　1. Client side rendering 代码结构为：



(function () {
// Create object that have the context information about the field that we want to change it's output render
var linkFilenameFiledContext = {};
linkFilenameFiledContext.Templates = {};
linkFilenameFiledContext.Templates.Fields = {
// Apply the new rendering for LinkFilename field on list view
"LinkFilename": { "View": linkFilenameFiledTemplate }
};
SPClientTemplates.TemplateManager.RegisterTemplateOverrides(linkFilenameFiledContext);
})();
　　2. Client Side Rendering 可以用来注册一个对象，这个对象用于去进行模板覆盖，对象包含以下几种属性：



View
Header
Body
Footer
Group
Item
Fields
OnPreRender
OnPostRende
　　3. Fields属性的格式为：overrideCtx.Templates.Fields = {FieldName : {Scope : Override}}, 使用ctx.CurrentFieldSchema.Name 来获取field的内部名称，例如：var priorityValue = ctx.CurrentItem[ctx.CurrentFieldSchema.Name]



FieldName - This is the internal name of the field you want to override.
Scope – This defines when to override the field. The choices are “View”,”DisplayForm”,”EditForm”, and “NewForm”.
Override – The actual override. This can be a HTML string with JavaScript embedded, or a function to be executed. In the former, it should be in the format: “<p> <#= ctx.CurrentItem.PercentComplete #></p>”, where “<p>” is just some HTML, and everything enclosed in “<#= #>” is JavaScript to be executed.

　　4. 使用clientform.js, clientpeoplepicker.js, 和autofill.js文件来生成client people picker：
　　页面代码：



<SharePoint:ScriptLink name="clientforms.js" runat="server" LoadAfterUI="true" Localizable="false" />
<SharePoint:ScriptLink name="clientpeoplepicker.js" runat="server" LoadAfterUI="true" Localizable="false" />
<SharePoint:ScriptLink name="autofill.js" runat="server" LoadAfterUI="true" Localizable="false" />
<div id="peoplePickerDiv"></div>
　　JS代码：



function initializePeoplePicker(peoplePickerElementId) {
// Create a schema to store picker properties, and set the properties.
var schema = {};
schema['PrincipalAccountType'] = 'User,DL,SecGroup,SPGroup';
schema['SearchPrincipalSource'] = 15;
schema['ResolvePrincipalSource'] = 15;
schema['AllowMultipleValues'] = true;
schema['MaximumEntitySuggestions'] = 50;
schema['Width'] = '280px';
// Render and initialize the picker.
// Pass the ID of the DOM element that contains the picker, an array of initial
// PickerEntity objects to set the picker value, and a schema that defines
// picker properties.
this.SPClientPeoplePicker_InitStandaloneControlWrapper(peoplePickerElementId, null, schema);
　　5. 修改View或者Field的显示方式时，需要使用clienttemplate.js文件，参考示例；
　　具体操作为：先创建一个对象来存储要更改对象的上下文信息，然后使用SPClientTemplates.TemplateManager.RegisterTemplateOverrides（）来注册这个对象进行覆盖；
　　修改View显示方式的JS代码：



(function () {
// Initialize the variable that store the objects.
var overrideCtx = {};
overrideCtx.Templates = {};

// Assign functions or plain html strings to the templateset objects:
// header, footer and item.
overrideCtx.Templates.Header = "<B><#=ctx.ListTitle#></B>" +
"<hr><ul id='unorderedlist'>";
// This template is assigned to the CustomItem function.
overrideCtx.Templates.Item = customItem;
overrideCtx.Templates.Footer = "</ul>";
// Set the template to the:
//  Custom list definition ID
//  Base view ID
overrideCtx.BaseViewID = 2;
overrideCtx.ListTemplateType = 10057;
// Assign a function to handle the
// PreRender and PostRender events
overrideCtx.OnPreRender = preRenderHandler;
overrideCtx.OnPostRender = postRenderHandler;
// Register the template overrides.
    SPClientTemplates.TemplateManager.RegisterTemplateOverrides(overrideCtx);
})();
// This function builds the output for the item template,
// it uses the context object to access announcement data.
function customItem(ctx) {
// Build a listitem entry for every announcement in the list.
var ret = "<li>" + ctx.CurrentItem.Title + "</li>";
return ret;
}
// The preRenderHandler handles the
// OnPreRender event
function preRenderHandler(ctx) {
// Override the default title with user input
ctx.ListTitle = prompt("Type a title", ctx.ListTitle);
}
// The postRenderHandler handles the
// OnPostRender event
function postRenderHandler(ctx) {
// You can manipulate the DOM
// in the postRender event
var ulObj;
var i, j;
ulObj = document.getElementById("unorderedlist");
// Reverse order the list
for (i = 1; i < ulObj.children.length; i++) {
var x = ulObj.children;
for (j = 1; j < ulObj.children.length; j++) {
var y = ulObj.children[j];
if(x.innerText<y.innerText){
ulObj.insertBefore(y, x);
}
}
}
}
　　修改Field显示方式的JS代码（可以为Field提供View, DisplayForm, EditForm, NewForm的显示模板）：



// List View – Priority Color Sample
// Muawiyah Shannak , @MuShannak

(function () {
// Create object that have the context information about the field that we want to change it's output render
var priorityFiledContext = {};
priorityFiledContext.Templates = {};
priorityFiledContext.Templates.Fields = {
// Apply the new rendering for Priority field on List View
"Priority": { "View": priorityFiledTemplate }
};
SPClientTemplates.TemplateManager.RegisterTemplateOverrides(priorityFiledContext);
})();
// This function provides the rendering logic for list view
function priorityFiledTemplate(ctx) {
var priority = ctx.CurrentItem[ctx.CurrentFieldSchema.Name];
// Return html element with appropriate color based on priority value
switch (priority) {
case "(1) High":
return "<span style='color :#f00'>" + priority + "</span>";
break;
case "(2) Normal":
return "<span style='color :#ff6a00'>" + priority + "</span>";
break;
case "(3) Low":
return "<span style='color :#cab023'>" + priority + "</span>";
}
}
　　为Field提交时注册事件的JS代码：



(function () {
// Create object that have the context information about the field that we want to change it's output render
var ageFiledContext = {};
ageFiledContext.Templates = {};
ageFiledContext.Templates.Fields = {
// Apply the new rendering for Age field on New and Edit forms
"Age": {
"NewForm": ageFiledTemplate,
"EditForm": ageFiledTemplate
}
};
SPClientTemplates.TemplateManager.RegisterTemplateOverrides(ageFiledContext);
})();

// This function provides the rendering logic
function ageFiledTemplate(ctx) {
var formCtx = SPClientTemplates.Utility.GetFormContextForCurrentField(ctx);
// Register a callback just before submit.
formCtx.registerGetValueCallback(formCtx.fieldName, function () {
return document.getElementById('inpAge').value;
});
// Render Html5 input (number)
return "<input type='number' id='inpAge' min='0' max='110' value='" + formCtx.fieldValue + "'/>";
}
　　
　　6. 在除浏览器地址栏之外的其它地方，尽量不要使用%20替代空格，否则，在非IE浏览器（例如Chrome）中不能够识别，比如：
　　此处如果使用%20，则在Chrome中不能工作。

　　 7. 为Field添加验证时需要用到 SPClientForms.ClientValidation 对象



　　 var validators = new SPClientForms.ClientValidation.ValidatorSet();
validators.RegisterValidator(new emailValidator());
// Validation failure handler.
    formCtx.registerValidationErrorCallback(formCtx.fieldName, emailOnError);
formCtx.registerClientValidator(formCtx.fieldName, validators);

// Custom validation object to validate email format
emailValidator = function () {
emailValidator.prototype.Validate = function (value) {
var isError = false;
var errorMessage = "";
//Email format Regex expression
var emailRejex = /\S+@\S+\.\S+/;
if (!emailRejex.test(value) && value.trim()) {
isError = true;
errorMessage = "Invalid email address";
}
//Send error message to error callback function (emailOnError)
return new SPClientForms.ClientValidation.ValidationResult(isError, errorMessage);
};
};
// Add error message to spnError element under the input field element
function emailOnError(error) {
document.getElementById("spnError").innerHTML = "<span role='alert'>" + error.errorMessage + "</span>";
}
　　8. 设置Field为只读时，可以使用SharePoint已有的javascript方法：



// List add and edit – ReadOnly SP Controls Sample

(function () {
// Create object that have the context information about the field that we want to change it's output render
var readonlyFiledContext = {};
readonlyFiledContext.Templates = {};
readonlyFiledContext.Templates.Fields = {
// Apply the new rendering for Age field on Edit forms
"Title": {
"EditForm": readonlyFieldTemplate
}
};
SPClientTemplates.TemplateManager.RegisterTemplateOverrides(readonlyFiledContext);
})();
// This function provides the rendering logic
function readonlyFieldTemplate(ctx) {
//Reuse ready sharepoint javascript libraries
switch (ctx.CurrentFieldSchema.FieldType) {
case "Text":
case "Number":
case "Integer":
case "Currency":
case "Choice":
case "Computed":
return SPField_FormDisplay_Default(ctx);
case "MultiChoice":
prepareMultiChoiceFieldValue(ctx);
return SPField_FormDisplay_Default(ctx);
case "Boolean":
return SPField_FormDisplay_DefaultNoEncode(ctx);
case "Note":
prepareNoteFieldValue(ctx);
return SPFieldNote_Display(ctx);
case "File":
return SPFieldFile_Display(ctx);
case "Lookup":
case "LookupMulti":
return SPFieldLookup_Display(ctx);
case "URL":
return RenderFieldValueDefault(ctx);
case "User":
prepareUserFieldValue(ctx);
return SPFieldUser_Display(ctx);
case "UserMulti":
prepareUserFieldValue(ctx);
return SPFieldUserMulti_Display(ctx);
case "DateTime":
return SPFieldDateTime_Display(ctx);
case "Attachments":
return SPFieldAttachments_Default(ctx);
case "TaxonomyFieldType":
//Re-use ready sharepoint inside sp.ui.taxonomy.js javascript libraries
return SP.UI.Taxonomy.TaxonomyFieldTemplate.renderDisplayControl(ctx);
}
}
//User control need specific formatted value to render content correctly
function prepareUserFieldValue(ctx) {
var item = ctx['CurrentItem'];
var userField = item[ctx.CurrentFieldSchema.Name];
var fieldValue = "";
for (var i = 0; i < userField.length; i++) {
fieldValue += userField.EntityData.SPUserID + SPClientTemplates.Utility.UserLookupDelimitString + userField.DisplayText;
if ((i + 1) != userField.length) {
fieldValue += SPClientTemplates.Utility.UserLookupDelimitString
}
}
ctx["CurrentFieldValue"] = fieldValue;
}
//Choice control need specific formatted value to render content correctly
function prepareMultiChoiceFieldValue(ctx) {
if (ctx["CurrentFieldValue"]) {
var fieldValue = ctx["CurrentFieldValue"];
var find = ';#';
var regExpObj = new RegExp(find, 'g');
fieldValue = fieldValue.replace(regExpObj, '; ');
fieldValue = fieldValue.replace(/^; /g, '');
fieldValue = fieldValue.replace(/; $/g, '');
ctx["CurrentFieldValue"] = fieldValue;
}
}
//Note control need specific formatted value to render content correctly
function prepareNoteFieldValue(ctx) {
if (ctx["CurrentFieldValue"]) {
var fieldValue = ctx["CurrentFieldValue"];
fieldValue = "<div>" + fieldValue.replace(/\n/g, '<br />'); + "</div>";
ctx["CurrentFieldValue"] = fieldValue;
}
}
　　8. 隐藏Field时，可以在OnPostRender事件中使用jQuery方法：



(function () {
// jQuery library is required in this sample
// Fallback to loading jQuery from a CDN path if the local is unavailable
(window.jQuery || document.write('<script src="//ajax.aspnetcdn.com/ajax/jquery/jquery-1.10.0.min.js"><\/script>'));
// Create object that have the context information about the field that we want to change it's output render
var hiddenFiledContext = {};
hiddenFiledContext.Templates = {};
hiddenFiledContext.Templates.OnPostRender = hiddenFiledOnPreRender;
hiddenFiledContext.Templates.Fields = {
// Apply the new rendering for Age field on New and Edit forms
"Predecessors": {
"NewForm": hiddenFiledTemplate,
"EditForm": hiddenFiledTemplate
}
};
SPClientTemplates.TemplateManager.RegisterTemplateOverrides(hiddenFiledContext);
})();

// This function provides the rendering logic
function hiddenFiledTemplate() {
return "<span class='csrHiddenField'></span>";
}
// This function provides the rendering logic
function hiddenFiledOnPreRender(ctx) {
jQuery(".csrHiddenField").closest("tr").hide();
}
　　 9. 使用sp.ui.controls.js文件来定义client chrome control，需要使用jQuery或MicrosoftAjax.js来支持：



// Prepare the options and render the control
// The Help, Account and Contact pages receive the
//   same query string parameters as the main page
var options = {
"appIconUrl": "../Images/AppIcon.png",
"appTitle": "Basic tasks using the JSOM",
"appHelpPageUrl": "Help.html?"
+ document.URL.split("?")[1],
"settingsLinks": [
{
"linkUrl": "Account.html?"
+ document.URL.split("?")[1],
"displayName": "Account settings"
},
{
"linkUrl": "Contact.html?"
+ document.URL.split("?")[1],
"displayName": "Contact us"
}
]
};
var nav = new SP.UI.Controls.Navigation(
"chrome_ctrl_placeholder",
options
);
nav.setVisible(true);
　　效果为：

　　

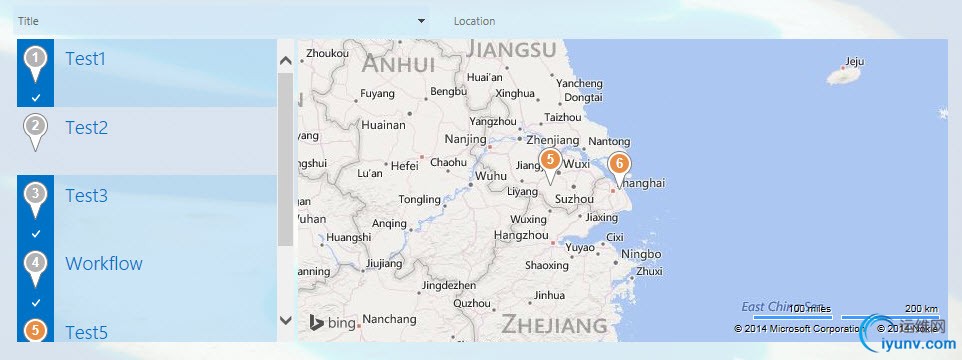

　　10. mapviewtemplate.js用来设置一个含有geolocation类型字段的视图，效果如下：

　　11.
