How To： 用 SharePoint 计算列做出你自己的KPI列表

lakers009

关于这个计算列的应用我是利用公司的网络在国外的blog看到的，国内需要FQ才能看到，真不知道这有什么可封的，唉……分享给大家吧：）　　要做成这个KPI效果需要一个辅助的Column。我先简单叙述一下场景。一个SharePoint Task列表，我们要根据Today和Due Date两个时间之间的关系来显示不同的KPI。

　　
　　规则是这样的：
　　1 Today < Due Date = Green Status Icon
　　2 Today >= Due Date = Red Status Icon
　　3 Due Date not filled out = N/A

　　
　　1 Create Today Column. Column type is "Date and Time".

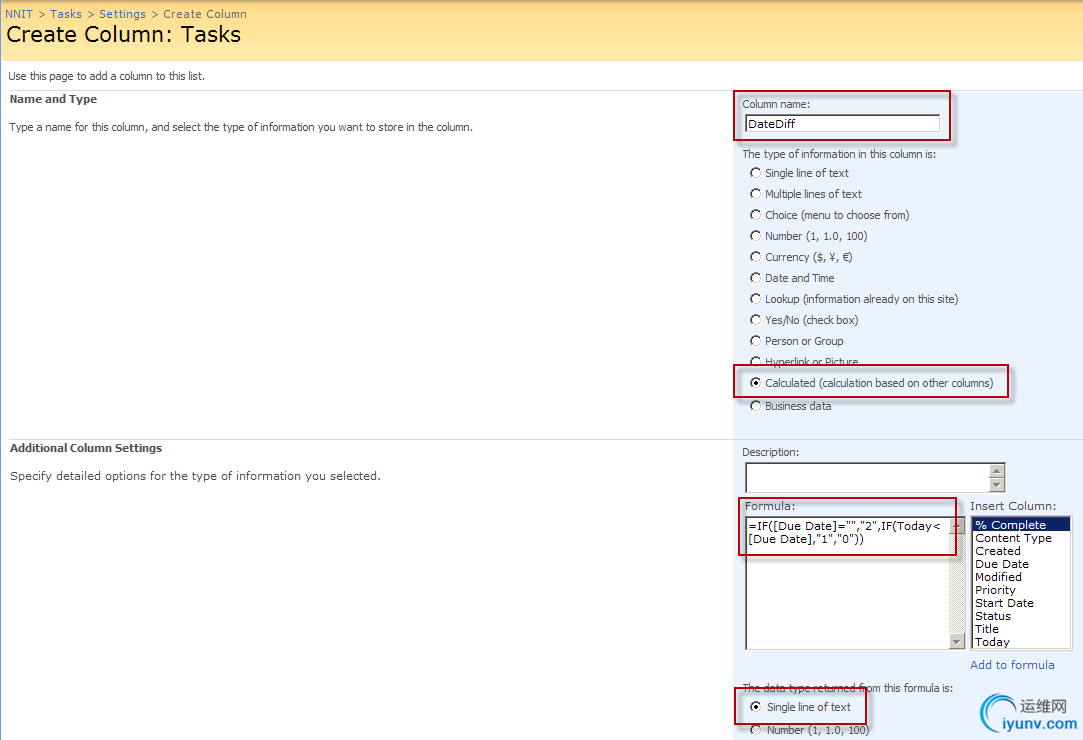

　　2 Create the first Calculated Column and named "DateDiff".

　　3 Input formula: =IF([Due Date]="";"2";IF(Today<[Due Date];"1";"0")).
　　"0" : Today >= Due Date
　　"1" : Today < Due Date
　　"2" : Due Date = ""

　　4 Select "Single line of text" of "The data type returned from this formula is".



　　5 Upload icons to the picture library which we want to use.

　　6 Back to the list. Create "Status Icon" column. Column Type is "Calculated". "The data type returned from this formula" is "Single line of text". Input the formula:
　　=IF([DateDiff]="1","<DIV></DIV>",IF([DateDiff]="0","<DIV></DIV>",IF([DateDiff]="2","N/A")))

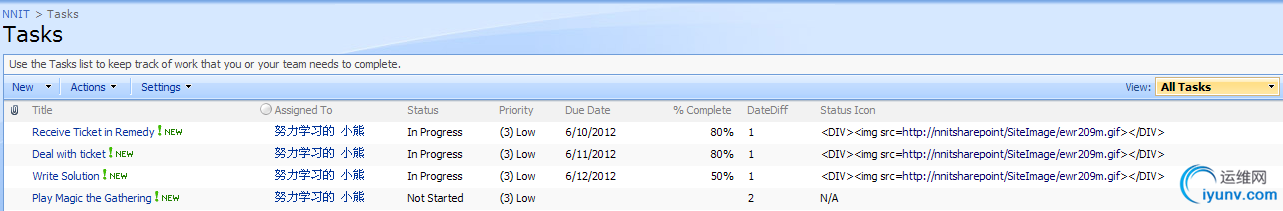

　　7 We will get this result of this list.

　　8 Now we have to change HTML to a picture.
　　Add a Content Editor Web Part to the page and add it below the Tasks Web Part. And input its content.

　　


    <script type="text/javascript">
    //
    // Text to HTML
    //
    var theTDS = document.getElementsByTagName("TD");
    var i=0;
    var TDContent = "";
    while(i < theTDS.length){
    try {
    TDContent = theTDS.innerText||theTDS.textContent;
    if ((TDContent.indexOf("<DIV")==0) && (TDContent.indexOf("</DIV>")>=0)){
    theTDS.innerHTML = TDContent;
    }
    }
    catch(err){}
    i=i+1;
    }
    //
    // ExpGroupRenderData overwrites the default SharePoint function
    // This part is needed for collapsed groupings
    //
    function ExpGroupRenderData(htmlToRender, groupName, isLoaded){
    var tbody = document.getElementById("tbod"+groupName+"_");
    var wrapDiv = document.createElement("DIV");
    wrapDiv.innerHTML = "<TABLE><TBODY id=\"tbod"+groupName+"_\" isLoaded=\""+isLoaded+"\">"+htmlToRender+"</TBODY></TABLE>";
    var theTBODYTDs = wrapDiv.getElementsByTagName("TD");
    var j=0;
    var TDContent = "";
    while(j < theTBODYTDs.length){
    try{
    TDContent = theTBODYTDs[j].innerText||theTBODYTDs[j].textContent;
    if((TDContent.indexOf("<DIV")==0) && (TDContent.indexOf("</DIV>")>=0)){
    theTBODYTDs[j].innerHTML = TDContent;
    }
    }
    catch(err){}
    j=j+1;
    }
    tbody.parentNode.replaceChild(wrapDiv.firstChild.firstChild, tbody);
    }
    </script>　　

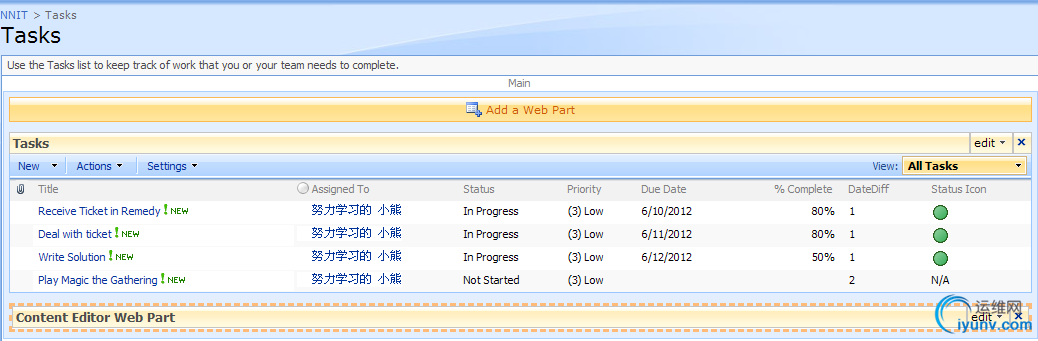

　　9 We will see the result like this.

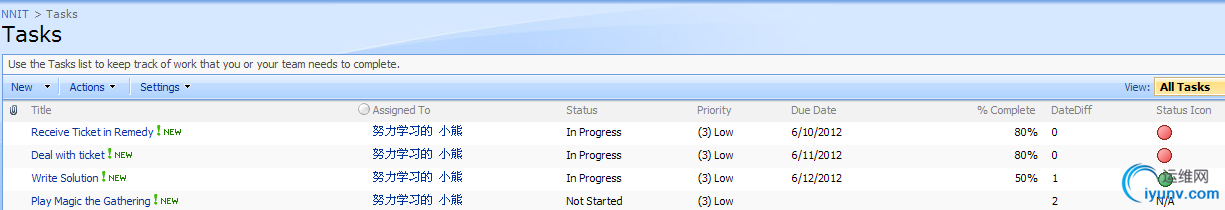

　　10 Delete the Today column. We get the correct result.



　　
　　原文地址： http://sharepointpratik.blogspot.dk/2011/06/add-image-to-custom-list-with_30.html（需要FQ）
