[经验分享] SharePoint 2007 and 2010 的服务器场的端口

[复制链接]

尚未签到

发表于 2015-9-29 08:50:37 | 显示全部楼层 |阅读模式
  由于要把一台SharePoint Server放到外网去,就把IP改到DMZ区了,结果除了系统管理员,其他帐号都无法验证通过,肯定是一些端口没开.
  网上一查,SharePoint所需要的端口还真多,不过Client和WFE之间的应该开放80和443就OK了,其余的都是SharePoint Server之间,或者和
  公司网络环境的. 具体如下:
SharePoint 2007 Ports
  Inbound/Outbound
  From
  Port
  Type
  To
  Inbound
  Client IPs (as applicable)
  TCP 80 or 443 (SSL)
  HTTP
  ISA Web Pub or WFE
  Inbound
  TS Jump point
  RDP (TCP 3389)
  For Remote Admin
  APP (Central Admin /SSP Admin)
  Inbound
  All SharePoint Server (Depends on Central Admin configuration)
  Office Server Web Services, TCP 56737, SSL 56738
  HTTP
  App - Central Admin /SSP Admin
  (Web Service Control)
  Inbound
  Index
  TCP 80 or 443
  WFE
  Outbound
  ALL SharePoint Servers
  (Based on Authentication)
  DS (TCP 445)
  RPC (TCP 135)
  DNS (TCP/UDP 53)
  Kerberos (UDP 88)
  LDAP/S (UDP 389/636)
  DC (AD) /DNS (LDAP)
  Outbound
  External Content
  DNS (TCP/UDP 53)
  DNS
  Outbound/(Inbound if applicable)
  WFE
  (alerts or mail enabled list)
  SMTP (TCP 25)
  SMTP/Exchange
  Outbound
  ALL SharePoint Servers
  SQL (TCP 1433, UDP 1434) or custom port for Named SQL Instance
  SQL Server Tabular Data Stream (TDS)
  SQL Server
  Outbound
  WFE (Search Request)
  Search Query, either NBT (TCP/UDP 137, 138,139) or Direct-hosted SMB (TCP/UDP 445)
  Server Message Block (SMB)
  Query
  Outbound
  Index (Propagation)
  Search Query, either NBT (TCP/UDP 137, 138,139) or Direct-hosted SMB (TCP/UDP 445)
  Query
  Outbound
  Index (File Shares)
  Either NBT (TCP/UDP 137, 138,139) or Direct-hosted SMB (TCP/UDP 445)
  Server Message Block (SMB)
  External Content
  Outbound
  Index (BDC)
  SQL (TCP 1433, UDP 1434) or custom port
  External Content
  Outbound
  WFE (SSO)
  RPC for SSO – (TCP 135), plus random high ports (Dynamic RPC) or restricted high ports (Static RPC)
  APP Servers
  Outbound
  WFE
  TPC 80, TCP 443, TCP (custom)
  HTTP
  Index Server (search crawling)
  Outbound
  Index (Search Crawling)
  TPC 80, TCP 443, TCP (custom)
  HTTP
  WDE
  Outbound
  Index (Sites)
  TPC 80, TCP 443, TCP (custom)
  External Content
SharePoint 2010 Ports
  SharePoint 2010 uses the same ports as SharePoint 2010, but there are a few changes that relate to new services
  Inbound/Outbound
  From
  Port
  Type
  To
  Inbound
  Service Application
  32843, 32844 (HTTPS), 32845 (net.tcp binding)
  HTTP
  SharePoint Web Service
  Inbound
  All SharePoint Servers, but where Forefront Identity Management agent is installed
  TCP/5725
TCP/UDP 389 (LDAP service)
TCP/UDP 88 (Kerberos)
TCP/UDP 53 (DNS)
UDP 464 (Kerberos Change Password)
-  Active Directory
  Outbound
  Web Front End Server
  TCP/5725
TCP/UDP 389 (LDAP service)
TCP/UDP 88 (Kerberos)
TCP/UDP 53 (DNS)
UDP 464 (Kerberos Change Password)
-  Microsoft SharePoint Foundation User Code Service (for sandbox solutions

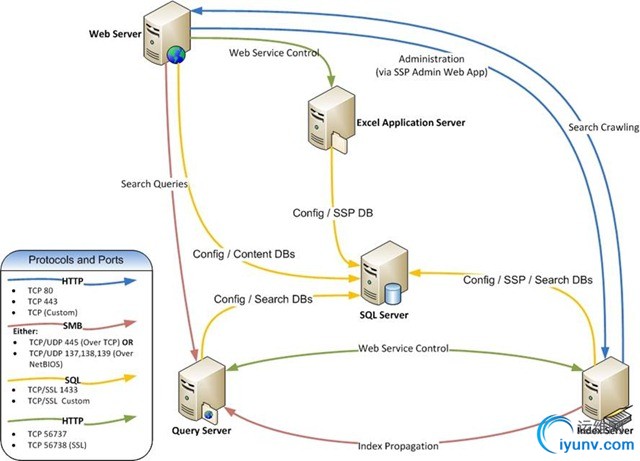

Inter-server communications of SharePoint 2007

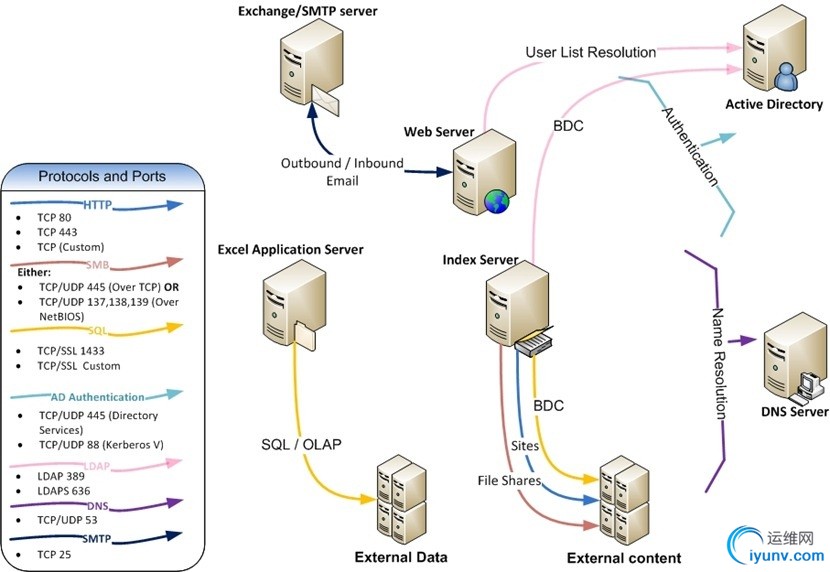

Extra -server communications of SharePoint 2007

  参考资料:
  http://support.microsoft.com/kb/832017
  http://technet.microsoft.com/zh-cn/library/cc262849.aspx
  http://msmvps.com/blogs/laflour/archive/2009/11/04/sharepoint-2007-farm-ports-configuring-firewall.aspx
