SharePoint 应用的开发学习笔记（二）

zenmbu

　　使用Visual Studio.NET 开发Web Parts（Web部件）

对SharePoint进行扩充的一个最好的方法就是开发自己的Web部件，但是在开发Web部件之前首先要下载Web Part Templates for Visual Studio .NET：（http://www.microsoft.com/downloads/details.aspx?FamilyId=14D5D92F-C3A6-407C-AAD7-B8C41A4991BE&displaylang=en）。

Web部件与普通的asp.net自定义控件没有什么区别，如果你具有开发asp.net自定义控件的经验的话，开发Web部件就轻车熟路了。

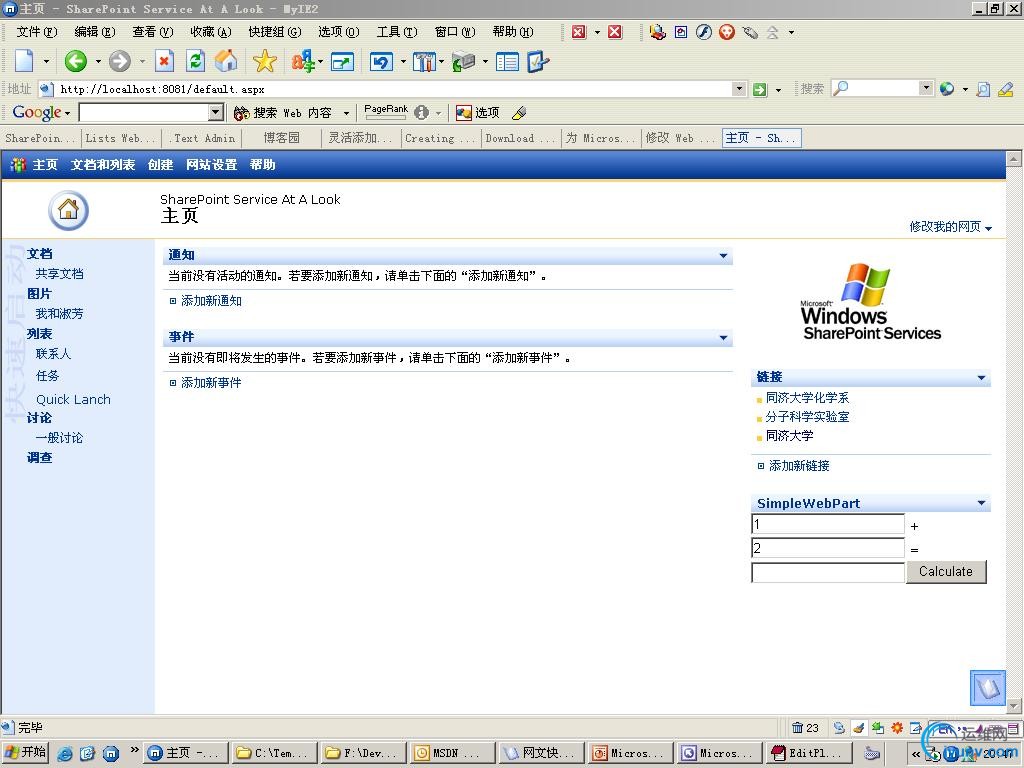

下面是我自己开发的一个很简单的Web部件，如图右下角的SimpleWebPart（实现了简单的加法运算）：



using System;
using System.ComponentModel;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Xml.Serialization;
using Microsoft.SharePoint;
using Microsoft.SharePoint.Utilities;
using Microsoft.SharePoint.WebPartPages;
　　namespace MyWebParts
{
/// <summary>
/// Description for WebPart1.
/// </summary>
[DefaultProperty(&quot;Text&quot;),
  ToolboxData(&quot;<{0}:WebPart1 runat=server></{0}:SimpleWebPart>&quot;),
  XmlRoot(Namespace=&quot;MyWebParts&quot;)]
public class SimpleWebPart : Microsoft.SharePoint.WebPartPages.WebPart
{
  protected TextBox txtValue1;
  protected TextBox txtValue2;
  protected TextBox txtResult;
　　protected Label lblOp;
  protected Label lblEq;
  protected Button btnCalc;
　　//private const string defaultText = &quot;&quot;;
　　//private string text = defaultText;
　　//  [Browsable(true),
//   Category(&quot;Miscellaneous&quot;),
//   DefaultValue(defaultText),
//   WebPartStorage(Storage.Personal),
//   FriendlyName(&quot;Text&quot;),
//   Description(&quot;Text Property&quot;)]
//  public string Text
//  {
//   get
//   {
//    return text;
//   }
//
//   set
//   {
//    text = value;
//   }
//  }

  private bool calcEnabled = true;
  [Browsable(true),
   Description(&quot;是否启用计算功能！&quot;),
   WebPartStorage(Storage.Personal),
   FriendlyName(&quot;允许计算&quot;),
   DefaultValue(true),
   Category(&quot;自定义&quot;)
  ]
  public bool CalcEnabled
  {
   get
   {
    return calcEnabled;
   }
   set
   {
    calcEnabled = value;
    if( this.btnCalc != null )
    {
     this.btnCalc.Enabled = value;
    }
   }
  }
  /// <summary>
  /// This method gets the custom tool parts for this Web Part by overriding the
  /// GetToolParts method of the WebPart base class. You must implement
  /// custom tool parts in a separate class that derives from
  /// Microsoft.SharePoint.WebPartPages.ToolPart.
  /// </summary>
  ///<returns>An array of references to ToolPart objects.</returns>
//  public override ToolPart[] GetToolParts()
//  {
//   ToolPart[] toolparts = new ToolPart[2];
//   WebPartToolPart wptp = new WebPartToolPart();
//   CustomPropertyToolPart custom = new CustomPropertyToolPart();
//   custom.Expand(&quot;自定义&quot;);
//   toolparts[0] = custom;
//   toolparts[1] = wptp;
//   return toolparts;
//  }

  /// <summary>
  /// Render this Web Part to the output parameter specified.
  /// </summary>
  /// <param name=&quot;output&quot;> The HTML writer to write out to </param>
  protected override void RenderWebPart(HtmlTextWriter output)
  {
   //output.Write(SPEncode.HtmlEncode(Text));
   EnsureChildControls();
   output.RenderBeginTag(&quot;div&quot;);
   //RenderChildren(output);
   this.txtValue1.RenderControl(output);
   output.AddStyleAttribute(HtmlTextWriterStyle.FontWeight,&quot;bold&quot;);
   output.RenderBeginTag(&quot;span&quot;);
   this.lblOp.RenderControl(output);
   output.RenderEndTag();  //span

   this.txtValue2.RenderControl(output);

   this.lblEq.RenderControl(output);
　　this.txtResult.RenderControl(output);
   this.btnCalc.RenderControl(output);
　　output.RenderEndTag(); //div

  }
  protected override void CreateChildControls()
  {
   //初始化文本框
   txtValue1 = new TextBox();
   txtValue2 = new TextBox();
   txtValue1.Text = &quot;1&quot;;
   txtValue2.Text = &quot;2&quot;;
　　lblOp = new Label();
   lblOp.Text = &quot; + &quot;;
   lblEq = new Label();
   lblEq.Text = &quot; = &quot;;
   txtResult = new TextBox();
   txtResult.ReadOnly = true;
   btnCalc = new Button();
   btnCalc.Text = &quot;Calculate&quot;;
   btnCalc.Click += new EventHandler(btnCalc_Click);
   btnCalc.Enabled = calcEnabled;
   Controls.Add(txtValue1);
   Controls.Add(lblOp);
   Controls.Add(txtValue2);
   Controls.Add(lblEq);
   Controls.Add(txtResult);
   Controls.Add(btnCalc);

   base.CreateChildControls ();
  }
　　public void btnCalc_Click(object sender,System.EventArgs e)
  {
   if( txtValue1.Text.Trim().Length > 0 && txtValue2.Text.Trim().Length > 0 )
   {
    this.txtResult.Text = Convert.ToString(Convert.ToDouble(txtValue1.Text) + Convert.ToDouble(txtValue2.Text));
   }
  }
　　}
}

从上面的代码可以看出，一般来说自定义的WebPart 都继承自Microsoft.SharePoint.WebPartPages.WebPart，而不是继承自WebControl。

详细的可以参考：http://msdn.microsoft.com/library/default.asp?url=/library/en-us/spptsdk/html/CreateABasicWP.asp
