OS:RHEL6.4
OpenStack version:Havana
控制节点：xianghui-controller 10.7.0.170
计算节点：xianghui-compute 10.7.0.176
1. 为了在RHEL6.4上支持GRE，需要添加RDO源：
http://repos.fedorapeople.org/repos/openstack/openstack-havana/epel-6/
下载下面两个包并安装
kernel-2.6.32-358.114.1.openstack.el6.gre.2.x86_64.rpm
kernel-firmware-2.6.32-358.114.1.openstack.el6.gre.2.noarch.rpm
[iyunv@xianghui-controller ~]# rpm -ivh kernel-2.6.32-358.114.1.openstack.el6.gre.2.x86_64.rpm kernel-firmware-2.6.32-358.114.1.openstack.el6.gre.2.noarch.rpm
warning: kernel-2.6.32-358.114.1.openstack.el6.gre.2.x86_64.rpm: Header V4 RSA/SHA1 Signature, key ID 2bc7c801: NOKEY
Preparing... ########################################### [100%]
1:kernel-firmware ########################################### [ 50%]
2:kernel ########################################### [100%]
安装的openvswitch版本：
[iyunv@xianghui-controller ~]# rpm -qa|grep openvswitch
openvswitch-1.10.0-3.ibm.x86_64
2. 配置Neutron conf files:
控制节点：
/etc/neutron/neutron.conf
[default]
#core_plugin = neutron.plugins.openvswitch.ovs_neutron_plugin.OVSNeutronPluginV2
core_plugin = neutron.plugins.ml2.plugin.Ml2Plugin
[database]
connection = mysql://neutron:neutron@10.7.0.170/ovs_neutron
/etc/neutron/plugins/ml2/ml2_conf.ini
[ml2]
type_drivers = gre
tenant_network_types = gre
[ml2_type_gre]
tunnel_id_ranges = 15:1000
/etc/neutron/plugins/openvswitch/ovs_neutron_plugin.ini
enable_tunneling = True
local_ip = 10.7.0.170
计算节点：
/etc/neutron/plugins/openvswitch/ovs_neutron_plugin.ini
enable_tunneling = True
local_ip = 10.7.0.176
3. 重启Neutron服务
[iyunv@xianghui-controller ~]# service neutron-dhcp-agent restart
[iyunv@xianghui-controller ~]# service neutron-openvswitch-agent restart
# 停掉原来的neutron-server, 按照下面的方式启动neutron-server
[iyunv@xianghui-controller ~]# /usr/bin/python /usr/bin/neutron-server --config-file /etc/neutron/neutron.conf --config-file /etc/neutron/plugin.ini --config-file /etc/neutron/plugins/ml2/ml2_conf.ini --log-file /var/log/neutron/server.log &
[iyunv@xianghui-compute ~]# service neutron-openvswitch-agent restart
检查虚拟桥br-int, br-tun
[iyunv@xianghui-controller ~]# ovs-vsctl show
Bridge br-int
Port "tap6ea55329-d8"
tag: 1
Interface "tap6ea55329-d8"
type: internal
Port "qvobedc859e-83"
tag: 1
Interface "qvobedc859e-83"
Port patch-tun
Interface patch-tun
type: patch
options: {peer=patch-int}
Port br-int
Interface br-int
type: internal
Bridge br-tun
Port br-tun
Interface br-tun
type: internal
Port "gre-10.7.0.176"
Interface "gre-10.7.0.176"
type: gre
options: {in_key=flow, local_ip="10.7.0.170", out_key=flow, remote_ip="10.7.0.176"}
Port patch-int
Interface patch-int
type: patch
options: {peer=patch-tun}
ovs_version: "1.10.0"
检查dhcpserver
[iyunv@xianghui-compute01 ~]# ps -ef|grep dnsmasq
nobody 7011 1 0 02:42 ? 00:00:00 /usr/sbin/dnsmasq --no-hosts --no-resolv --strict-order --bind-interfaces --interface=tap6ea55329-d8 --except-interface=lo --pid-file=/var/lib/neutron/dhcp/58b10b02-4e79-4c4f-ab5f-68f53b544d82/pid --dhcp-hostsfile=/var/lib/neutron/dhcp/58b10b02-4e79-4c4f-ab5f-68f53b544d82/host --dhcp-optsfile=/var/lib/neutron/dhcp/58b10b02-4e79-4c4f-ab5f-68f53b544d82/opts --leasefile-ro --dhcp-range=set:tag0,80.0.80.0,static,86400s --dhcp-lease-max=256 --conf-file= --domain=openstacklocal
root 10401 23847 0 02:50 pts/0 00:00:00 grep dnsmasq[iyunv@xianghui-compute01 ~]# ifconfig tap6ea55329-d8
tap6ea55329-d8 Link encap:Ethernet HWaddr FA:16:3E:AA:44:18
inet addr:80.0.80.2 Bcast:80.0.80.255 Mask:255.255.255.0
inet6 addr: fe80::9485:86ff:febd:71b3/64 Scope:Link
UP BROADCAST RUNNING MTU:1500 Metric:1
RX packets:185 errors:0 dropped:0 overruns:0 frame:0
TX packets:107 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:11966 (11.6 KiB) TX bytes:8346 (8.1 KiB)
4. 创建gre网络
[iyunv@xianghui-controller ~]# neutron net-create net_gre --provider:network_type gre --provider:segmentation_id 500
+---------------------------+--------------------------------------+
| Field | Value |
+---------------------------+--------------------------------------+
| admin_state_up | True |
| id | 58b10b02-4e79-4c4f-ab5f-68f53b544d82 |
| name | net_gre |
| provider:network_type | gre |
| provider:physical_network | |
| provider:segmentation_id | 500 |
| router:external | False |
| shared | False |
| status | ACTIVE |
| subnets | b4e6e40f-fa4d-4ed5-afcd-8fff5fa6a28b |
| tenant_id | e73608fb6764404294624317905297c1 |
+---------------------------+--------------------------------------+
[iyunv@xianghui-controller ~]# neutron subnet-create --ip_version 4 net_gre 80.0.80.0/24
+------------------+----------------------------------------------+
| Field | Value |
+------------------+----------------------------------------------+
| allocation_pools | {"start": "80.0.80.2", "end": "80.0.80.254"} |
| cidr | 80.0.80.0/24 |
| dns_nameservers | |
| enable_dhcp | True |
| gateway_ip | 80.0.80.1 |
| host_routes | |
| id | b4e6e40f-fa4d-4ed5-afcd-8fff5fa6a28b |
| ip_version | 4 |
| name | |
| network_id | 58b10b02-4e79-4c4f-ab5f-68f53b544d82 |
| tenant_id | e73608fb6764404294624317905297c1 |
+------------------+----------------------------------------------+
[iyunv@xianghui-controller ~]# neutron net-list
+--------------------------------------+---------+---------------------------------------------------+
| id | name | subnets |
+--------------------------------------+---------+---------------------------------------------------+
| 58b10b02-4e79-4c4f-ab5f-68f53b544d82 | net_gre | b4e6e40f-fa4d-4ed5-afcd-8fff5fa6a28b 80.0.80.0/24 |
+--------------------------------------+---------+---------------------------------------------------+
5. 创建虚拟机
#创建user_key, 免密码登陆
[iyunv@xianghui-controller ~]# nova keypair-add --pub_key ~/.ssh/id_rsa.pub user_key
#指定host为nova zone下面的xianghui-compute,
因为还有其他compute节点
[iyunv@xianghui-controller ~]# nova boot --image b2e468ff-57fb-44e6-bd28-ba1ead8d7fb8 --flavor 2 --nic net-id=58b10b02-4e79-4c4f-ab5f-
68f53b544d82 --key-name user_key --availability-zone nova:xianghui-compute test_gre_1
[iyunv@xianghui-controller ~]# nova list
+--------------------------------------+------------+--------+------------+-------------+-------------------+
| ID | Name | Status | Task State | Power State | Networks |
+--------------------------------------+------------+--------+------------+-------------+-------------------+
| 683472cd-586d-44b5-93e9-a5dc62bdd2aa | test_gre_1 | ACTIVE | None | Running | net_gre=80.0.80.7 |
+--------------------------------------+------------+--------+------------+-------------+-------------------+
[iyunv@xianghui-controller ~]# ping 80.0.80.7
PING 80.0.80.7 (80.0.80.7) 56(84) bytes of data.
64 bytes from 80.0.80.7: icmp_seq=1 ttl=64 time=1.79 ms
64 bytes from 80.0.80.7: icmp_seq=2 ttl=64 time=0.401 ms
6.截获networking packets

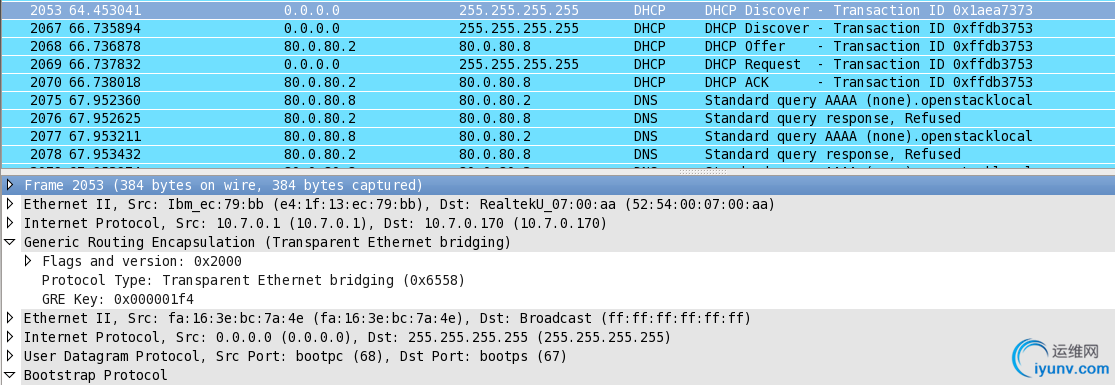

虚拟机系统启动时的dhcp client discover packets

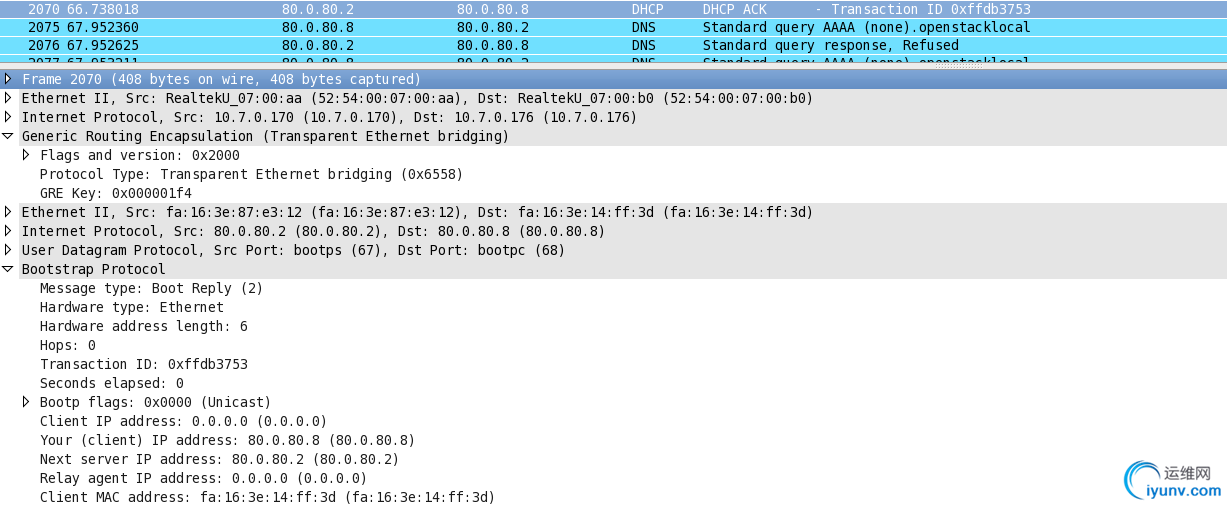

dhcp server reply packets, dhcpserver(80.0.80.2)分给client 80.0.80.8
Details:
No. Time Source Destination Protocol Info
2070 66.738018 80.0.80.2 80.0.80.8 DHCP DHCP ACK - Transaction ID 0xffdb3753
Frame 2070 (408 bytes on wire, 408 bytes captured)
Ethernet II, Src: RealtekU_07:00:aa (52:54:00:07:00:aa), Dst: RealtekU_07:00:b0 (52:54:00:07:00:b0)
Destination: RealtekU_07:00:b0 (52:54:00:07:00:b0)
Address: RealtekU_07:00:b0 (52:54:00:07:00:b0)
.... ...0 .... .... .... .... = IG bit: Individual address (unicast)
.... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default)
Source: RealtekU_07:00:aa (52:54:00:07:00:aa)
Address: RealtekU_07:00:aa (52:54:00:07:00:aa)
.... ...0 .... .... .... .... = IG bit: Individual address (unicast)
.... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default)
Type: IP (0x0800)
Internet Protocol, Src: 10.7.0.170 (10.7.0.170), Dst: 10.7.0.176 (10.7.0.176)
Version: 4
Header length: 20 bytes
Differentiated Services Field: 0x00 (DSCP 0x00: Default; ECN: 0x00)
0000 00.. = Differentiated Services Codepoint: Default (0x00)
.... ..0. = ECN-Capable Transport (ECT): 0
.... ...0 = ECN-CE: 0
Total Length: 394
Identification: 0xcae0 (51936)
Flags: 0x02 (Don't Fragment)
0.. = Reserved bit: Not Set
.1. = Don't fragment: Set
..0 = More fragments: Not Set
Fragment offset: 0
Time to live: 64
Protocol: GRE (0x2f)
Header checksum: 0x58fd [correct]
[Good: True]
[Bad : False]
Source: 10.7.0.170 (10.7.0.170)
Destination: 10.7.0.176 (10.7.0.176)
Generic Routing Encapsulation (Transparent Ethernet bridging)
Flags and version: 0x2000
Protocol Type: Transparent Ethernet bridging (0x6558)
GRE Key: 0x000001f4
Ethernet II, Src: fa:16:3e:87:e3:12 (fa:16:3e:87:e3:12), Dst: fa:16:3e:14:ff:3d (fa:16:3e:14:ff:3d)
Destination: fa:16:3e:14:ff:3d (fa:16:3e:14:ff:3d)
Address: fa:16:3e:14:ff:3d (fa:16:3e:14:ff:3d)
.... ...0 .... .... .... .... = IG bit: Individual address (unicast)
.... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default)
Source: fa:16:3e:87:e3:12 (fa:16:3e:87:e3:12)
Address: fa:16:3e:87:e3:12 (fa:16:3e:87:e3:12)
.... ...0 .... .... .... .... = IG bit: Individual address (unicast)
.... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default)
Type: IP (0x0800)
Internet Protocol, Src: 80.0.80.2 (80.0.80.2), Dst: 80.0.80.8 (80.0.80.8)
Version: 4
Header length: 20 bytes
Differentiated Services Field: 0xc0 (DSCP 0x30: Class Selector 6; ECN: 0x00)
1100 00.. = Differentiated Services Codepoint: Class Selector 6 (0x30)
.... ..0. = ECN-Capable Transport (ECT): 0
.... ...0 = ECN-CE: 0
Total Length: 352
Identification: 0xcae0 (51936)
Flags: 0x00
0.. = Reserved bit: Not Set
.0. = Don't fragment: Not Set
..0 = More fragments: Not Set
Fragment offset: 0
Time to live: 64
Protocol: UDP (0x11)
Header checksum: 0x6de2 [correct]
[Good: True]
[Bad : False]
Source: 80.0.80.2 (80.0.80.2)
Destination: 80.0.80.8 (80.0.80.8)
User Datagram Protocol, Src Port: bootps (67), Dst Port: bootpc (68)
Source port: bootps (67)
Destination port: bootpc (68)
Length: 332
Checksum: 0x6ac4 [validation disabled]
[Good Checksum: False]
[Bad Checksum: False]
Bootstrap Protocol
Message type: Boot Reply (2)
Hardware type: Ethernet
Hardware address length: 6
Hops: 0
Transaction ID: 0xffdb3753
Seconds elapsed: 0
Bootp flags: 0x0000 (Unicast)
Client IP address: 0.0.0.0 (0.0.0.0)
Your (client) IP address: 80.0.80.8 (80.0.80.8)
Next server IP address: 80.0.80.2 (80.0.80.2)
Relay agent IP address: 0.0.0.0 (0.0.0.0)
Client MAC address: fa:16:3e:14:ff:3d (fa:16:3e:14:ff:3d)
Client hardware address padding: 00000000000000000000
Server host name not given
Boot file name not given
Magic cookie: (OK)
Option: (t=53,l=1) DHCP Message Type = DHCP ACK
Option: (53) DHCP Message Type
Length: 1
Value: 05
Option: (t=54,l=4) DHCP Server Identifier = 80.0.80.2
Option: (54) DHCP Server Identifier
Length: 4
Value: 50005002
Option: (t=51,l=4) IP Address Lease Time = 1 day
Option: (51) IP Address Lease Time
Length: 4
Value: 00015180
Option: (t=58,l=4) Renewal Time Value = 12 hours
Option: (58) Renewal Time Value
Length: 4
Value: 0000A8C0
Option: (t=59,l=4) Rebinding Time Value = 21 hours
Option: (59) Rebinding Time Value
Length: 4
Value: 00012750
Option: (t=1,l=4) Subnet Mask = 255.255.255.0
Option: (1) Subnet Mask
Length: 4
Value: FFFFFF00
Option: (t=28,l=4) Broadcast Address = 80.0.80.255
Option: (28) Broadcast Address
Length: 4
Value: 500050FF
Option: (t=6,l=4) Domain Name Server = 80.0.80.2
Option: (6) Domain Name Server
Length: 4
Value: 50005002
Option: (t=15,l=14) Domain Name = "openstacklocal"
Option: (15) Domain Name
Length: 14
Value: 6F70656E737461636B6C6F63616C
Option: (t=12,l=14) Host Name = "host-80-0-80-8"
Option: (12) Host Name
Length: 14
Value: 686F73742D38302D302D38302D38
Option: (t=3,l=4) Router = 80.0.80.1
Option: (3) Router
Length: 4
Value: 50005001
End Option
