Heartbeat的编译安装配置

hgrewe

一、准备工作
Heartbeat 3.0.6:

1	# wget http://hg.linux-ha.org/heartbeat ... 58e11be8686.tar.bz2

Cluster Glue 1.0.12:

1	# wget http://hg.linux-ha.org/glue/archive/0a7add1d9996.tar.bz2

Resource Agents 3.9.6:

1	# wget https://github.com/ClusterLabs/r ... chive/v3.9.6.tar.gz

1 2 3 4

# yum install gcc gcc-c++ autoconf automake libtool glib2-devel libxml2-devel bzip2 bzip2-devel e2fsprogs-devel libxslt-devel libtool-ltdl-devel asciidoc # groupadd haclient # useradd -g haclient hacluster # yum install httpd

二、编译Cluster Glue

1 2 3 4 5 6

# tar -jxvf cluster-clue-1.0.12.tar.bz2 # cd Reusable-Cluster-Components-glue--0a7add1d9996/ # ./autogen.sh # ./configure --prefix=/usr/local/heartbeat --with-daemon-user=hacluster --with-daemon-group=haclient --enable-fatal-warnings=no LIBS='/lib64/libuuid.so.1'  ##注:32位系统去掉64 # make # make install

编译错误1:

1 2 3 4 5

Making all in libltdl gmake[1]: 进入目录“/root/Reusable-Cluster-Components-glue--0a7add1d9996/libltdl” gmake[1]: *** 没有规则可以创建目标“all”。 停止。 gmake[1]: 离开目录“/root/Reusable-Cluster-Components-glue--0a7add1d9996/libltdl” make: *** [all-recursive] 错误 1

解决:

1	# yum install libtool-ltdl-devel

编译错误2:

1 2 3 4 5 6

collect2: error: ld returned 1 exit status gmake[2]: *** [ipctest] 错误 1 gmake[2]: 离开目录“/root/Reusable-Cluster-Components-glue--0a7add1d9996/lib/clplumbing” gmake[1]: *** [all-recursive] 错误 1 gmake[1]: 离开目录“/root/Reusable-Cluster-Components-glue--0a7add1d9996/lib” make: *** [all-recursive] 错误 1

解决:

1	# ./configure --prefix=/usr/local/heartbeat --with-daemon-user=hacluster --with-daemon-group=haclient --enable-fatal-warnings=no LIBS='/lib64/libuuid.so.1'

注:如使用32位系统时，将LIBS改为LIBS='/lib/libuuid.so.1'

编译错误3:

1 2 3 4 5 6

gmake[2]: a2x：命令未找到 gmake[2]: *** [hb_report.8] 错误 127 gmake[2]: 离开目录“/root/Reusable-Cluster-Components-glue--0a7add1d9996/doc” gmake[1]: *** [all-recursive] 错误 1 gmake[1]: 离开目录“/root/Reusable-Cluster-Components-glue--0a7add1d9996/doc” make: *** [all-recursive] 错误 1

解决:

1	# yum install asciidoc

三、编译Resource Agents

1 2 3 4 5 6

# tar -zxvf resource-agents-3.9.6.tar.gz # cd resource-agents-3.9.6 # ./autogen.sh #./configure --prefix=/usr/local/heartbeat --with-daemon-user=hacluster --with-daemon-group=haclient --enable-fatal-warnings=no LIBS='/lib64/libuuid.so.1' # make # make install

四、编译Heartbeat

1 2 3 4 5 6 7

# tar -jxvf heartbeat-3.0.6.tar.bz2 # cd Heartbeat-3-0-958e11be8686/ # ./bootstrap # export CFLAGS="$CFLAGS -I/usr/local/heartbeat/include -L/usr/local/heartbeat/lib" # ./configure --prefix=/usr/local/heartbeat --with-daemon-user=hacluster --with-daemon-group=haclient --enable-fatal-warnings=no LIBS='/lib64/libuuid.so.1' # make # make install

1 2 3 4 5 6 7 8

# cp doc/{ha.cf,haresources,authkeys} /usr/local/heartbeat/etc/ha.d/ # chkconfig --add heartbeat # chkconfig heartbeat on # chmod 600 /usr/local/heartbeat/etc/ha.d/authkeys # mkdir -pv /usr/local/heartbeat/usr/lib/ocf/lib/heartbeat/ # cp /usr/lib/ocf/lib/heartbeat/ocf-* /usr/local/heartbeat/usr/lib/ocf/lib/heartbeat/ # ln -svf /usr/local/heartbeat/lib64/heartbeat/plugins/RAExec/* /usr/local/heartbeat/lib/heartbeat/plugins/RAExec/ # ln -svf /usr/local/heartbeat/lib64/heartbeat/plugins/* /usr/local/heartbeat/lib/heartbeat/plugins/

编译错误1:

1 2 3 4 5 6 7 8 9 10 11 12

checking heartbeat/glue_config.h usability... no checking heartbeat/glue_config.h presence... no checking for heartbeat/glue_config.h... no configure: error: in `/root/Heartbeat-3-0-958e11be8686': configure: error: Core development headers were not found See `config.log' for more details checking heartbeat/glue_config.h usability... no checking heartbeat/glue_config.h presence... no checking for heartbeat/glue_config.h... no configure: error: in `/root/Heartbeat-3-0-958e11be8686': configure: error: Core development headers were not found See `config.log' for more details

解决:

1	# export CFLAGS="$CFLAGS -I/usr/local/heartbeat/include -L/usr/local/heartbeat/lib"

编译错误2:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

In file included from ../include/lha_internal.h:41:0,                  from uuid_parse.c:25: /usr/local/heartbeat/include/heartbeat/glue_config.h:105:0: error: "HA_HBCONF_DIR" redefined [-Werror] #define HA_HBCONF_DIR "/usr/local/heartbeat/etc/ha.d/" ^ In file included from ../include/lha_internal.h:38:0,                  from uuid_parse.c:25: ../include/config.h:390:0: note: this is the location of the previous definition #define HA_HBCONF_DIR "/usr/local/heartbeat/etc/ha.d" ^ uuid_parse.c:36:26: fatal error: replace_uuid.h: No such file or directory #include <replace_uuid.h>                           ^ cc1: all warnings being treated as errors compilation terminated. gmake[1]: *** [uuid_parse.lo] 错误 1 gmake[1]: 离开目录“/root/Heartbeat-3-0-958e11be8686/replace” make: *** [all-recursive] 错误 1

解决:

1	# ./configure --prefix=/usr/local/heartbeat --with-daemon-user=hacluster --with-daemon-group=haclient --enable-fatal-warnings=no LIBS='/lib64/libuuid.so.1'

五、Heartbeat配置
Heartbeat的配置主要涉及到ha.cf、haresources、authkeys这三个文件。其中ha.cf是主配置文件，haresource用来配置要让Heartbeat托管的服务，authkey是用来指定Heartbeat的认证方式。


1.配置ha.cf----主配置文件

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

# cat /usr/local/heartbeat/etc/ha.d/ha.cf  |grep ^[^#] debugfile /var/log/ha-debug           ##用于记录heartbeat的调试信息 logfile/var/log/ha-log                ##用于记录heartbeat的日志信息 logfacilitylocal0                    ##设置heartbeat的日志,这里用的是系统日志 keepalive 2                              ##设定心跳(监测)时间时间为2秒 deadtime 30         ##指定若备用节点在30秒内未收到主节点心跳信号,则接管主服务器资源 warntime 10           ##指定心跳延迟的时间为10秒,10秒内备节点不能接收主节点心跳信号，                         即往日志写入警告日志，但不会切换服务 initdead 120         ##系统启动或重启后预留的忽略时间段，取值至少为deadtime的两倍 udpport  694                         ##广播/单播通讯使用的Udp端口 bcast eno16777736  # Linux             ##使用网卡eno16777736发送心跳检测 #mcast eth0 225.0.0.1 694 1 0        ##采用网卡eth0的Udp多播来组织心跳，一般在备用节点 不止一台时使用。Bcast、ucast和mcast分别代表广播、单播和多播，是组织心跳的的方式，任选其一 #ucast eno16777736 192.168.10.133        ##采用网卡eno16777736的udp单播来组织心跳，后面跟的IP地址为双机对方IP地址 auto_failback on                 ##定义当主节点恢复后，是否将服务自动切回 #watchdog /dev/watchdog         ##可选配置，通过Heartbeat监控系统运行状态。 node node1                     ##主节点名称，与uname -n显示一致 node node2                      ##备用节点名称 ping 192.168.10.1                ##通过ping网关检测心跳是否正常，仅用来测试网络 respawn hacluster /usr/local/heartbeat/libexec/heartbeat/ipfail   ##指定和heartbeat一起启动、关闭的进程，可选 #apiauth ipfail gid=haclient uid=hacluster     ##设置启动IPfail的用户和组

注：
①watchdog /dev/watchdog:可选配置，通过Heartbeat监控系统运行状态。该特性需在内核中载入"softdog"内核模块,用来生成实际的设备文件，如系统中没有该模块，需进行指定，重新编译内核。编译完成输入 "insmod softdog"加载模块，然后输入"grep misc  /proc/devices"，输入"cat /proc/misc |grep watchdog"，最后生成设备文件:"mknod /dev/watchdog c 10 130" 即可使用

②espawn hacluster /usr/lib/heartbeat/ipfail:指定和heartbeat一起启动、关闭的进程，可选。这些进程一般是和heartbeat集成的插件，遇到故障可自动重启。IPfail进程用于检测和处理网络故障，需配合ping语句指定ping node检测网络连通性;hacluster表示启动IPfail进程的用户。


2.配置haresources-----资源文件
Haresources文件用于指定双机系统的主节点、集群IP、子网掩码、广播地址及启动服务集群资源，
文件每一行可包含一个或多个资源脚本名，资源间使用空格隔开，参数间使用两个冒号隔开，主节点
和备份节点中资源文件haresources要完全一样。

一般格式为:
node-name network  <resource-group>
node-name表示主节点的主机名，必须和ha.cf文件中指定的节点名一致。network用于设定集群的
IP地址、子网掩码和网络设备标识等。resource-group用于指定需Heartbeat托管的服务(即这些
服务可由Heartbeat来启动和关闭)。

注意:这里指定的IP地址就是集群对外服务的IP地址;
     如要托管这些服务，必须将服务写成可通过start/stop来启动或关闭的脚本，放到/etc/init.d/
     或/etc/ha.d/resource.d/目录下，Heartbeat会根据脚本名称自动去/etc/init.d或者
     /etc/ha.d/resource.d目录下找到相应脚本进行启动或关闭操作。

1 2	# cat /usr/local/heartbeat/etc/ha.d/haresources |grep -v "#" node1  IPaddr::192.168.10.222/24/eno16777736

HA-01是HA集群的主节点，IPaddr为heartbeat自带的执行脚本，heartbeat首先将执行/etc/ha.d/resource.d/IPaddr 192.168.10.111/24 start的操作，即虚拟一个子网掩码为255.255.255.0，
IP为192.168.10.111的地址，此IP为heartbeat对外提供服务的网络地址，同时指定此IP使用的
网络接口

注:如下有haresources详细中文解释

http://blog.iyunv.com/uid-20788470-id-1841644.html

3.配置authkeys-----心跳密钥验证文件

1 2 3

# grep -v "#" /usr/local/heartbeat/etc/ha.d/authkeys auth 2 2 sha1 HI!

注:auth后填序号，可任意填写，但第二行开头必须为序号名，然后为验证方式，支持三种( crc md5 sha1 )方式验证，最后面是自定义密钥。

六、配置双机互信(可选)并复制文件至备机

HA-01(192.168.10.132):

1 2	ssh-keygen -t rsa -f ~/.ssh/id_rsa -P '' ssh-copy-id -i .ssh/id_rsa.pub root@192.168.10.133

HA-02(192.168.10.133):

1 2	ssh-keygen -t rsa -f ~/.ssh/id_rsa -P '' ssh-copy-id -i .ssh/id_rsa.pub root@192.168.10.132

复制配置文件至备机:

1	# scp /usr/local/heartbeat/etc/ha.d/* root@192.168.10.133:/usr/local/heartbeat/etc/ha.d/

七、测试

1 2 3 4

# systemctl start httpd # /etc/init.d/heartbeat start                   ##开启heartbeat # getenforce 0 # systemctl stop firewalld

查看log信息

1 2 3 4 5 6

# tail /var/log/ha-log Oct 26 10:07:18 node1 heartbeat: [2063]: ERROR: Illegal directive [ucast] in /usr/local/heartbeat/etc/ha.d//ha.cf Oct 26 10:07:18 node1 heartbeat: [2063]: ERROR: Illegal directive [ping] in /usr/local/heartbeat/etc/ha.d//ha.cf Oct 26 10:07:18 node1 heartbeat: [2063]: ERROR: Client child command [/usr/lib/heartbeat/ipfail] is not executable Oct 26 10:07:18 node1 heartbeat: [2063]: ERROR: Heartbeat not started: configuration error. Oct 26 10:07:18 node1 heartbeat: [2063]: ERROR: Configuration error, heartbeat not started.

问题解决:
更改IPfail路径:

1	respawn hacluster /usr/local/heartbeat/libexec/heartbeat/ipfail

建立plugin软链接:

1 2	# ln -svf /usr/local/heartbeat/lib64/heartbeat/plugins/RAExec/* /usr/local/heartbeat/lib/heartbeat/plugins/RAExec/ # ln -svf /usr/local/heartbeat/lib64/heartbeat/plugins/* /usr/local/heartbeat/lib/heartbeat/plugins/

继续查看log信息

1 2 3 4 5 6 7 8 9 10 11

# tail /var/log/ha-log Oct 26 13:11:46 node1 heartbeat: [9744]: info: remote resource transition completed. Oct 26 13:11:46 node1 heartbeat: [9744]: info: node1 wants to go standby [foreign] Oct 26 13:11:46 node1 heartbeat: [9744]: info: standby: node2 can take our foreign resources Oct 26 13:11:46 node1 heartbeat: [11892]: info: give up foreign HA resources (standby). Oct 26 13:11:46 node1 heartbeat: [11892]: info: foreign HA resource release completed (standby). Oct 26 13:11:46 node1 heartbeat: [9744]: info: Local standby process completed [foreign]. Oct 26 13:11:47 node1 heartbeat: [9744]: WARN: 1 lost packet(s) for [node2] [11:13] Oct 26 13:11:47 node1 heartbeat: [9744]: info: remote resource transition completed. Oct 26 13:11:47 node1 heartbeat: [9744]: info: No pkts missing from node2! Oct 26 13:11:47 node1 heartbeat: [9744]: info: Other node completed standby takeover of foreign resources.

问题解决:

1 2	# vi /usr/local/heartbeat/etc/ha.d/haresources node1  IPaddr::192.168.10.222/24/eno16777736

注:haresources下需添加IPaddr::

问题:

1 2 3 4 5 6 7 8 9 10 11

# tail /var/log/ha-log Oct 26 17:01:55 node1 heartbeat: [1755]: WARN: Message hist queue is filling up (425 messages in queue) Oct 26 17:01:56 node1 heartbeat: [1755]: WARN: Message hist queue is filling up (426 messages in queue) Oct 26 17:01:57 node1 heartbeat: [1755]: WARN: Message hist queue is filling up (427 messages in queue) Oct 26 17:01:57 node1 heartbeat: [1755]: WARN: Message hist queue is filling up (428 messages in queue) Oct 26 17:01:58 node1 heartbeat: [1755]: WARN: Message hist queue is filling up (429 messages in queue) Oct 26 17:01:59 node1 heartbeat: [1755]: WARN: Message hist queue is filling up (430 messages in queue) Oct 26 17:01:59 node1 heartbeat: [1755]: WARN: Message hist queue is filling up (431 messages in queue) Oct 26 17:02:00 node1 heartbeat: [1755]: WARN: Message hist queue is filling up (432 messages in queue) Oct 26 17:02:01 node1 heartbeat: [1755]: WARN: Message hist queue is filling up (433 messages in queue) Oct 26 17:02:01 node1 heartbeat: [1755]: WARN: Message hist queue is filling up (434 messages in queue)

解决:node2未关闭防火墙，systemctl stop firewalld关闭防火墙问题解决

问题:

1 2 3

# tail /var/log/ha-log IPaddr(IPaddr_192.168.10.222)[6854]:2015/10/26_17:20:58 ERROR: Setup problem: couldn't find command: ifconfig /usr/lib/ocf/resource.d//heartbeat/IPaddr(IPaddr_192.168.10.222)[6828]:2015/10/26_17:20:58 ERROR:  Program is not installed

解决:yum install net-tools后即可使用ifconfig命令

重启heartbeat，继续查看log信息:

1 2 3 4 5 6 7 8 9 10 11 12

# systemctl restart hearbeat # tail /var/log/ha-log Oct 26 19:25:36 node1 heartbeat: [1783]: info: Configuration validated. Starting heartbeat 3.0.6 Oct 26 19:25:37 node1 heartbeat: [1783]: info: heartbeat: version 3.0.6 Oct 26 19:25:37 node1 heartbeat: [1783]: info: Heartbeat generation: 1445827146 Oct 26 19:25:37 node1 heartbeat: [1783]: info: glib: UDP Broadcast heartbeat started on port 694 (694) interface eno16777736 Oct 26 19:25:37 node1 heartbeat: [1783]: info: glib: UDP Broadcast heartbeat closed on port 694 interface eno16777736 - Status: 1 Oct 26 19:25:37 node1 heartbeat: [1783]: info: glib: ping heartbeat started. Oct 26 19:25:37 node1 heartbeat: [1783]: info: Local status now set to: 'up' Oct 26 19:25:37 node1 heartbeat: [1783]: info: Link 192.168.10.1:192.168.10.1 up. Oct 26 19:25:37 node1 heartbeat: [1783]: info: Status update for node 192.168.10.1: status ping Oct 26 19:25:37 node1 heartbeat: [1783]: info: Link node1:eno16777736 up.

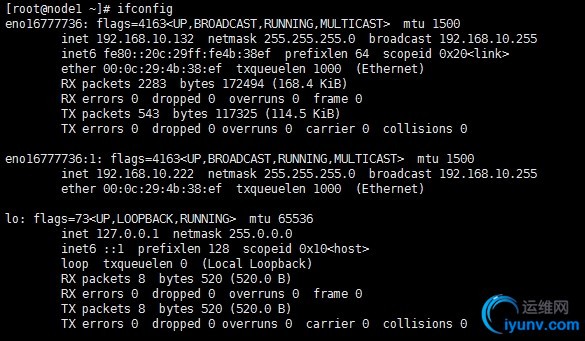

使用ifconfig命令查看


浏览器输入http://localhost查看

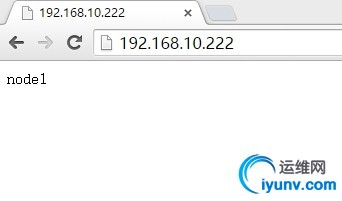

down掉node1节点，查看会不会漂移至node2节点
node1:

1	# systemctl stop heartbeat

node2:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

# tail  /var/log/ha-log mach_down(default)[1937]:2015/10/26_20:03:58 info: Taking over resource group IPaddr::192.168.10.222/24/eno16777736 ResourceManager(default)[1964]:2015/10/26_20:03:58 info: Acquiring resource group: node1 IPaddr::192.168.10.222/24/eno16777736 /usr/lib/ocf/resource.d//heartbeat/IPaddr(IPaddr_192.168.10.222)[1992]:2015/10/26_20:03:58 INFO:  Resource is stopped ResourceManager(default)[1964]:2015/10/26_20:03:58 info: Running /usr/local/heartbeat/etc/ha.d//resource.d/IPaddr 192.168.10.222/24/eno16777736 start IPaddr(IPaddr_192.168.10.222)[2083]:2015/10/26_20:03:58 INFO: Using calculated netmask for 192.168.10.222: 255.255.255.0 IPaddr(IPaddr_192.168.10.222)[2083]:2015/10/26_20:03:58 INFO: eval ifconfig eno16777736:0 192.168.10.222 netmask 255.255.255.0 broadcast 192.168.10.255 /usr/lib/ocf/resource.d//heartbeat/IPaddr(IPaddr_192.168.10.222)[2057]:2015/10/26_20:03:58 INFO:  Success mach_down(default)[1937]:2015/10/26_20:03:58 info: /usr/local/heartbeat/share/heartbeat/mach_down: nice_failback: foreign resources acquired mach_down(default)[1937]:2015/10/26_20:03:58 info: mach_down takeover complete for node node1. Oct 26 20:03:58 node2 heartbeat: [1711]: info: mach_down takeover complete. mach_down(default)[1937]:2015/10/26_20:03:58 info: mach_down takeover complete for node node1. Oct 26 20:03:58 node2 heartbeat: [1711]: info: mach_down takeover complete. Oct 26 20:04:29 node2 heartbeat: [1711]: WARN: node node1: is dead Oct 26 20:04:29 node2 heartbeat: [1711]: info: Dead node node1 gave up resources. Oct 26 20:04:29 node2 heartbeat: [1711]: info: Link node1:eno16777736 dead. Oct 26 20:04:29 node2 ipfail: [1737]: info: Status update: Node node1 now has status dead Oct 26 20:04:29 node2 ipfail: [1737]: info: NS: We are still alive! Oct 26 20:04:29 node2 ipfail: [1737]: info: Link Status update: Link node1/eno16777736 now has status dead Oct 26 20:04:30 node2 ipfail: [1737]: info: Asking other side for ping node count. Oct 26 20:04:30 node2 ipfail: [1737]: info: Checking remote count of ping nodes.

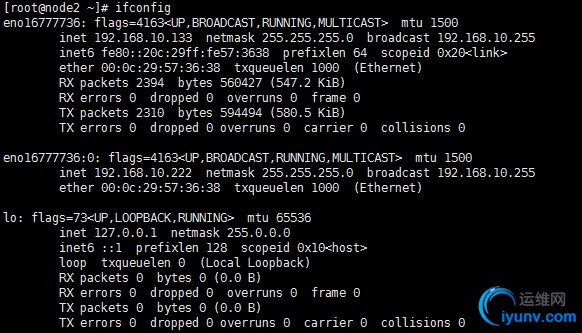

使用ifconfig命令查看IP是否漂移至node2:

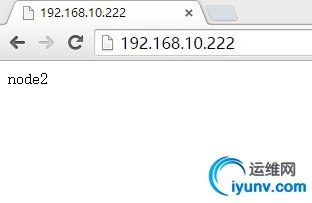

IP已漂移至node2，使用浏览器输入http://localhost查看

OK啦！
