源码编译zabbix服务端和客户端

34543

系统环境：CentOS6.6_64 Minimal
软件版本：zabbix2.4.4
下载地址：http://www.zabbix.com/download.php  //如果打不开网页，修复本地hosts可解决问题


编译安装zabbix   //服务器端
cd /usr/local/src/
tar zxvf zabbix-2.4.4.tar.gz
cd zabbix-2.4.4
yum -y install java java-devel  //如果不需要监控tomcat，此条可省略
yum install -y net-snmp-devel mysql-devel curl-devel libcurl-devel libssh2-devel.x86_64 php-pecl-ssh2.x86_64
./configure --prefix=/usr/local/zabbix --enable-server --enable-agent --with-mysql --enable-ipv6 --with-net-snmp --with-libcurl --with-ssh2  --with-libxml2 --enable-java
make && make install


创建用户组
groupadd zabbix
useradd -M zabbix -g zabbix -s /sbin/nologin


vim /etc/my.cnf  //查看sock路径
ll /tmp/mysql.sock  //sock是否存在


配置数据库及权限
/usr/local/mysql/bin/mysqladmin -u "root" password "password"  //为默认用户设置密码
mysql -uroot -p -e "create database zabbix default charset utf8"
mysql -uroot -p -e "grant all on zabbix.* to 'zabbix'@'localhost' identified by 'zabbix123'"
mysql -uroot -p --default-character-set=utf8 zabbix < /usr/local/src/zabbix-2.4.4/database/mysql/schema.sql
mysql -uroot -p --default-character-set=utf8 zabbix < /usr/local/src/zabbix-2.4.4/database/mysql/images.sql
mysql -uroot -p --default-character-set=utf8 zabbix < /usr/local/src/zabbix-2.4.4/database/mysql/data.sql


复制zabbix_server/agentd启动文件并设置开机启动
cp misc/init.d/fedora/core/zabbix_server /etc/init.d/
vim /etc/init.d/zabbix_server   //修改22 BASEDIR=/usr/local/zabbix
chmod 755 /etc/init.d/zabbix_server
chkconfig --add zabbix_server
chkconfig zabbix_server on
cp misc/init.d/fedora/core/zabbix_agentd /etc/init.d/
vim /etc/init.d/zabbix_agentd   //修改22 BASEDIR=/usr/local/zabbix
chmod 755 /etc/init.d/zabbix_agentd
chkconfig --add zabbix_agentd
chkconfig zabbix_agentd on


复制zabbix 网页文件到apache目录下
cp -R frontends/php /usr/local/apache2/htdocs/zabbix


修改zabbix_server.conf 中的数据库用户密码
sed -i 's/^DBUser=.*$/DBUser=zabbix/g' /usr/local/zabbix/etc/zabbix_server.conf
sed -i 's/^. DBPassword=.*$/DBPassword=zabbix123/g' /usr/local/zabbix/etc/zabbix_server.conf
109 DBSocket=/tmp/mysql.sock
198 JavaGateway=127.0.0.1
206 JavaGatewayPort=10052
214 StartJavaPollers=5


添加服务端口 //此步骤省略 仅供参考，当然加上也不会报错
cat >>/etc/services <<EOF
zabbix-agent 10050/tcp Zabbix Agent
zabbix-agent 10050/udp Zabbix Agent
zabbix-trapper 10051/tcp Zabbix Trapper
zabbix-trapper 10051/udp Zabbix Trapper
EOF


启动服务
service zabbix_server start;service zabbix_agentd start
ps aux |grep zabbix
netstat -lnp |grep 10050  //查看10050端口


网页安装 修改相关错误
http://IP/zabbix   //默认用户名密码 admin zabbix
sed -i 's/^post_max_size.*$/post_max_size = 16M/g' /usr/local/php/etc/php.ini
sed -i 's/^max_execution_time.*$/max_execution_time = 300/g' /usr/local/php/etc/php.ini
sed -i 's/^max_input_time.*$/max_input_time = 300/g' /usr/local/php/etc/php.ini
sed -i 's/^.date.timezone.*$/date.timezone = PRC/g' /usr/local/php/etc/php.ini
chmod 777 /usr/local/apache2/htdocs/zabbix/conf/
/usr/local/apache2/bin/apachectl restart


修改监控图形字体乱码
cd /usr/local/src/
cp simsun.ttc /usr/local/apache2/htdocs/zabbix/fonts/DejaVuSans.ttf   //编译安装路径
mv simsun.ttc /usr/share/fonts/dejavu/DejaVuSans.ttf   //YUM安装路径


错误信息：
zabbix server is not running: the information displayed may not be curren
Can't connect to local MySQL server through socket '/var/lib/mysql/mysql.sock' (2)
netstat -lnp |grep 10051    //监听不到10051端口
解决办法：
sed -i 's/^. DBSocket=.*$/DBSocket=/tmp/mysql.sock/g' /usr/local/zabbix/etc/zabbix_server.conf




添加iptables
vim /etc/sysconfi/iptables
-A INPUT -m state --state NEW -m tcp -p tcp --dport 80 -j ACCEPT
-A INPUT -m state --state NEW -m tcp -p tcp --dport 10050 -j ACCEPT
-A INPUT -m state --state NEW -m tcp -p tcp --dport 10051 -j ACCEPT
service iptables restart




编译安装zabbix   //linux客户端
cd /usr/local/src/
tar zxvf zabbix-2.4.4.tar.gz
cd zabbix-2.4.4
groupadd zabbix
useradd -M zabbix -g zabbix -s /sbin/nologin
yum -y install java java-devel  //监控tomcat,同样不需要可以省略
./configure --prefix=/usr/local/zabbix/ --enable-agent
make && make install
vim /usr/local/zabbix/etc/zabbix_agentd.conf  //添加服务器IP server为被动模式 serverActive 为主动模式
81 Server=服务器ＩＰ
cp misc/init.d/fedora/core/zabbix_agentd /etc/init.d/
vim /etc/init.d/zabbix_agentd   //修改22 BASEDIR=/usr/local/zabbix
chmod 755 /etc/init.d/zabbix_agentd
chkconfig --add zabbix_agentd
chkconfig zabbix_agentd on


修改防火墙
vim /etc/sysconfig/iptables
-A INPUT -m state --state NEW -m tcp -p tcp --dport 10050 -j ACCEPT
service iptables restart

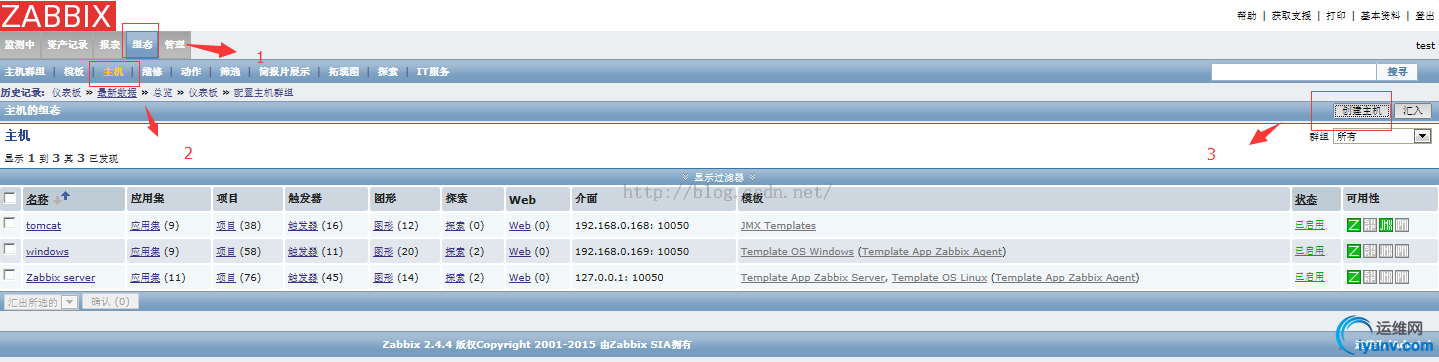

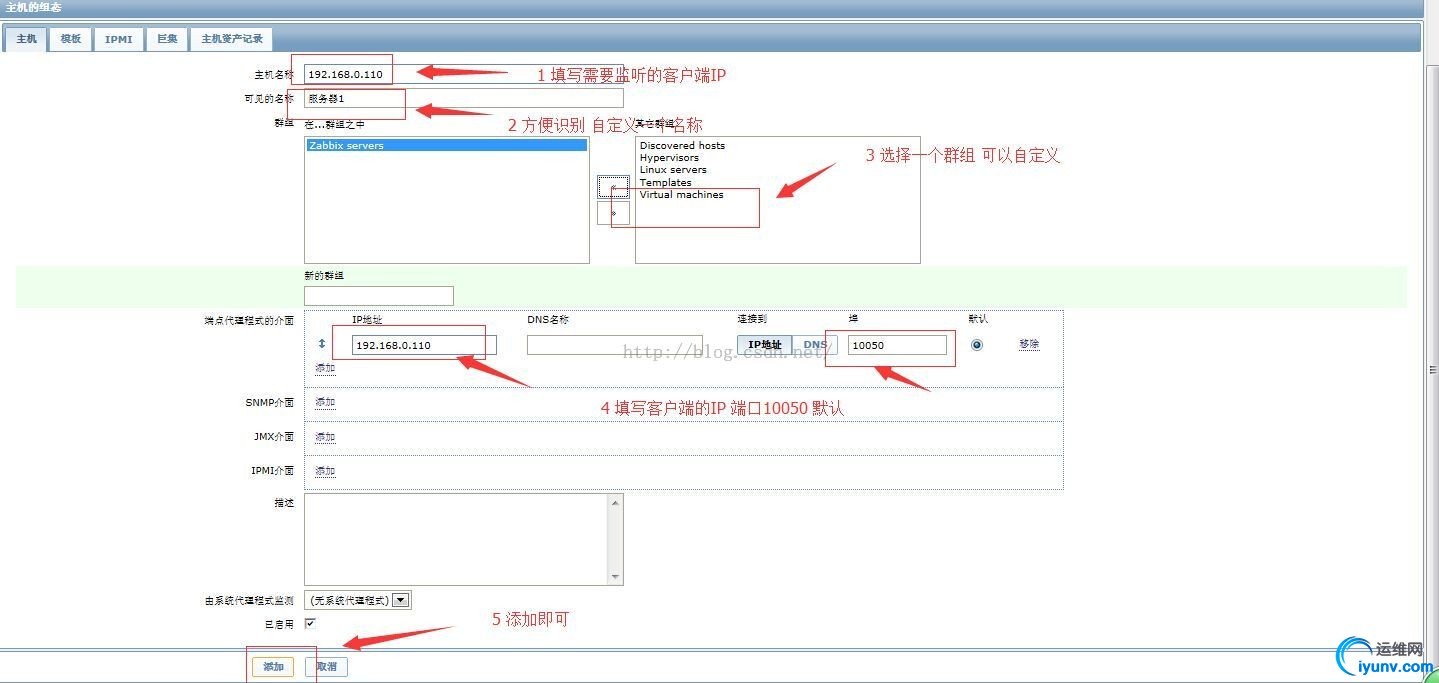

打开web段添加主机
