puppet结合Mcollective + activemq

tyxiayu

　　Mcollecitve+activemq安装配置比较繁琐，本来想在window上安装好的，但是puppetlabs官方没有提供安装指令，网上教程也比较少，捣鼓几天也没出来，只是在centos环境中安装配置成功。
　　activemq是消息中间间，我试了，可以单独安装在一台服务器上，也可以安装在装有puppet master的服务器上。
　　现以两台机器进行说明:
　　[PS：两台机器都已分别装好puppet master， puppet client]
　　A服务器：puppet master + mcollective-client + activemq
　　B服务器:puppet client + mcollective-*
　　


　　1.在A中安装ActiveMQ
　　yum install -y activemq
　　A的主机域名为mas2.domain.com，而且mas2.domain.com证书已认证安装，所以可以直接进入下面的配置ActiveMQ,要是将ActiveMQ单独安装一台新的服务器C上，还有在C上安装puppet client，以便认证。参考刘宇的《puppet实战》
　　


　　2.配置ActiveMQ
　　(1)配置用户
　　增加Mcollective用户，推荐用mcollective，
　　<simpleAuthenticationPlugin>
<users>
<!--authenticationUser username=&quot;${activemq.username}&quot; password=&quot;${activemq.password}&quot; groups=&quot;admins,everyone&quot;/ -->
<authenticationUser username=&quot;mcollective&quot; password=&quot;secret&quot; groups=&quot;mcollective,admins,everyone&quot;/>
<authenticationUser username=&quot;admin&quot; password=&quot;secret&quot; groups=&quot;mcollective,admins,everyone&quot;/>
</users>
</simpleAuthenticationPlugin>
　　(2）配置TLS
　　PS：所有的密码均是secret
　　1)创建Truststore
　　keytool -import -alias &quot;activemq&quot; -file /var/lib/puppet/ssl/certs/ca.pem -keystore truststore.jks
　　

密码：secret
　　2）验证上面是否创建成功：
　　keytool -list -keystore truststore.jks
　　输入密码可以查看：
　　

openssl x509 -in /var/lib/puppet/ssl/certs/ca.pem -fingerprint -md5


　　3）创建KeyStore，和1）的操作类&#20284;
　　PS：密码均是secret
　　cat /var/lib/puppet/ssl/private_keys/mas2.domain.com.pem var/lib/puppet/ssl/certs/mas2.domain.com.pem > temp.pem
　　openssl pkcs12 -export -in temp.pem -out activemq.p12 -name mas2.domain.com
　　keytool -importkeystore -destkeystore keystore.jks -srckeystore activemq.p12 -srcstoretype PKCS12 -alias mas2.domain.com

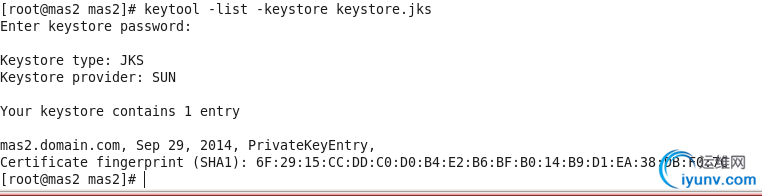

　　4）验证3）
　　keytool -list -keystore keystore.jks
　　

openssl x509 -in /var/lib/puppet/ssl/certs/mas2.domain.com.pem -fingerprint -md5
　　5）将文件复制到/etc/acitvemq下：
　　cp keystore.jks truststore.jks /etc/activemq/
　　查看/etc/activemq
　　


　　(3)配置sslContext
　　sslContext要放在Plugins和SystemUsage中间：
　　在/etc/activemq/activemq.xml添加：
　　<sslContext>
<sslContext
keyStore =&quot;keystore.jks&quot; keyStorePassword=&quot;secret&quot;
trustStore=&quot;truststore.jks&quot; trustStorePassword=&quot;secret&quot;
/>
</sslContext>(4)配置ActiveMQ监听端口
　　vim /etc/activemq/activemq.xml
<transportConnectors>
<transportConnector name=&quot;openwire&quot; uri=&quot;tcp://0.0.0.0:61616&quot;/>
<transportConnector name=&quot;stompssl&quot; uri=&quot;stomp+ssl://0.0.0.0:61614?needClientAuth=true&quot;/>
</transportConnectors>

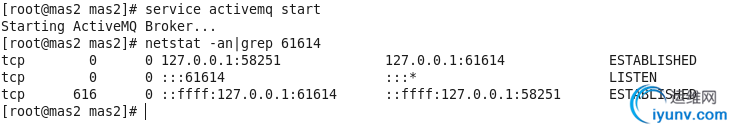

　　(5)启动ActiveMQ和验证Stomp监听TCP端口
　　service activemq start
netstat -an|grep 61614
　　
　　PS:不是ActiveMQ开启之后马上就可以监听，可能需要等一两分钟。
　　这样中间件ActiveMQ安装配置就OK了。
　　


　　3.Mcollective 安装
　　Mcollective Client安装在puppet master上
　　yum install -y mcollective-*
　　Mcollective Server 安装在puppet client上
　　yum install -y mcollective-*
　　4.MCollective控制端配（Mcollective client端）置
　　Mcollective client端就是Puppet Master端
　　1)生产Mcollective 应用层共享证书
　　sudo ppuppet cert generate mcollective-servers
　　2)配置/etc/mcollective/client.cfg
　　参考：https://docs.puppetlabs.com/mcollective/configure/client.html
　　

# Connector settings (required):
# -----------------------------
connector = activemq
direct_addressing = 1
# ActiveMQ connector settings:
plugin.activemq.pool.size = 1
plugin.activemq.pool.1.host = mas2.domain.com
plugin.activemq.pool.1.port = 61614
plugin.activemq.pool.1.user = mcollective
plugin.activemq.pool.1.password = secret
plugin.activemq.pool.1.ssl = 1
plugin.activemq.pool.1.ssl.ca = /var/lib/puppet/ssl/certs/ca.pem
plugin.activemq.pool.1.ssl.cert = /var/lib/puppet/ssl/certs/mas2.domain.com.pem
plugin.activemq.pool.1.ssl.key = /var/lib/puppet/ssl/private_keys/mas2.domain.com.pem
plugin.activemq.pool.1.ssl.fallback = 0

# Security plugin settings (required):
# -----------------------------------
securityprovider = ssl
# SSL plugin settings:
plugin.ssl_server_public = /var/lib/puppet/ssl/certs/mcollective-servers.pem
plugin.ssl_client_private = /var/lib/puppet/ssl/private_keys/mas2.domain.com.pem
plugin.ssl_client_public = /var/lib/puppet/ssl/certs/mas2.domain.com.pem
# PSK plugin settings:
plugin.psk = j9q8kx7fnuied9e
# Interface settings (optional):
# ------------------------------
# Discovery settings:
default_discovery_method = mc
# default_discovery_options = /etc/mcollective/nodes.txt
# Performance settings:
direct_addressing_threshold = 10
ttl = 60
discovery_timeout = 2
publish_timeout = 2
threaded = false
# Miscellaneous settings:
color = 1
rpclimitmethod = first
# Subcollectives (optional):
# -----------------------------------
collectives = mcollective,uk_collective
main_collective = mcollective
# Advanced settings and platform defaults:
# -----------------------------------
logger_type = console
loglevel = warn
logfile = /var/log/mcollective.log
keeplogs = 5
max_log_size = 2097152
logfacility = user
libdir = /usr/libexec/mcollective
#rpchelptemplate = /etc/mcollective/rpc-help.erb
#helptemplatedir = /etc/mcollective
ssl_cipher = aes-256-cbc
#Facts
#---------------------------------------
factsource = yaml
plugin.yaml = /etc/mcollective/facts.yaml

4.Mcollective 节点（Mcollective Server）配置　　
　　1）创建MCollective模板
　　

mkdir /etc/puppet/modules/mcollective/{manifests,files,templates} -p
sudo mkdir -p /etc/puppet/modules/mcollective/files/pem/clientsvim /etc/puppet/modules/mcollective/manifests/init.pp

　　
　　



class mcollective(
$activemq_server,
$mcollective_password){
package {
['mcollective','mcollective-puppet-agent','mcollective-service-agent']:
ensure => installed,
}
service {
&quot;mcollective&quot;:
ensure => running,
enable => true,
require => Package['mcollective'],
}
file {'/etc/mcollective':
ensure => directory,
source => &quot;puppet:///modules/mcollective/pem&quot;,
recurse => remote,
notify => Service['mcollective'],
}
file{&quot;/etc/mcollective/facts.yaml&quot;:
owner    => root,
group    => root,
mode     => 400,
loglevel => debug, # reduce noise in Puppet reports
content  => inline_template(&quot;<%= scope.to_hash.reject { |k,v| k.to_s =~ /(uptime_seconds|timestamp|free)/ }.to_yaml
%>&quot;), # exclude rapidly changing facts
}
file{&quot;/etc/mcollective/server.cfg&quot;:
ensure => file,
content => tempalte(&quot;mcollective/server.cfg.erb&quot;),
notify => Service['mcollective'],
}
}
　　


　　3)创建server.cfg.erb
　　

sudo vim /etc/puppet/modules/mcollective/templates/server.cfg.erb
　　
　　

  <% ssldir = '/var/lib/puppet/ssl' %>
# /etc/mcollective/server.cfg
# ActiveMQ connector settings:
connector = activemq
direct_addressing = 1
plugin.activemq.pool.size = 1
plugin.activemq.pool.1.host = <%= @activemq_server %>
plugin.activemq.pool.1.port = 61614
plugin.activemq.pool.1.user = mcollective
plugin.activemq.pool.1.password = <%= @mcollective_password %>
plugin.activemq.pool.1.ssl = 1
plugin.activemq.pool.1.ssl.ca = <%= ssldir %>/certs/ca.pem
plugin.activemq.pool.1.ssl.cert = <%= ssldir %>/certs/<%= scope.lookupvar('::clientcert') %>.pem
plugin.activemq.pool.1.ssl.key = <%= ssldir %>/private_keys/<%= scope.lookupvar('::clientcert') %>.pem
plugin.activemq.pool.1.ssl.fallback = 0
# SSL security plugin settings:
securityprovider = ssl
plugin.ssl_client_cert_dir = /etc/mcollective/clients
plugin.ssl_server_private = /etc/mcollective/server_private.pem
plugin.ssl_server_public = /etc/mcollective/server_public.pem
#
plugin.puppet.resource_allow_managed_resources = true
plugin.puppet.resource_type_whitelist = exec, file
# Facts, identity, and classes:
identity = <%= scope.lookupvar('::fqdn') %>
factsource = yaml
plugin.yaml = /etc/mcollective/facts.yaml
classesfile = /var/lib/puppet/state/classes.txt
# No additional subcollectives:
collectives = mcollective
main_collective = mcollective
# Registration:
# We don't configure a listener, and only send these messages to keep the
# Stomp connection alive. This will use the default &quot;agentlist&quot; registration
# plugin.
registerinterval = 600
# Auditing (optional):
# If you turn this on, you must arrange to rotate the log file it creates.
rpcaudit = 1
rpcauditprovider = logfile
plugin.rpcaudit.logfile = /var/log/mcollective-audit.log
# Authorization:
# If you turn this on now, you won't be able to issue most MCollective
# commands, although `mco ping` will work. You should deploy the
# ActionPolicy plugin before uncommenting this; see &quot;Deploy Plugins&quot; below.
# rpcauthorization = 1
# rpcauthprovider = action_policy
# plugin.actionpolicy.allow_unconfigured = 1
# Logging:
logger_type = file
loglevel = info
logfile = /var/log/mcollective.log
keeplogs = 5
max_log_size = 2097152
logfacility = user
# Platform defaults:
# These settings differ based on platform; the default config file created by
# the package should include correct values. If you are managing settings as
# resources, you can ignore them, but with a template you'll have to account
# for the differences.
<% if scope.lookupvar('::osfamily') == 'RedHat' -%>
libdir = /usr/libexec/mcollective
daemonize = 1
<% elsif scope.lookupvar('::osfamily') == 'Debian' -%>
libdir = /usr/share/mcollective/plugins
daemonize = 1
<% else -%>
# INSERT PLATFORM-APPROPRIATE VALUES FOR LIBDIR AND DAEMONIZE
<% end %>

(4)复制证书　　
　　

cp /var/lib/puppet/ssl/private_keys/mcollective-servers.pem  /etc/puppet/modules/mcollective/files/pem/server_private.pem
cp /var/lib/puppet/ssl/public_keys/mcollective-server.pem  /etc/puppet/modules/mcollective/files/pem/server_public.pem
chmod 0644 /etc/puppet/modules/mcollective/files/pem/server_*
cp /var/lib/puppet/ssl/certs/mas2.domain.com.pem   /etc/puppet/modules/mcollective/files/pem/clients
chmod 0644 /etc/puppet/modules/mcollective/files/pem/clients

(5)配置节点　　
　　

vim /etc/puppet/manifests/nodes/c5.domain.com.pp

node 'c6.domain.com' {
#include test
class {&quot;mcollective&quot;:
activemq_server => &quot;mas2.domain.com&quot;,
mcollective_password => &quot;secret&quot;,
}
}

　　(6)应用puppet代码
　　puppet agent -t

(7)验证
　　在puppet master 输入：
　　mco  findmco ping
　　通过mcollectve 实现主动推送：
　　mco puppet runonce -v
