saltstack 之源码部署管理nginx

olik · 发表于 2015-12-14 10:46:48

  saltstack接触也有一段时间了，感觉saltstack强大之处在于state文件部署，通过他可以给我们大批量部署节省很多时间，今天就用部署我前端的转发服务器为例进行源码部署nginx；水平有限希望大家多多指导。    思路：
         1、用grains收集cpu、打开文件数等信息结合jinja配置nginx.conf文件
         2、使用pillar保存我们要使用的变量结合jinja配置vhost.conf文件
         3、state安装推送文件
部署步骤：
   1、编写grains，根据系统打开文件数配置合理的nginx打开文件数量：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

[iyunv@mail nginx]# cd /srv/salt/_grains/
[iyunv@mail _grains]# cat nginx_config.py
import os,sys,commands
def NginxGrains():
grains ={}
max_open_file=65536
      #Worker_info={'cpus2':'01 10','cpus4':'1000 0100 0010 0001','cpus8':'10000000 01000000 00100000 00010000 00001000 00000100 00000010 00000001'}
try:
      getulimit=commands.getstatusoutput('source /etc/profile;ulimit -n')
except Exception,e:
      pass
if getulimit[0]==0:
      max_open_file=int(getulimit[1])
grains['max_open_file'] = max_open_file
return grains
if __name__ == '__main__':
print NginxGrains()
  推送文件到客户端并启动文件重启客户端生效：
  salt '*' saltutil.sync_all
  salt '*' sys.reload_modules

2、编写变量之pillar，这里我定义了域名和后端转发主机：

1
2
3
4
5
6
7

[iyunv@mail pillar]# cat top.sls
base:
'*':
- vhost
[iyunv@mail pillar]# cat vhost.sls
hostname: www.huasuan.com
pass: 192.168.10.100

3、编写state所有文件，先查看目录选项：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

[iyunv@mail salt]# tree nginx
nginx
├── conf.sls
├── files
│?? ├── nginx
│?? ├── nginx-1.6.0.tar.gz
│?? ├── nginx.conf
│?? └── huasuan.conf
├── init.sls
├── install.sls
├── server.sls
└── vhost.sls

注释：init.sls指定启用哪个入口选项，install.sls指定安装步骤，server.sls表示管理服务脚本,
conf.sls指定管理配置文件nginx.conf，vhost.sls 指定管理vhost.sls目录下的虚拟主机。

4、查看top文件和init文件：

1
2
3
4
5
6
7
8
9
10
11

[iyunv@mail nginx]# cat install.sls
[iyunv@mail salt]# cat top.sls
base:
  '*':
- nginx
[iyunv@mail salt]# cat nginx/init.sls
include:
  - nginx.install
  - nginx.conf
  - nginx.server
  - nginx.vhost

5、安装install,sls文件:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

#nginx.tar.gz
nginx_source:
  file.managed:
- name: /tmp/nginx-1.6.0.tar.gz
- unless: test -e /tmp/nginx-1.6.0.tar.gz
- source: salt://nginx/files/nginx-1.6.0.tar.gz
#extract
extract_nginx:
  cmd.run:
- cwd: /tmp
- names:
   - tar zxvf nginx-1.6.0.tar.gz
- unless: test -d /tmp/nginx-1.6.0
- require:
   - file: nginx_source
#user
nginx_user:
  user.present:
- name: nginx
- uid: 1501
- createhome: False
- gid_from_name: True
- shell: /sbin/nologin
#nginx_pkgs
nginx_pkg:
  pkg.installed:
- pkgs:
   - gcc
   - openssl-devel
   - pcre-devel
   - zlib-devel
#nginx_compile
nginx_compile:
  cmd.run:
- cwd: /tmp/nginx-1.6.0
- names:
   - ./configure --prefix=/usr/local/nginx  --user=nginx  --group=nginx  --with-http_ssl_module  --with-http_gzip_static_module --http-client-body-temp-path=/usr/local/nginx/client/ --http-proxy-temp-path=/usr/local/nginx/proxy/ --http-fastcgi-temp-path=/usr/local/nginx/fcgi/ --with-poll_module  --with-file-aio  --with-http_realip_module  --with-http_addition_module --with-http_random_index_module --with-pcre --with-http_stub_status_module
   - make
   - make install
- require:
   - cmd: extract_nginx
   - pkg:  nginx_pkg
- unless: test -d /usr/local/nginx
#cache_dir
cache_dir:
  cmd.run:
- names:
   - mkdir -p /usr/local/nginx/{client,proxy,fcgi} && chown -R nginx.nginx /usr/local/nginx/
   - mkdir -p /usr/local/nginx/conf/vhost && chown -R nginx.nginx /usr/local/nginx/conf/vhost
- unless: test -d /usr/local/nginx/client/
- require:
   - cmd: nginx_compile

注释：nginx使用源码编译安装的方式，包括了文件包推送，解压、安装管理，主要核心是cmd的使用

6、管理配置文件conf.sls:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

[iyunv@mail nginx]# cat conf.sls
include:
  - nginx.install

nginx_service:
  file.managed:
- name: /usr/local/nginx/conf/nginx.conf
- user: nginx
- mode: 644
- source: salt://nginx/files/nginx.conf
- template: jinja
  service.running:
- name: nginx
- enable: True
- reload: True
- watch:
   - file: /usr/local/nginx/conf/nginx.conf

7、服务脚本启动文件管理server.sls:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

[iyunv@mail nginx]# cat server.sls
include:
  - nginx.install
server:
  file.managed:
- name: /etc/init.d/nginx
- user: root
- mode: 755
- source: salt://nginx/files/nginx
  service.running:
- name: nginx
- enable: True
- reload: True
- watch:
   - file: /etc/init.d/nginx
command:
  cmd.run:
- names:
   - /sbin/chkconfig --add nginx
   - /sbin/chkconfig  nginx on
- unless: /sbin/chkconfig --list nginx

8、虚拟主机管理配置文件：vhost.sls

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

[iyunv@mail nginx]# cat vhost.sls
include:
  - nginx.install

vhostconfig:
  file.managed:
- name: /usr/local/nginx/conf/vhost/huasuan.conf
- user: root
- mode: 644
- source: salt://nginx/files/huasuan.conf
- template: jinja
  service.running:
- name: nginx
- enable: True
- reload: True
- watch:
   - file: /usr/local/nginx/conf/vhost/huasuan.conf

上面几个分别是把已经保存在files目录下的配置文件推送到客户端，都是使用jinja模板为了使用系统的grains和pillar变量：

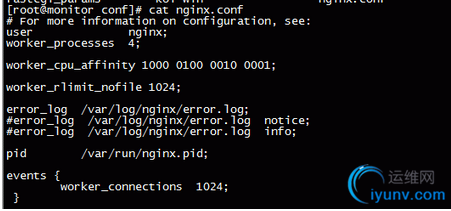

9、分别查看以下几个配置文件nginx.conf：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

# For more information on configuration, see:
user             nginx;
worker_processes  {{ grains['num_cpus'] }};
{% if grains['num_cpus'] == 2 %}
worker_cpu_affinity 01 10;
{% elif grains['num_cpus'] == 4 %}
worker_cpu_affinity 1000 0100 0010 0001;
{% elif grains['num_cpus'] >= 8 %}
worker_cpu_affinity 00000001 00000010 00000100 00001000 00010000 00100000 01000000 10000000;
{% else %}
worker_cpu_affinity 1000 0100 0010 0001;
{% endif %}
worker_rlimit_nofile {{ grains['max_open_file'] }};

error_log  /var/log/nginx/error.log;
#error_log  /var/log/nginx/error.log  notice;
#error_log  /var/log/nginx/error.log  info;

pid       /var/run/nginx.pid;

events {
      worker_connections  {{ grains['max_open_file'] }};
}

http
   {
            include    mime.types;
            default_type  application/octet-stream;
            charset  utf-8;
            server_names_hash_bucket_size 128;
            client_header_buffer_size 32k;
            large_client_header_buffers 4 32k;
            client_max_body_size 128m;
            sendfile on;
            tcp_nopush    on;
            keepalive_timeout 60;
            tcp_nodelay on;
            server_tokens off;
            client_body_buffer_size  512k;
            gzip on;
            gzip_min_length  1k;
            gzip_buffers    4 16k;
            gzip_http_version 1.1;
            gzip_comp_level 2;
            gzip_types    text/plain application/x-javascript text/css application/xml;
            gzip_vary on;
            log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                              '$status $body_bytes_sent "$http_referer" '
                              '"$http_user_agent" "$http_x_forwarded_for" "$host"' ;
            include vhost/*.conf;
   }

注释：grains['max_open_file']这个变量由我们第一个创建的自定义grains收集到服务端，基于jinja
来返回客户端

10、虚拟主机配置文件vhost:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

[iyunv@mail files]# cat huasuan.conf
server {
      listen 80;
      server_name {{ pillar['hostname'] }};
      location / {
            proxy_pass http://{{ pillar['pass'] }};
            proxy_set_header Host $host;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
      }
      location ~ /\.git {
         deny all;
      }
}
注释：pillar['hostname']和pillar['pass']由上面我们定义的pillar基于jinja获得，这里用反向代
理服务器为例

10、服务启动脚本，没什么特别；就是放上去服务器端同步到客户端启动目录下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128

[iyunv@mail files]# cat nginx
#!/bin/sh
#
# nginx - this script starts and stops the nginx daemon
#
# chkconfig: - 85 15
# description:  Nginx is an HTTP(S) server, HTTP(S) reverse \
#             proxy and IMAP/POP3 proxy server
# processname: nginx
# config:    /usr/local/nginx/conf/nginx.conf
# pidfile:    /usr/local/nginx/logs/nginx.pid

# Source function library.
. /etc/rc.d/init.d/functions

# Source networking configuration.
. /etc/sysconfig/network

# Check that networking is up.
[ "$NETWORKING" = "no" ] && exit 0

nginx="/usr/local/nginx/sbin/nginx"
prog=$(basename $nginx)

NGINX_CONF_FILE="/usr/local/nginx/conf/nginx.conf"


lockfile=/var/lock/subsys/nginx

make_dirs() {
# make required directories
user=`$nginx -V 2>&1 | grep "configure arguments:" | sed 's/[^*]*--user=$[^ ]*$.*/\1/g' -`
if [ -z "`grep $user /etc/passwd`" ]; then
   useradd -M -s /bin/nologin $user
fi
options=`$nginx -V 2>&1 | grep 'configure arguments:'`
for opt in $options; do
   if [ `echo $opt | grep '.*-temp-path'` ]; then
         value=`echo $opt | cut -d "=" -f 2`
         if [ ! -d "$value" ]; then
            # echo "creating" $value
            mkdir -p $value && chown -R $user $value
         fi
   fi
done
}

start() {
[ -x $nginx ] || exit 5
[ -f $NGINX_CONF_FILE ] || exit 6
make_dirs
echo -n $"Starting $prog: "
daemon $nginx -c $NGINX_CONF_FILE
retval=$?
echo
[ $retval -eq 0 ] && touch $lockfile
return $retval
}

stop() {
echo -n $"Stopping $prog: "
killproc $prog -QUIT
retval=$?
echo
[ $retval -eq 0 ] && rm -f $lockfile
return $retval
}

restart() {
configtest || return $?
stop
sleep 1
start
}

reload() {
configtest || return $?
echo -n $"Reloading $prog: "
killproc $nginx -HUP
RETVAL=$?
echo
}

force_reload() {
restart
}

configtest() {
  $nginx -t -c $NGINX_CONF_FILE
}

rh_status() {
status $prog
}

rh_status_q() {
rh_status >/dev/null 2>&1
}

case "$1" in
start)
      rh_status_q && exit 0
      $1
      ;;
stop)
      rh_status_q || exit 0
      $1
      ;;
restart|configtest)
      $1
      ;;
reload)
      rh_status_q || exit 7
      $1
      ;;
force-reload)
      force_reload
      ;;
status)
      rh_status
      ;;
condrestart|try-restart)
      rh_status_q || exit 0
         ;;
*)
      echo $"Usage: $0 {start|stop|status|restart|condrestart|try-restart|reload|force-reload|configtest}"
      exit 2
esac

11、配置完成：启动服务器开始安装操作：
