zabbix监控dell服务器硬件信息

233饿13

1	说明:  公司的所有的服务器都是Dell服务器.为什么做这个监控呢?是因为线上的一台DB数据库的磁盘发生损坏.结果我们运维组人员(公司只有我一名,当然出了事由我个人负责了,想想还是自己技术欠缺)没有第一时间发现.于是网络搜寻zabbix去监控Dell服务器.

1.监控工具使用dell自带的omsa工具进行监控,下载安装omsa工具,并进行安装

1 2 3 4 5

wget -q -O - http://linux.dell.com/repo/hardware/latest/bootstrap.cgi | bash yum install srvadmin-all  -y ln -s /opt/dell/srvadmin/sbin/omreport /usr/bin/omreport ln -s /opt/dell/srvadmin/sbin/omconfig /usr/bin/omconfig echo "/usr/bin/omconfig system webserver action=stop" >>/opt/dell/srvadmin/sbin/srvadmin-services.sh

2.启动

1	/opt/dell/srvadmin/sbin/srvadmin-services.sh start

3.开机启动

1	echo "/opt/dell/srvadmin/sbin/srvadmin-services.sh start">>/etc/rc.local

4.zabbix客户端配置
vi   zabbix_agentd.conf

---

1 2 3 4 5 6 7 8 9

UserParameter=cpu_status,awk -v cpu_stats=`omreport   chassis  processors |  awk '/^Health/ {print $NF}'` 'BEGIN{if(cpu_stats=="Ok"){print 1}else{print 0}}' UserParameter=memory_stats,awk -v memory_stats=`omreport   chassis  memory | awk '/Health/ {print $NF}'` 'BEGIN{if(memory_stats=="Ok") {print 1} else {print 0}}' UserParameter=pdisk_status,awk -v pdisk_total_num=`omreport storage pdisk controller=0 | grep  -c "^ID"` -v pdisk_ok_num=`omreport storage pdisk controller=0 | awk '/^Status/ {if($NF == "Ok") count=count+1}END{print count}'` 'BEGIN{if(pdisk_total_num == pdisk_ok_num) {print 1} else {print 0}}' UserParameter=fans_status,awk -v fan_total_num=`omreport   chassis  fans | grep  -c "^Index"` -v  fan_ok_num=`omreport   chassis  fans  | awk '/Status/ {if($NF == "Ok") count=count+1}END{print count}'`  'BEGIN{if(fan_total_num == fan_ok_num) {print 1}else {print 0}}' UserParameter=nics_stats,awk -v nic_total_num=`omreport   chassis   nics    | head -n  16  | grep -c "^Index"` -v nic_ok_num=`omreport   chassis   nics    | head -n  16 | awk '/Connection Status/ {if($NF == "Connected") count=count+1}END{print count}'` BEGIN'{if(nic_total_num == nic_ok_num){print 1}else{print 0}}' UserParameter=CMOS_stats,omreport chassis batteries | awk '/^Health/{if($NF == "Ok"){print 1}else {print 0}}' UserParameter=raid_stats,awk -v  vdisk_total_num=`omreport storage vdisk controller=0  | grep  -c "^ID"`  -v  vdisk_ok_num=`omreport storage vdisk controller=0  | awk '/^Status/ {if($NF == "Ok") {print 1}else{print 0}}'`  'BEGIN{if(vdisk_total_num == vdisk_ok_num) {print 1} else {print 0}}' UserParameter=power_stats,awk -v power_total_num=`omreport chassis pwrsupplies | grep  -c  "Index"` -v power_ok_num=`omreport   chassis pwrsupplies | awk '/^Status/ {if($NF == "Ok") count=count+1}END{print count}'`  'BEGIN{if(power_total_num == power_ok_num){print 1}else{print 0}}' UserParameter=temperature_status,awk -v temperature_total_num=`omreport chassis temps | grep  -c "^Index"` -v temperature_ok_num=`omreport chassis   temps | awk '/^Status/{if($NF == "Ok") count=count+1}END{print count}'` 'BEGIN{if(temperature_total_num == temperature_ok_num) {print 1}else{print 0}}'

5.重启zabbix客户端

1 2	kill `ps -ef|grep zabbix|grep -v grep|awk '{print $2}'` /usr/local/zabbix/sbin/zabbix_agentd  -c  /usr/local/zabbix/etc/zabbix_agentd.conf

6.手动创建模板(监控项,触发器,图像),或者下载模板,见附件

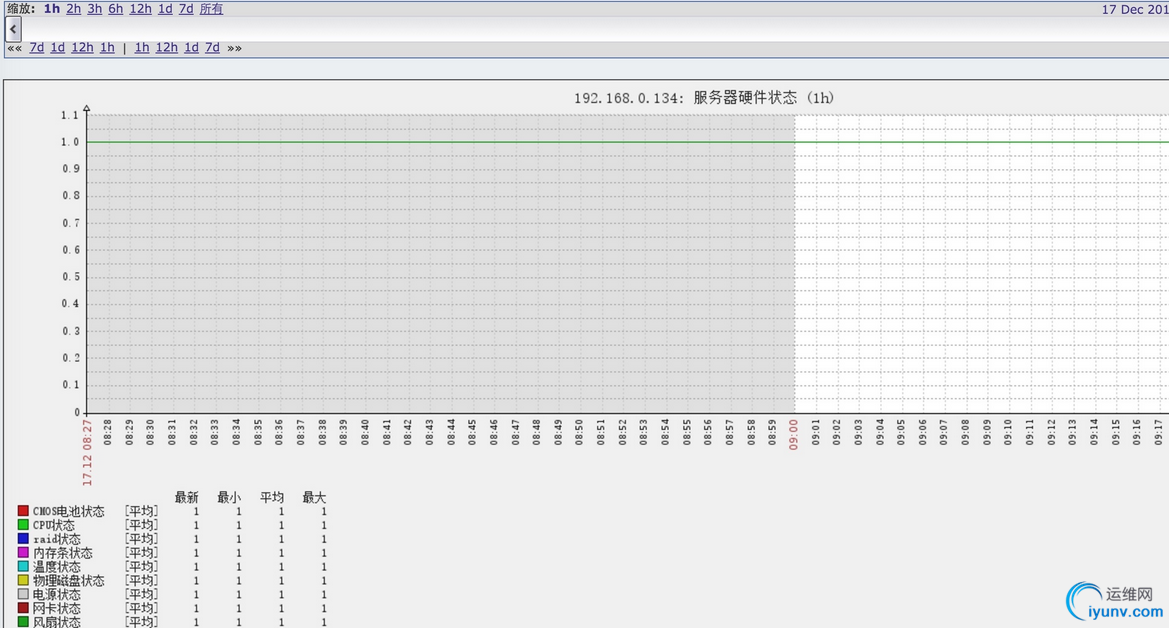

7.监控图如下:


zabbix监控hardware模板.zip (1.7 KB, 下载次数: 57)

2016-9-29 12:34 上传

点击文件名下载附件

jasonhow

假的 附件是假的 啥也没有 擦

233饿13

jasonhow 发表于 2016-9-29 11:44
假的 附件是假的 啥也没有 擦

附件已修复，很抱歉给您带来不便，请重新下载。
