jumpserver-管理网络设备-Huawei

sky

一、设备配置SSH登录

1.生成本地密钥对

[Huawei]rsa local-key-pair create

The key name will be: Huawei_Host

The range of public key size is (512 ~ 2048).

NOTES: If the key modulus is greater than 512,

it will take a few minutes.

Input the bits in the modulus[default = 512]:1024

Generating keys...

............................++++++

...++++++

..++++++++

......++++++++

2.配置VTY用户界面

[Huawei]user-interface vty 0 4

[Huawei-ui-vty0-4]authentication-mode aaa

[Huawei-ui-vty0-4]protocol inbound ssh

[Huawei-ui-vty0-4]quit

    3.配置SSH用户的用户名和密码

[Huawei]aaa

[Huawei-aaa]local-user admin password cipher admin123

Info: Add a new user.

[Huawei-aaa]local-user admin privilege level 3

[Huawei-aaa]local-user admin service-type ssh

[Huawei-aaa]quit

4.创建SSH用户，并配置用户的认证方式为password

[Huawei]ssh user admin authentication-type password

5.使能STelent功能，并配置用户的服务类型为STelnet

[Huawei]stelnet server enable

Info: Succeeded in starting the Stelnet server.

6. ssh登录测试

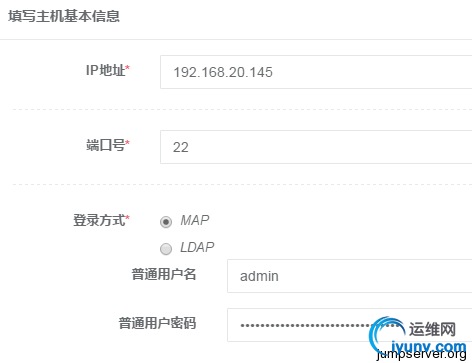

二、添加资产，登录方式选择MAP,这里的用户名和密码是刚才设备上创建的。


三、登录设备



注：登录如果报paramiko.ssh_exception.SSHException: No existing session
解决：
/opt/jumpserver 目录下 vim connect.py  在296行添加 allow_agent=False,look_for_keys=False

ssh.connect(host, port=port, username=username, password=password, compress=True, allow_agent=False,look_for_keys=False )

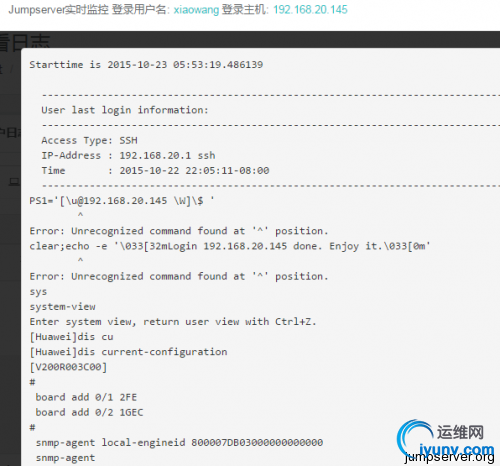

实时监控
