openstack Grizzly版Ubuntu虚拟机部署过程(多节点)

zcl_ccc

2013-07-31----openstack安装教程初版
　　一直一来做的都是基于BMC产品的自动化和云计算，最近想学习一点关于底层与开源之类的东西， 所以选择了openstack。整个学习过程还是有困难的，刚开始由于习惯了百度，也出来了一些文章，但是大多的都是非常有问题的。最后选择了官方的文档进行参考安装。这里需要说明几点：
　　1. openstack版本从诞生到现在已经有8个版本，最新的为Havana，也就是H版，版本历史为

Havana    Due
Grizzly           2013.1.2
Folsom          2012.2.4
Essex            2012.1.3
Diablo           2011.3.1
Cactus           2011.2
Bexar            2011.1
Austin            2010.1
　　网上的教程大多集中在E版，由于各人的环境差异等等原因，按照网上的教程安装会出现很多问题，对于openstack的新手来说，对问题进行troubleshooting是非常困难的。本次安装采用G版进行。对于初学者同样建议参见官方英文文档进行学习。
　　
　　2. 网络与加架构问题
　　安装需要提前规划好网络及架构，单网卡还是双网卡，单节点还是多节点。第一次学习安装建议按照官方的标准架构进行，多网卡多节点。这样可以容易理解openstack的逻辑关系。
　　
　　

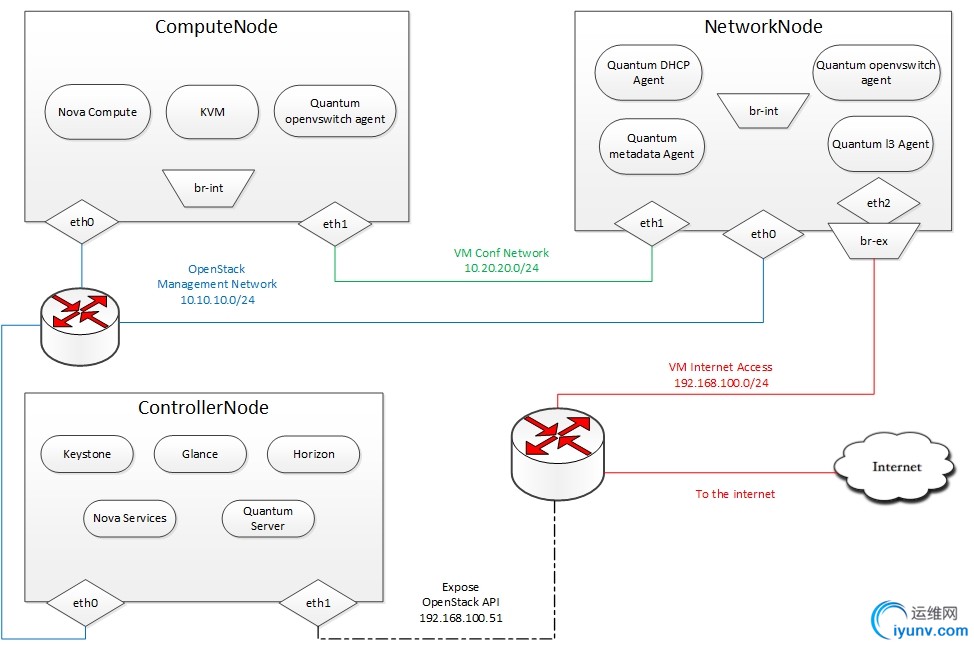

　　1. 安装架构图(官方多网卡多节点部署)
　　


　　2. 环境需求

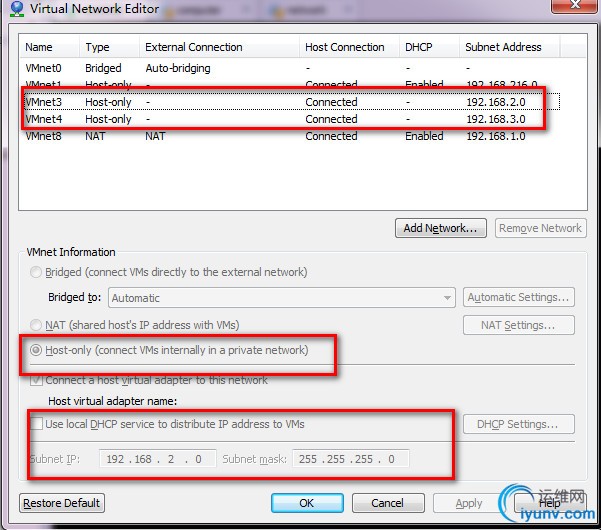

　　vmwareworkstation 网络配置
　　controller VM1
　　eth0 (192.168.70.247)
　　
　　Network VM2
　　eth0 (192.168.70.248)
　　eth1 (192.168.2.2)
　　eth2 (192.168.3.2)
　　
　　Computer VM3
　　eth0 (192.168.70.249)
　　eth1 (192.168.2.3)
　　


　　
　　3.安装Controller Node
　　

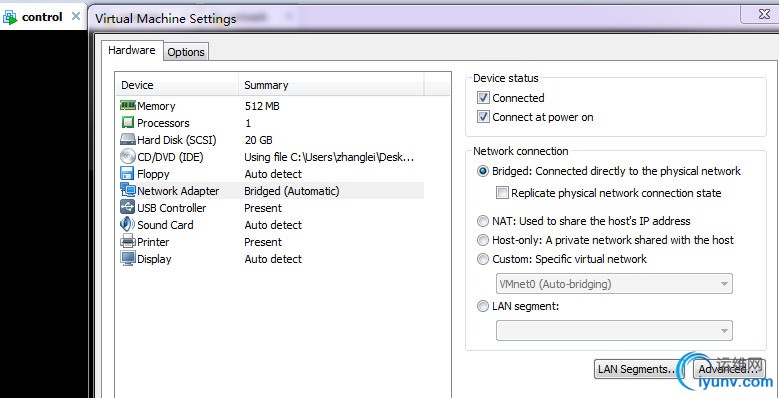

　　3.1 vm1虚拟机网络设置
　　由于controller的eth1网卡主要负责对公网的API提供，这里我们不需要
　　


　　3.2 Ubuntu环境初始化，需要更新源，否则安装的是F版

apt-get install -y ubuntu-cloud-keyring
echo deb http://ubuntu-cloud.archive.canonical.com/ubuntu precise-updates/grizzly main >> /etc/apt/sources.list.d/grizzly.list
apt-get update -y
apt-get upgrade -y
apt-get -y dist-upgrade
　　
　　3.3 网络设置，请注意网卡。DNS设置成8.8.8.8或者自己的，主机名可选配置，建议做配置，我这里配置的是controller
　　

root@openstack:~# cat /etc/network/interfaces
# This file describes the network interfaces available on your system
# and how to activate them. For more information, see interfaces(5).
# The loopback network interface
auto lo
iface lo inet loopback
# The primary network interface
auto eth0
iface eth0 inet static
address 192.168.70.247
netmask 255.255.255.0
gateway 192.168.70.1
　　

root@openstack:~# cat /etc/resolv.conf
# Dynamic resolv.conf(5) file for glibc resolver(3) generated by resolvconf(8)
#     DO NOT EDIT THIS FILE BY HAND -- YOUR CHANGES WILL BE OVERWRITTEN
nameserver 119.6.6.6

　　

sudo /etc/init.d/networking restart
　　
　　3.4 安装MYSQL,安装过程需要输入密码
　　

apt-get install -y mysql-server python-mysqldb
　　
　　配置MYSQL可外部访问
　　

sed -i 's/127.0.0.1/0.0.0.0/g' /etc/mysql/my.cnf
service mysql restart
　　
　　3.5 安装RabbitMQ
　　Install RabbitMQ:

apt-get install -y rabbitmq-server
　　
　　Install NTP service时间同步的组件，时间不同步后期会有很多问题)
　　

apt-get install -y ntp
　　
　　初始化MYSQL数据库，这里我统一改了官方的密码为password
　　

mysql -uroot -ppassword <<EOF
CREATE DATABASE keystone;
GRANT ALL ON keystone.* TO 'keystoneUser'@'%' IDENTIFIED BY 'keystonePass';
CREATE DATABASE glance;
GRANT ALL ON glance.* TO 'glanceUser'@'%' IDENTIFIED BY 'glancePass';
CREATE DATABASE quantum;
GRANT ALL ON quantum.* TO 'quantumUser'@'%' IDENTIFIED BY 'quantumPass';
CREATE DATABASE nova;
GRANT ALL ON nova.* TO 'novaUser'@'%' IDENTIFIED BY 'novaPass';
CREATE DATABASE cinder;
GRANT ALL ON cinder.* TO 'cinderUser'@'%' IDENTIFIED BY 'cinderPass';
FLUSH PRIVILEGES;
EOF
　　
　　3.6 安装其它组件
　　

apt-get install -y vlan bridge-utils
sed -i 's/#net.ipv4.ip_forward=1/net.ipv4.ip_forward=1/' /etc/sysctl.conf
　　
　　3.7 安装Keystone，openstack核心模块，主要负责集中认证
　　

apt-get install -y keystone
　　
　　修改/etc/keystone/keystone.conf配置文件中
　　    原:connection = sqlite:////var/lib/keystone/keystone.db
　　    改:connection = mysql://keystoneUser:password@192.168.70.247/keystone
　　    可以通过如下命令修改
　　

sed -i '/connection = .*/{s|sqlite:///.*|mysql://'"keystoneUser"':'"keystonePass"'@'"192.168.70.247"'/keystone|g}' /etc/keystone/keystone.conf
service keystone restart
keystone-manage db_sync
　　
　　下载初始化数据脚本
　　

wget https://raw.github.com/mseknibilel/OpenStack-Grizzly-Install-Guide/OVS_MultiNode/KeystoneScripts/keystone_basic.sh
wget https://raw.github.com/mseknibilel/OpenStack-Grizzly-Install-Guide/OVS_MultiNode/KeystoneScripts/keystone_endpoints_basic.sh
　　
　　修改下载的脚本**HOST_IP** 和 **EXT_HOST_IP**为自己的ip地址
　　

sed -i -e " s/10.10.10.51/192.168.70.247/g " keystone_basic.sh
sed -i -e " s/10.10.10.51/192.168.70.247/g; s/192.168.100.51/192.168.70.247/g; " keystone_endpoints_basic.sh
chmod +x keystone_basic.sh
chmod +x keystone_endpoints_basic.sh
./keystone_basic.sh
./keystone_endpoints_basic.sh
　　
　　配置环境变量，注意该文件路径我自己所有的操作都在自己创建的文件夹下面
　　

cat >/opt/openstack/novarc <<EOF
export OS_TENANT_NAME=admin
export OS_USERNAME=admin
export OS_PASSWORD=admin_pass
export OS_AUTH_URL="http://192.168.70.247:5000/v2.0/"
EOF
source /opt/openstack/novarc
　　
　　检查keystone的安装，如下表示安装成功
　　

root@controll:/opt/openstack# keystone user-list
+----------------------------------+---------+---------+--------------------+
|                id                |   name  | enabled |       email        |
+----------------------------------+---------+---------+--------------------+
| 9a3d119d7a314ce59c6f7ce13866dab8 |  admin  |   True  |  admin@domain.com  |
| 4d6af357450840f5bbd62969d286e509 |  cinder |   True  | cinder@domain.com  |
| 33c2eda2f2c84f6391d3bf4ad10312e5 |  glance |   True  | glance@domain.com  |
| 3877d5c411b647d79573673920938929 |   nova  |   True  |  nova@domain.com   |
| bdca016a814c4065a9c5358a0f5d60bb | quantum |   True  | quantum@domain.com |
+----------------------------------+---------+---------+--------------------+
root@controll:/opt/openstack#
　　
　　3.8 安装Glance
　　安装Glance
　　

apt-get install -y glance
　　
　　在配置文件/etc/glance/glance-api-paste.ini中[filter:authtoken]下面增加，如下内容，以前的内容注释掉。注意修改自己的IP
　　

[filter:authtoken]
paste.filter_factory = keystoneclient.middleware.auth_token:filter_factory
delay_auth_decision = true
auth_host = 192.168.70.247
auth_port = 35357
auth_protocol = http
admin_tenant_name = service
admin_user = glance
admin_password = service_pass
　　
　　在配置文件/etc/glance/glance-registry-paste.ini中[filter:authtoken]下面增加，如下内容，以前的内容注释掉。注意修改自己的IP
　　

[filter:authtoken]
paste.filter_factory = keystoneclient.middleware.auth_token:filter_factory
auth_host = 192.168.70.247
auth_port = 35357
auth_protocol = http
admin_tenant_name = service
admin_user = glance
admin_password = service_pass
　　
　　修改/etc/glance/glance-api.conf文件中
　　

sql_connection = mysql://glanceUser:glancePass@192.168.70.247/glance
[paste_deploy]
flavor = keystone
　　
　　修改/etc/glance/glance-registry.conf文件中
　　

sql_connection = mysql://glanceUser:glancePass@192.168.70.247/glance
[paste_deploy]
flavor = keystone


   重启服务glance-api 与glance-registry


service glance-api restart; service glance-registry restart


   数据同步，无输出代表成功


glance-manage db_sync

   测试glance


root@controll:/etc/glance# glance index
ID                                   Name                           Disk Format          Container Format     Size
------------------------------------ ------------------------------ -------------------- -------------------- --------------

   下载IMG,这里推荐一个只有10M的Cirros的IMG


wget https://launchpad.net/cirros/trunk/0.3.0/+download/cirros-0.3.0-x86_64-disk.img

    上传IMG


glance image-create --name myFirstImage --is-public true --container-format bare --disk-format qcow2 < cirros-0.3.0-x86_64-disk.img

上传成功
+------------------+--------------------------------------+
| Property         | Value                                |
+------------------+--------------------------------------+
| checksum         | 50bdc35edb03a38d91b1b071afb20a3c     |
| container_format | bare                                 |
| created_at       | 2013-08-01T02:31:24                  |
| deleted          | False                                |
| deleted_at       | None                                 |
| disk_format      | qcow2                                |
| id               | 7b5a9b07-e21a-49cd-87b6-7d70d3e9f9eb |
| is_public        | True                                 |
| min_disk         | 0                                    |
| min_ram          | 0                                    |
| name             | myFirstImage                         |
| owner            | b2f9f0cd99c54e008b5ccac2122b5ee5     |
| protected        | False                                |
| size             | 9761280                              |
| status           | active                               |
| updated_at       | 2013-08-01T02:31:25                  |
+------------------+--------------------------------------+


     查看上传的img

root@controll:/opt/openstack# glance image-list
+--------------------------------------+--------------+-------------+------------------+---------+--------+
| ID                                   | Name         | Disk Format | Container Format | Size    | Status |
+--------------------------------------+--------------+-------------+------------------+---------+--------+
| 7b5a9b07-e21a-49cd-87b6-7d70d3e9f9eb | myFirstImage | qcow2       | bare             | 9761280 | active |
+--------------------------------------+--------------+-------------+------------------+---------+--------+
root@controll:/opt/openstack#
   　　3.9安装Quantum
　　

apt-get install -y quantum-server
　　
　　修改配置文件/etc/quantum/plugins/openvswitch/ovs_quantum_plugin.ini，trnant_network是选择网络模式，openstack的网络模式有4种，较复杂的有vlan和gre，这里的gre类似bmc clm的 network container
　　

#Under the database section
[DATABASE]
sql_connection = mysql://quantumUser:quantumPass@192.168.70.247/quantum
#Under the OVS section
[OVS]
tenant_network_type = gre
tunnel_id_ranges = 1:1000
enable_tunneling = True
#Firewall driver for realizing quantum security group function
[SECURITYGROUP]
firewall_driver = quantum.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDriver
　　
　　修改配置文件/etc/quantum/api-paste.ini
　　

[filter:authtoken]
paste.filter_factory = keystoneclient.middleware.auth_token:filter_factory
auth_host = 192.168.70.247
auth_port = 35357
auth_protocol = http
admin_tenant_name = service
admin_user = quantum
admin_password = service_pass
　　
　　修改配置文件 /etc/quantum/quantum.conf
　　

[keystone_authtoken]
auth_host = 192.168.70.247
auth_port = 35357
auth_protocol = http
admin_tenant_name = service
admin_user = quantum
admin_password = service_pass
signing_dir = /var/lib/quantum/keystone-signing
　　
　　重启服务
　　

service quantum-server restart
　　
　　3.10安装Nova
　　

apt-get install -y nova-api nova-cert novnc nova-consoleauth nova-scheduler nova-novncproxy nova-doc nova-conductor
　　
　　修改配置文件/etc/nova/api-paste.ini
　　

[filter:authtoken]
paste.filter_factory = keystoneclient.middleware.auth_token:filter_factory
auth_host = 192.168.70.247
auth_port = 35357
auth_protocol = http
admin_tenant_name = service
admin_user = nova
admin_password = service_pass
signing_dirname = /tmp/keystone-signing-nova
# Workaround for https://bugs.launchpad.net/nova/+bug/1154809
auth_version = v2.0
　　
　　修改配置文件/etc/nova/nova.conf

[DEFAULT]
logdir=/var/log/nova
state_path=/var/lib/nova
lock_path=/run/lock/nova
verbose=True
api_paste_config=/etc/nova/api-paste.ini
compute_scheduler_driver=nova.scheduler.simple.SimpleScheduler
rabbit_host=192.168.70.247
nova_url=http://192.168.70.247:8774/v1.1/
sql_connection=mysql://novaUser:novaPass@192.168.70.247/nova
root_helper=sudo nova-rootwrap /etc/nova/rootwrap.conf
# Auth
use_deprecated_auth=false
auth_strategy=keystone
# Imaging service
glance_api_servers=192.168.70.247:9292
image_service=nova.image.glance.GlanceImageService
# Vnc configuration
novnc_enabled=true
novncproxy_base_url=http://192.168.70.247:6080/vnc_auto.html
novncproxy_port=6080
vncserver_proxyclient_address=192.168.70.247
vncserver_listen=0.0.0.0
# Network settings
network_api_class=nova.network.quantumv2.api.API
quantum_url=http://192.168.70.247:9696
quantum_auth_strategy=keystone
quantum_admin_tenant_name=service
quantum_admin_username=quantum
quantum_admin_password=service_pass
quantum_admin_auth_url=http://192.168.70.247:35357/v2.0
libvirt_vif_driver=nova.virt.libvirt.vif.LibvirtHybridOVSBridgeDriver
linuxnet_interface_driver=nova.network.linux_net.LinuxOVSInterfaceDriver
#If you want Quantum + Nova Security groups
firewall_driver=nova.virt.firewall.NoopFirewallDriver
security_group_api=quantum
#If you want Nova Security groups only, comment the two lines above and uncomment line -1-.
#-1-firewall_driver=nova.virt.libvirt.firewall.IptablesFirewallDriver
#Metadata
service_quantum_metadata_proxy = True
quantum_metadata_proxy_shared_secret = helloOpenStack
# Compute #
compute_driver=libvirt.LibvirtDriver
# Cinder #
volume_api_class=nova.volume.cinder.API
osapi_volume_listen_port=5900


      数据同步

nova-manage db sync


    重启服务

cd /etc/init.d/; for i in $( ls nova-* ); do sudo service $i restart; done


    查看服务状态，如下为正常

root@controll:/etc/init.d# nova-manage service list
Binary           Host                                 Zone             Status     State Updated_At
nova-cert        controll                             internal         enabled    :-)   None
nova-consoleauth controll                             internal         enabled    :-)   None
nova-conductor   controll                             internal         enabled    :-)   None
nova-scheduler   controll                             internal         enabled    :-)   None
 　　3.11安装Cinder，给虚拟机提供块存储服务
　　           注:安装前先给虚拟机添加一块磁盘并重启
　　

apt-get install -y cinder-api cinder-scheduler cinder-volume iscsitarget open-iscsi iscsitarget-dkms
　　
　　配置iscis
　　

sed -i 's/false/true/g' /etc/default/iscsitarget
　　

    启动服务

service iscsitarget start
service open-iscsi start


    修改配置文件/etc/cinder/api-paste.ini

[filter:authtoken]
paste.filter_factory = keystoneclient.middleware.auth_token:filter_factory
service_protocol = http
service_host = 192.168.70.247
service_port = 5000
auth_host = 192.168.70.247
auth_port = 35357
auth_protocol = http
admin_tenant_name = service
admin_user = cinder
admin_password = service_pass
signing_dir = /var/lib/cinder


    修改配置文件/etc/cinder/cinder.conf

[DEFAULT]
rootwrap_config=/etc/cinder/rootwrap.conf
sql_connection = mysql://cinderUser:cinderPass@192.168.70.247/cinder
api_paste_config = /etc/cinder/api-paste.ini
iscsi_helper=ietadm
volume_name_template = volume-%s
volume_group = cinder-volumes
verbose = True
auth_strategy = keystone
iscsi_ip_address=192.168.70.247


    同步数据，这里同步时会有输出

cinder-manage db sync


   创建一个名字为cinder-volumes的volumegroup，这里需要开始时添加的磁盘


执行命令:fdisk -l
Disk /dev/sda: 21.5 GB, 21474836480 bytes
255 heads, 63 sectors/track, 2610 cylinders, total 41943040 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x00005f37
Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *        2048    37750783    18874368   83  Linux
/dev/sda2        37752830    41940991     2094081    5  Extended
/dev/sda5        37752832    41940991     2094080   82  Linux swap / Solaris
Disk /dev/sdb: 21.5 GB, 21474836480 bytes
255 heads, 63 sectors/track, 2610 cylinders, total 41943040 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x00000000
Disk /dev/sdb doesn't contain a valid partition table

通过输出可以看到有/dev/sdb盘可以使用
执行命令 fdisk /dev/sdb
按照步骤输入一下内容
n
p
1
ENTER
ENTER
t
8e
w

查看格式化结果 fdisk -l
Disk /dev/sda: 21.5 GB, 21474836480 bytes
255 heads, 63 sectors/track, 2610 cylinders, total 41943040 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x00005f37
Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *        2048    37750783    18874368   83  Linux
/dev/sda2        37752830    41940991     2094081    5  Extended
/dev/sda5        37752832    41940991     2094080   82  Linux swap / Solaris
Disk /dev/sdb: 21.5 GB, 21474836480 bytes
213 heads, 34 sectors/track, 5791 cylinders, total 41943040 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x14815849
Device Boot      Start         End      Blocks   Id  System
/dev/sdb1            2048    41943039    20970496   8e  Linux LVM

最后执行以下操作创建物理存储
root@controll:~# pvcreate /dev/sdb1
Physical volume "/dev/sdb1" successfully created
root@controll:~# vgcreate cinder-volumes /dev/sdb1
Volume group "cinder-volumes" successfully created
root@controll:~#
   重启服务

cd /etc/init.d/; for i in $( ls cinder-* ); do sudo service $i restart; done


3.12安装Horizon

apt-get install -y openstack-dashboard memcached


    删除Ubuntu openstack主题，可不执行

dpkg --purge openstack-dashboard-ubuntu-theme


    重启服务

service apache2 restart; service memcached restart

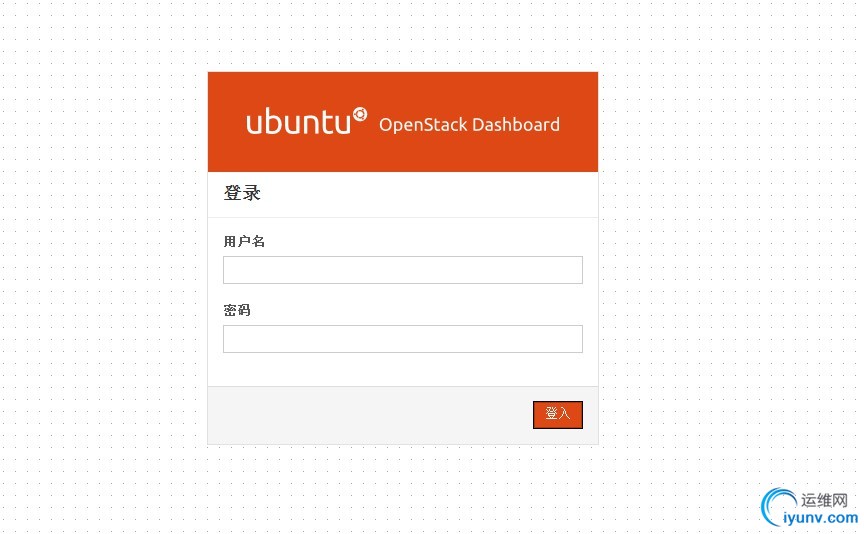

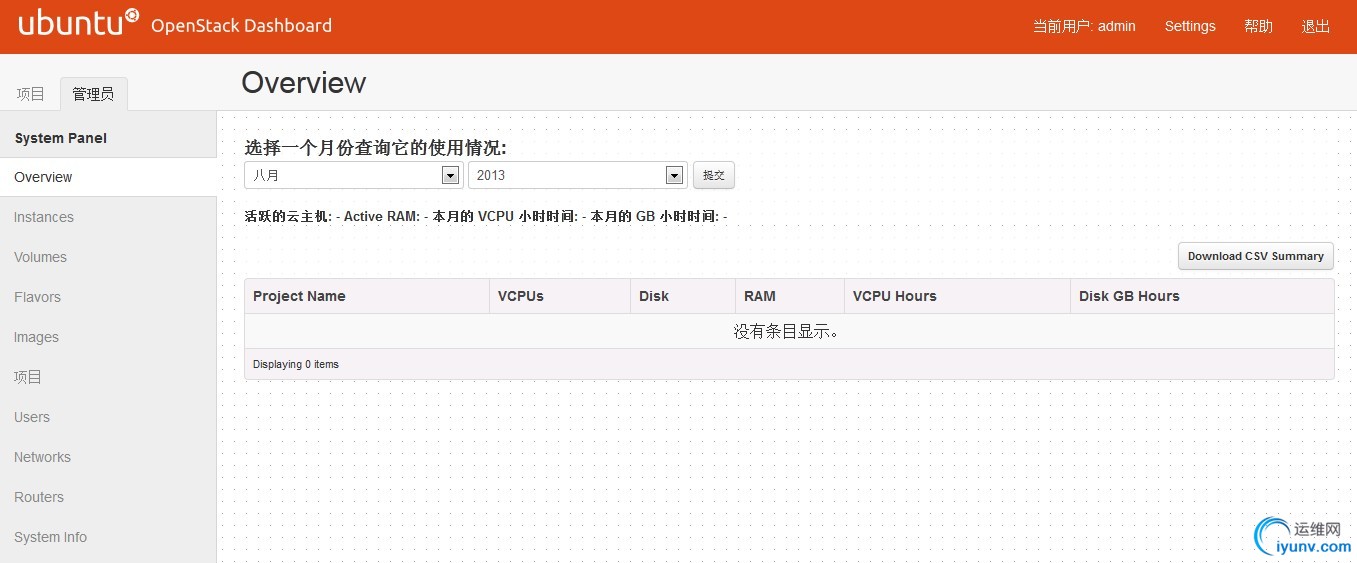

  controller节点安装完成，可以通过一下地址访问

http://192.168.70.247/horizon
帐号:admin
密码:admin_pass




 　　4.安装Network Node
　　

4.1节点虚拟机初始化
　　配置网络如下
　　

eth0      Link encap:Ethernet  HWaddr 00:0c:29:08:dc:56
inet addr:192.168.70.248  Bcast:192.168.70.255  Mask:255.255.255.0
inet6 addr: fe80::20c:29ff:fe08:dc56/64 Scope:Link
UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
RX packets:4175 errors:0 dropped:46 overruns:0 frame:0
TX packets:39 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:417150 (417.1 KB)  TX bytes:6215 (6.2 KB)
Interrupt:19 Base address:0x2000
eth1      Link encap:Ethernet  HWaddr 00:0c:29:08:dc:60
inet addr:192.168.2.2  Bcast:192.168.2.255  Mask:255.255.255.0
inet6 addr: fe80::20c:29ff:fe08:dc60/64 Scope:Link
UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
RX packets:5 errors:0 dropped:0 overruns:0 frame:0
TX packets:6 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:2565 (2.5 KB)  TX bytes:468 (468.0 B)
Interrupt:16 Base address:0x2080
　　

   安装Grizzly repositories

apt-get install -y ubuntu-cloud-keyring
echo deb http://ubuntu-cloud.archive.canonical.com/ubuntu precise-updates/grizzly main >> /etc/apt/sources.list.d/grizzly.list
    系统升级

apt-get update -y
apt-get upgrade -y
apt-get dist-upgrade -y


   安装NTP服务

apt-get install -y ntp


    配置NTP服务

#Comment the ubuntu NTP servers
sed -i 's/server 0.ubuntu.pool.ntp.org/#server 0.ubuntu.pool.ntp.org/g' /etc/ntp.conf
sed -i 's/server 1.ubuntu.pool.ntp.org/#server 1.ubuntu.pool.ntp.org/g' /etc/ntp.conf
sed -i 's/server 2.ubuntu.pool.ntp.org/#server 2.ubuntu.pool.ntp.org/g' /etc/ntp.conf
sed -i 's/server 3.ubuntu.pool.ntp.org/#server 3.ubuntu.pool.ntp.org/g' /etc/ntp.conf
#Set the network node to follow up your conroller node
sed -i 's/server ntp.ubuntu.com/server 192.168.70.247/g' /etc/ntp.conf
service ntp restart
    安装其它组件

apt-get install -y vlan bridge-utils


   配置IP指向

sed -i 's/#net.ipv4.ip_forward=1/net.ipv4.ip_forward=1/' /etc/sysctl.conf
# To save you from rebooting, perform the following
sysctl net.ipv4.ip_forward=1

4.2安装OpenVSwitch

apt-get install -y openvswitch-switch openvswitch-datapath-dkms


    创建网桥

#br-int will be used for VM integration
ovs-vsctl add-br br-int
#br-ex is used to make to VM accessible from the internet
ovs-vsctl add-br br-ex

root@networkvm:/etc# ovs-vsctl show
e9c13238-c723-47f9-8af9-9af75ac8d006
Bridge br-ex
Port br-ex
Interface br-ex
type: internal
Bridge br-int
Port br-int
Interface br-int
type: internal
ovs_version: "1.4.0+build0"

4.3安装Quantum

apt-get -y install quantum-plugin-openvswitch-agent quantum-dhcp-agent quantum-l3-agent quantum-metadata-agent
   修改配置文件/etc/quantum/api-paste.ini，注意ip地址为keyston主机地址

[filter:authtoken]
paste.filter_factory = keystoneclient.middleware.auth_token:filter_factory
auth_host = 192.168.70.247
auth_port = 35357
auth_protocol = http
admin_tenant_name = service
admin_user = quantum
admin_password = service_pass
    修改配置文件/etc/quantum/plugins/openvswitch/ovs_quantum_plugin.ini，local ip为本机eth1网卡IP

#Under the database section
[DATABASE]
sql_connection = mysql://quantumUser:quantumPass@192.168.70.247/quantum
#Under the OVS section
[OVS]
tenant_network_type = gre
tunnel_id_ranges = 1:1000
integration_bridge = br-int
tunnel_bridge = br-tun
local_ip = 192.168.2.2
enable_tunneling = True
#Firewall driver for realizing quantum security group function
[SECURITYGROUP]
firewall_driver = quantum.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDriver
  修改配置文件/etc/quantum/metadata_agent.ini

# The Quantum user information for accessing the Quantum API.
auth_url = http://192.168.70.247:35357/v2.0
auth_region = RegionOne
admin_tenant_name = service
admin_user = quantum
admin_password = service_pass
# IP address used by Nova metadata server
nova_metadata_ip = 192.168.70.247
# TCP Port used by Nova metadata server
nova_metadata_port = 8775
metadata_proxy_shared_secret = helloOpenStack
   修改配置文件/etc/quantum/quantum.conf

rabbit_host = 192.168.70.247
#And update the keystone_authtoken section
[keystone_authtoken]
auth_host = 192.168.70.247
auth_port = 35357
auth_protocol = http
admin_tenant_name = service
admin_user = quantum
admin_password = service_pass
signing_dir = /var/lib/quantum/keystone-signing
    修改配置文件/etc/sudoers/sudoers.d/quantum_sudoers

quantum ALL=NOPASSWD: ALL
    重启服务 ，如果执行有sudo: unable to resolve host networkvm，请配置hosts文件

cd /etc/init.d/; for i in $( ls quantum-* ); do sudo service $i restart; done

4.4配置OpenVSwitch2

          配置eth2网卡的信息

# VM internet Access
auto eth2
iface eth2 inet manual
up ifconfig $IFACE 0.0.0.0 up
up ip link set $IFACE promisc on
down ip link set $IFACE promisc off
down ifconfig $IFACE down
    配置网卡eth2与网桥的关联

ovs-vsctl add-port br-ex eth2

root@networkvm:/etc/init.d# ovs-vsctl show
e9c13238-c723-47f9-8af9-9af75ac8d006
Bridge br-ex
Port "eth2"
Interface "eth2"
Port br-ex
Interface br-ex
type: internal
Bridge br-tun
Port br-tun
Interface br-tun
type: internal
Port patch-int
Interface patch-int
type: patch
options: {peer=patch-tun}
Bridge br-int
Port patch-tun
Interface patch-tun
type: patch
options: {peer=patch-int}
Port br-int
Interface br-int
type: internal
ovs_version: "1.4.0+build0"
 　　5.安装Computer Node

5.1节点虚拟机初始化

apt-get install -y ubuntu-cloud-keyring
echo deb http://ubuntu-cloud.archive.canonical.com/ubuntu precise-updates/grizzly main >> /etc/apt/sources.list.d/grizzly.list
apt-get update -y
apt-get upgrade -y
apt-get dist-upgrade -y
# The loopback network interface
auto lo
iface lo inet loopback
# The primary network interface
auto eth0
iface eth0 inet static
address 192.168.70.249
netmask 255.255.255.0
gateway 192.168.70.1
auto eth1
iface eth1 inet static
address 192.168.2.3
netmask 255.255.255.0
    重启虚拟机


     安装NTP服务

apt-get install -y ntp


      配置NTP服务

#Comment the ubuntu NTP servers
sed -i 's/server 0.ubuntu.pool.ntp.org/#server 0.ubuntu.pool.ntp.org/g' /etc/ntp.conf
sed -i 's/server 1.ubuntu.pool.ntp.org/#server 1.ubuntu.pool.ntp.org/g' /etc/ntp.conf
sed -i 's/server 2.ubuntu.pool.ntp.org/#server 2.ubuntu.pool.ntp.org/g' /etc/ntp.conf
sed -i 's/server 3.ubuntu.pool.ntp.org/#server 3.ubuntu.pool.ntp.org/g' /etc/ntp.conf
#Set the compute node to follow up your conroller node
sed -i 's/server ntp.ubuntu.com/server 10.10.10.51/g' /etc/ntp.conf
service ntp restart
   安装其他服务

apt-get install -y vlan bridge-utils


    配置IP指向

sed -i 's/#net.ipv4.ip_forward=1/net.ipv4.ip_forward=1/' /etc/sysctl.conf
# To save you from rebooting, perform the following
sysctl net.ipv4.ip_forward=1


5.2安装KVM



    安装KVM

apt-get install -y cpu-checker
kvm-ok
会提示如下信息
root@computervm:/opt/test# kvm-ok
INFO: Your CPU does not support KVM extensions
KVM acceleration can NOT be used
虚拟机不支持kvm cpu加速，但是不影响使用


    安装KVM

apt-get install -y kvm libvirt-bin pm-utils


    配置 /etc/libvirt/qemu.conf文件

cgroup_device_acl = [
"/dev/null", "/dev/full", "/dev/zero",
"/dev/random", "/dev/urandom",
"/dev/ptmx", "/dev/kvm", "/dev/kqemu",
"/dev/rtc", "/dev/hpet","/dev/net/tun"
]


   删除默认网桥

virsh net-destroy default
virsh net-undefine default


   配置/etc/libvirt/libvirtd.conf文件

listen_tls = 0
listen_tcp = 1
auth_tcp = "none"


   配置/etc/init/libvirt-bin.conf文件

env libvirtd_opts="-d -l"


    配置/etc/default/libvirt-bin文件

libvirtd_opts="-d -l"


   重启服务

service dbus restart && service libvirt-bin restart

5.3安装openVSwitch

apt-get install -y openvswitch-switch openvswitch-datapath-dkms


     创建网桥

ovs-vsctl add-br br-int

5.4安装Quantum



apt-get -y install quantum-plugin-openvswitch-agent


     配置/etc/quantum/plugins/openvswitch/ovs_quantum_plugin.ini文件

#Under the database section
[DATABASE]
sql_connection = mysql://quantumUser:quantumPass@192.168.70.247/quantum
#Under the OVS section
[OVS]
tenant_network_type = gre
tunnel_id_ranges = 1:1000
integration_bridge = br-int
tunnel_bridge = br-tun
local_ip = 192.168.2.3enable_tunneling = True
#Firewall driver for realizing quantum security group function
[SECURITYGROUP]
firewall_driver = quantum.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDriver
    配置  /etc/quantum/quantum.conf文件

rabbit_host = 192.168.70.247
#And update the keystone_authtoken section
[keystone_authtoken]
auth_host = 192.168.70.247
auth_port = 35357
auth_protocol = http
admin_tenant_name = service
admin_user = quantum
admin_password = service_pass
signing_dir = /var/lib/quantum/keystone-signing


   重启服务

service quantum-plugin-openvswitch-agent restart

5.4安装Nova

apt-get install -y nova-compute-kvm


    配置/etc/nova/api-paste.ini文件

[filter:authtoken]
paste.filter_factory = keystoneclient.middleware.auth_token:filter_factory
auth_host = 192.168.70.247
auth_port = 35357
auth_protocol = http
admin_tenant_name = service
admin_user = nova
admin_password = service_pass
signing_dirname = /tmp/keystone-signing-nova
# Workaround for https://bugs.launchpad.net/nova/+bug/1154809
auth_version = v2.0


    配置/etc/nova/nova-compute.conf文件，由于是虚拟机安装libvirt_type=需要改成qemu，物理机为KVM

[DEFAULT]
#libvirt_type=kvm
libvirt_type=qemu
libvirt_ovs_bridge=br-int
libvirt_vif_type=ethernet
libvirt_vif_driver=nova.virt.libvirt.vif.LibvirtHybridOVSBridgeDriver
libvirt_use_virtio_for_bridges=True


     配置/etc/nova/nova.conf文件

[DEFAULT]
logdir=/var/log/nova
state_path=/var/lib/nova
lock_path=/run/lock/nova
verbose=True
api_paste_config=/etc/nova/api-paste.ini
compute_scheduler_driver=nova.scheduler.simple.SimpleScheduler
rabbit_host=192.168.70.247
nova_url=http://192.168.70.247:8774/v1.1/
sql_connection=mysql://novaUser:novaPass@192.168.70.247/nova
root_helper=sudo nova-rootwrap /etc/nova/rootwrap.conf
# Auth
use_deprecated_auth=false
auth_strategy=keystone
# Imaging service
glance_api_servers=192.168.70.247:9292
image_service=nova.image.glance.GlanceImageService
# Vnc configuration
novnc_enabled=true
novncproxy_base_url=http://192.168.70.247:6080/vnc_auto.html
novncproxy_port=6080
vncserver_proxyclient_address=192.168.70.249
vncserver_listen=0.0.0.0
# Network settings
network_api_class=nova.network.quantumv2.api.API
quantum_url=http://192.168.70.247:9696
quantum_auth_strategy=keystone
quantum_admin_tenant_name=service
quantum_admin_username=quantum
quantum_admin_password=service_pass
quantum_admin_auth_url=http://192.168.70.247:35357/v2.0
libvirt_vif_driver=nova.virt.libvirt.vif.LibvirtHybridOVSBridgeDriver
linuxnet_interface_driver=nova.network.linux_net.LinuxOVSInterfaceDriver
#If you want Quantum + Nova Security groups
firewall_driver=nova.virt.firewall.NoopFirewallDriver
security_group_api=quantum
#If you want Nova Security groups only, comment the two lines above and uncomment line -1-.
#-1-firewall_driver=nova.virt.libvirt.firewall.IptablesFirewallDriver
#Metadata
service_quantum_metadata_proxy = True
quantum_metadata_proxy_shared_secret = helloOpenStack
# Compute #
compute_driver=libvirt.LibvirtDriver
# Cinder #
volume_api_class=nova.volume.cinder.API
osapi_volume_listen_port=5900
cinder_catalog_info=volume:cinder:internalURL


    重启服务

cd /etc/init.d/; for i in $( ls nova-* ); do sudo service $i restart; done


     验证安装，全为笑脸表示成功

root@computervm:/etc/init.d# nova-manage service list
Binary           Host                                 Zone             Status     State Updated_At
nova-cert        controll                             internal         enabled    :-)   2013-08-01 14:23:23
nova-consoleauth controll                             internal         enabled    :-)   2013-08-01 14:23:20
nova-conductor   controll                             internal         enabled    :-)   2013-08-01 14:23:19
nova-scheduler   controll                             internal         enabled    :-)   2013-08-01 14:23:21
nova-compute     computervm                           nova             enabled    :-)   None
root@computervm:/etc/init.d#


   结束语:至此，多节点安装openstack G版完全完成。后期针对openstack的配置及使用再发相关教程。
