Percona-mysql MHA高可用实战方案

234213

前言

MHA（Master High Availability）目前在MySQL高可用方面是一个相对成熟的解决方案，它由日本DeNA公司youshimaton(现就职于Facebook公司)开发，是一套优秀的作为MySQLy高可用环境下故障切换和主从提升的高可用软件。在MySQL故障切换过程中，MHA能做到在0~30秒之内自动完成数据库的故障切换操作，并且在进行故障切换过程中，MHA能在最大程度上保证数据的一致性，以达到真正意义上的高可用。

    它由两部分组成：MHA Manager(管理节点)和MHA Node(数据节点)。MHA Manager可以单独部署在一台独立的机器上管理多个master-slave集群，也可以部署在一台slave上。

MHA node运行在每台MySQL服务器上，MHA Manager会定时探测集群中的master节点,当master 出现故障时，它可以自动将最新数据的slave提升为新的master,然后将所有其他的slave重新指向新的master。整个故障转移过程对应用程序是完全透明的。

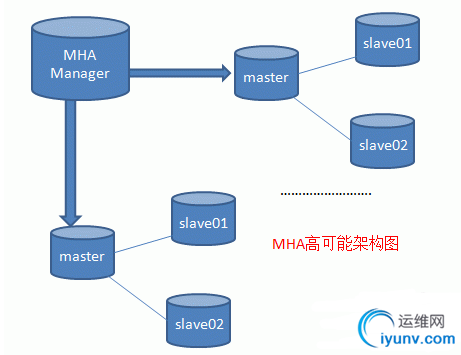

1.     安装部署MHA前准备MHA架构图










具体搭建如表：

角色	IP地址	主机名	serverID	类型
Monitor host	192.168.127.100	MHA		监控集群组
Master	192.168.127.101	master	101	写入
Candicate master	192.168.127.102	slave01	102	读
slave	192.168.127.103	slave02	103	读

vi /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.127.100     MHA
192.168.127.101     master
192.168.127.102     slave01
192.168.127.103     slave02
1.1．   percona-mysql安装（master、slave01、slave02 三台安装）注意：三台的server_id 不一样，为了做主从同步
创建mysql用户：
useradd mysql
创建安装目录与数据目录：
mkdir /app
mkdir -p /data/mysql3306
解决percona-mysql软件：
tar zxvf Percona-Server-5.6.27-rel75.0-Linux.x86_64.ssl101.tar.gz
注意：安装的软件需要根据openssl版本来下载
rpm -qa | grep ssl
openssl-1.0.1e-15.el6.x86_64
把解压文件移动相应目录：
mv Percona-Server-5.6.27-rel75.0-Linux.x86_64.ssl101 /app/mysql5.6

创建放慢查询日志目录：
mkdir /app/mysql5.6/logs
给目录权限：
chown -R mysql:mysql /app/mysql5.6
chown -R mysql:mysql /data/mysql3306

创建配置文件
vi /app/mysql5.6/my.cnf

[client]
socket=/app/mysql5.6/mysql.sock
default-character-set=utf8
port=3306
[mysql]
prompt=\\u@\\d \\r:\\m:\\s>
no-auto-rehash
[mysqld_safe]
log-error=/data/mysql3306/mysqld.error
[mysqld]
socket=/app/mysql5.6/mysql.sock
pid-file=/app/mysql5.6/mysqld.pid
basedir=/app/mysql5.6
datadir=/data/mysql3306
port=3306
server_id=101
character-set-server=utf8
skip-external-locking
skip-name-resolve
max_connections=1024
max_connect_errors=1000
wait_timeout =  400
interactive_timeout = 400
table_definition_cache=500
table_open_cache=500
sort_buffer_size = 16M
tmp_table_size = 200M

read_buffer_size = 1M
read_rnd_buffer_size = 4M
myisam_sort_buffer_size = 64M
thread_cache_size = 8
query_cache_type=0
query_cache_size=0
thread_concurrency = 16
lower_case_table_names = 1
log_bin_trust_function_creators = 1
#################slow log####################
slow-query_log=1
slow-query_log_file=/app/mysql5.6/logs/mysql.slow
long_query_time=2
####################binlog######################
log-bin=mysql-bin
binlog-format=ROW
expire_logs_days=5
sync_binlog=1
################replication##########
log-slave-updates=1
################INNODB################
sql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES
transaction-isolation=READ-COMMITTED
innodb_buffer_pool_size=10G
innodb_flush_log_at_trx_commit=2
innodb_strict_mode=1
innodb_flush_method=O_DIRECT
innodb_file_format=Barracuda
innodb_log_files_in_group=3
innodb_file_per_table=1
innodb_io_capacity=500
innodb_support_xa=1
innodb_additional_mem_pool_size=16M
innodb_log_buffer_size=64M


[mysqldump]
quick
max_allowed_packet=128M
myisam_max_sort_sort_file_size=2G


初始化数据库
/app/mysql5.6/scripts/mysql_install_db --user=mysql --basedir=/app/mysql5.6 --datadir=/data/mysql3306   --defaults-file=/app/mysql5.6/my.cnf

启动脚本
cp  /app/mysql5.6/support-files/mysql.server /etc/init.d/mysql
vi /etc/init.d/mysql

basedir=/app/mysql5.6
datadir=/data/mysql3306

注意：修改以上两处即可

启动数据库

/etc/init.d/mysql start

Starting MySQL (Percona Server)....                        [  OK  ]

环境变量配置
vi /etc/profile

export MYSQL_HOME=/app/mysql5.6
export MY_BASEDIR_VERSION=/app/mysql5.6
export PATH=/app/mysql5.6/bin:/app/mysql5.6/scripts:$PATH
export LD_LIBRARY_PATH=/app/mysql5.6/lib

生效环境变量
source /etc/profile
1.2   .主从同步搭建注意：防火墙需要关闭
创建复制账号（master、slave1(mha新主)）
GRANT REPLICATION  SLAVE ON *.*  TO 'repl'@'192.168.127.%'  IDENTIFIED BY 'repl';
flush privileges;

查看master binlog  POS点信息
root@(none) 06:47:05>show master status;
+------------------+----------+--------------+------------------+-------------------+
| File             | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+------------------+----------+--------------+------------------+-------------------+
| mysql-bin.000004 |      409 |              |                  |                   |
+------------------+----------+--------------+------------------+-------------------+
1 row in set (0.01 sec)

建立主从复制（slave01、slave02）
[iyunv@slave01 ~]# mysql
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 2
Server version: 5.6.27-75.0-log Percona Server (GPL), Release 75.0, Revision 8bb53b6

Copyright (c) 2009-2015 Percona LLC and/or its affiliates
Copyright (c) 2000, 2015, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

root@(none) 07:03:39>CHANGE MASTER TO MASTER_HOST='192.168.127.101',MASTER_PORT=3306,MASTER_USER='repl',MASTER_PASSWORD='repl',MASTER_LOG_FILE='mysql-bin.000004',MASTER_LOG_POS=409;
Query OK, 0 rows affected, 2 warnings (0.05 sec)

root@(none) 07:03:41>start slave;
Query OK, 0 rows affected (0.02 sec)

查看主从复制
root@(none) 07:03:42>show slave status\G;
*************************** 1. row ***************************
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 192.168.127.101
                  Master_User: repl
                  Master_Port: 3306
                Connect_Retry: 60
              Master_Log_File: mysql-bin.000004
          Read_Master_Log_Pos: 409
               Relay_Log_File: mysqld-relay-bin.000002
                Relay_Log_Pos: 283
        Relay_Master_Log_File: mysql-bin.000004
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes
              Replicate_Do_DB:
          Replicate_Ignore_DB:
           Replicate_Do_Table:
       Replicate_Ignore_Table:
      Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
                   Last_Errno: 0
                   Last_Error:
                 Skip_Counter: 0
          Exec_Master_Log_Pos: 409
              Relay_Log_Space: 457
              Until_Condition: None
               Until_Log_File:
                Until_Log_Pos: 0
           Master_SSL_Allowed: No
           Master_SSL_CA_File:
           Master_SSL_CA_Path:
              Master_SSL_Cert:
            Master_SSL_Cipher:
               Master_SSL_Key:
        Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
                Last_IO_Errno: 0
                Last_IO_Error:
               Last_SQL_Errno: 0
               Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
             Master_Server_Id: 101
                  Master_UUID: 8b1cf62d-e063-11e5-84ba-000c2908253f
             Master_Info_File: /data/mysql3306/master.info
                    SQL_Delay: 0
          SQL_Remaining_Delay: NULL
      Slave_SQL_Running_State: Slave has read all relay log; waiting for the slave I/O thread to update it
           Master_Retry_Count: 86400
                  Master_Bind:
      Last_IO_Error_Timestamp:
     Last_SQL_Error_Timestamp:
               Master_SSL_Crl:
           Master_SSL_Crlpath:
           Retrieved_Gtid_Set:
            Executed_Gtid_Set:
                Auto_Position: 0
1 row in set (0.02 sec)

ERROR:
No query specified

以上主从已经搭建好，下面我们安装与配置MHA
（1）slave服务器(192.168.127.102,192.168.103)设置read only;
mysql> set global read_only=1;
（2）设置relay log清除方式（在每个slave 下）
mysql> set global relay_log_purge=0;
(3)创建监控用户,在所有MYSQL上执行
mysql> grant all privileges on *.* to 'root'@'192.168.127.%' identified by '123456';
mysql>flush privileges;


（4）在slave01(192.168.127.102)上创建复制用户：
mysql> grant replication slave on *.* to 'repl'@'192.168.127.%' identified by 'repl';
mysql>flush privileges;


2.安装部署MHA2.1安装MHA node(在所有Mysql服务器上安装)（1）安装依赖包
  rpm -Uvh http://dl.fedoraproject.org/pub/ ... ease-6-8.noarch.rpm
rpm --import /etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-6
yum -y install perl-DBD-MySQL perl-Config-Tiny perl-Log-Dispatch perl-Parallel-ForkManager perl-Config-IniFiles perl-Time-HiRes  perl-Time-HiRes  perl-CPAN

（2）在所有的节点上安装mha node:
tar  zxvf  mha4mysql-node-0.56.tar.gz
cd  mha4mysql-node-0.56
perl  Makefile.PL
make
make install

2.2.安装MHA ManagerMHA Manager中主要包括了几个管理员的命令行工具，例如masterha_manager，masterha_master_switch等。
（1）       安装依赖包

rpm -Uvh http://dl.fedoraproject.org/pub/ ... ease-6-8.noarch.rpm

rpm --import /etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-6

yum -y install perl-DBD-MySQL perl-Config-Tiny perl-Log-Dispatch perl-Parallel-ForkManager perl-Config-IniFiles perl-Time-HiRes  perl-Time-HiRes  perl-CPAN

（2）       安装MHA node软件包。注意，在MHA Manger的主机上也要安装MHA node.

tar  zxvf  mha4mysql-node-0.56.tar.gz

cd  mha4mysql-node-0.56

perl  Makefile.PL

make

make install

（3）       安装MHA Manager软件包。

tar zxvf mha4mysql-manager-0.56.tar.gz

cd mha4mysql-manager-0.56

perl Makefile.PL

make

make install

2.3. 配置SSH 登录无密码验证（1）       在manager （192.168.127.100）上配置到所有节点的无密码验证
ssh-keygen -t rsa

ssh-copy-id -i ~/.ssh/id_rsa.pub root@MHA

ssh-copy-id -i ~/.ssh/id_rsa.pub root@master

ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave01

ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave02

（2）       在MHA Node master(192.168.127.101)上：
ssh-keygen -t rsa
ssh-copy-id -i ~/.ssh/id_rsa.pub root@MHA

ssh-copy-id -i ~/.ssh/id_rsa.pub root@master

ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave01

     ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave02

（3）       在MHA Node slave01(192.168.127.102)上：
ssh-keygen -t rsa

ssh-copy-id -i ~/.ssh/id_rsa.pub root@MHA

ssh-copy-id -i ~/.ssh/id_rsa.pub root@master

ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave01

     ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave02

（4）       在MHA Node slave02(192.168.127.103)上：
ssh-keygen -t rsa

ssh-copy-id -i ~/.ssh/id_rsa.pub root@MHA

ssh-copy-id -i ~/.ssh/id_rsa.pub root@master

     ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave01

ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave02

   在每台做以下步骤
ln -s /app/mysql5.6/bin/* /usr/local/bin/
把脚本拷贝相关目录
[iyunv@MHA ~]# cp /root/mha4mysql-manager-0.56/samples/scripts/master_ip_failover /usr/local/bin/

[iyunv@MHA ~]# cp /root/mha4mysql-manager-0.56/samples/scripts/master_ip_online_change /usr/local/bin/

[iyunv@MHA~]#cp /root/mha4mysql-manager-0.56/samples/scripts/send_report  /usr/local/bin/

[iyunv@MHA ~]# cp /root/mha4mysql-manager-0.56/bin/masterha_secondary_check /usr/bin/
3.配置MHA配置MHA的步骤如下。
（1）       创建MHA工作目录，并且创建相关配置文件：

mkdir -p /etc/masterha

mkdir -p /masterha/app1

      配置如下

vi /etc/masterha/app1.cnf

[server default]

manager_workdir=/masterha/app1

manager_log=/masterha/app1/app1.log

master_ip_failover_script=/usr/local/bin/master_ip_failover

master_ip_online_change_script=/usr/local/bin/master_ip_online_change

user=root

password=123456

ssh_user=root

repl_user=repl

repl_password=repl

ping_interval=1

remote_workdir=/tmp

report_script=/usr/local/bin/send_report

secondary_check_script=/usr/bin/masterha_secondary_check  -s MHA -s slave02  --user=root --master_host=master --master_ip=192.168.127.101 --master_port=3306 --password=123456

shutdown_script=""

report_script=""

[server1]

hostname=192.168.127.101

master_binlog_dir=/data/mysql3306

candidate_master=1

[server2]

hostname=192.168.127.102

master_binlog_dir=/data/mysql3306

candidate_master=1

check_repl_delay=0

[server3]

hostname=192.168.127.103

master_binlog_dir=/data/mysql3306

no_master=1

4.检查SSH的配置

检查MHA Manager到所有MHA node的SSH连接状态：

[iyunv@MHA ~]# masterha_check_ssh --conf=/etc/masterha/app1.cnf
Wed Mar  2 19:03:30 2016 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Wed Mar  2 19:03:30 2016 - [info] Reading application default configuration from /etc/masterha/app1.cnf..
Wed Mar  2 19:03:30 2016 - [info] Reading server configuration from /etc/masterha/app1.cnf..
Wed Mar  2 19:03:30 2016 - [info] Starting SSH connection tests..
Wed Mar  2 19:03:31 2016 - [debug]
Wed Mar  2 19:03:30 2016 - [debug]  Connecting via SSH from root@192.168.127.101(192.168.127.101:22) to root@192.168.127.102(192.168.127.102:22)..
Wed Mar  2 19:03:30 2016 - [debug]   ok.
Wed Mar  2 19:03:30 2016 - [debug]  Connecting via SSH from root@192.168.127.101(192.168.127.101:22) to root@192.168.127.103(192.168.127.103:22)..
Wed Mar  2 19:03:30 2016 - [debug]   ok.
Wed Mar  2 19:03:31 2016 - [debug]
Wed Mar  2 19:03:30 2016 - [debug]  Connecting via SSH from root@192.168.127.102(192.168.127.102:22) to root@192.168.127.101(192.168.127.101:22)..
Wed Mar  2 19:03:31 2016 - [debug]   ok.
Wed Mar  2 19:03:31 2016 - [debug]  Connecting via SSH from root@192.168.127.102(192.168.127.102:22) to root@192.168.127.103(192.168.127.103:22)..
Wed Mar  2 19:03:31 2016 - [debug]   ok.
Wed Mar  2 19:03:32 2016 - [debug]
Wed Mar  2 19:03:31 2016 - [debug]  Connecting via SSH from root@192.168.127.103(192.168.127.103:22) to root@192.168.127.101(192.168.127.101:22)..
Wed Mar  2 19:03:31 2016 - [debug]   ok.
Wed Mar  2 19:03:31 2016 - [debug]  Connecting via SSH from root@192.168.127.103(192.168.127.103:22) to root@192.168.127.102(192.168.127.102:22)..
Wed Mar  2 19:03:32 2016 - [debug]   ok.

Wed Mar  2 19:03:32 2016 - [info] All SSH connection tests passed successfully.

5.检查整个复制环境[iyunv@MHA ~]# masterha_check_ssh --conf=/etc/masterha/app1.cnf
Wed Mar  2 19:03:30 2016 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Wed Mar  2 19:03:30 2016 - [info] Reading application default configuration from /etc/masterha/app1.cnf..
Wed Mar  2 19:03:30 2016 - [info] Reading server configuration from /etc/masterha/app1.cnf..
Wed Mar  2 19:03:30 2016 - [info] Starting SSH connection tests..
Wed Mar  2 19:03:31 2016 - [debug]
Wed Mar  2 19:03:30 2016 - [debug]  Connecting via SSH from root@192.168.127.101(192.168.127.101:22) to root@192.168.127.102(192.168.127.102:22)..
Wed Mar  2 19:03:30 2016 - [debug]   ok.
Wed Mar  2 19:03:30 2016 - [debug]  Connecting via SSH from root@192.168.127.101(192.168.127.101:22) to root@192.168.127.103(192.168.127.103:22)..
Wed Mar  2 19:03:30 2016 - [debug]   ok.
Wed Mar  2 19:03:31 2016 - [debug]
Wed Mar  2 19:03:30 2016 - [debug]  Connecting via SSH from root@192.168.127.102(192.168.127.102:22) to root@192.168.127.101(192.168.127.101:22)..
Wed Mar  2 19:03:31 2016 - [debug]   ok.
Wed Mar  2 19:03:31 2016 - [debug]  Connecting via SSH from root@192.168.127.102(192.168.127.102:22) to root@192.168.127.103(192.168.127.103:22)..
Wed Mar  2 19:03:31 2016 - [debug]   ok.
Wed Mar  2 19:03:32 2016 - [debug]
Wed Mar  2 19:03:31 2016 - [debug]  Connecting via SSH from root@192.168.127.103(192.168.127.103:22) to root@192.168.127.101(192.168.127.101:22)..
Wed Mar  2 19:03:31 2016 - [debug]   ok.
Wed Mar  2 19:03:31 2016 - [debug]  Connecting via SSH from root@192.168.127.103(192.168.127.103:22) to root@192.168.127.102(192.168.127.102:22)..
Wed Mar  2 19:03:32 2016 - [debug]   ok.
Wed Mar  2 19:03:32 2016 - [info] All SSH connection tests passed successfully.
[iyunv@MHA ~]# masterha_check_repl --conf=/etc/masterha/app1.cnf
Wed Mar  2 19:04:12 2016 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Wed Mar  2 19:04:12 2016 - [info] Reading application default configuration from /etc/masterha/app1.cnf..
Wed Mar  2 19:04:12 2016 - [info] Reading server configuration from /etc/masterha/app1.cnf..
Wed Mar  2 19:04:12 2016 - [info] MHA::MasterMonitor version 0.56.
Wed Mar  2 19:04:12 2016 - [info] GTID failover mode = 0
Wed Mar  2 19:04:12 2016 - [info] Dead Servers:
Wed Mar  2 19:04:12 2016 - [info] Alive Servers:
Wed Mar  2 19:04:12 2016 - [info]   192.168.127.101(192.168.127.101:3306)
Wed Mar  2 19:04:12 2016 - [info]   192.168.127.102(192.168.127.102:3306)
Wed Mar  2 19:04:12 2016 - [info]   192.168.127.103(192.168.127.103:3306)
Wed Mar  2 19:04:12 2016 - [info] Alive Slaves:
Wed Mar  2 19:04:12 2016 - [info]   192.168.127.102(192.168.127.102:3306)  Version=5.6.27-75.0-log (oldest major version between slaves) log-bin:enabled
Wed Mar  2 19:04:12 2016 - [info]     Replicating from 192.168.127.101(192.168.127.101:3306)
Wed Mar  2 19:04:12 2016 - [info]     Primary candidate for the new Master (candidate_master is set)
Wed Mar  2 19:04:12 2016 - [info]   192.168.127.103(192.168.127.103:3306)  Version=5.6.27-75.0-log (oldest major version between slaves) log-bin:enabled
Wed Mar  2 19:04:12 2016 - [info]     Replicating from 192.168.127.101(192.168.127.101:3306)
Wed Mar  2 19:04:12 2016 - [info]     Not candidate for the new Master (no_master is set)
Wed Mar  2 19:04:12 2016 - [info] Current Alive Master: 192.168.127.101(192.168.127.101:3306)
Wed Mar  2 19:04:12 2016 - [info] Checking slave configurations..
Wed Mar  2 19:04:12 2016 - [info] Checking replication filtering settings..
Wed Mar  2 19:04:12 2016 - [info]  binlog_do_db= , binlog_ignore_db=
Wed Mar  2 19:04:12 2016 - [info]  Replication filtering check ok.
Wed Mar  2 19:04:12 2016 - [info] GTID (with auto-pos) is not supported
Wed Mar  2 19:04:12 2016 - [info] Starting SSH connection tests..
Wed Mar  2 19:04:14 2016 - [info] All SSH connection tests passed successfully.
Wed Mar  2 19:04:14 2016 - [info] Checking MHA Node version..
Wed Mar  2 19:04:15 2016 - [info]  Version check ok.
Wed Mar  2 19:04:15 2016 - [info] Checking SSH publickey authentication settings on the current master..
Wed Mar  2 19:04:15 2016 - [info] HealthCheck: SSH to 192.168.127.101 is reachable.
Wed Mar  2 19:04:15 2016 - [info] Master MHA Node version is 0.56.
Wed Mar  2 19:04:15 2016 - [info] Checking recovery script configurations on 192.168.127.101(192.168.127.101:3306)..
Wed Mar  2 19:04:15 2016 - [info]   Executing command: save_binary_logs --command=test --start_pos=4 --binlog_dir=/data/mysql3306 --output_file=/tmp/save_binary_logs_test --manager_version=0.56 --start_file=mysql-bin.000004
Wed Mar  2 19:04:15 2016 - [info]   Connecting to root@192.168.127.101(192.168.127.101:22)..
  Creating /tmp if not exists..    ok.
  Checking output directory is accessible or not..
   ok.
  Binlog found at /data/mysql3306, up to mysql-bin.000004
Wed Mar  2 19:04:15 2016 - [info] Binlog setting check done.
Wed Mar  2 19:04:15 2016 - [info] Checking SSH publickey authentication and checking recovery script configurations on all alive slave servers..
Wed Mar  2 19:04:15 2016 - [info]   Executing command : apply_diff_relay_logs --command=test --slave_user='root' --slave_host=192.168.127.102 --slave_ip=192.168.127.102 --slave_port=3306 --workdir=/tmp --target_version=5.6.27-75.0-log --manager_version=0.56 --relay_log_info=/data/mysql3306/relay-log.info  --relay_dir=/data/mysql3306/  --slave_pass=xxx
Wed Mar  2 19:04:15 2016 - [info]   Connecting to root@192.168.127.102(192.168.127.102:22)..
  Checking slave recovery environment settings..
    Opening /data/mysql3306/relay-log.info ... ok.
    Relay log found at /data/mysql3306, up to mysqld-relay-bin.000002
    Temporary relay log file is /data/mysql3306/mysqld-relay-bin.000002
    Testing mysql connection and privileges..Warning: Using a password on the command line interface can be insecure.
done.
    Testing mysqlbinlog output.. done.
    Cleaning up test file(s).. done.
Wed Mar  2 19:04:16 2016 - [info]   Executing command : apply_diff_relay_logs --command=test --slave_user='root' --slave_host=192.168.127.103 --slave_ip=192.168.127.103 --slave_port=3306 --workdir=/tmp --target_version=5.6.27-75.0-log --manager_version=0.56 --relay_log_info=/data/mysql3306/relay-log.info  --relay_dir=/data/mysql3306/  --slave_pass=xxx
Wed Mar  2 19:04:16 2016 - [info]   Connecting to root@192.168.127.103(192.168.127.103:22)..
  Checking slave recovery environment settings..
    Opening /data/mysql3306/relay-log.info ... ok.
    Relay log found at /data/mysql3306, up to mysqld-relay-bin.000002
    Temporary relay log file is /data/mysql3306/mysqld-relay-bin.000002
    Testing mysql connection and privileges..Warning: Using a password on the command line interface can be insecure.
done.
    Testing mysqlbinlog output.. done.
    Cleaning up test file(s).. done.
Wed Mar  2 19:04:16 2016 - [info] Slaves settings check done.
Wed Mar  2 19:04:16 2016 - [info]

•


+--192.168.127.102(192.168.127.102:3306)
+--192.168.127.103(192.168.127.103:3306)
Wed Mar  2 19:04:16 2016 - [info] Checking replication health on 192.168.127.102..
Wed Mar  2 19:04:16 2016 - [info]  ok.
Wed Mar  2 19:04:16 2016 - [info] Checking replication health on 192.168.127.103..
Wed Mar  2 19:04:16 2016 - [info]  ok.
Wed Mar  2 19:04:16 2016 - [info] Checking master_ip_failover_script status:
Wed Mar  2 19:04:16 2016 - [info]   /usr/local/bin/master_ip_failover --command=status --ssh_user=root --orig_master_host=192.168.127.101 --orig_master_ip=192.168.127.101 --orig_master_port=3306
Bareword "FIXME_xxx" not allowed while "strict subs" in use at /usr/local/bin/master_ip_failover line 93.
Execution of /usr/local/bin/master_ip_failover aborted due to compilation errors.
Wed Mar  2 19:04:16 2016 - [error][/usr/local/share/perl5/MHA/MasterMonitor.pm, ln226]  Failed to get master_ip_failover_script status with return code 255:0.
Wed Mar  2 19:04:16 2016 - [error][/usr/local/share/perl5/MHA/MasterMonitor.pm, ln424] Error happened on checking configurations.  at /usr/local/bin/masterha_check_repl line 48
Wed Mar  2 19:04:16 2016 - [error][/usr/local/share/perl5/MHA/MasterMonitor.pm, ln523] Error happened on monitoring servers.
Wed Mar  2 19:04:16 2016 - [info] Got exit code 1 (Not master dead).

MySQL Replication Health is NOT OK!

说明以上没有成功需要修改以上的问题

把93行#FIXME_xxx;  注释掉

[iyunv@MHA ~]# masterha_check_repl --conf=/etc/masterha/app1.cnf
Wed Mar  2 19:04:52 2016 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Wed Mar  2 19:04:52 2016 - [info] Reading application default configuration from /etc/masterha/app1.cnf..
Wed Mar  2 19:04:52 2016 - [info] Reading server configuration from /etc/masterha/app1.cnf..
Wed Mar  2 19:04:52 2016 - [info] MHA::MasterMonitor version 0.56.
Wed Mar  2 19:04:52 2016 - [info] GTID failover mode = 0
Wed Mar  2 19:04:52 2016 - [info] Dead Servers:
Wed Mar  2 19:04:52 2016 - [info] Alive Servers:
Wed Mar  2 19:04:52 2016 - [info]   192.168.127.101(192.168.127.101:3306)
Wed Mar  2 19:04:52 2016 - [info]   192.168.127.102(192.168.127.102:3306)
Wed Mar  2 19:04:52 2016 - [info]   192.168.127.103(192.168.127.103:3306)
Wed Mar  2 19:04:52 2016 - [info] Alive Slaves:
Wed Mar  2 19:04:52 2016 - [info]   192.168.127.102(192.168.127.102:3306)  Version=5.6.27-75.0-log (oldest major version between slaves) log-bin:enabled
Wed Mar  2 19:04:52 2016 - [info]     Replicating from 192.168.127.101(192.168.127.101:3306)
Wed Mar  2 19:04:52 2016 - [info]     Primary candidate for the new Master (candidate_master is set)
Wed Mar  2 19:04:52 2016 - [info]   192.168.127.103(192.168.127.103:3306)  Version=5.6.27-75.0-log (oldest major version between slaves) log-bin:enabled
Wed Mar  2 19:04:52 2016 - [info]     Replicating from 192.168.127.101(192.168.127.101:3306)
Wed Mar  2 19:04:52 2016 - [info]     Not candidate for the new Master (no_master is set)
Wed Mar  2 19:04:52 2016 - [info] Current Alive Master: 192.168.127.101(192.168.127.101:3306)
Wed Mar  2 19:04:52 2016 - [info] Checking slave configurations..
Wed Mar  2 19:04:52 2016 - [info] Checking replication filtering settings..
Wed Mar  2 19:04:52 2016 - [info]  binlog_do_db= , binlog_ignore_db=
Wed Mar  2 19:04:52 2016 - [info]  Replication filtering check ok.
Wed Mar  2 19:04:52 2016 - [info] GTID (with auto-pos) is not supported
Wed Mar  2 19:04:52 2016 - [info] Starting SSH connection tests..
Wed Mar  2 19:04:54 2016 - [info] All SSH connection tests passed successfully.
Wed Mar  2 19:04:54 2016 - [info] Checking MHA Node version..
Wed Mar  2 19:04:54 2016 - [info]  Version check ok.
Wed Mar  2 19:04:54 2016 - [info] Checking SSH publickey authentication settings on the current master..
Wed Mar  2 19:04:54 2016 - [info] HealthCheck: SSH to 192.168.127.101 is reachable.
Wed Mar  2 19:04:55 2016 - [info] Master MHA Node version is 0.56.
Wed Mar  2 19:04:55 2016 - [info] Checking recovery script configurations on 192.168.127.101(192.168.127.101:3306)..
Wed Mar  2 19:04:55 2016 - [info]   Executing command: save_binary_logs --command=test --start_pos=4 --binlog_dir=/data/mysql3306 --output_file=/tmp/save_binary_logs_test --manager_version=0.56 --start_file=mysql-bin.000004
Wed Mar  2 19:04:55 2016 - [info]   Connecting to root@192.168.127.101(192.168.127.101:22)..
  Creating /tmp if not exists..    ok.
  Checking output directory is accessible or not..
   ok.
  Binlog found at /data/mysql3306, up to mysql-bin.000004
Wed Mar  2 19:04:55 2016 - [info] Binlog setting check done.
Wed Mar  2 19:04:55 2016 - [info] Checking SSH publickey authentication and checking recovery script configurations on all alive slave servers..
Wed Mar  2 19:04:55 2016 - [info]   Executing command : apply_diff_relay_logs --command=test --slave_user='root' --slave_host=192.168.127.102 --slave_ip=192.168.127.102 --slave_port=3306 --workdir=/tmp --target_version=5.6.27-75.0-log --manager_version=0.56 --relay_log_info=/data/mysql3306/relay-log.info  --relay_dir=/data/mysql3306/  --slave_pass=xxx
Wed Mar  2 19:04:55 2016 - [info]   Connecting to root@192.168.127.102(192.168.127.102:22)..
  Checking slave recovery environment settings..
    Opening /data/mysql3306/relay-log.info ... ok.
    Relay log found at /data/mysql3306, up to mysqld-relay-bin.000002
    Temporary relay log file is /data/mysql3306/mysqld-relay-bin.000002
    Testing mysql connection and privileges..Warning: Using a password on the command line interface can be insecure.
done.
    Testing mysqlbinlog output.. done.
    Cleaning up test file(s).. done.
Wed Mar  2 19:04:55 2016 - [info]   Executing command : apply_diff_relay_logs --command=test --slave_user='root' --slave_host=192.168.127.103 --slave_ip=192.168.127.103 --slave_port=3306 --workdir=/tmp --target_version=5.6.27-75.0-log --manager_version=0.56 --relay_log_info=/data/mysql3306/relay-log.info  --relay_dir=/data/mysql3306/  --slave_pass=xxx
Wed Mar  2 19:04:55 2016 - [info]   Connecting to root@192.168.127.103(192.168.127.103:22)..
  Checking slave recovery environment settings..
    Opening /data/mysql3306/relay-log.info ... ok.
    Relay log found at /data/mysql3306, up to mysqld-relay-bin.000002
    Temporary relay log file is /data/mysql3306/mysqld-relay-bin.000002
    Testing mysql connection and privileges..Warning: Using a password on the command line interface can be insecure.
done.
    Testing mysqlbinlog output.. done.
    Cleaning up test file(s).. done.
Wed Mar  2 19:04:55 2016 - [info] Slaves settings check done.
Wed Mar  2 19:04:55 2016 - [info]

•


+--192.168.127.102(192.168.127.102:3306)
+--192.168.127.103(192.168.127.103:3306)
Wed Mar  2 19:04:55 2016 - [info] Checking replication health on 192.168.127.102..
Wed Mar  2 19:04:55 2016 - [info]  ok.
Wed Mar  2 19:04:55 2016 - [info] Checking replication health on 192.168.127.103..
Wed Mar  2 19:04:55 2016 - [info]  ok.
Wed Mar  2 19:04:55 2016 - [info] Checking master_ip_failover_script status:
Wed Mar  2 19:04:55 2016 - [info]   /usr/local/bin/master_ip_failover --command=status --ssh_user=root --orig_master_host=192.168.127.101 --orig_master_ip=192.168.127.101 --orig_master_port=3306
Wed Mar  2 19:04:55 2016 - [info]  OK.
Wed Mar  2 19:04:55 2016 - [warning] shutdown_script is not defined.
Wed Mar  2 19:04:55 2016 - [info] Got exit code 0 (Not master dead).

MySQL Replication Health is OK.

说明成功

6.通过脚本管理 VIP修改master_ip_failover文件（/usr/local/bin）

#!/usr/bin/env perl

#  Copyright (C) 2011 DeNA Co.,Ltd.
#
#  This program is free software; you can redistribute it and/or modify
#  it under the terms of the GNU General Public License as published by
#  the Free Software Foundation; either version 2 of the License, or
#  (at your option) any later version.
#
#  This program is distributed in the hope that it will be useful,
#  but WITHOUT ANY WARRANTY; without even the implied warranty of
#  MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
#  GNU General Public License for more details.
#
#  You should have received a copy of the GNU General Public License
#   along with this program; if not, write to the Free Software
#  Foundation, Inc.,
#  51 Franklin Street, Fifth Floor, Boston, MA  02110-1301  USA

## Note: This is a sample script and is not complete. Modify the script based on your environment.

use strict;
use warnings FATAL => 'all';

use Getopt::Long;

my (
  $command,          $ssh_user,        $orig_master_host, $orig_master_ip,
  $orig_master_port, $new_master_host, $new_master_ip,    $new_master_port
);

my $vip='192.168.127.202/24';
my $key="2";
my $ssh_start_vip ="/sbin/ifconfig eth0:$key $vip";
my $ssh_stop_vip="/sbin/ifconfig eth0:$key down";

GetOptions(
  'command=s'          => \$command,
  'ssh_user=s'         => \$ssh_user,
  'orig_master_host=s' => \$orig_master_host,
  'orig_master_ip=s'   => \$orig_master_ip,
  'orig_master_port=i' => \$orig_master_port,
  'new_master_host=s'  => \$new_master_host,
  'new_master_ip=s'    => \$new_master_ip,
  'new_master_port=i'  => \$new_master_port,
);

exit &main();

sub main {
  if ( $command eq "stop" || $command eq "stopssh" ) {

    # $orig_master_host, $orig_master_ip, $orig_master_port are passed.
    # If you manage master ip address at global catalog database,
    # invalidate orig_master_ip here.
    my $exit_code = 1;
    eval {

      print "Disabling the VIP on old master: $orig_master_host \n";
         &stop_vip();
      $exit_code = 0;
    };
    if ($@) {
      warn "Got Error: $@\n";
      exit $exit_code;
    }
    exit $exit_code;
  }
  elsif ( $command eq "start" ) {

    # all arguments are passed.
    # If you manage master ip address at global catalog database,
    # activate new_master_ip here.
    # You can also grant write access (create user, set read_only=0, etc) here.
    my $exit_code = 10;
    eval {
         print "Enabling the VIP - $vip on the new master - $new_master_host \n";
         &start_vip();
      $exit_code = 0;
    };
    if ($@) {
      warn $@;

      # If you want to continue failover, exit 10.
      exit $exit_code;
    }
    exit $exit_code;
  }
  elsif ( $command eq "status" ) {
    print "Checking the Status of the script.. ok \n";
    # do nothing
    exit 0;
  }
  else {
    &usage();
    exit 1;
  }
}

sub start_vip(){
         `ssh $ssh_user\@$new_master_host \ " $ssh_start_vip \"`;
}

sub stop_vip(){
        `ssh $ssh_user\@$orig_master_host \ " $ssh_stop_vip \"`;
}
sub usage {
  print
"Usage: master_ip_failover --command=start|stop|stopssh|status --orig_master_host=host --orig_master_ip=ip --orig_master_port=port --new_master_host=host --new_master_ip=ip --new_master_port=port\n";
}

注意：首先启动VIP在192.168.127.101（master）上
/sbin/ifconfig eth0:2 192.168.127.202/24
7.开启MHA Manager监控nohup masterha_manager --conf=/etc/masterha/app1.cnf > /masterha/app1/manager.log  </dev/null 2>&1 &
8.查看启动状态[iyunv@MHA ~]# masterha_check_status --conf=/etc/masterha/app1.cnf
app1 (pid:27237) is running(0:PING_OK), master:192.168.127.101

9. 查看启动日志[iyunv@MHA ~]# tail -f /masterha/app1/app1.log
+--192.168.127.103(192.168.127.103:3306)

Wed Mar  2 19:08:34 2016 - [info] Checking master_ip_failover_script status:
Wed Mar  2 19:08:34 2016 - [info]   /usr/local/bin/master_ip_failover --command=status --ssh_user=root --orig_master_host=192.168.127.101 --orig_master_ip=192.168.127.101 --orig_master_port=3306
Wed Mar  2 19:08:34 2016 - [info]  OK.
Wed Mar  2 19:08:34 2016 - [warning] shutdown_script is not defined.
Wed Mar  2 19:08:34 2016 - [info] Set master ping interval 1 seconds.
Wed Mar  2 19:08:34 2016 - [info] Set secondary check script: /usr/bin/masterha_secondary_check  -s MHA -s slave02  --user=root --master_host=master --master_ip=192.168.127.101 --master_port=3306 --password=123456
Wed Mar  2 19:08:34 2016 - [info] Starting ping health check on 192.168.127.101(192.168.127.101:3306)..
Wed Mar  2 19:08:34 2016 - [info] Ping(SELECT) succeeded, waiting until MySQL doesn't respond..

查看VIP
[iyunv@master ~]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 16436 qdisc noqueue state UNKNOWN
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:08:25:3f brd ff:ff:ff:ff:ff:ff
    inet 192.168.127.101/24 brd 192.168.127.255 scope global eth0
    inet 192.168.127.202/24 brd 192.168.127.255 scope global secondary eth0:2
    inet6 fe80::20c:29ff:fe08:253f/64 scope link
       valid_lft forever preferred_lft forever
3: pan0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN

link/ether 0e:ed:39:ba:c1:1b brd ff:ff:ff:ff:ff:ff

10.测试切换

测试关闭主库

[iyunv@master ~]# /etc/init.d/mysql stop

Shutting down MySQL (Percona Server)......                 [  OK  ]

查看slave02复制状态：

[iyunv@slave02 ~]# mysql

Welcome to the MySQL monitor.  Commands end with ; or \g.

Your MySQL connection id is 27

Server version: 5.6.27-75.0-log Percona Server (GPL), Release 75.0, Revision 8bb53b6

Copyright (c) 2009-2015 Percona LLC and/or its affiliates

Copyright (c) 2000, 2015, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its

affiliates. Other names may be trademarks of their respective

owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

root@(none) 07:42:08>show slave status\G;

*************************** 1. row ***************************

               Slave_IO_State: Waiting for master to send event

                  Master_Host: 192.168.127.102  #已经自动切换了

                  Master_User: repl

                  Master_Port: 3306

                Connect_Retry: 60

              Master_Log_File: mysql-bin.000003

          Read_Master_Log_Pos: 981

               Relay_Log_File: mysqld-relay-bin.000002

                Relay_Log_Pos: 283

        Relay_Master_Log_File: mysql-bin.000003

             Slave_IO_Running: Yes

            Slave_SQL_Running: Yes

              Replicate_Do_DB:

          Replicate_Ignore_DB:

           Replicate_Do_Table:

       Replicate_Ignore_Table:

      Replicate_Wild_Do_Table:

  Replicate_Wild_Ignore_Table:

                   Last_Errno: 0

                   Last_Error:

                 Skip_Counter: 0

          Exec_Master_Log_Pos: 981

              Relay_Log_Space: 457

              Until_Condition: None

               Until_Log_File:

                Until_Log_Pos: 0

           Master_SSL_Allowed: No

           Master_SSL_CA_File:

           Master_SSL_CA_Path:

              Master_SSL_Cert:

            Master_SSL_Cipher:

               Master_SSL_Key:

        Seconds_Behind_Master: 0

Master_SSL_Verify_Server_Cert: No

                Last_IO_Errno: 0

                Last_IO_Error:

               Last_SQL_Errno: 0

               Last_SQL_Error:

  Replicate_Ignore_Server_Ids:

             Master_Server_Id: 102

                  Master_UUID: 1bb38a96-e066-11e5-84cb-000c2976ee35

             Master_Info_File: /data/mysql3306/master.info

                    SQL_Delay: 0

          SQL_Remaining_Delay: NULL

      Slave_SQL_Running_State: Slave has read all relay log; waiting for the slave I/O thread to update it

           Master_Retry_Count: 86400

                  Master_Bind:

      Last_IO_Error_Timestamp:

     Last_SQL_Error_Timestamp:

               Master_SSL_Crl:

           Master_SSL_Crlpath:

           Retrieved_Gtid_Set:

            Executed_Gtid_Set:

                Auto_Position: 0

1 row in set (0.00 sec)

ERROR:

No query specified

查看VIP漂移slave01(192.168.247.102)上

[iyunv@slave01 ~]# ip addr

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 16436 qdisc noqueue state UNKNOWN

    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00

    inet 127.0.0.1/8 scope host lo

    inet6 ::1/128 scope host

       valid_lft forever preferred_lft forever

2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000

    link/ether 00:0c:29:76:ee:35 brd ff:ff:ff:ff:ff:ff

    inet 192.168.127.102/24 brd 192.168.127.255 scope global eth0

    inet 192.168.127.202/24 brd 192.168.127.255 scope global secondary eth0:2

    inet6 fe80::20c:29ff:fe76:ee35/64 scope link

       valid_lft forever preferred_lft forever

3: pan0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN

    link/ether 1e:77:57:63:5e:b0 brd ff:ff:ff:ff:ff:ff

10. 修改宕机的Master

通常情况自动切换后，原master 可能已经废弃掉，待原master 主机修改很复后，如果数据完整的情况，可能想把原master重新作为新主库的slave,这是我们就需要借助当时自动切换时刻的MHA日志来完成对原master的修复。下面是提取相关日志的命令：

[iyunv@MHA ~]# grep -i 'change' /masterha/app1/app1.log
Wed Mar  2 19:09:23 2016 - [info]  All other slaves should start replication from here. Statement should be: CHANGE MASTER TO MASTER_HOST='192.168.127.102', MASTER_PORT=3306, MASTER_LOG_FILE='mysql-bin.000003', MASTER_LOG_POS=981, MASTER_USER='repl', MASTER_PASSWORD='xxx';
Wed Mar  2 19:09:23 2016 - [info]  Executed CHANGE MASTER.
11. 修复master变成从库在master(192.168.127.101)操作如下：
[iyunv@master ~]# /etc/init.d/mysql start
Starting MySQL (Percona Server)..                          [  OK  ]
[iyunv@master ~]# mysql
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 1
Server version: 5.6.27-75.0-log Percona Server (GPL), Release 75.0, Revision 8bb53b6

Copyright (c) 2009-2015 Percona LLC and/or its affiliates
Copyright (c) 2000, 2015, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

root@(none) 07:26:45>CHANGE MASTER TO MASTER_HOST='192.168.127.102', MASTER_PORT=3306, MASTER_LOG_FILE='mysql-bin.000003', MASTER_LOG_POS=981, MASTER_USER='repl', MASTER_PASSWORD='repl';
Query OK, 0 rows affected, 2 warnings (0.06 sec)

root@(none) 07:26:47>start slave;
Query OK, 0 rows affected (0.02 sec)
root@(none) 07:26:49>show slave status\G;
*************************** 1. row ***************************
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 192.168.127.102
                  Master_User: repl
                  Master_Port: 3306
                Connect_Retry: 60
              Master_Log_File: mysql-bin.000003
          Read_Master_Log_Pos: 981
               Relay_Log_File: mysqld-relay-bin.000002
                Relay_Log_Pos: 283
        Relay_Master_Log_File: mysql-bin.000003
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes
              Replicate_Do_DB:
          Replicate_Ignore_DB:
           Replicate_Do_Table:
       Replicate_Ignore_Table:
      Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
                   Last_Errno: 0
                   Last_Error:
                 Skip_Counter: 0
          Exec_Master_Log_Pos: 981
              Relay_Log_Space: 457
              Until_Condition: None
               Until_Log_File:
                Until_Log_Pos: 0
           Master_SSL_Allowed: No
           Master_SSL_CA_File:
           Master_SSL_CA_Path:
              Master_SSL_Cert:
            Master_SSL_Cipher:
               Master_SSL_Key:
        Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
                Last_IO_Errno: 0
                Last_IO_Error:
               Last_SQL_Errno: 0
               Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
             Master_Server_Id: 102
                  Master_UUID: 1bb38a96-e066-11e5-84cb-000c2976ee35
             Master_Info_File: /data/mysql3306/master.info
                    SQL_Delay: 0
          SQL_Remaining_Delay: NULL
      Slave_SQL_Running_State: Slave has read all relay log; waiting for the slave I/O thread to update it
           Master_Retry_Count: 86400
                  Master_Bind:
      Last_IO_Error_Timestamp:
     Last_SQL_Error_Timestamp:
               Master_SSL_Crl:
           Master_SSL_Crlpath:
           Retrieved_Gtid_Set:
            Executed_Gtid_Set:
                Auto_Position: 0
1 row in set (0.00 sec)

ERROR:
No query specified
12. 开启新的MHA Manager监控[iyunv@MHA ~]# cd /etc/masterha/
[iyunv@MHA masterha]# cp app1.cnf app2.cnf
修改配置如下，注意：红色是修改地方
[iyunv@MHA masterha]# vi  app2.cnf
[server default]
manager_workdir=/masterha/app1
manager_log=/masterha/app1/app1.log
master_ip_failover_script=/usr/local/bin/master_ip_failover
master_ip_online_change_script=/usr/local/bin/master_ip_online_change

user=root
password=123456
ssh_user=root
repl_user=repl
repl_password=repl
ping_interval=1
remote_workdir=/tmp
report_script=/usr/local/bin/send_report
secondary_check_script=/usr/bin/masterha_secondary_check  -s master  -s slave01  --user=root --master_host=slave01 --master_ip=192.168.127.102 --master_port=3306 --password=123456
shutdown_script=""
report_script=""


[server1]
hostname=192.168.127.102
master_binlog_dir=/data/mysql3306
candidate_master=1
[server2]
hostname=192.168.127.101
master_binlog_dir=/data/mysql3306
candidate_master=1
check_repl_delay=0

[server3]
hostname=192.168.127.103
master_binlog_dir=/data/mysql3306
no_master=1

查看
[iyunv@MHA masterha]# masterha_check_status --conf=/etc/masterha/app1.cnf
app1 is stopped(2:NOT_RUNNING).
启动新的MHA监控
[iyunv@MHA masterha]# nohup masterha_manager --conf=/etc/masterha/app2.cnf > /masterha/app1/manager.log  </dev/null 2>&1 &
[1] 2089
查看启动状态
[iyunv@MHA masterha]# masterha_check_status --conf=/etc/masterha/app2.cnf
app2 (pid:2089) is running(0:PING_OK), master:192.168.127.102

以上测试成功，为了保证稳定，反复测试一下。

13.MHA+半同步复制为了保证数据一致性采用半同步复制
（1）Master(192.168.127.101),slave01(192.168.127.102)操作如下：
执行安装相关插入件启动半同步复制
INSTALL PLUGIN rpl_semi_sync_master SONAME 'semisync_master.so';
SET GLOBAL rpl_semi_sync_master_enabled=1;
SET GLOBAL rpl_semi_sync_master_timeout=10000;
切换时也可能当作从库，所以也操作如下步骤
INSTALL PLUGIN rpl_semi_sync_slave SONAME 'semisync_slave.so';
SET GLOBAL rpl_semi_sync_slave_enabled=1;

在配置文件my.cnf增加以下参数
#############半同步###########
rpl_semi_sync_master_enabled=1
rpl_semi_sync_master_timeout=1000
rpl_semi_sync_master_trace_level=32
rpl_semi_sync_master_wait_no_slave=on

rpl_semi_sync_slave_enabled=1
#################################

（2）       所以的从都操作如下：

Slave02(192.168.127.102)的操作

执行安装相关插入件启动半同步复制
INSTALL PLUGIN rpl_semi_sync_slave SONAME 'semisync_slave.so';
SET GLOBAL rpl_semi_sync_slave_enabled=1;
在配置文件my.cnf增加以下参数
#############半同步###########
rpl_semi_sync_slave_enabled=1
#################################

以上配置成功，不需要重启

查看主库的半同步
root@(none) 11:36:36>show variables like 'rpl%';
+------------------------------------+----------+
| Variable_name                      | Value    |
+------------------------------------+----------+
| rpl_semi_sync_master_enabled       | ON       |
| rpl_semi_sync_master_timeout       | 10000    |
| rpl_semi_sync_master_trace_level   | 32       |
| rpl_semi_sync_master_wait_no_slave | ON       |
| rpl_semi_sync_slave_enabled        | ON       |
| rpl_semi_sync_slave_trace_level    | 32       |
| rpl_stop_slave_timeout             | 31536000 |
+------------------------------------+----------+
7 rows in set (0.01 sec)

查看从库的半同步

root@(none) 11:36:36>show variables like 'rpl%';
+---------------------------------+----------+
| Variable_name                   | Value    |
+---------------------------------+----------+
| rpl_semi_sync_slave_enabled     | ON       |
| rpl_semi_sync_slave_trace_level | 32       |
| rpl_stop_slave_timeout          | 31536000 |
+---------------------------------+----------+
3 rows in set (0.01 sec)

hello11

很好，很强大
