环境基于nginx1.9源码安装编博文！！！

把nginx.conf配置文件备份一下，然后进行相应的server_name更改为bbs.zxl.com方式访问

1
2
3
4

[iyunv@nginx-web ~]# cd /usr/local/nginx/conf/
[iyunv@nginx-web conf]# pwd
/usr/local/nginx/conf
[iyunv@nginx-web conf]# cp nginx.conf nginx.conf.bak

检查nginx语法

1
2
3

root@nginx-web ~]# /usr/local/nginx/sbin/nginx -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful

重新加载nginx服务

1	[iyunv@nginx-web ~]# /usr/local/nginx/sbin/nginx -s reload

在linux服务器上更改hosts文件

1 2	[iyunv@nginx-web ~]# tail -n 1 /etc/hosts 192.168.33.131bbs.zxl.com

使用curl进行访问下

1
2
3
4
5
6
7
8
9
10

[iyunv@nginx-web ~]# curl -I http://bbs.zxl.com
HTTP/1.1 200 OK
Server: nginx/1.9.12
Date: Sat, 05 Mar 2016 02:35:52 GMT
Content-Type: text/html
Content-Length: 49
Last-Modified: Sat, 05 Mar 2016 02:34:55 GMT
Connection: keep-alive
ETag: "56da45cf-31"
Accept-Ranges: bytes

生成自签证书

1
2
3
4
5

[iyunv@nginx-web tls]# pwd
/etc/pki/tls
[iyunv@nginx-web tls]# cp openssl.cnf openssl.cnf.bak//习惯修改文件之前先备份
[iyunv@nginx-web tls]# vim openssl.cnf
42 dir = /etc/pki/CA # Where everything is kept //存放目录

生成私钥

1
2
3
4
5
6
7
8
9

[iyunv@nginx-web tls]# cd /etc/pki/CA/
[iyunv@nginx-web CA]# ls
certs crl newcerts private
[iyunv@nginx-web CA]# ls private/
[iyunv@nginx-web CA]# (umask 077; openssl genrsa 2048 > private/cakey.pem)
Generating RSA private key, 2048 bit long modulus
.............................+++
.......+++
e is 65537 (0x10001)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

[iyunv@nginx-web CA]# openssl req -new -x509 -key private/cakey.pem -out cacert.pem
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:BJ
Locality Name (eg, city) [Default City]:BJ
Organization Name (eg, company) [Default Company Ltd]:ZXL
Organizational Unit Name (eg, section) []:IT
Common Name (eg, your name or your server's hostname) []:ca.zxl.com
Email Address []:zxladmin@zxl.com
[iyunv@nginx-web CA]# ls
cacert.pem certs crl newcerts private
[iyunv@nginx-web CA]# touch serial
[iyunv@nginx-web CA]# echo 00 > serial
[iyunv@nginx-web CA]# touch index.txt

创建存放证书目录

1
2
3
4
5
6
7
8

[iyunv@nginx-web ~]# mkdir /usr/local/nginx/ssl
[iyunv@nginx-web ~]# cd /usr/local/nginx/ssl/
[iyunv@nginx-web ssl]# ls
[iyunv@nginx-web ssl]# (umask 077; openssl genrsa 2048 > nginx.key)
Generating RSA private key, 2048 bit long modulus
...........................................................................................................................................................+++
............+++
e is 65537 (0x10001)

生成请求证书

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

[iyunv@nginx-web ssl]# openssl req -new -key nginx.key -out nginx.csr
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:BJ
Locality Name (eg, city) [Default City]:BJ
Organization Name (eg, company) [Default Company Ltd]:ZXL
Organizational Unit Name (eg, section) []:IT
Common Name (eg, your name or your server's hostname) []:bbs.zxl.com
Email Address []:zxladmin@zxl.com
Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:

自签证书10年

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

[iyunv@nginx-web ssl]# openssl ca -in nginx.csr -out nginx.crt -days 3650
Using configuration from /etc/pki/tls/openssl.cnf
Check that the request matches the signature
Signature ok
Certificate Details:
      Serial Number: 0 (0x0)
      Validity
         Not Before: Mar  5 02:51:37 2016 GMT
         Not After : Mar  3 02:51:37 2026 GMT
      Subject:
         countryName             = CN
         stateOrProvinceName    = BJ
         organizationName       = ZXL
         organizationalUnitName = IT
         commonName             = bbs.zxl.com
         emailAddress             = zxladmin@zxl.com
      X509v3 extensions:
         X509v3 Basic Constraints:
            CA:FALSE
         Netscape Comment:
            OpenSSL Generated Certificate
         X509v3 Subject Key Identifier:
            74:86:87:7B:32:24:5F:2B:03:43:B8:C9:07:AF:76:33:86:21:07:04
         X509v3 Authority Key Identifier:
            keyid:32:D4:F1:04:8E:D8:37:0C:1F:E3:74:6C:C7:76:7F:FE:8D:1C:BE:E8
Certificate is to be certified until Mar  3 02:51:37 2026 GMT (3650 days)
Sign the certificate? [y/n]:y
1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated

修改nginx配置文件中的ssl

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

[iyunv@nginx-web conf]# pwd
/usr/local/nginx/conf
[iyunv@nginx-web conf]# tail -n 22 nginx.conf
# HTTPS server
#
server {
      listen    443 ssl;
      server_name  bbs.zxl.com;
      ssl_certificate    /usr/local/nginx/ssl/nginx.crt;
      ssl_certificate_key  /usr/local/nginx/ssl/nginx.key;
      ssl_session_cache shared:SSL:1m;
      ssl_session_timeout  5m;
      ssl_ciphers  HIGH:!aNULL:!MD5;
      ssl_prefer_server_ciphers  on;
      location / {
         root html;
         index  index.html index.htm;
      }
}
}

检查nginx语法

1
2
3

[iyunv@nginx-web ~]# /usr/local/nginx/sbin/nginx -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful

加载nginx服务并查看nginx 443端口

1
2
3
4

[iyunv@nginx-web ~]# /usr/local/nginx/sbin/nginx -s reload
[iyunv@nginx-web ~]# netstat -ntpl|grep nginx
tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN 14778/nginx
tcp 0 0 0.0.0.0:443 0.0.0.0:* LISTEN 14778/nginx

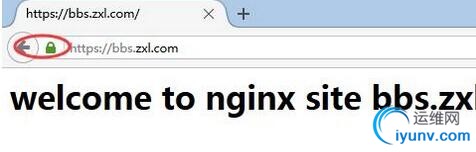

window客户端hosts文件修改为
