AIX 5.3 Install Oracle 10g RAC 错误集锦--磁盘I/O 故障
系统环境： 操作系统： AIX 5300-09 集群软件： CRS 10.2.0.1 数据库： Oracle 10.2.0.1

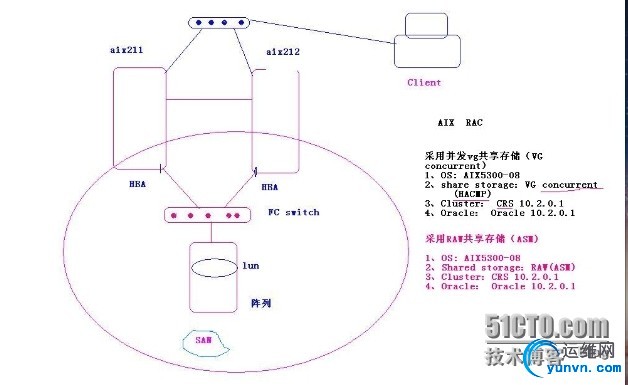

系统架构图 本机采用vg 并发（VG concurrent）作为共享的存储 故障现象：

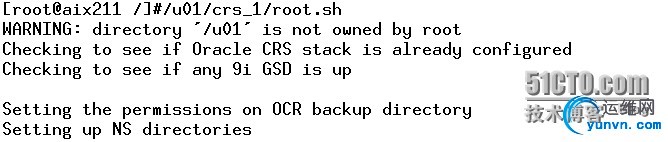

、 当在第一个node（aix211）执行root.sh时，被hang住...... 查看日志： [iyunv@aix211 soft]#cd /u01/crs_1/log [iyunv@aix211 aix211]#ls admin client cssd racg alertaix211.log crsd evmd [iyunv@aix211 aix211]#cd client/ [iyunv@aix211 client]#ls ocrconfig_458796.log ocrconfig_471234.log [iyunv@aix211 client]#ls -lt total 24 -rw-r----- 1 root system 681 May 8 14:57 ocrconfig_458796.log -rw-r----- 1 root system 5684 May 8 14:54 ocrconfig_471234.log [iyunv@aix211 client]#tail -f ocrconfig_458796.log Oracle Database 10g CRS Release 10.2.0.1.0 Production Copyright 1996, 2005 Oracle. All rights reserved. 2014-05-08 14:56:08.858: [ OCRCONF][1]ocrconfig starts... 2014-05-08 14:56:08.860: [ OCRCONF][1]Upgrading OCR data 2014-05-08 14:56:27.280: [ OCROSD][1]utread:3: problem reading buffer 100e09f0 buflen 512 retval -1 phy_offset 102400 retry 0 2014-05-08 14:56:27.280: [ OCROSD][1]utread:4: problem reading the buffer errno 5 errstring I/O error 2014-05-08 14:57:03.279: [ OCROSD][1]utread:3: problem reading buffer 100f1b70 buflen 1024 retval -1 phy_offset 102400 retry 0 2014-05-08 14:57:03.279: [ OCROSD][1]utread:4: problem reading the buffer errno 5 errstring I/O error 2014-05-08 14:57:39.279: [ OCROSD][1]utread:3: problem reading buffer 100f1b70 buflen 1536 retval -1 phy_offset 102400 retry 0 2014-05-08 14:57:39.279: [ OCROSD][1]utread:4: problem reading the buffer errno 5 errstring I/O error 出现磁盘的I/O故障！
解决方法： 1、查看PV和VG [iyunv@aix211 client]#lspv hdisk0 00040f8aaa29d28e rootvg active hdisk1 000e1a6ce663b4af racvg concurrent [iyunv@aix211 client]#lsvg racvg --查看VG时也 hang 住......看来是共享卷组的磁盘出现了故障，因为是个实验环境，阵列不很稳定，所有重启系统......
2、重启系统后，重新执行root.sh 3、手工执行安装后校验 [oracle@aix211 ~]$cd /u01/soft/Disk1（CRS 安装盘） [oracle@aix211 Disk1]$ls cluvfy install response rootpre runInstaller stage upgrade [oracle@aix211 Disk1]$cd cluvfy/ [oracle@aix211 cluvfy]$ls bin cv cvupack.zip jlib jrepack.zip lib lib32 runcluvfy.sh [oracle@aix211 cluvfy]$./runcluvfy.sh -help USAGE: cluvfy [ -help ] cluvfy stage { -list | -help } cluvfy stage {-pre|-post} <stage-name> <stage-specific options> [-verbose] cluvfy comp { -list | -help } cluvfy comp <component-name> <component-specific options> [-verbose]
[oracle@aix211 cluvfy]$./runcluvfy.sh stage -post crsinst -n aix211,aix212 -verbose Performing post-checks for cluster services setup Checking node reachability... Check: Node reachability from node "aix211" Destination Node Reachable? ------------------------------------ ------------------------ aix211 yes aix212 yes Result: Node reachability check passed from node "aix211". Checking user equivalence... Check: User equivalence for user "oracle" Node Name Comment ------------------------------------ ------------------------ aix212 passed aix211 passed Result: User equivalence check passed for user "oracle".
Checking Cluster manager integrity... Checking CSS daemon... Node Name Status ------------------------------------ ------------------------ aix212 running aix211 running Result: Daemon status check passed for "CSS daemon". Cluster manager integrity check passed. Checking cluster integrity... Node Name ------------------------------------ aix211 aix212 Cluster integrity check passed Checking OCR integrity... Checking the absence of a non-clustered configuration... All nodes free of non-clustered, local-only configurations. Uniqueness check for OCR device passed. Checking the version of OCR... OCR of correct Version "2" exists. Checking data integrity of OCR... Data integrity check for OCR passed. OCR integrity check passed. Checking CRS integrity... Checking daemon liveness... Check: Liveness for "CRS daemon" Node Name Running ------------------------------------ ------------------------ aix212 yes aix211 yes Result: Liveness check passed for "CRS daemon". Checking daemon liveness... Check: Liveness for "CSS daemon" Node Name Running ------------------------------------ ------------------------ aix212 yes aix211 yes Result: Liveness check passed for "CSS daemon". Checking daemon liveness... Check: Liveness for "EVM daemon" Node Name Running ------------------------------------ ------------------------ aix212 yes aix211 yes Result: Liveness check passed for "EVM daemon". Liveness of all the daemons Node Name CRS daemon CSS daemon EVM daemon ------------ ------------------------ ------------------------ ---------- aix212 yes yes yes aix211 yes yes yes Checking CRS health... Check: Health of CRS Node Name CRS OK? ------------------------------------ ------------------------ aix212 yes aix211 yes Result: CRS health check passed. CRS integrity check passed. Checking node application existence... Checking existence of VIP node application Node Name Required Status Comment ------------ ------------------------ ------------------------ ---------- aix212 yes exists passed aix211 yes exists passed Result: Check passed. Checking existence of ONS node application Node Name Required Status Comment ------------ ------------------------ ------------------------ ---------- aix212 no exists passed aix211 no exists passed Result: Check passed. Checking existence of GSD node application Node Name Required Status Comment ------------ ------------------------ ------------------------ ---------- aix212 no exists passed aix211 no exists passed Result: Check passed. Post-check for cluster services setup was successful. [oracle@aix211 cluvfy]$ @至此，CRS安装成功，问题解决！
|
