一、模块说明
keepalived是为了实现nginx的高可用性，在安装了nginx的两台机子上分别部署keepalived-master和keepalived-slave，会给两台机子的eth0增加两个虚拟ip（10.188.1.51,10.188.1.52)，将网站域名的DNS指向这两个VIP，或者是出口路由器端口映射向这两个VIP
当任一台机子故障或chk_nginx.sh检测到其主机上的nginx故障时，VIP都会自动漫游到另一台正常的机子，可以扩展到更多台机子。
二、目录结构
三、代码展示
1、files目录
chk_nginx.sh #检查nginx服务状态的脚本
1
2
3
4
5
6
7
8
9
10
| #!/bin/sh
# check nginx server status
A=`ps -C nginx -no-header |wc -l`
if [ $A -eq 0 ];then
/usr/sbin/nginx
sleep 3
if [ `ps -C nginx --no-header |wc -l` -eq 0 ];then
killall keepalived
fi
fi
|
keepalived-1.2.7.tar.gz #安装包下载 http://www.keepalived.org/software/keepalived-1.2.7.tar.gz
2、manifests目录
init.pp
1
2
3
| class keepalived {
include keepalived::install,keepalived::config,keepalived::service
}
|
install.pp
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
| class keepalived::install {
Exec{ path => ['/usr/bin','/usr/sbin','/bin'] }
package { ['openssl-devel','popt-devel']:
ensure => installed,
before => Exec['install'],
}
file { '/etc/keepalived':
ensure => directory,
}
file { 'keepalived':
name => '/usr/local/src/keepalived-1.2.7.tar.gz',
ensure => file,
source => 'puppet:///modules/keepalived/keepalived-1.2.7.tar.gz',
owner => root,
group => root,
mode => '0640',
require => Package[['openssl-devel','popt-devel']],
}
exec { 'tar':
command => 'tar -zxf keepalived-1.2.7.tar.gz',
cwd => '/usr/local/src',
refreshonly => true,
subscribe => File['keepalived'],
before => Exec['install'],
}
exec { 'install':
command => '/bin/bash configure && make && make install',
cwd => '/usr/local/src/keepalived-1.2.7',
creates => '/usr/local/sbin/keepalived',
}
}
|
config.pp # $keepalived_conf参数可在foreamen的主机属性里设置，或节点site.pp里设置
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
| class keepalived::config {
case $keepalived_conf {
master: {
file { '/etc/keepalived/keepalived.conf':
ensure => file,
owner => root,
group => root,
mode => 400,
content => template("keepalived/keepalived-master.conf.erb"),
notify => Class['keepalived::service'],
require => Class['keepalived::install'],
}
}
slave: {
file { '/etc/keepalived/keepalived.conf':
ensure => file,
owner => root,
group => root,
mode => 400,
content => template("keepalived/keepalived-slave.conf.erb"),
notify => Class['keepalived::service'],
require => Class['keepalived::install'],
}
}
}
file { "/usr/sbin/keepalived":
ensure => link,
target => "/usr/local/sbin/keepalived",
owner => root,
group => root,
mode => 755,
require => Class['keepalived::install'],
}
file { "/etc/rc.d/init.d/keepalived":
ensure => link,
target => "/usr/local/etc/rc.d/init.d/keepalived",
owner => root,
group => root,
mode => 755,
require => Class['keepalived::install'],
}
file { "/etc/sysconfig/keepalived":
ensure => link,
target => "/usr/local/etc/sysconfig/keepalived",
owner => root,
group => root,
mode => 755,
require => Class['keepalived::install'],
}
file { '/usr/local/nginx':
ensure => directory,
before => File['/usr/local/nginx/chk_nginx.sh'],
}
file { '/usr/local/nginx/chk_nginx.sh':
ensure => file,
owner => root,
group => root,
mode => 755,
source => "puppet:///modules/keepalived/chk_nginx.sh",
require => Class['keepalived::install'],
}
}
|
service.pp
1
2
3
4
5
6
7
8
9
| class keepalived::service {
service { 'keepalived':
ensure => 'running',
enable => 'true',
hasrestart => 'true',
hasstatus => 'true',
require => Class["keepalived::install"],
}
}
|
3、templates目录
keepalived-master.conf.erb #根据情况修改邮箱、密码、IP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
| ! Configuration File for keepalived
global_defs {
notification_email {
yourmail@ewin.com
}
notification_email_from keepalived@ewin.com
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id LVS_DEVEL
}
vrrp_script chk_nginx {
script "/usr/local/nginx/chk_nginx.sh"
interval 2
weight 2
}
track_script {
chk_nginx
}
vrrp_instance VI_1 {
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass mypassword
}
virtual_ipaddress {
10.188.1.51
}
}
vrrp_instance VI_2 {
state BECKUP
interface eth0
virtual_router_id 52
priority 99
advert_int 1
authentication {
auth_type PASS
auth_pass mypassword
}
virtual_ipaddress {
10.188.1.52
}
}
|
keepalived-slave.conf.erb
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
| ! Configuration File for keepalived
global_defs {
notification_email {
yourmail@ewin.com
}
notification_email_from keepalived@ewin.com
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id LVS_DEVEL
}
vrrp_script chk_nginx {
script "/usr/local/nginx/chk_nginx.sh"
interval 2
weight 2
}
track_script {
chk_nginx
}
vrrp_instance VI_1 {
state BECKUP
interface eth0
virtual_router_id 51
priority 99
advert_int 1
authentication {
auth_type PASS
auth_pass mypassword
}
virtual_ipaddress {
10.188.1.51
}
}
vrrp_instance VI_2 {
state MASTER
interface eth0
virtual_router_id 52
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass mypassword
}
virtual_ipaddress {
10.188.1.52
}
}
|
四、Foreman配置

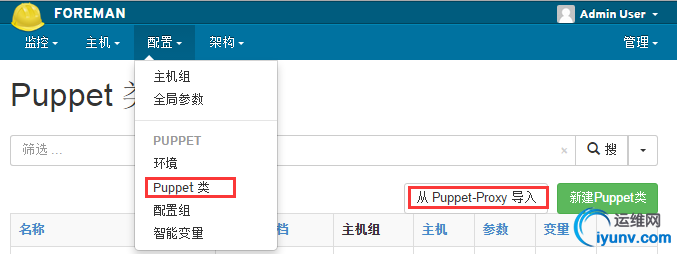

导入模块
我这里在配置－配置组中将nginx和keepalived放在了一个组里，然后编辑主机，给其分配该组：
给主机添加一个参数，指定其使用哪个配置文件：

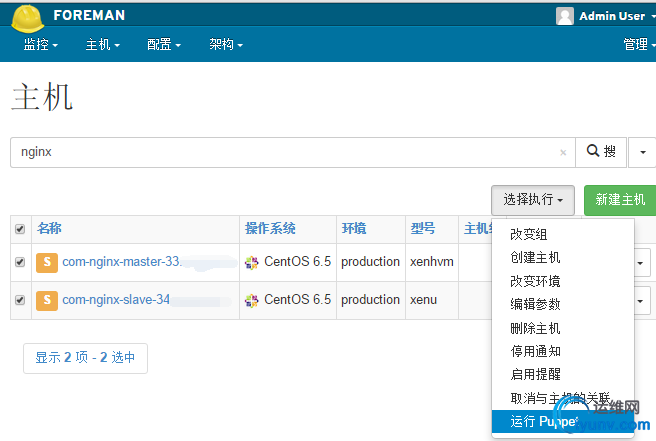

搜索添加了模块的nginx主机，手动运行Puppet：
五、查看结果
在客户端主机上查看VIP
1
2
3
4
5
6
7
8
9
10
11
12
13
| [iyunv@com-nginx-master-33 ~]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu16436 qdisc noqueue state UNKNOWN
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0:<BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen1000
link/ether 72:cc:7f:ea:b9:97 brd ff:ff:ff:ff:ff:ff
inet 10.188.1.32/8 brd 10.255.255.255 scope global eth0
inet 10.188.1.51/32 scope global eth0
inet 10.188.1.52/32 scope global eth0
inet6 fe80::70cc:7fff:feea:b997/64 scope link
valid_lft forever preferred_lft forever
|
可以看到eth0接口上多了两个VIP，接下来可以实验停止某台nginx或关机，观察VIP的变化。
|
|
