RHEL6.5下安装OpenSIPS

32rwe

1.修改服务器的主机名称[iyunv@localhost ~]# vim /etc/sysconfig/network
NETWORKING=yes
HOSTNAME=localhost.localdomain
HOSTNAME=OpenSIPS.clvn.com.cn

2.查看NetworkManager服务的状态
[iyunv@localhost ~]# service NetworkManager status
NetworkManager (pid  2945) 正在运行...

3.将NetworkManager服务关闭
[iyunv@localhost ~]# service NetworkManager stop
停止 NetworkManager 守护进程：                             [确定]

4.设置NetworkManager服务开机时自动关闭
[iyunv@localhost ~]# chkconfig --level 35 NetworkManager off

5.查看NetworkManager服务开机时是否处于自动关闭状态
[iyunv@localhost ~]# chkconfig --list NetworkManager
NetworkManager  0:关闭 1:关闭 2:启用 3:关闭 4:启用 5:关闭 6:关闭

6.配置IP地址
[iyunv@localhost ~]# vim /etc/sysconfig/network-scripts/ifcfg-eth0
DEVICE=eth0
HWADDR=00:0C:29:6C:A2:40
TYPE=Ethernet
UUID=9b5a23e3-7c38-4b6e-b7ac-088f33c8727b
ONBOOT=yes
NM_CONTROLLED=no
BOOTPROTO=none
IPADDR=192.168.0.28
NETMASK=255.255.255.0
IPV6INIT=no
USERCTL=no
7.设置主机名称和IP地址的对应关系
[iyunv@localhost ~]# vim /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.0.28 OpenSIPS.clvn.com.cn                               OpenSIPS
8.重新启动服务器
[iyunv@localhost ~]# reboot
9.查看主机名称
[iyunv@OpenSIPS ~]# hostname
OpenSIPS.clvn.com.cn
10.查看ip地址是否生效
[iyunv@OpenSIPS ~]# ifconfig eth0
eth0      Link encap:Ethernet  HWaddr 00:0C:29:5B:82:3D
          inet addr:192.168.0.28  Bcast:192.168.0.255  Mask:255.255.255.0
          inet6 addr: fe80::20c:29ff:fe5b:823d/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:11 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 b)  TX bytes:746 (746.0 b)

11.安装opensips所依赖的软件包
[iyunv@OpenSIPS ~]# yum -y install gcc make
[iyunv@OpenSIPS ~]# yum -y install flex bison ncurses ncurses-devel openssl-devel zlib-devel
[iyunv@OpenSIPS ~]# yum -y install mysql mysql-server mysql-libs mysql-devel

12.查看opensips软件包
[iyunv@OpenSIPS ~]# cd /usr/local
[iyunv@OpenSIPS local]# ls
bin  games                      lib         libexec                                    sbin   src
etc  include                     lib64      opensips-1.11.1_src.tar.gz  share

13.解压该软件包
[iyunv@OpenSIPS local]# tar -zxvf opensips-1.11.1_src.tar.gz

14.查看解压后生成的目录
[iyunv@OpenSIPS local]# ls
bin  games    lib    libexec                     opensips-1.11.1-tls  share
etc  include  lib64  opensips-1.11.1_src.tar.gz  sbin                 src

15.查看当前所在的目录
[iyunv@OpenSIPS opensips-1.11.1-tls]# pwd
/usr/local/opensips-1.11.1-tls

16.编译
[iyunv@OpenSIPS opensips-1.11.1-tls]# make prefix=/ all include_modules="db_mysql"

17.安装
[iyunv@OpenSIPS opensips-1.11.1-tls]# make prefix=/ install include_modules="db_mysql"

18.修改配置文件
[iyunv@OpenSIPS ~]# vim /etc/opensips/opensipsctlrc
## database host
DBHOST=192.168.0.28
## database name (for ORACLE this is TNS name)
DBNAME=opensips
# database path used by dbtext or db_berkeley
# DB_PATH="/usr/local/etc/opensips/dbtext"
## database read/write user
DBRWUSER=opensips
## password for database read/write user
DBRWPW="opensipsrw"
## database super user (for ORACLE this is 'scheme-creator' user)
DBROOTUSER="root"

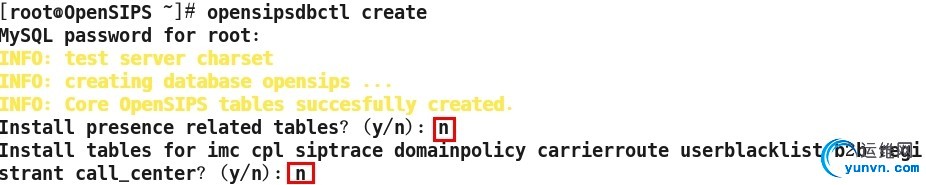

19.创建数据库

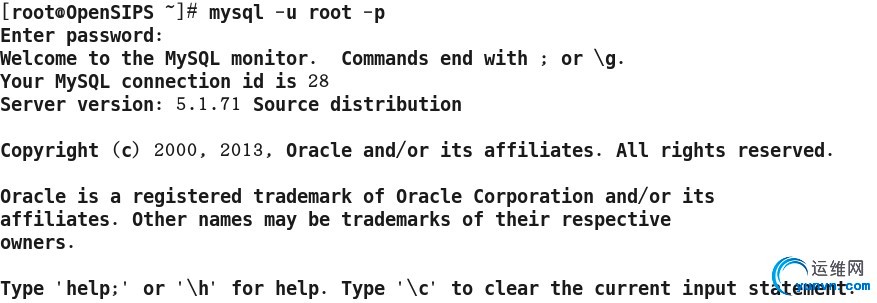

20.登录数据库

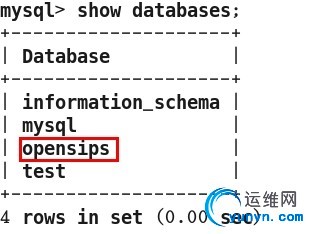

21.查看数据库

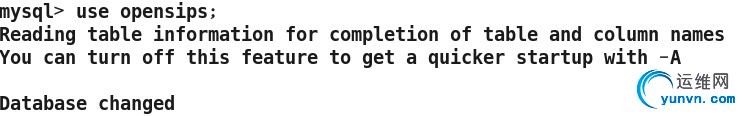

22.切换数据库

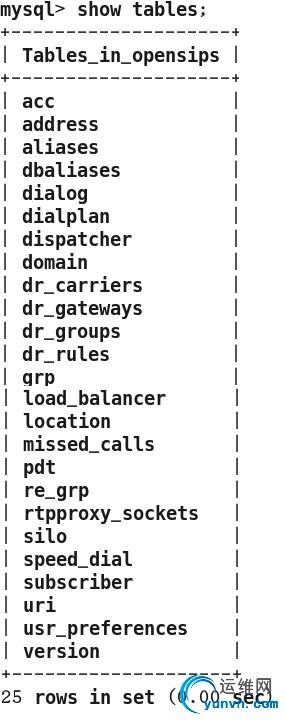

23.查看数据库中的表

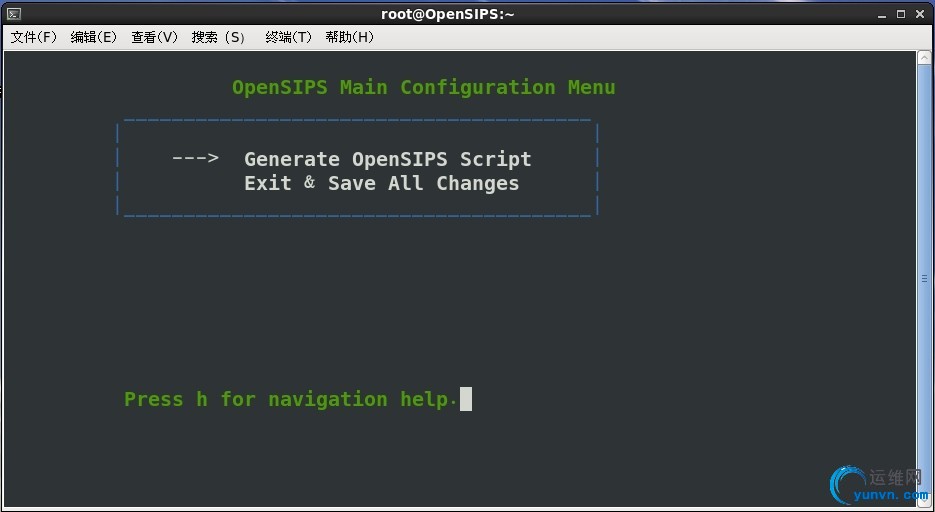

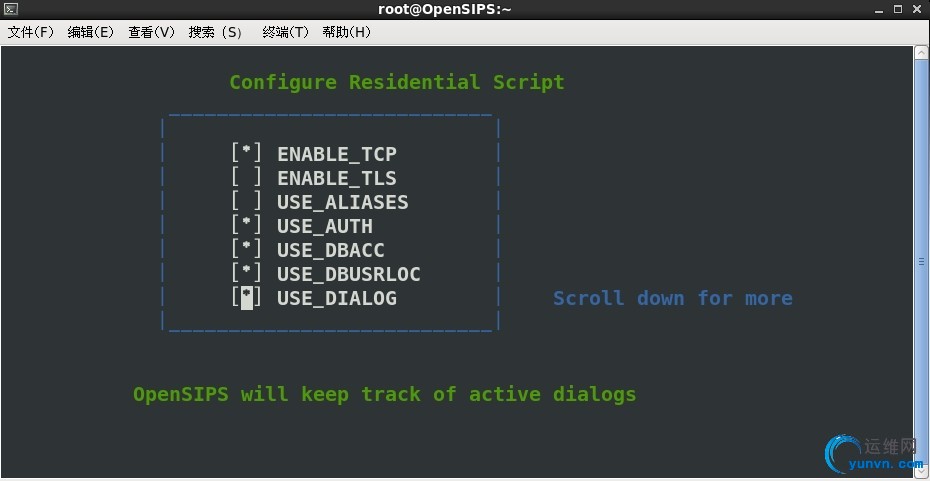

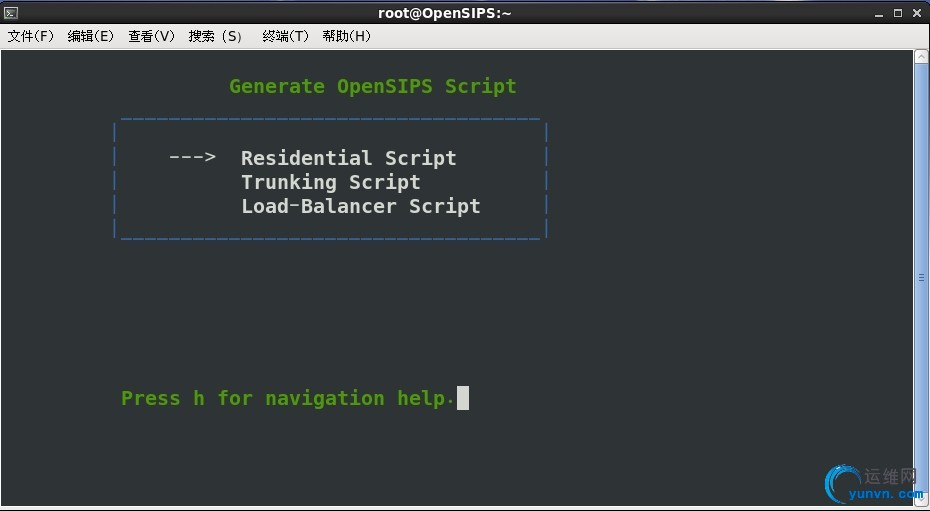

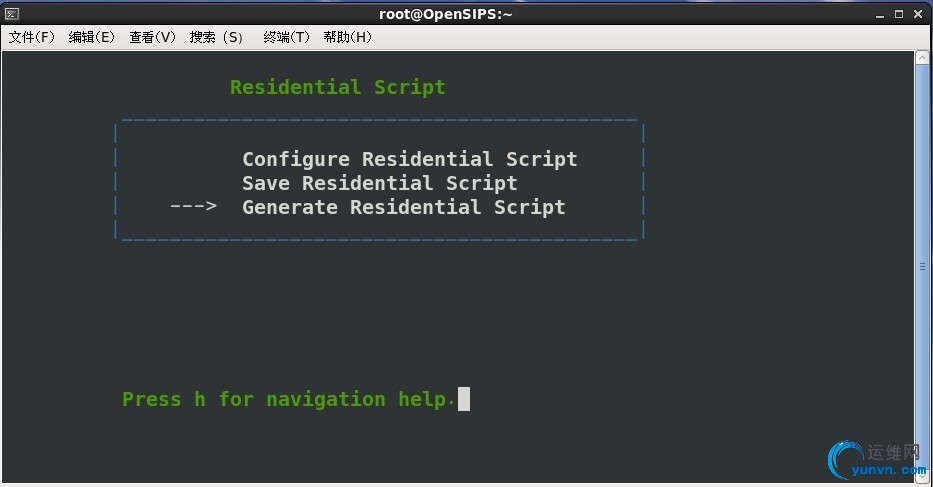

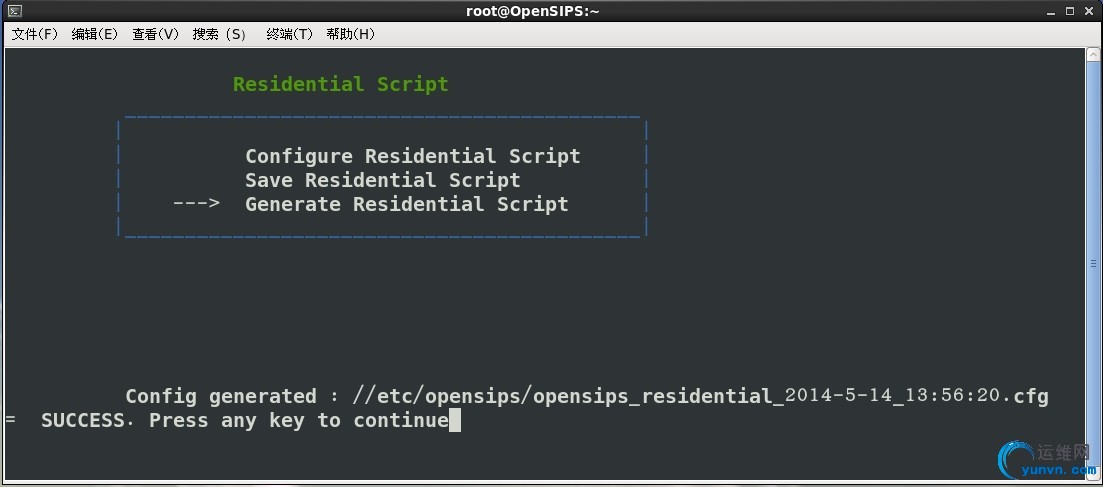

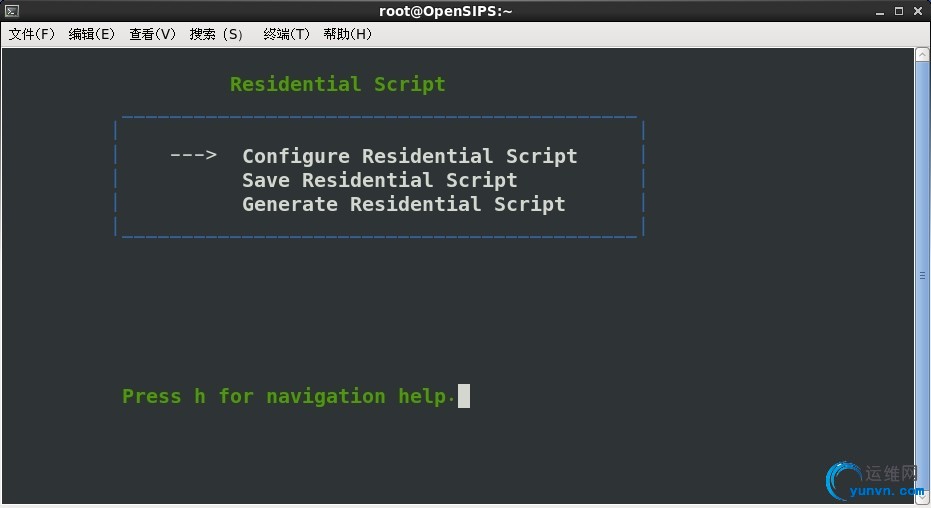

24.配置opensips

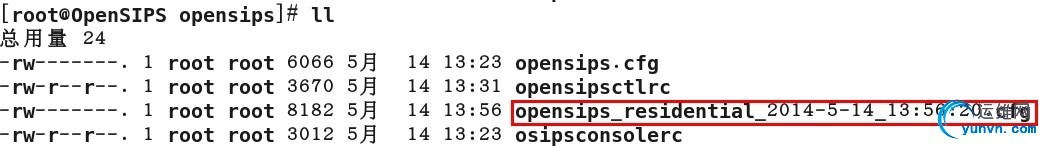

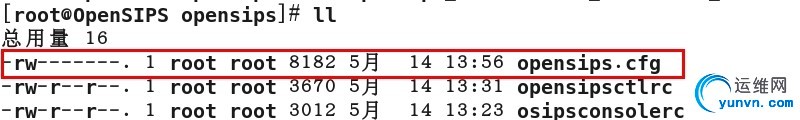

25.查看生成的配置文件


26.将原来的配置文件***

27.将生成的配置文件改成默认的配置文件

28.查看是否更改成功

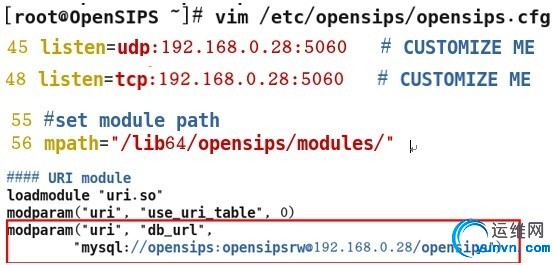

29.修改配置文件如下

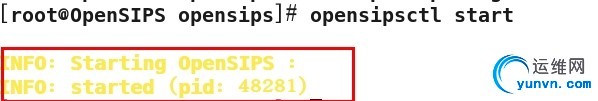

29.启动opensips

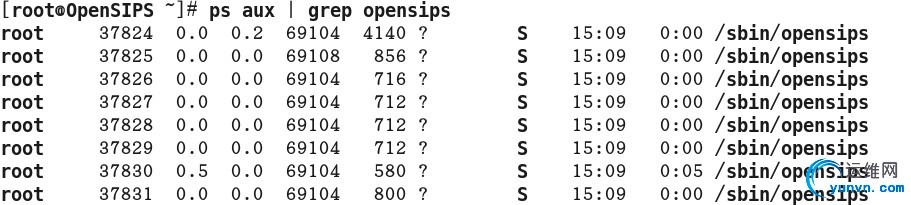

30.查看opensips是否启动成功
