hadoop的源码分析之RPC（Remote Procedure Call Protocol）

gtdfe

理解这个RPC是不是的先去理解哈动态代理 好多invoke，还有Socket网络编程

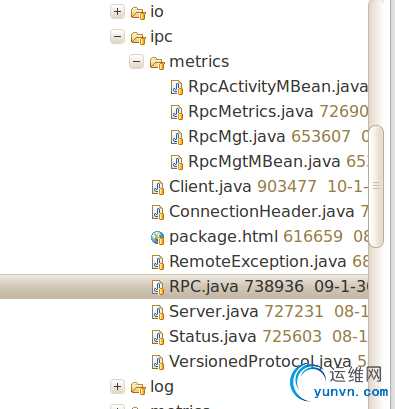

先来张eclipse下IPC源码图：


先来看看RPC.java，既然是动态代理，自然会想到Invoke()方法了，先来看看RPC中的Invoker中的invoke()方法
private static class Invoker implements InvocationHandler {
    private InetSocketAddress address;
    private UserGroupInformation ticket;
    private Client client;
    private boolean isClosed = false;

    public Invoker(InetSocketAddress address, UserGroupInformation ticket,
                   Configuration conf, SocketFactory factory) {
      this.address = address;
      this.ticket = ticket;
      this.client = CLIENTS.getClient(conf, factory);
    }

    public Object invoke(Object proxy, Method method, Object[] args)
      throws Throwable {
      final boolean logDebug = LOG.isDebugEnabled();
      long startTime = 0;
      if (logDebug) {
        startTime = System.currentTimeMillis();
      }

      ObjectWritable value = (ObjectWritable)
        client.call(new Invocation(method, args), address,
                    method.getDeclaringClass(), ticket);
      if (logDebug) {
        long callTime = System.currentTimeMillis() - startTime;
        LOG.debug("Call: " + method.getName() + " " + callTime);
      }
      return value.get();
    }

    /* close the IPC client that's responsible for this invoker's RPCs */
    synchronized private void close() {
      if (!isClosed) {
        isClosed = true;
        CLIENTS.stopClient(client);
      }
    }
  }
可以看出动态代理里的invoke()方法其实是RPC里的invocation对方法名，参数做了封装，可以看invocation类的
封装后给client调用，这时就转向client调用了


    private static class Invocation implements Writable, Configurable {
    private String methodName;
    private Class[] parameterClasses;
    private Object[] parameters;
    private Configuration conf;

    public Invocation() {}

    public Invocation(Method method, Object[] parameters) {
      this.methodName = method.getName();
      this.parameterClasses = method.getParameterTypes();
      this.parameters = parameters;
    }

    /** The name of the method invoked. */
    public String getMethodName() { return methodName; }

    /** The parameter classes. */
    public Class[] getParameterClasses() { return parameterClasses; }

    /** The parameter instances. */
    public Object[] getParameters() { return parameters; }

    public void readFields(DataInput in) throws IOException {
      methodName = UTF8.readString(in);
      parameters = new Object[in.readInt()];
      parameterClasses = new Class[parameters.length];
      ObjectWritable objectWritable = new ObjectWritable();
      for (int i = 0; i < parameters.length; i++) {
        parameters = ObjectWritable.readObject(in, objectWritable, this.conf);
        parameterClasses = objectWritable.getDeclaredClass();
      }
    }

    public void write(DataOutput out) throws IOException {
      UTF8.writeString(out, methodName);
      out.writeInt(parameterClasses.length);
      for (int i = 0; i < parameterClasses.length; i++) {
        ObjectWritable.writeObject(out, parameters, parameterClasses,
                                   conf);
      }
    }

    public String toString() {
      StringBuffer buffer = new StringBuffer();
      buffer.append(methodName);
      buffer.append("(");
      for (int i = 0; i < parameters.length; i++) {
        if (i != 0)
          buffer.append(", ");
        buffer.append(parameters);
      }
      buffer.append(")");
      return buffer.toString();
    }

    public void setConf(Configuration conf) {
      this.conf = conf;
    }

    public Configuration getConf() {
      return this.conf;
    }
}
