前言：常用的web service有两种形式，SOAP和RESTful。这里先说SOAP的实现步骤，RESTful的形式后面再说
一 建项目，导jar包

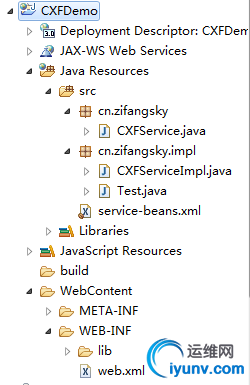

（1）项目结构
（3）配置web.xml： 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| <?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="http://java.sun.com/xml/ns/javaee"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
version="3.0">
<display-name>CXFDemo</display-name>
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>WEB-INF/classes/service-beans.xml</param-value>
</context-param>
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<servlet>
<servlet-name>CXFServlet</servlet-name>
<servlet-class>org.apache.cxf.transport.servlet.CXFServlet</servlet-class>
</servlet>
<servlet-mapping>
<servlet-name>CXFServlet</servlet-name>
<url-pattern>/*</url-pattern>
</servlet-mapping>
<welcome-file-list>
<welcome-file>index.html</welcome-file>
<welcome-file>index.htm</welcome-file>
<welcome-file>index.jsp</welcome-file>
<welcome-file>default.html</welcome-file>
<welcome-file>default.htm</welcome-file>
<welcome-file>default.jsp</welcome-file>
</welcome-file-list>
</web-app>
|
二 web service服务端类 （1）接口CXFService.java： 1
2
3
4
5
6
7
8
9
10
11
| package cn.zifangsky;
import javax.jws.WebMethod;
import javax.jws.WebParam;
import javax.jws.WebService;
@WebService
public interface CXFService {
@WebMethod
public String sayHello(@WebParam(name="name") String name);
}
|
说明：
@WebService：标记表示该接口是一个WebService服务
@WebMethod：标记表示WebService中的方法
@WebParam(name=”paramName”)表示方法中的参数，name属性限制了参数的名称，若没有指定该属性，参数将会被重命名 （2）具体的实现类CXFServiceImpl.java： 1
2
3
4
5
6
7
8
9
10
11
| package cn.zifangsky.impl;
import cn.zifangsky.CXFService;
public class CXFServiceImpl implements CXFService {
public String sayHello(String name) {
return "Hello," + name + "\n" + Test.getExtraMessage();
}
}
|
注：Test.java类：
1
2
3
4
5
6
7
| package cn.zifangsky.impl;
public class Test {
public static String getExtraMessage(){
return "测试";
}
}
|
（3）配置service-beans.xml：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
| <?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:jaxws="http://cxf.apache.org/jaxws" xmlns:soap="http://cxf.apache.org/bindings/soap"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsd">
<bean id="outLoggingInterceptor" class="org.apache.cxf.interceptor.LoggingOutInterceptor" />
<bean id="loggingFeature" class="org.apache.cxf.feature.LoggingFeature" />
<bean id="inLoggingInterceptor" class="org.apache.cxf.interceptor.LoggingInInterceptor" />
<jaxws:server id="sayHelloServices" serviceClass="cn.zifangsky.CXFService" address="/soap/sayHello" >
<jaxws:serviceBean>
<bean class="cn.zifangsky.impl.CXFServiceImpl" />
</jaxws:serviceBean>
<jaxws:outInterceptors>
<ref bean="outLoggingInterceptor" />
</jaxws:outInterceptors>
<jaxws:inInterceptors>
<ref bean="inLoggingInterceptor" />
</jaxws:inInterceptors>
<jaxws:features>
<ref bean="loggingFeature" />
<wsa:addressing xmlns:wsa="http://cxf.apache.org/ws/addressing" />
</jaxws:features>
</jaxws:server>
</beans>
|

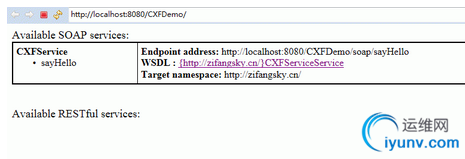

说明： i）3个bean配置的是日志，在这里把日志相关的配置删掉也不影响web service服务的正常使用 ii）address指的是发布后这个服务的路径问题，比如说我这里就是：http://localhost:8080/CXFDemo/soap/sayHello （4）测试 发布这个项目到tomcat，运行之后的效果如下：
点击那个链接，可以发现sayHello这个服务的地址是：http://localhost:8080/CXFDemo/soap/sayHello?wsdl 到此，这个web service的服务端已经配置完成

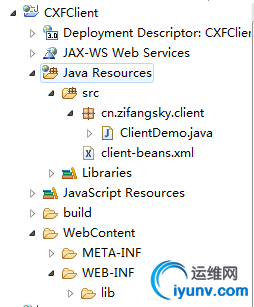

三 web service客户端配置 服务端提供服务，而客户端使用服务端提供的服务，因此客户端只需要调用服务端提供的服务就可以了 （1）客户端的项目结构：

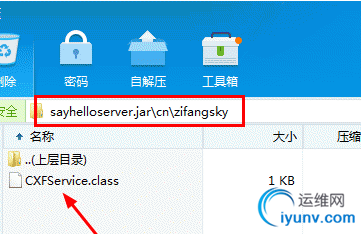

（2）同样是新建一个动态web工程，然后引入cxf的jar包，同时需要把服务端的CXFService接口打包成一个jar包，然后导入到客户端的lib中，链接：http://pan.baidu.com/s/1eQVWups
（3）客户端测试类ClientDemo.java：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
| package cn.zifangsky.client;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import cn.zifangsky.CXFService;
public class ClientDemo {
public static void main(String args[]){
ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext(new String[] {"client-beans.xml"});
CXFService clientHello = (CXFService) context.getBean("clientHello");
String response = clientHello.sayHello("javaee");
context.close();
System.out.println("Response: " + response);
System.exit(0);
}
}
|
（4）客户端配置文件client-beans.xml：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
| <?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:jaxws="http://cxf.apache.org/jaxws"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsd">
<bean id="outLoggingInterceptor" class="org.apache.cxf.interceptor.LoggingOutInterceptor" />
<bean id="loggingFeature" class="org.apache.cxf.feature.LoggingFeature" />
<bean id="inLoggingInterceptor" class="org.apache.cxf.interceptor.LoggingInInterceptor" />
<jaxws:client id="clientHello" serviceClass="cn.zifangsky.CXFService" address="http://localhost:8080/CXFDemo/soap/sayHello?wsdl">
<jaxws:inInterceptors>
<ref bean="inLoggingInterceptor" />
</jaxws:inInterceptors>
<jaxws:outInterceptors>
<ref bean="outLoggingInterceptor" />
</jaxws:outInterceptors>
<jaxws:features>
<ref bean="loggingFeature" />
<wsa:addressing xmlns:wsa="http://cxf.apache.org/ws/addressing" />
</jaxws:features>
</jaxws:client>
</beans>
|
说明： 这里的address需要填写服务的wsdl绝对地址，因此这里就是：http://localhost:8080/CXFDemo/soap/sayHello?wsdl
（5）测试 直接使用“Java Application”运行ClientDemo，输出如下： 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
| ---------------------------
ID: 1
Address: http://localhost:8080/CXFDemo/soap/sayHello?wsdl
Encoding: UTF-8
Http-Method: POST
Content-Type: text/xml
Headers: {Accept=[*/*], SOAPAction=[""]}
Payload: <soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"><soap:Header><Action xmlns="http://www.w3.org/2005/08/addressing">http://zifangsky.cn/CXFService/s ... on><MessageID xmlns="http://www.w3.org/2005/08/addressing">urn:uuid:0d855e41-d638-4525-a3cf-8055c40f8605</MessageID><To xmlns="http://www.w3.org/2005/08/addressing">http://localhost:8080/CXFDemo/soap/sayHello?wsdl</To><ReplyTo xmlns="http://www.w3.org/2005/08/addressing"><Address>http://www.w3.org/2005/08/addres ... gt;<ns2:sayHello xmlns:ns2="http://zifangsky.cn/"><name>javaee</name></ns2:sayHello></soap:Body></soap:Envelope>
--------------------------------------
三月 14, 2016 4:51:41 下午 org.apache.cxf.services.CXFServiceService.CXFServicePort.CXFService
信息: Inbound Message
----------------------------
ID: 1
Response-Code: 200
Encoding: UTF-8
Content-Type: text/xml;charset=UTF-8
Headers: {content-type=[text/xml;charset=UTF-8], Date=[Mon, 14 Mar 2016 08:51:41 GMT], Server=[Apache-Coyote/1.1], transfer-encoding=[chunked]}
Payload: <soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"><soap:Header><Action xmlns="http://www.w3.org/2005/08/addressing">http://zifangsky.cn/CXFService/s ... on><MessageID xmlns="http://www.w3.org/2005/08/addressing">urn:uuid:504f4c19-5df9-42bd-bb02-761da4932490</MessageID><To xmlns="http://www.w3.org/2005/08/addressing">http://www.w3.org/2005/08/addres ... To><RelatesTo xmlns="http://www.w3.org/2005/08/addressing">urn:uuid:0d855e41-d638-4525-a3cf-8055c40f8605</RelatesTo></soap:Header><soap:Body><ns2:sayHelloResponse xmlns:ns2="http://zifangsky.cn/"><return>Hello,javaee
测试</return></ns2:sayHelloResponse></soap:Body></soap:Envelope>
--------------------------------------
三月 14, 2016 4:51:41 下午 org.springframework.context.support.AbstractApplicationContext doClose
信息: Closing org.springframework.context.support.ClassPathXmlApplicationContext@62a76581: startup date [Mon Mar 14 16:51:39 GMT+08:00 2016]; root of context hierarchy
Response: Hello,javaee
测试
|
可以发现，最后成功输出了
1
2
| Response: Hello,javaee
测试
|
因为我们在客户端中只引用了CXFService.java这个接口，但是却输出了预期的内容，说明客户端的确是调用了服务端的服务并成功返回信息的
|
