实战3 Nginx结合MongoDB数据库

3212

•                                                             Mongodb官方文档：http://docs.mongodb.org/manual/
• 一、介绍Mongodb的web管理界面


1、Mongodb的安装
2、启动Mongodb以及web管理端口
注释：截取一部分参数

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

[iyunv@mongodb ~]# mongod --help Options: General options:   -f [ --config ] arg         configuration file specifying additional options   --quiet                     quieter output   --port arg                  specify port number - 27017 by default   --dbpath arg (=/data/db)    directory for datafiles - defaults to /data/db/   --logpath arg               log file to send write to instead of stdout - has   --httpinterface             enable http interface   --fork                      fork server process   --rest                      turn on simple rest api 注意：默认情况下mongodb 2.6版本的管理关口是是关闭的 --httpinterface：启用mongodb的http的端口 [iyunv@mongodb ~]# mongod --httpinterface 2014-06-10T16:19:00.067-0400 [initandlisten] MongoDB starting : pid=6157 port=27017 dbpath=/data/db 64-bit host=mongodb 2014-06-10T16:19:00.068-0400 [initandlisten] db version v2.6.1 2014-06-10T16:19:00.068-0400 [initandlisten] git version: 4b95b086d2374bdcfcdf2249272fb552c9c726e8 2014-06-10T16:19:00.068-0400 [initandlisten] build info: Linux build14.nj1.10gen.cc 2.6.32-431.3.1.el6.x86_64 #1 SMP Fri Jan 3 21:39:27 UTC 2014 x86_64 BOOST_LIB_VERSION=1_49 2014-06-10T16:19:00.068-0400 [initandlisten] allocator: tcmalloc 2014-06-10T16:19:00.068-0400 [initandlisten] options: { net: { http: { enabled: true } } } 2014-06-10T16:19:00.198-0400 [initandlisten] journal dir=/data/db/journal 2014-06-10T16:19:00.198-0400 [initandlisten] recover : no journal files present, no recovery needed 2014-06-10T16:19:00.209-0400 [initandlisten] waiting for connections on port 27017 2014-06-10T16:19:00.252-0400 [websvr] admin web console waiting for connections on port 28017

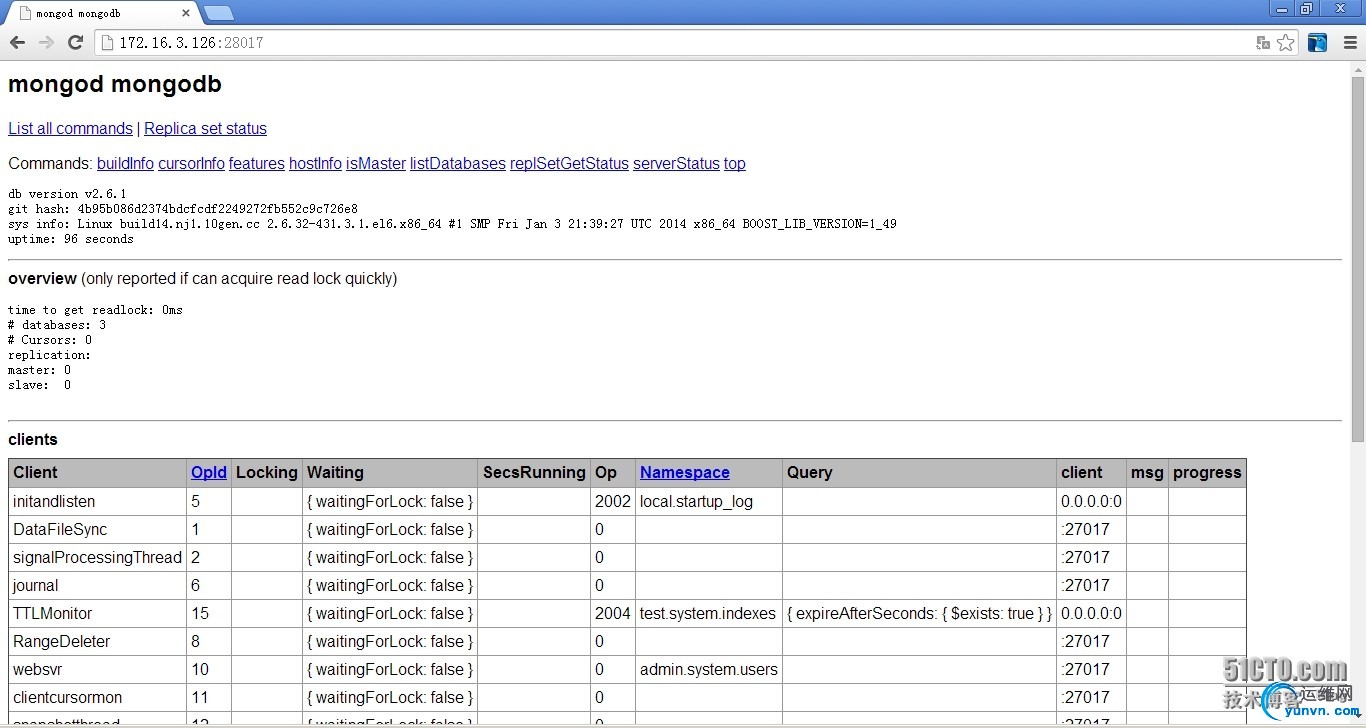

3.访问Mongodb的管理界面 http://172.16.3.126:28017/
二、在Mongodb中存放文件有两种方式：
1、命令行方式mongofiles
#上传图片到mongodb数据库

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

[iyunv@mongodb opt]# mongofiles put zhengyansheng.jpg -h 127.0.0.1 -d pics -t jpg connected to: 127.0.0.1 added file: { _id: ObjectId('53976bfee549115e4df63464'), filename: "zhengyansheng.jpg", chunkSize: 261120, uploadDate: new Date(1402432510426), md5: "414c671373903f8093acbace1ab35978", length: 12335, contentType: "jpg" } done! #查看mongodb是否有图片 [iyunv@mongodb opt]# mongo MongoDB shell version: 2.6.1 connecting to: test > use pics switched to db pics > show collections fs.chunks fs.files system.indexes > db.fs.files.find() { "_id" : ObjectId("53976bfee549115e4df63464"), "filename" : "zhengyansheng.jpg", "chunkSize" : 261120, "uploadDate" : ISODate("2014-06-10T20:35:10.426Z"), "md5" : "414c671373903f8093acbace1ab35978", "length" : 12335, "contentType" : "jpg" } >

2、客户端编程
#程序执行上传
#PHP 上传图片至mongodb
#注意在lamp或者lnmp环境才能执行上传

1 2 3 4 5 6 7 8 9 10 11 12

<?php $conn = new Mongo("127.0.0.1:27017"); $db = $conn->pics; $grid = $db->getGridFS(); //直接上传图片 //$id = $grid->put('/opt/server.jpg', array('filename' => 'server.jpg')); //二进制流形式写入 $data = file_get_contents('/tmp/server.jpg'); $id = $grid->storeBytes($data, array('filename' => 'server.jpg')); $result = $grid->find();print_r($result); $conn->close(); ?>

三、安装nginx的插件nginx-gridfs

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

gridfs为nginx的扩展模块 mdirolf-nginx-gridfs-v0.8-0-gb5f8113.tar.gz的下载地址 https://download.github.com/mdir ... 8-0-gb5f8113.tar.gz mongodb-mongo-c-driver为gridfs连接mongodb数据库的驱动 mongodb-mongo-c-driver-v0.3-0-g74cc0b8.tar.gz的下载地址 https://download.github.com/mong ... 3-0-g74cc0b8.tar.gz [iyunv@mongodb src]# tar xf nginx-gridfs-0.8.tar.gz [iyunv@mongodb src]# tar xf mongo-c-driver-0.3.1.tar.gz [iyunv@mongodb src]# ll total 80 drwxrwxr-x. 6 root root  4096 May 12  2011 mongo-c-driver-0.3.1 -rw-r--r--. 1 root root 53024 Jun 11  2014 mongo-c-driver-0.3.1.tar.gz drwxrwxr-x. 3 root root  4096 Apr 14  2011 nginx-gridfs-0.8 -rw-r--r--. 1 root root 18883 Jun 11  2014 nginx-gridfs-0.8.tar.gz [iyunv@mongodb src]# ll nginx-gridfs-0.8/mongo-c-driver/ total 0 [iyunv@mongodb src]# mv mongo-c-driver-0.3.1/* nginx-gridfs-0.8/mongo-c-driver/

四、编译nginx并添加模块nginx-gridfs
1、安装nginx

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175

yum -y install gcc gcc-c++ make unzip wget vim openssh-clients unzip pcre-8.33.zip cd pcre-8.33 ./configure --prefix=/usr/local/pcre make && make install cd .. tar xf zlib-1.2.8.tar.gz cd zlib-1.2.8 ./configure  --prefix=/usr/local/zlib make && make install cd .. tar xf openssl-1.0.0l.tar.gz cd openssl-1.0.0l ./config --prefix=/usr/local/openssl make && make install cd .. groupadd -r nginx useradd -g nginx -r -s /sbin/nologin nginx tar xf nginx-1.4.7.tar.gz cd nginx-1.4.7 ./configure \ --user=nginx \ --group=nginx \ --prefix=/usr/local/nginx \ --with-pcre=../pcre-8.33 \ --with-zlib=../zlib-1.2.8 \ --with-openssl=../openssl-1.0.0l \ --with-http_stub_status_module \ --error-log-path=/var/log/nginx/error.log \ --http-log-path=/var/log/nginx/access.log \ --pid-path=/var/run/nginx/nginx.pid  \ --lock-path=/var/lock/nginx.lock \ --with-http_gzip_static_module \ --http-proxy-temp-path=/var/tmp/nginx/proxy/ \ --http-fastcgi-temp-path=/var/tmp/nginx/fcgi/ \ --http-uwsgi-temp-path=/var/tmp/nginx/uwsgi \ --http-scgi-temp-path=/var/tmp/nginx/scgi \ --add-module=/usr/local/src/nginx-gridfs-0.8 make -j8 && make install -j8 ===vim /etc/init.d/nginx=== #!/bin/sh # # nginx - this script starts and stops the nginx daemon # # chkconfig:   - 85 15 # description:  Nginx is an HTTP(S) server, HTTP(S) reverse \ #               proxy and IMAP/POP3 proxy server # processname: nginx # config:      /usr/local/nginx/conf/nginx.conf # config:      /usr/local/nginx/sbin/nginx # pidfile:     /var/run/nginx.pid # Source function library. . /etc/rc.d/init.d/functions # Source networking configuration. . /etc/sysconfig/network # Check that networking is up. [ "$NETWORKING" = "no" ] && exit 0 nginx="/usr/local/nginx/sbin/nginx" prog=$(basename $nginx) NGINX_CONF_FILE="/usr/local/nginx/conf/nginx.conf" [ -f /etc/sysconfig/nginx ] && . /etc/sysconfig/nginx lockfile=/var/lock/subsys/nginx make_dirs() {    # make required directories    user=`nginx -V 2>&1 | grep "configure arguments:" | sed 's/[^*]*--user=\([^ ]*\).*/\1/g' -`    options=`$nginx -V 2>&1 | grep 'configure arguments:'`    for opt in $options; do        if [ `echo $opt | grep '.*-temp-path'` ]; then            value=`echo $opt | cut -d "=" -f 2`            if [ ! -d "$value" ]; then                # echo "creating" $value                mkdir -p $value && chown -R $user $value            fi        fi    done } start() {     [ -x $nginx ] || exit 5     [ -f $NGINX_CONF_FILE ] || exit 6     make_dirs     echo -n $"Starting $prog: "     daemon $nginx -c $NGINX_CONF_FILE     retval=$?     echo     [ $retval -eq 0 ] && touch $lockfile     return $retval } stop() {     echo -n $"Stopping $prog: "     killproc $prog -QUIT     retval=$?     echo     [ $retval -eq 0 ] && rm -f $lockfile     return $retval } restart() {     configtest || return $?     stop     sleep 1     start } reload() {     configtest || return $?     echo -n $"Reloading $prog: "     killproc $nginx -HUP     RETVAL=$?     echo } force_reload() {     restart } configtest() {   $nginx -t -c $NGINX_CONF_FILE } rh_status() {     status $prog } rh_status_q() {     rh_status >/dev/null 2>&1 } case "$1" in     start)         rh_status_q && exit 0         $1         ;;     stop)         rh_status_q || exit 0         $1         ;;     restart|configtest)         $1         ;;     reload)         rh_status_q || exit 7         $1         ;;     force-reload)         force_reload         ;;     status)         rh_status         ;;     condrestart|try-restart)         rh_status_q || exit 0             ;;     *)         echo $"Usage: $0 {start|stop|status|restart|condrestart|try-restart|reload|force-reload|configtest}"         exit 2 esac ====赋予权限 chmod +x /etc/init.d/nginx chkconfig --add /etc/init.d/nginx chkconfig nginx on ====启动nginx服务 service nginx start

2、配置nginx规则

1 2 3 4 5 6 7 8 9 10 11 12 13

location /pics/ {     gridfs pics field=filename type=string;     mongo 127.0.0.1:27017; } #参数解释 gridfs：nginx识别插件的关键字 pics：db名 [root_collection]: 选择collection，如root_collection=blog， mongod就会去找blog.files与blog.chunks两个块，默认是fs [field]：查询字段，保证mongdb里有这个字段名，支持_id, filename, 可省略, 默认是_id [type]：解释field的数据类型，支持objectid, int, string, 可省略, 默认是int [user]：用户名, 可省略 [pass]：密码, 可省略 mongo：mongodb url

    重新启动nginx

1	service nginx restart

3、访问nginx中mongodb的图片资源

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

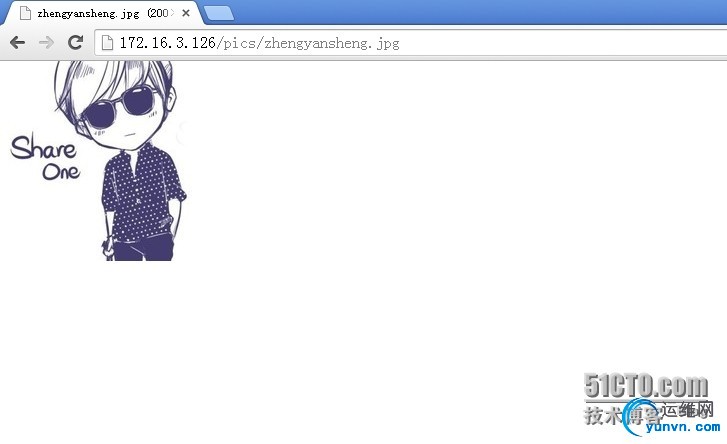

这里需要证明一个结论：就是Mongodb不缓存在客户端的浏览器中 做个试验来证明我的结论 首先我们来访问nginx的默认首页 访问：http://172.16.3.126/ [iyunv@mongodb ~]# tail -f /usr/local/nginx/logs/access.log 172.16.3.136 - - [10/Jun/2014:17:11:35 -0400] "GET / HTTP/1.1" 200 612 "-" "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/34.0.1847.131 Safari/537.36" "-" 172.16.3.136 - - [10/Jun/2014:17:11:35 -0400] "GET /favicon.ico HTTP/1.1" 404 570 "-" "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/34.0.1847.131 Safari/537.36" "-" 172.16.3.136 - - [10/Jun/2014:17:11:48 -0400] "GET / HTTP/1.1" 304 0 "-" "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/34.0.1847.131 Safari/537.36" "-" 172.16.3.136 - - [10/Jun/2014:17:11:51 -0400] "GET / HTTP/1.1" 304 0 "-" "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/34.0.1847.131 Safari/537.36" "-" 172.16.3.136 - - [10/Jun/2014:17:11:56 -0400] "GET / HTTP/1.1" 304 0 "-" "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/34.0.1847.131 Safari/537.36" "-" 再次访问mongodb 访问：http://172.16.3.126/pics/zhengyansheng.jpg [iyunv@mongodb ~]# tail -f /usr/local/nginx/logs/access.log 172.16.3.136 - - [10/Jun/2014:17:12:40 -0400] "GET /pics/zhengyansheng.jpg HTTP/1.1" 200 12335 "-" "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/34.0.1847.131 Safari/537.36" "-" 172.16.3.136 - - [10/Jun/2014:17:12:40 -0400] "GET /favicon.ico HTTP/1.1" 404 570 "-" "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/34.0.1847.131 Safari/537.36" "-" 172.16.3.136 - - [10/Jun/2014:17:12:55 -0400] "GET /pics/zhengyansheng.jpg HTTP/1.1" 200 12335 "-" "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/34.0.1847.131 Safari/537.36" "-" 172.16.3.136 - - [10/Jun/2014:17:12:58 -0400] "GET /pics/zhengyansheng.jpg HTTP/1.1" 200 12335 "-" "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/34.0.1847.131 Safari/537.36" "-" 大家注意看状态码会发现，当我们访问nginx的默认首页的时候状态码是200-->304-->304-->304  说明从浏览器取的缓存                         当我们访问mongodb的时候状态吗是200-->200-->200-->200    说明每次都是从服务器取的资源
